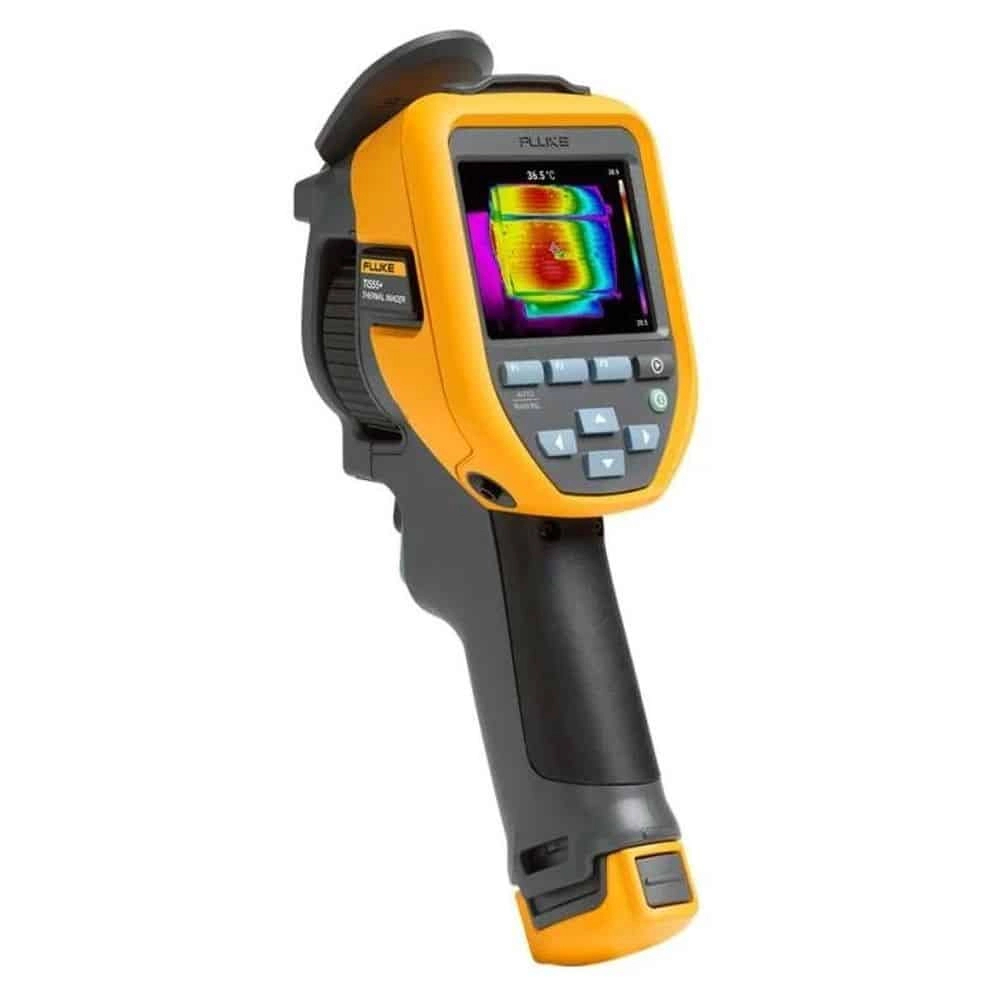

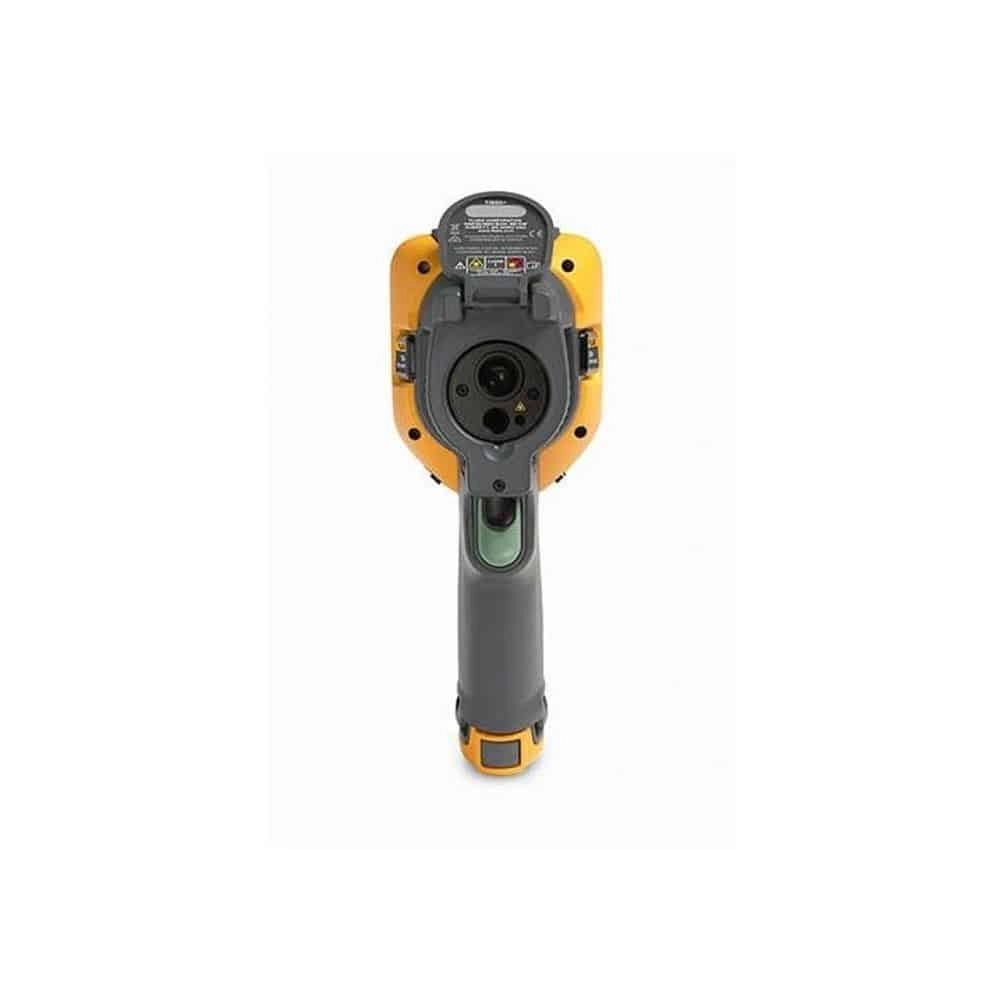

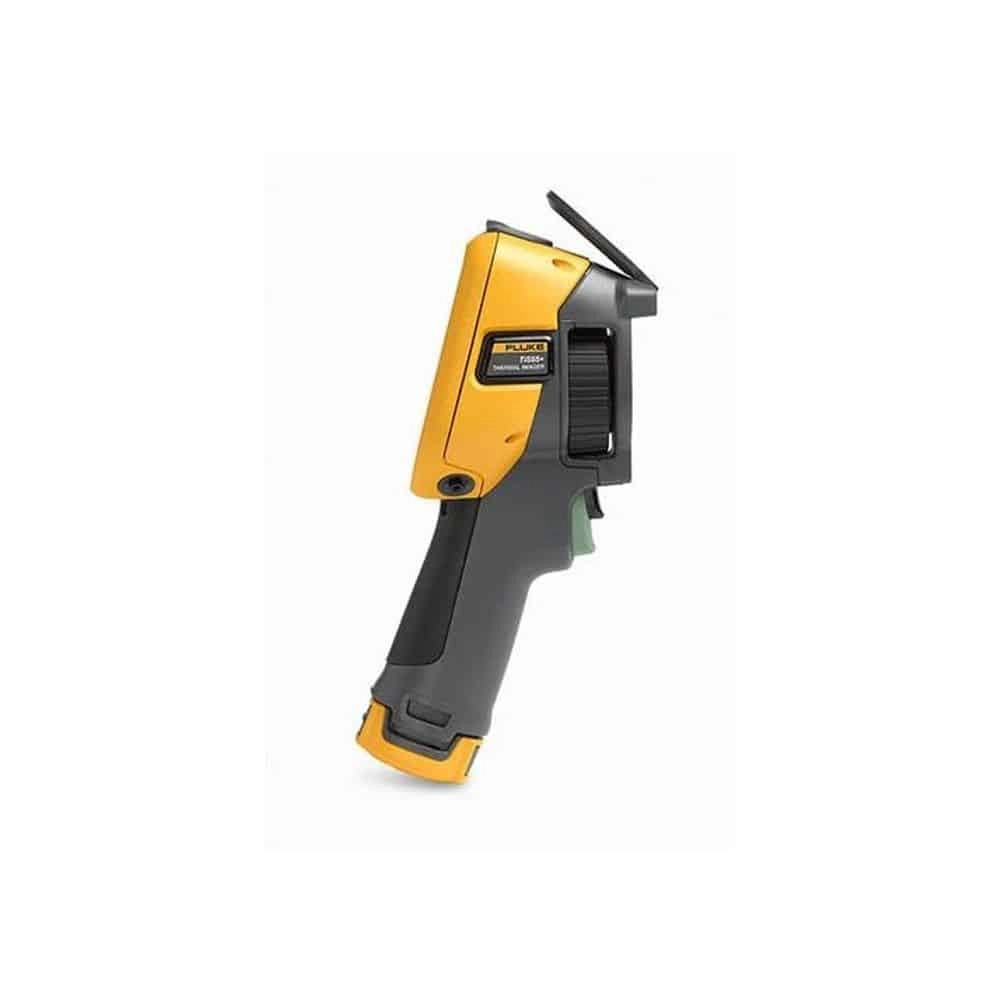

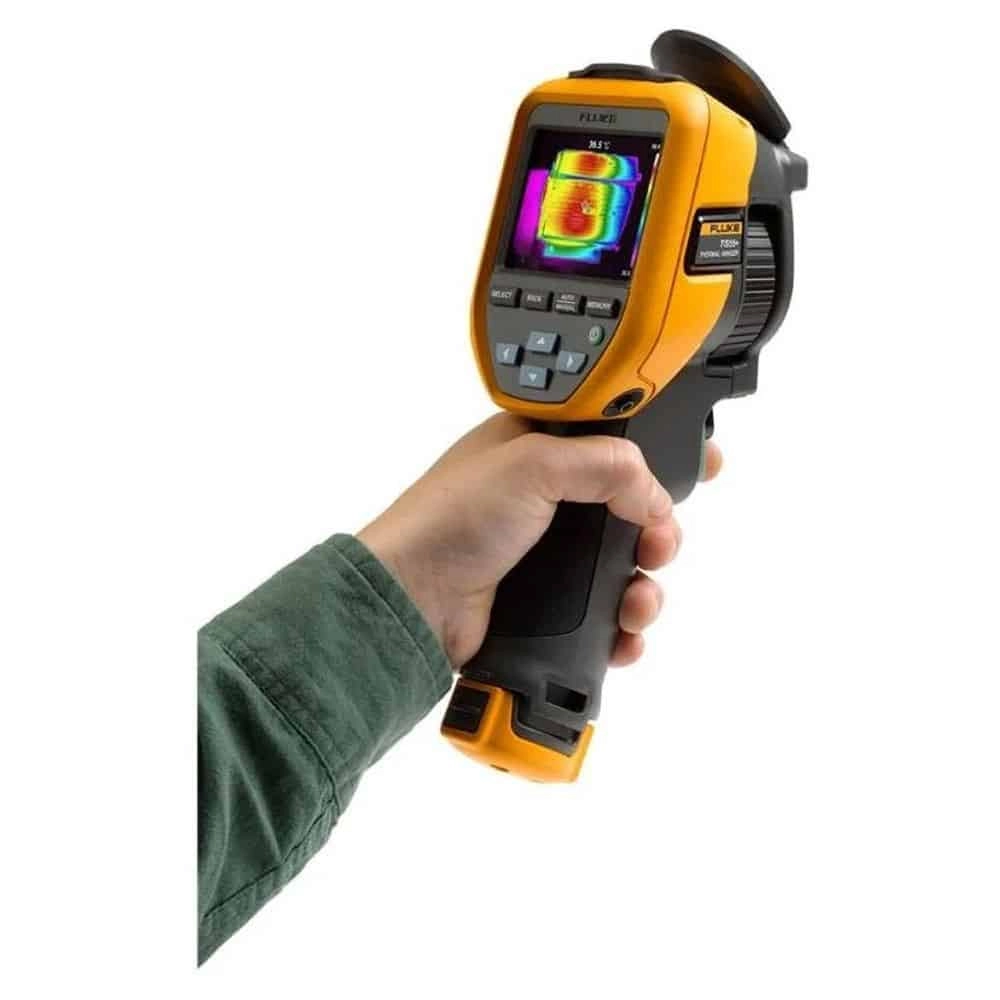

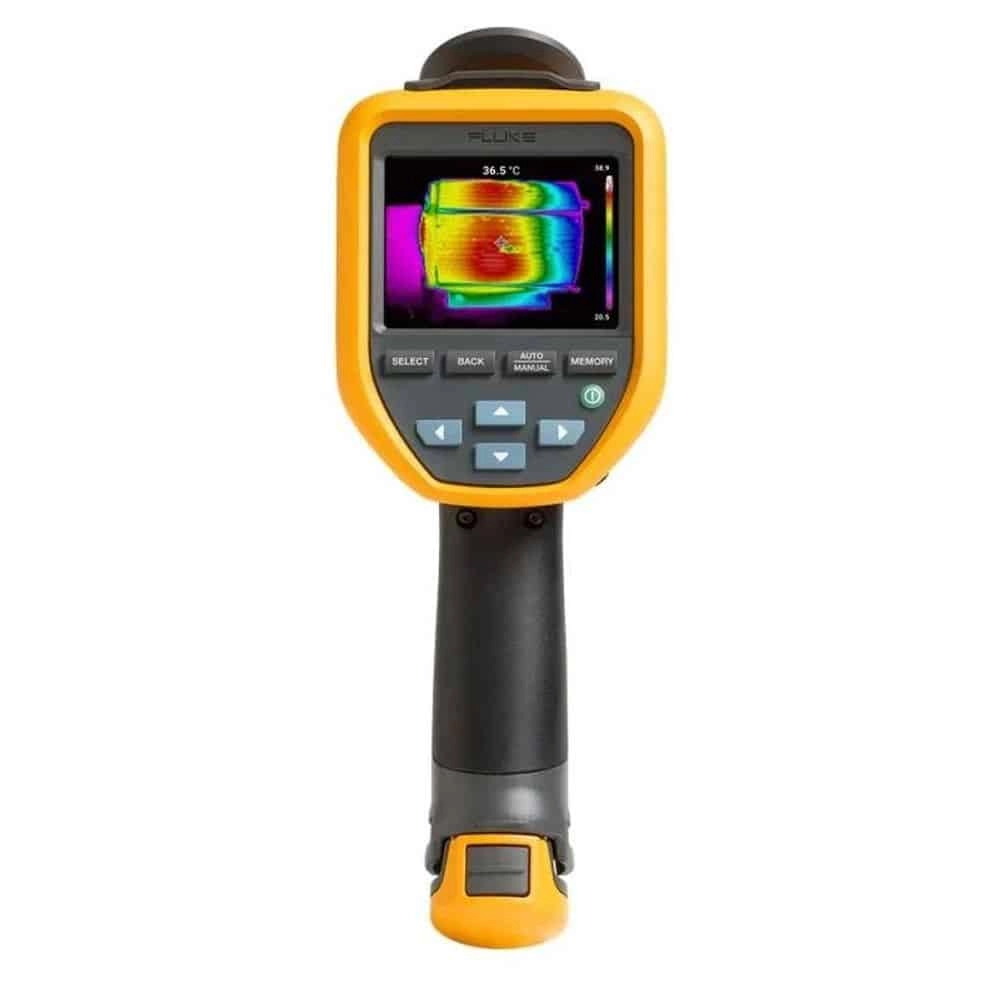

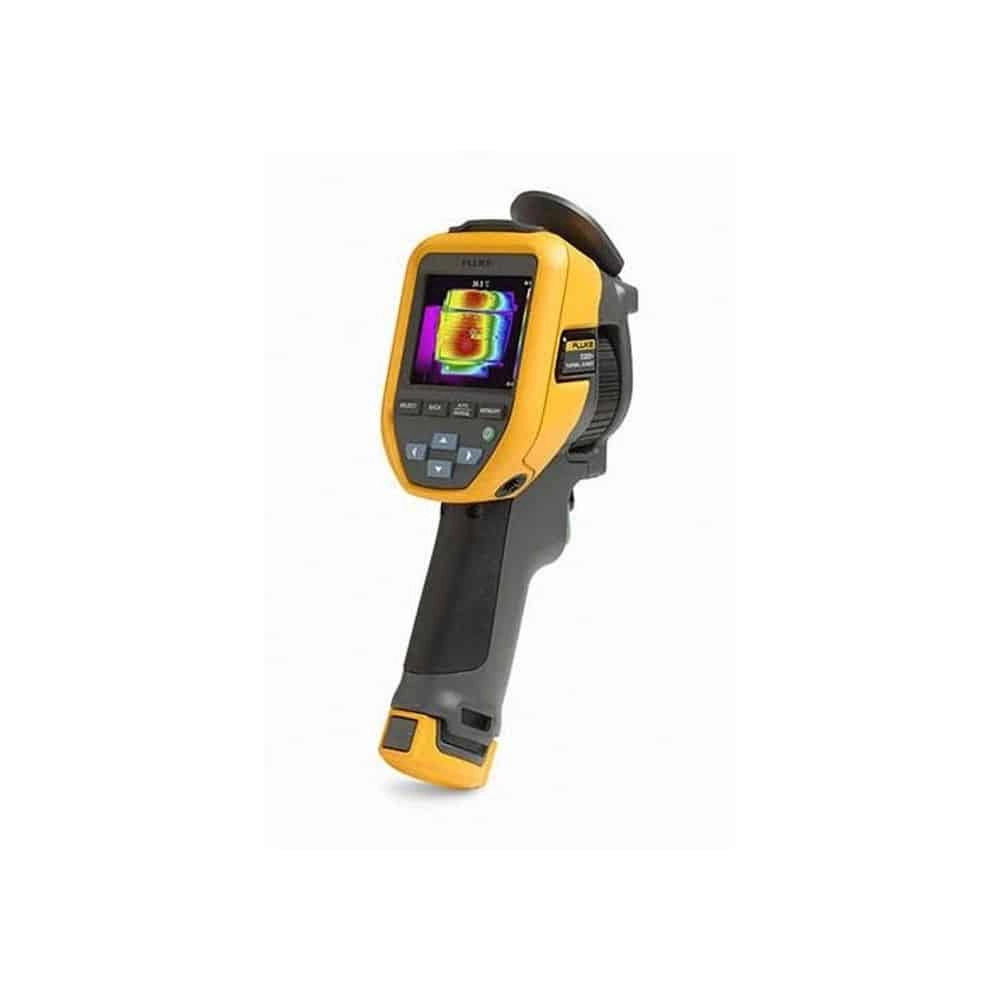

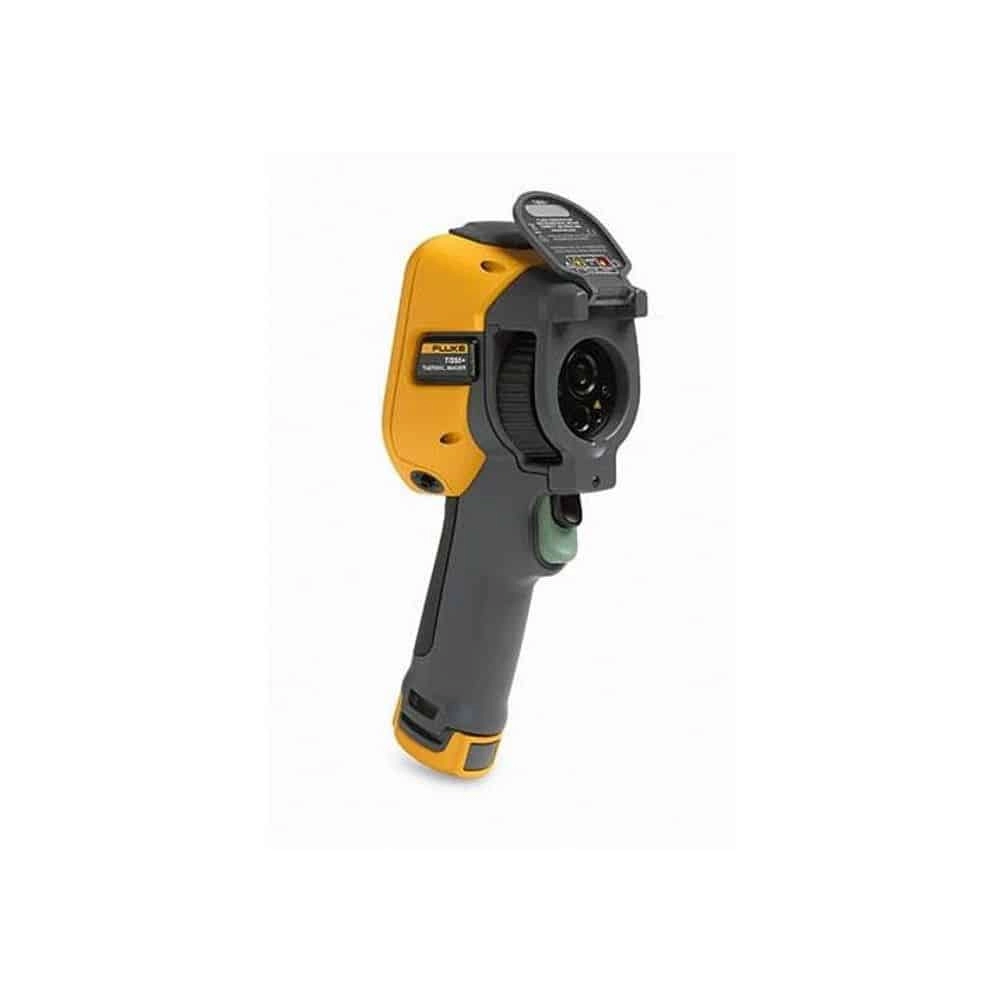

Fluke TIS55+ 9HZ Thermal Imaging Camera, 256x192, 9Hz, -20 to 550 °C

Features

• Rugged. Reliable. Accurate. At Fluke, we know accidents happen—tools will be dropped, kicked, stepped on or knocked over. You shouldn’t have to replace a tool because it fell off the workbench or was splashed with water or dirt. That’s why we designed the TiS55+ thermal camera to withstand a 2-meter drop and be water/dust resistant (IP54). You need to know that your camera will start up every time.
• Ditch the clipboard. With so many inspections in your day, it can be hard to remember what you saw and where that was. Maybe you carry around a clipboard to jot down notes onto. The TiS55+ comes with built-in personal assistants, which means you can finally ditch the clipboard and have all the information you need in the images you take.
• There's a Voice annotation that can record up to 60 seconds per thermal image and identify exactly what you see in real time
• With IR-PhotoNotes you can take photos of asset numbers and other identifiers and use as a reference when looking at the thermal image on your computer
• Manual and fixed focus
• Engineered to withstand 2 meter drop

Technical Information

• Infrared resolution256 x 192 (49,152 pixels)
• IFOV1.91 mRad
• Field of view28° x 20°
• Minimum focus distance0.15 m when using manual focus. 0.5 m when using focus marker
• Temperature-20 °C to 550 °C
• Color alarmsYes
• Infrared spectral band~8-14μm
• Operating temperature-10 °C to 50 °C (14 °F to 122 °F)
• Storage temperature-20 °C to 50 °C (-4 °F to 122 °F) without batteries
• Relative humidity10 % to 95 % non-condensing
• Spot temperatureCenter spot (unmovable)
• User-definable spot markersYes, 3 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
• User defined measurement boxesYes, 3 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen
• Vibration10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
• Shock30 g, 11 ms, IEC 60068-2-27
• Weight (battery included)≤2.27 kg (5 lb)
• RoHS compliantYes

Items Included

• 1 x Thermal imager
• 1 x AC power supply (including universal AC adapters)
• 1 x Rugged Lithium-ion Smart Batteries
• 1 x USB cable
• 1 x 4 GB micro SD card
• 1 x Rugged hard carrying case with soft transport bag and adjustable hand strap

Downloads

DatasheetDatasheet
