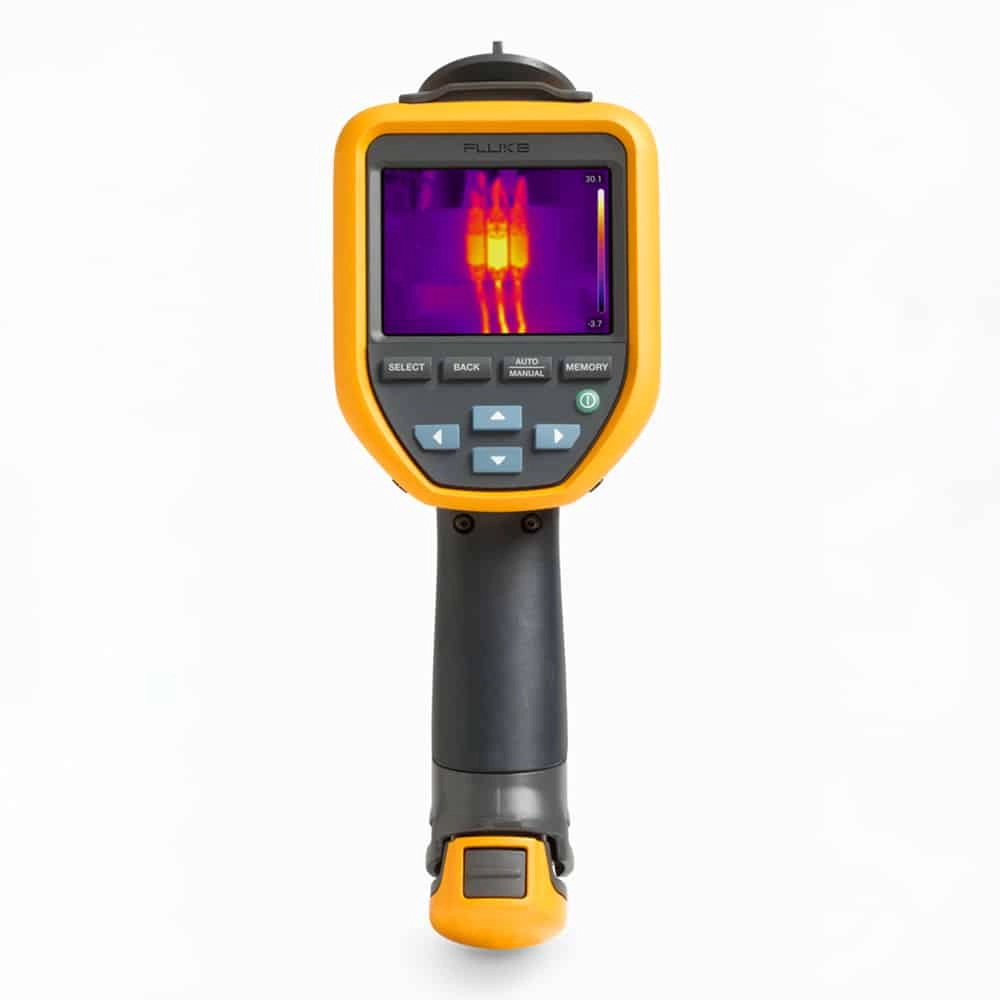

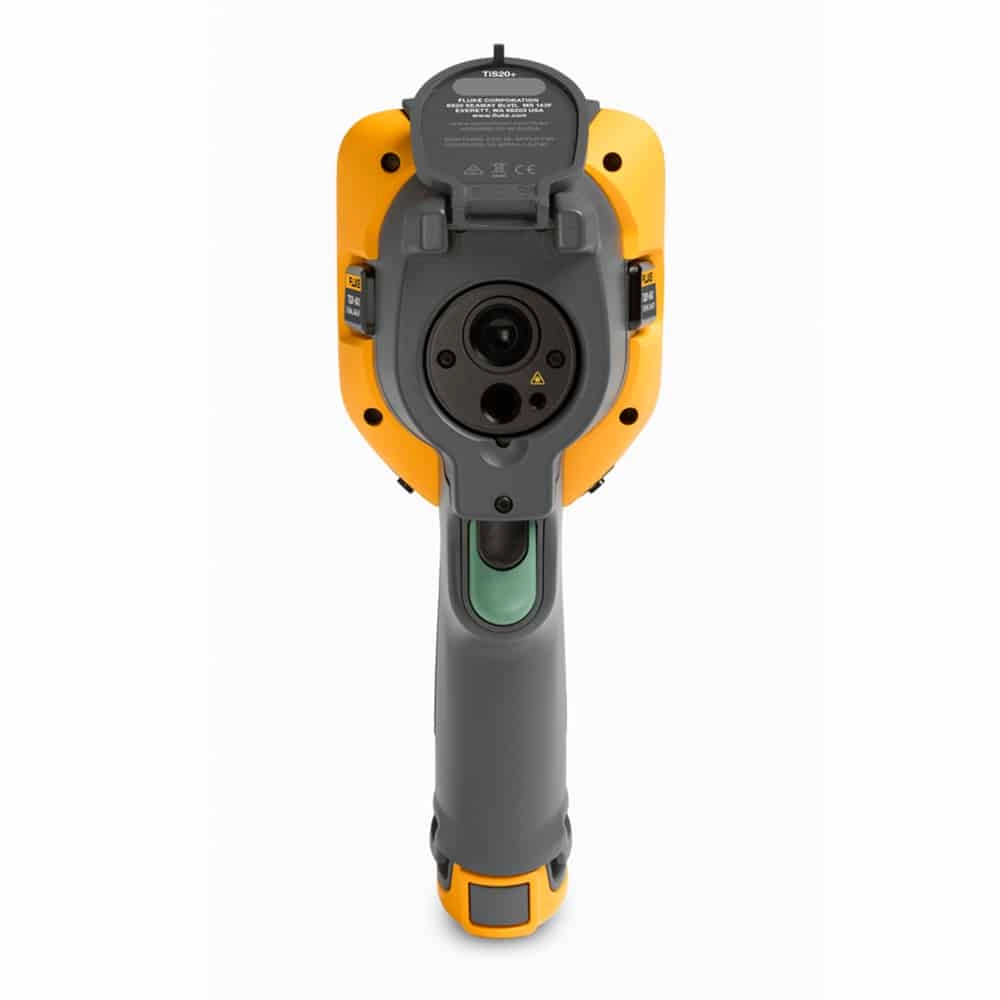

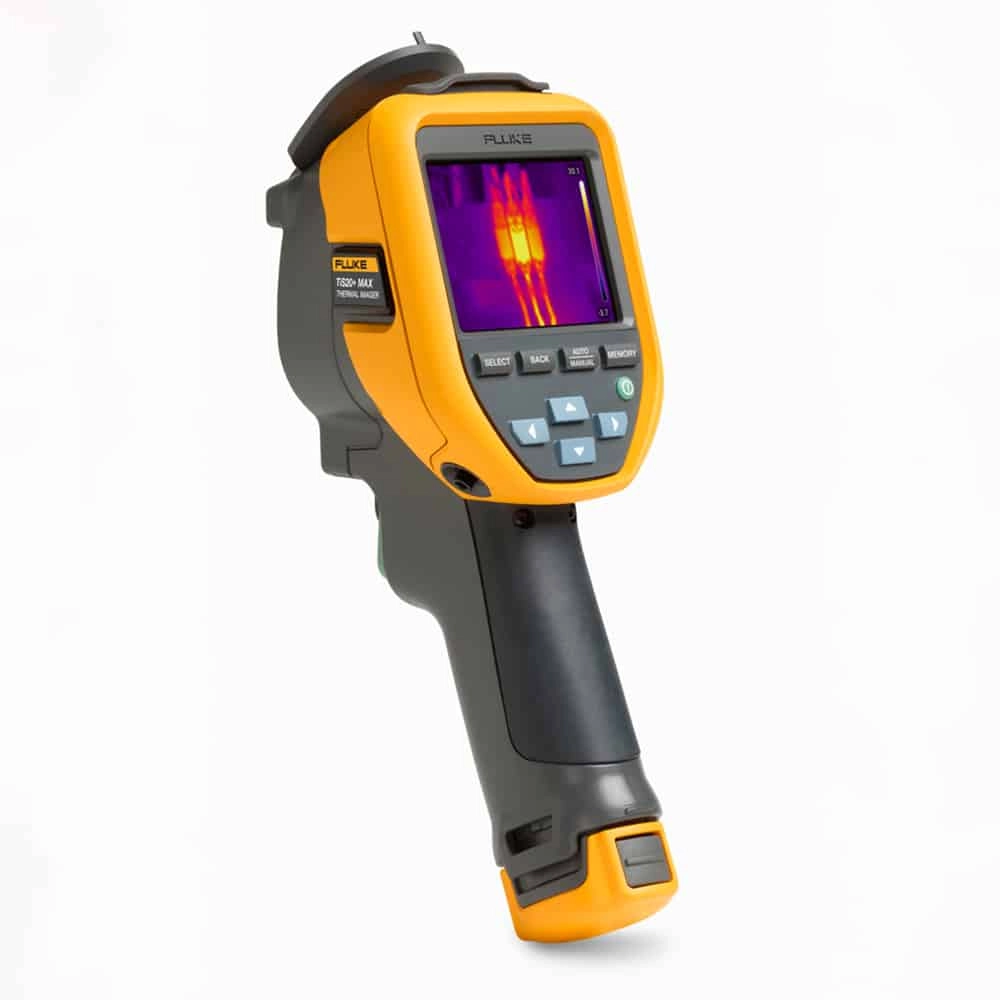

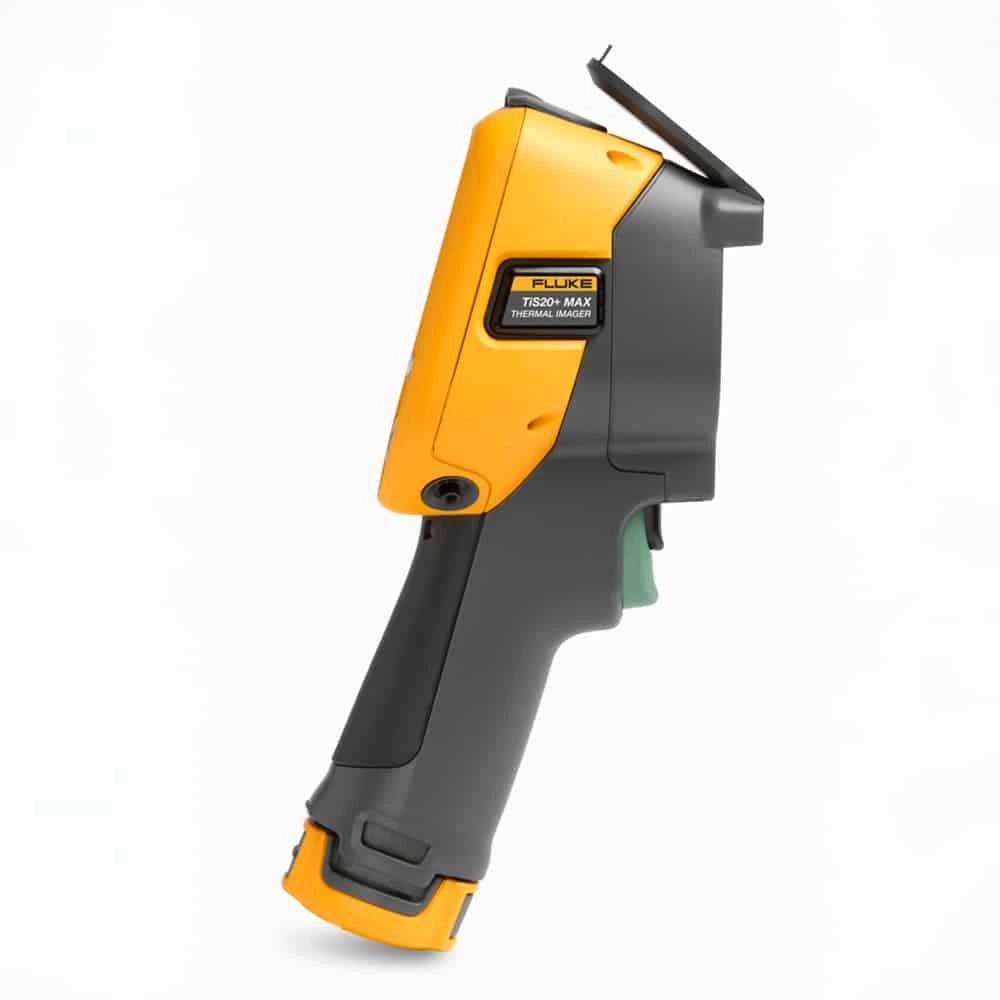

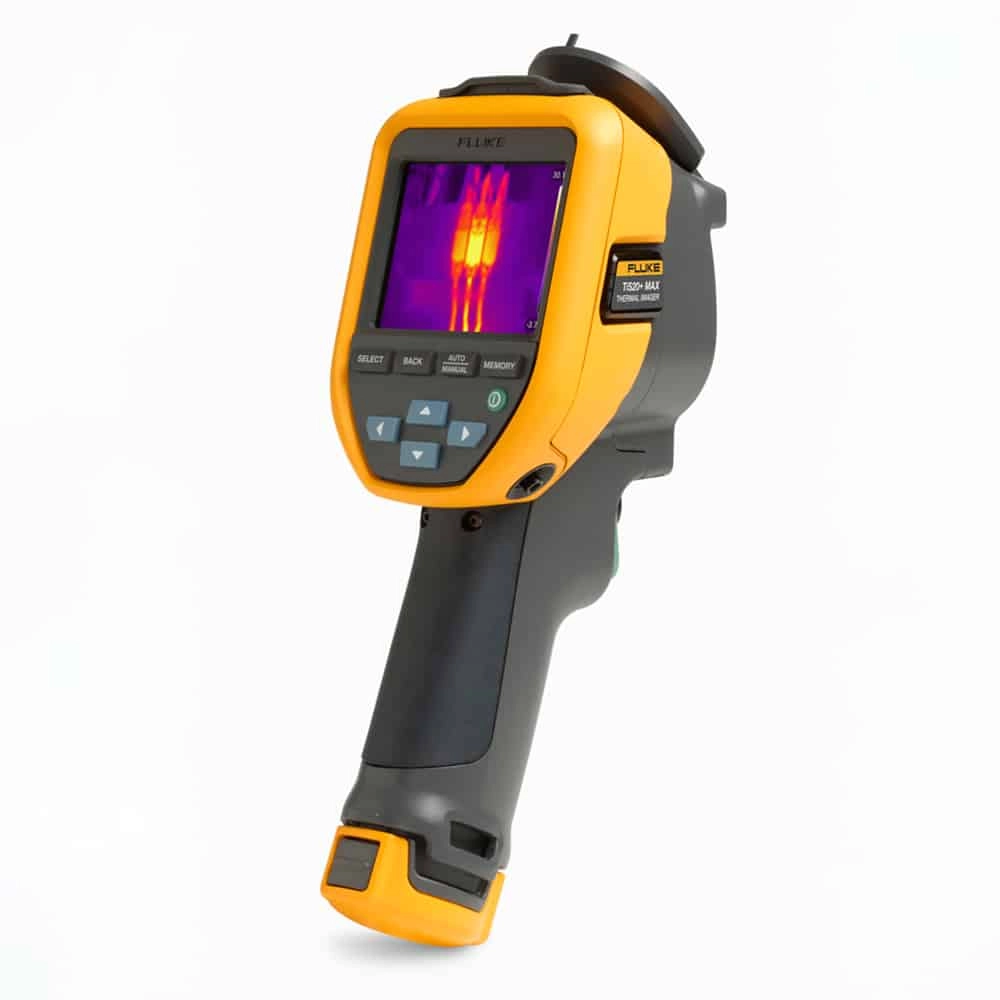

Fluke TIS20+ MAX 9HZ Thermal Imaging Camera, 120x90 Pixels, -20 to 400°C

Features

• Continuous touchscreen IR-Fusion™
• 5 hours battery life
• Can withstand drop up to 2 meter
• Water and dust resistant—IP54 enclosure rating
• Automatically organize and file thermal images with Fluke Connect™ Asset Tagging
• 120 x 90 infrared resolution
• 2 meter drop tested
• Water resistant (IP54)
• Dust resistant (IP54)

Technical Information

• Temperature measurement range-20 °C to 400°C (-4°F to 752°F)
• Infrared resolution120 x 90 (10,800pixels)
• IFOV (spatial resolution)7.6 mRad, D:S 130:1
• Field of view50° H x 38° V
• Minimum focus distance50cm (20 inches)
• Focus systemFixed focus
• Data transferMini USB used to transfer image to PC
• Wireless connectivityYes, (802.11 b/g/n (2.4 GHz))
• Display3.5" LCD touchscreen (landscape)
• Display resolution320 x 240 LCD
• Thermal sensitivity (NETD)60 mK
• Frame rate9 Hz
• MemoryInternal 4GB memory
• Infrared spectral band8 μm to 14 μm (long wave)
• DropEngineered to withstand 2 meter drop
• Size (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in)
• Weight0.72 kg (1.6 lb)

Downloads

CertificateCertificate
