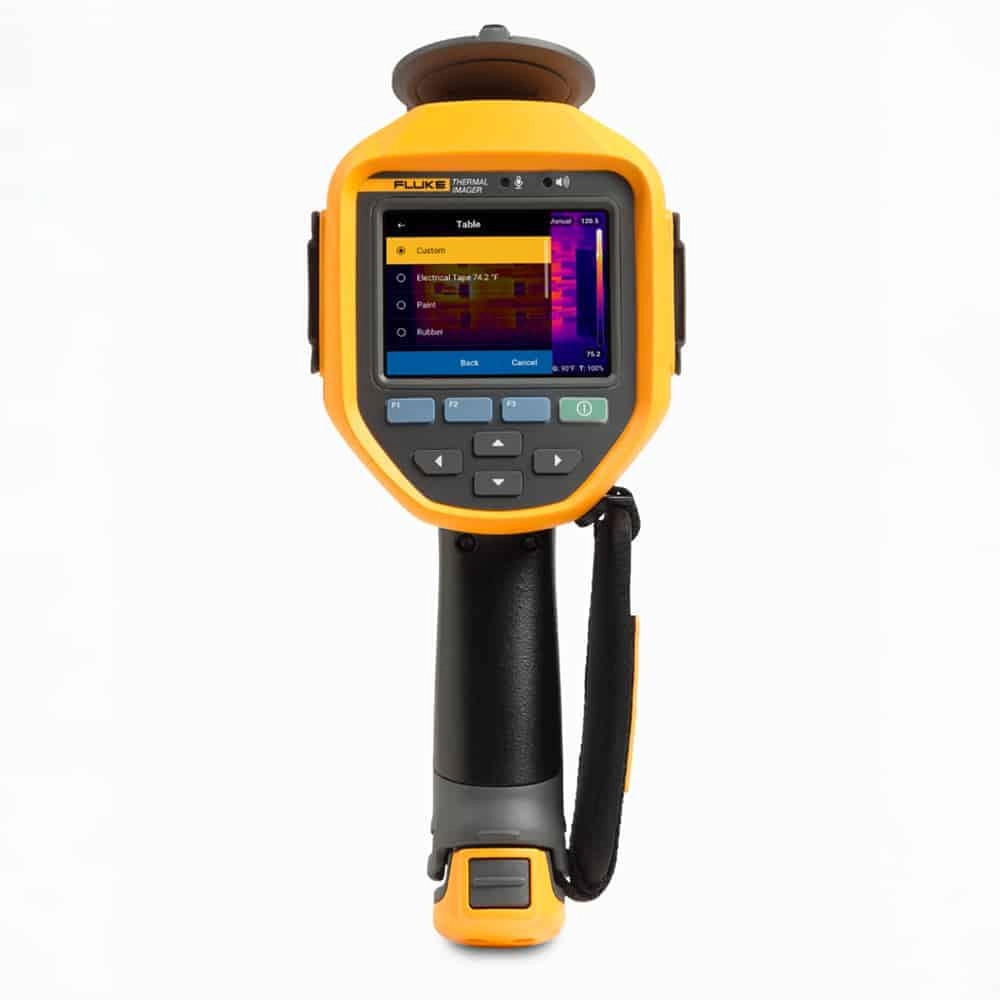

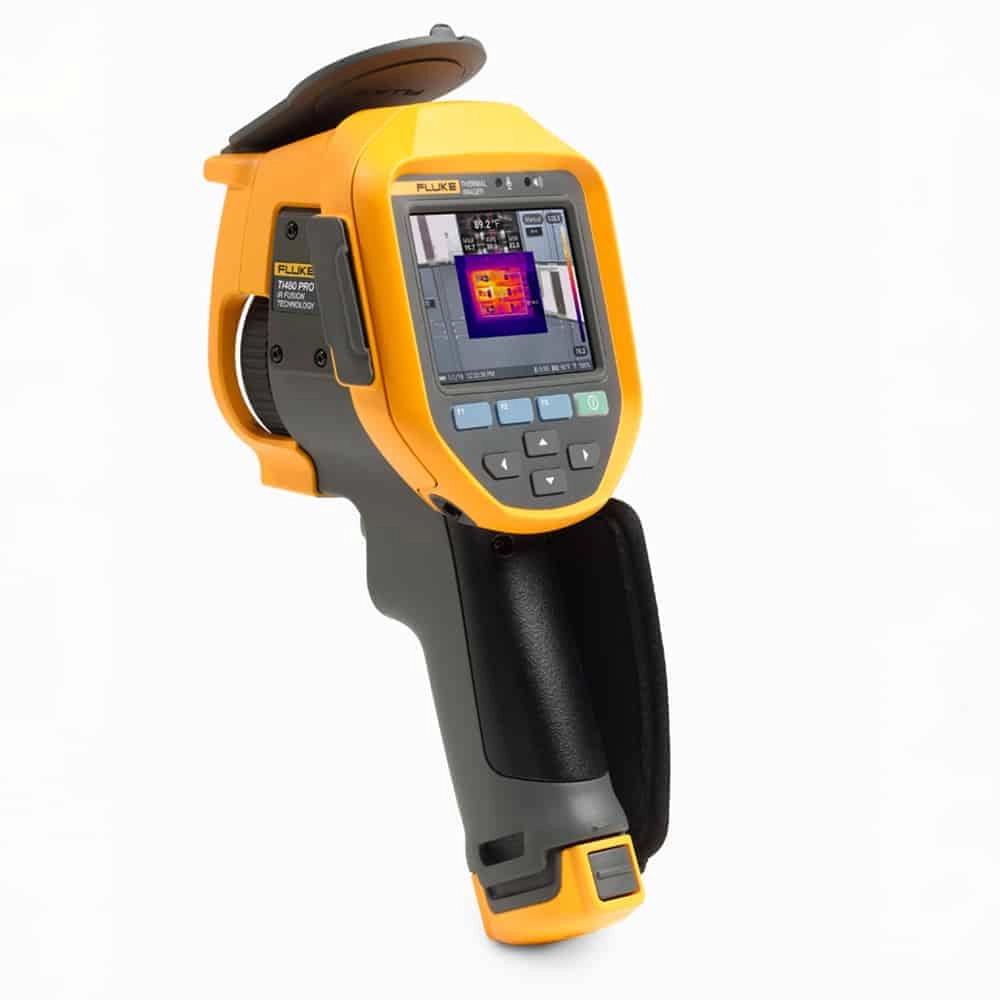

Fluke Ti480 PRO 9HZ Thermal Imaging Camera, 640x480 Pixels, 9Hz, -20°C to 1000°C

Model #   Ti480 PRO 9HZ

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Increased sensitivity to visualize temperature differences
  • Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
  • More intuitive visual interface, improved, user-tested, touch screen interface
  • More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
  • Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
  • Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
  • Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
  • Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations

Technical Information

  • Temperature Range-20 °C to +1000 °C
  • Temperature Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
  • Thermal sensitivity (NETD)≤0.05 °C at 30 °C target temp (50 mK)
  • IFOV with standard lens (spatial resolution)0.93 mRad, D:S 1065:1
  • Detector resolution640 x 480
  • Infrared Resolution307,200 pixels
  • Minimum focus distance15 cm (approx. 6 in)
  • Field of view34 °H x 24 °V
  • Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
  • Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
  • Relative humidity10 % to 95 % non-condensing

Items Included

  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • 4 GB micro SD card
  • Rugged hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Available by free download Fluke Connect® SmartView® desktop software and users manual
