Fluke T6-600/EU Electrical Tester, CAT III 600V

Features

• FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage*
• See voltage or current display – shows all power supply measurements at a glance for efficient trouble shooting
• 1 to 600 V ac or dc (T6-600)
• 0 to 200 A ac
• Be safer: Measure voltage to 600 V ac through the open fork, without test leads
• Be faster: No need to open covers or remove wire nuts
• Be more efficient: Simultaneously measure voltage and current
• Be everywhere: 17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120 mm2)

Technical Information

• Voltage600V AC TRMS
• Current200A AC TRMS
• Resistance2000Ω
• Calibration1-year calibration cycle
• Dimensions61.1 x 259.3 x 43.8 mm
• Jaw opening17.8 mm
• Weight0.35 kg (0.78 lb)
• Operating Temperature-10 °C to +50 °C (14 °F to 122 °F)
• Storage Temperature-30 °C to +60 °C (-22 °F to +140 °F)
• Altitude Operating2,000 m (6,562 feet)
• Storage10,000 m (32,808 feet)
• Relative Humidity0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
• Temperature coefficient0.1 x (specified accuracy) / °C for <18°C or >28 °C

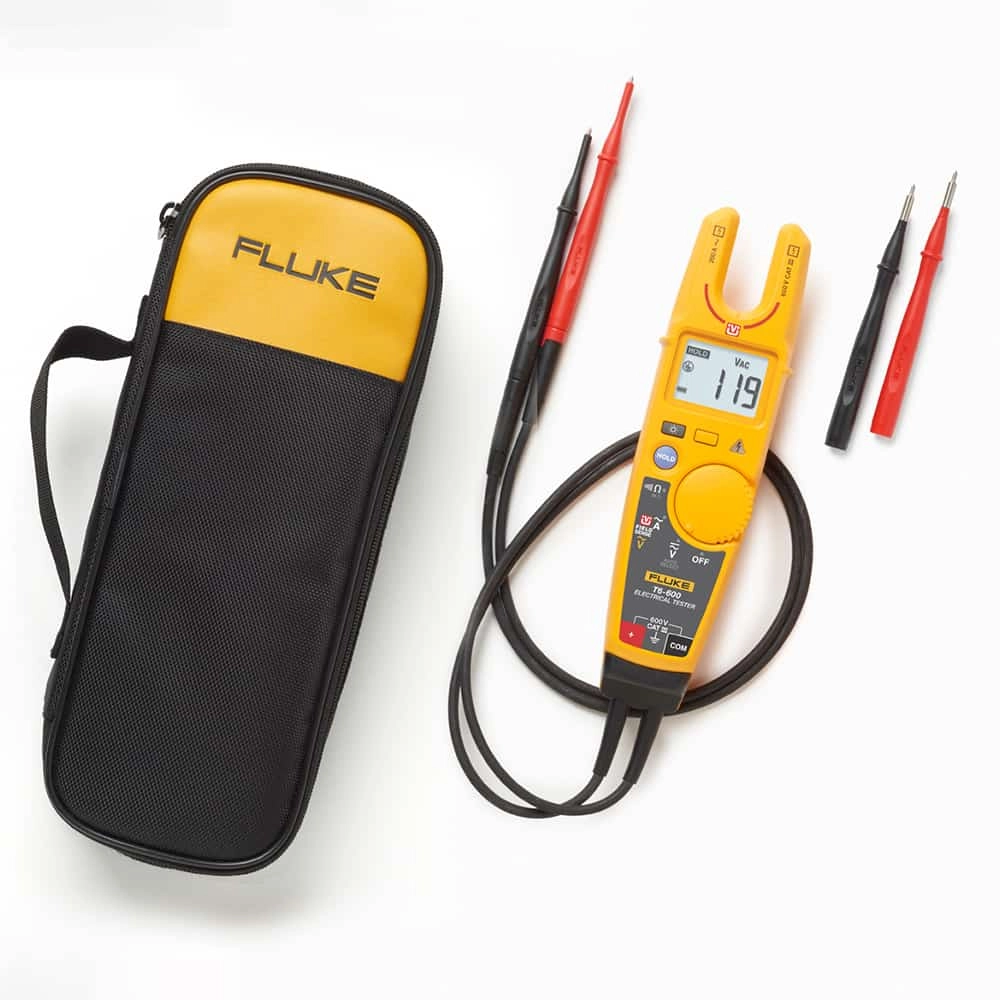

Items Included

• Fiuke T6-600 Electrical Tester Attached Test Leads
• with Removable 4mm Removable Probe Caps User’s Manual / Quick Reference Guide
