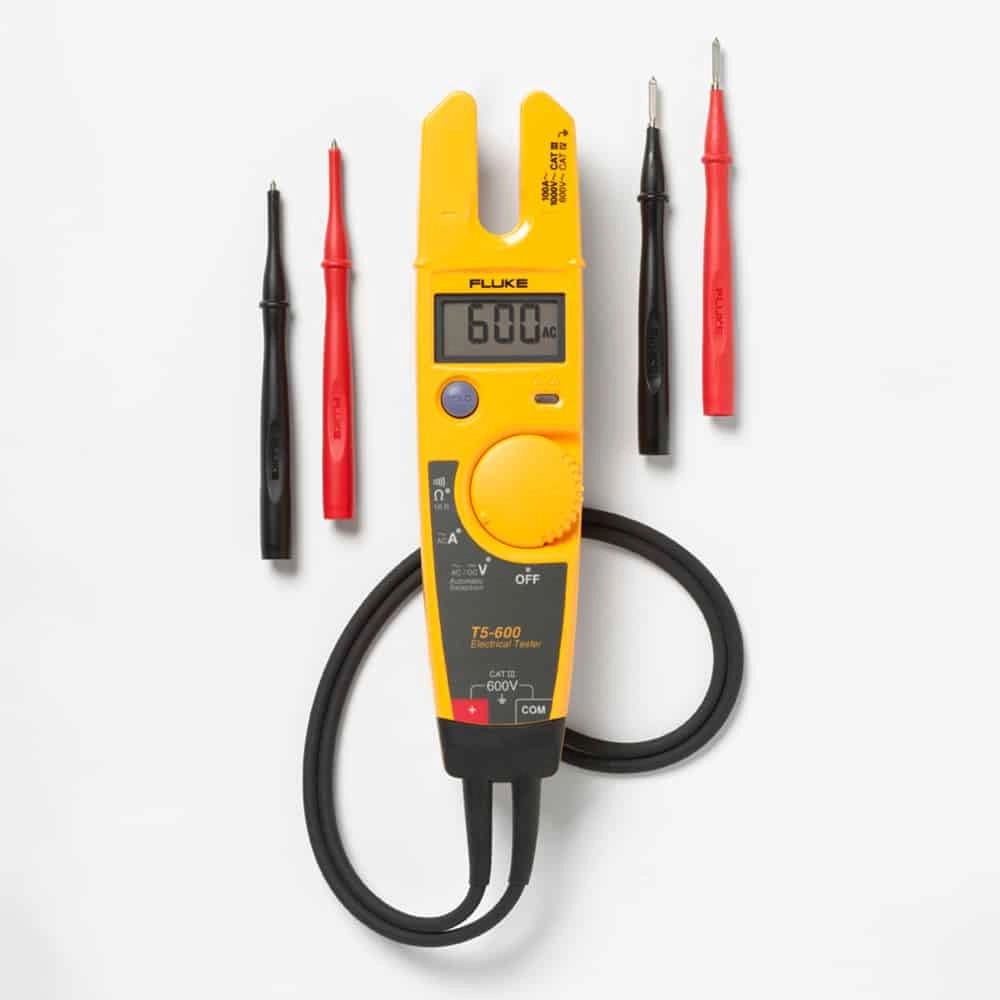

Fluke T5-600 Voltage, Continuity And Current Tester With Open Jaw™, CAT III 600V, 0 to 600V

Features

• Automatically measures volts ac and volts dc with precise digital resolution
• Displays resistance to 1000"
• Easy and accurate OpenJaw™ current measurement
• Continuity beeper
• Measure current more safely without metallic contact
• Measure resistance when troubleshooting motors, HVAC systems or electrical systems
• Built-in continuity beeper provides fast and easy go/no-go tests
• This continuity tester features a compact design with handy probe storage, easily fits in one hand
• The test lead slot in the back makes the meter an “extended handle” for the probe, leaving the other hand free to place the second lead

Technical Information

• Jaw Opening0.5" (12.9 mm)
• Max Wire Size1/0 THHN Cable
• Current Range0 to 100.0 A AC RMS
• Accuracy AC Current3% ± 3 counts (50/60 Hz)
• AC ResponseAveraging
• Voltage0 to 600 V
• Accuracy AC Voltage1.5% ± 2 counts
• Resistance Range0 to 1000 Ω
• Operating Temperature50 to 122°F (10 to 50°C)
• Storage Temperature-22 to 140°F (-30 to 60°C)
• Temperature Coefficient0.1 x (specified accuracy)/°C (<18°C or >28°C)
• Dimensions1.2 x 2 x 8" (30.5 x 51 x 203 mm)

Items Included

• 600 V Voltage
• continuity and current tester 4 mm detachable probes Instruction sheet

Downloads

Datasheet
