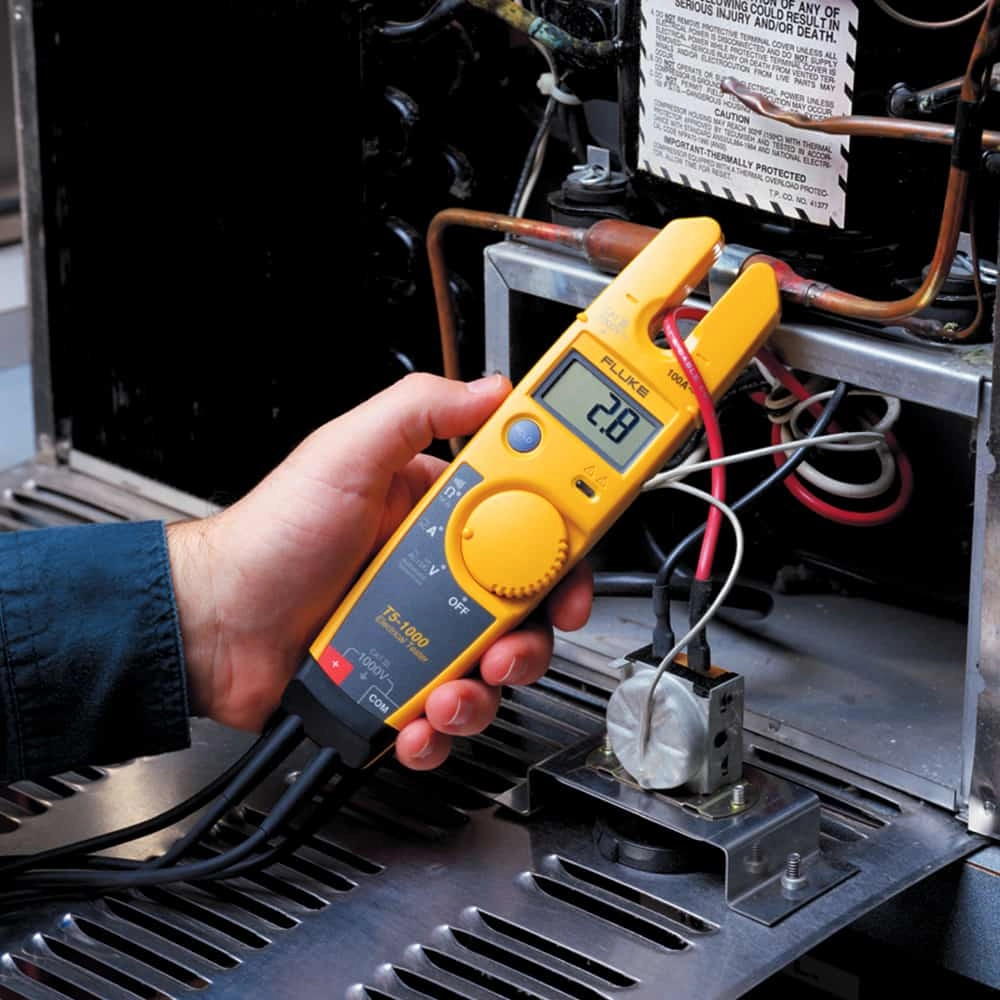

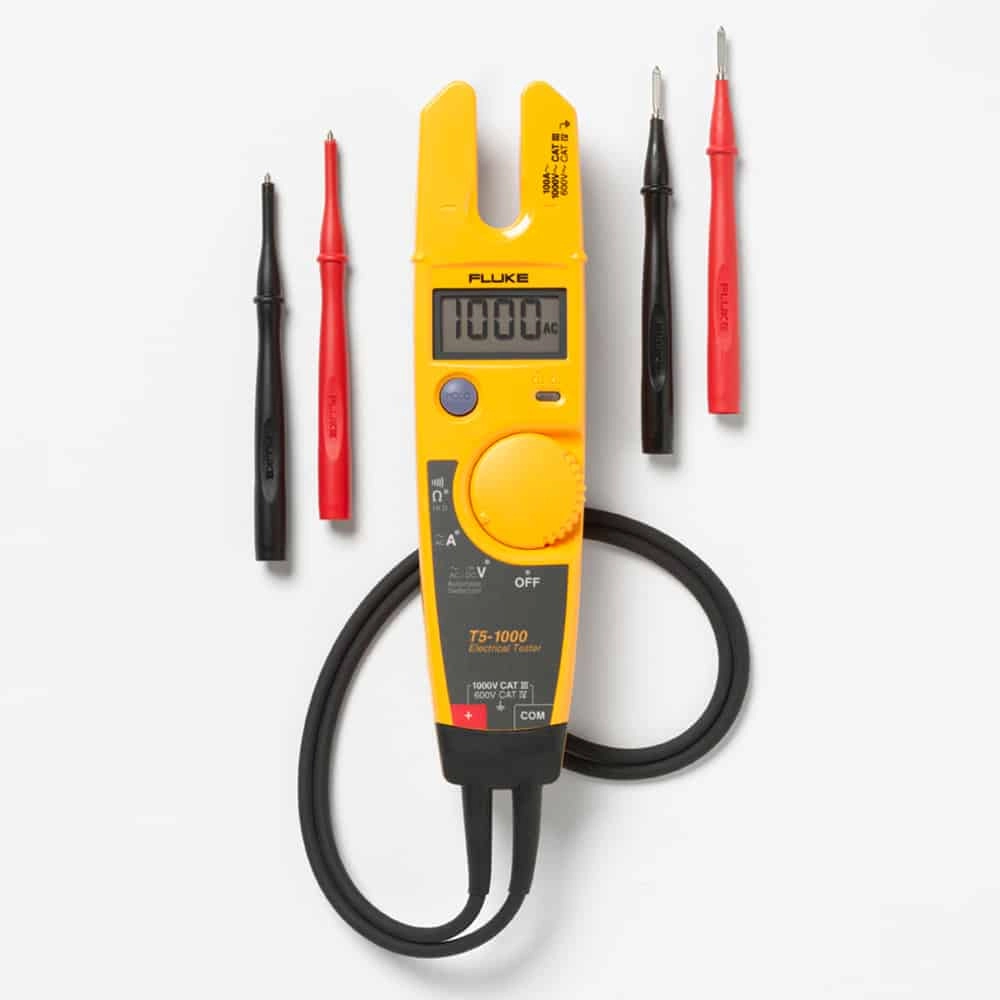

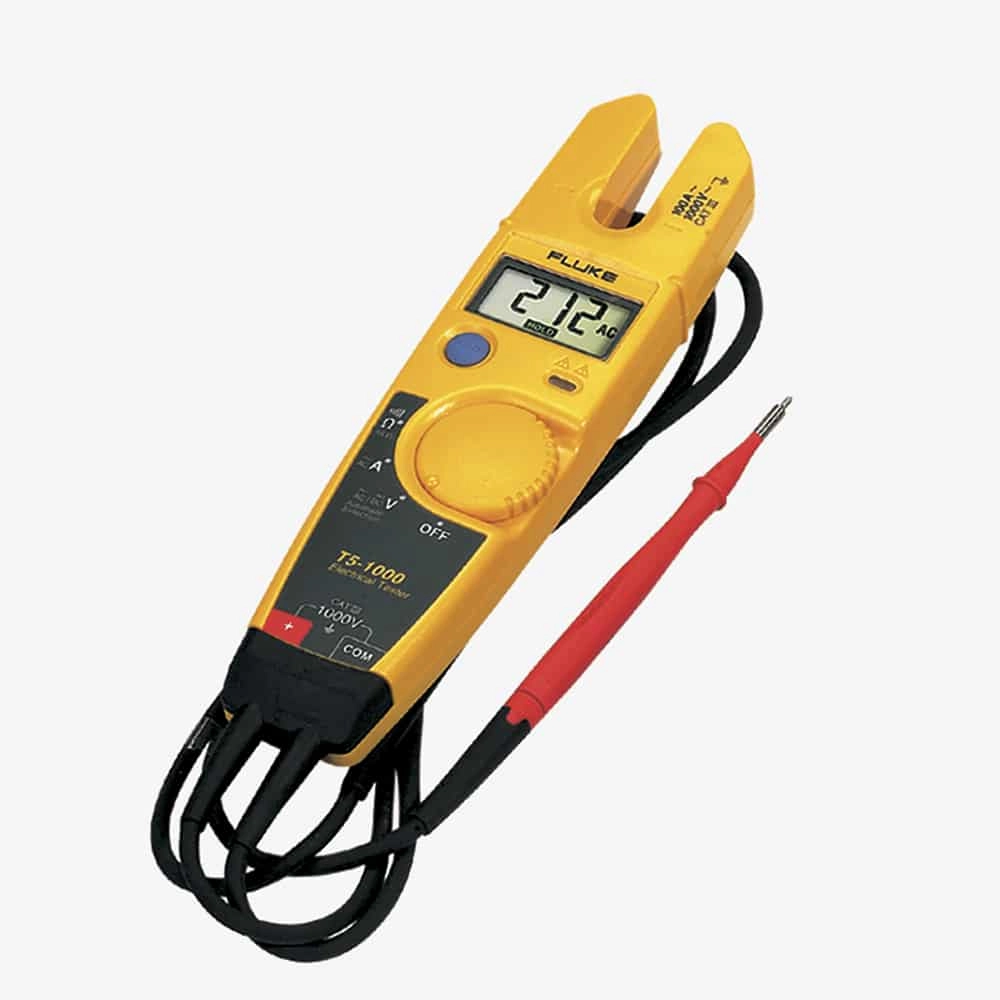

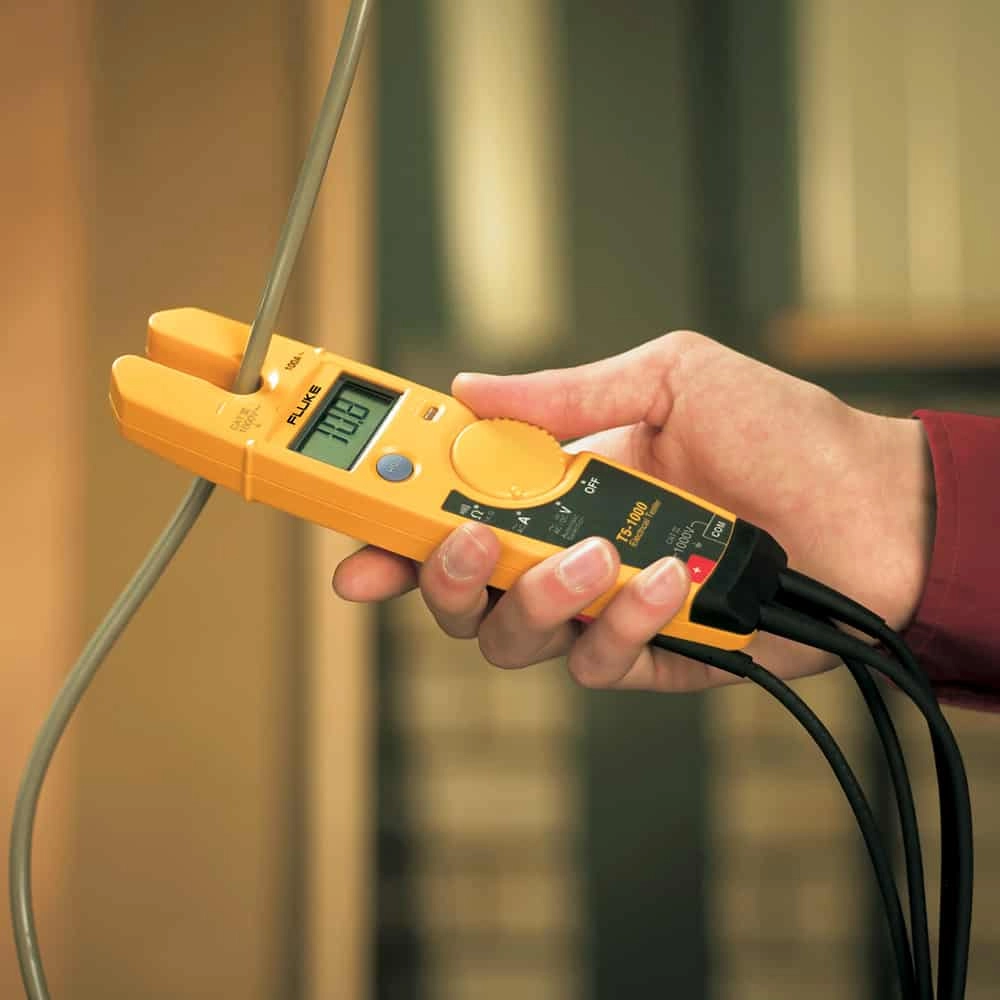

Fluke T5-1000 Voltage, Continuity And Current Tester, CAT IV 600V, 1000V

Features

• Automatically measures volts AC and volts DC with precise digital resolution
• Displays resistance to 1000 O
• Easy and accurate OpenJaw current measurementv
• Continuity beeper
• Tester automatically selects AC or DC voltage, up to 1000 V
• Work in tight spaces with detachable Slim Reach probe tips

Technical Information

• Jaw Opening0.5" (12.9 mm)
• Max Wire Size1/0 THHN Cable
• Current Range0 to 100.0 A AC RMS
• Accuracy AC Current (50/60 Hz)3% ± 3 counts
• AC ResponseAveraging
• Voltage0 to 1000 V AC/DC
• Voltage AccuracyAC: 1.5% ± 2 counts
• Resistance Range0 to 1000 Ω
• Operating Temperature14 to 122°F (-10 to 50°C)
• Storage Temperature-22 to 140°F (-30 to 60°C)
• Temperature Coefficient0.1 x (specified accuracy)/°C (<18°C or >28°C)
• Dimensions1.2 x 2 x 8" (30.5 x 51 x 203 mm)

Items Included

• Tester 0.15" (4 mm) Detachable Probes Instruction Sheet
