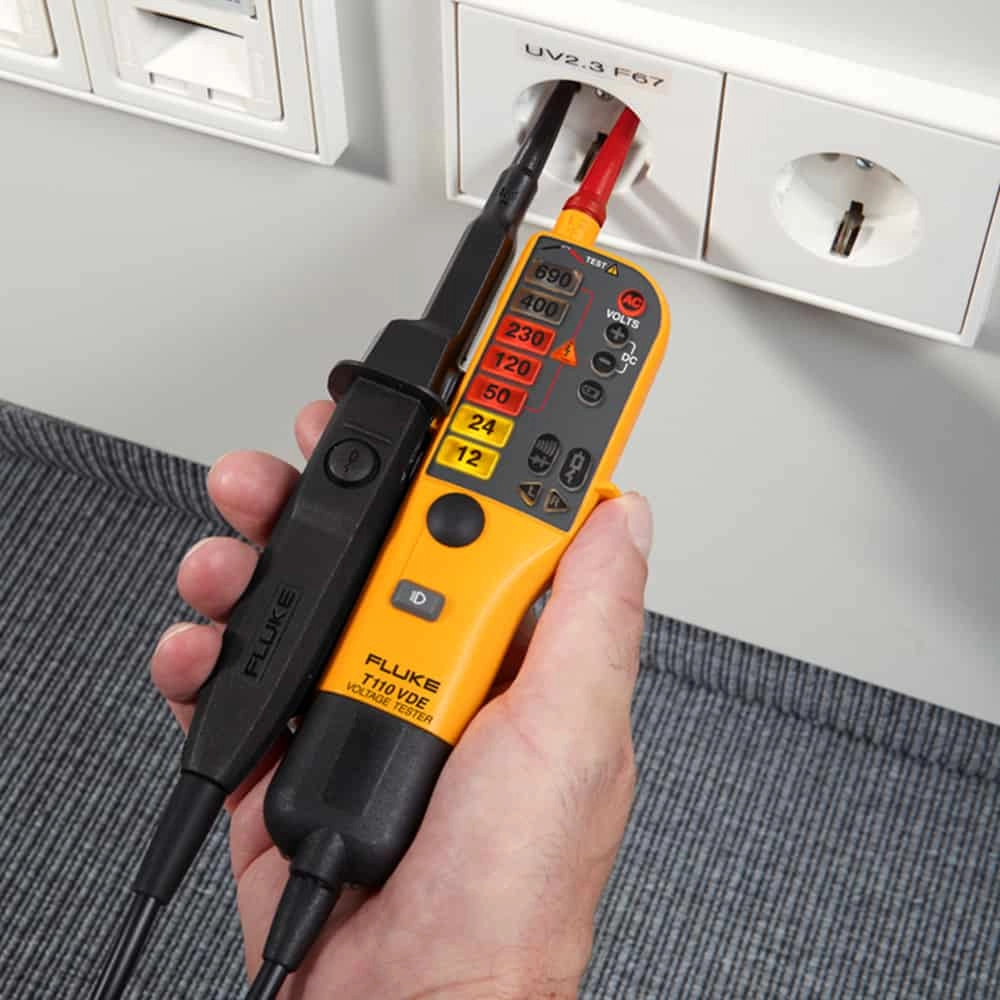

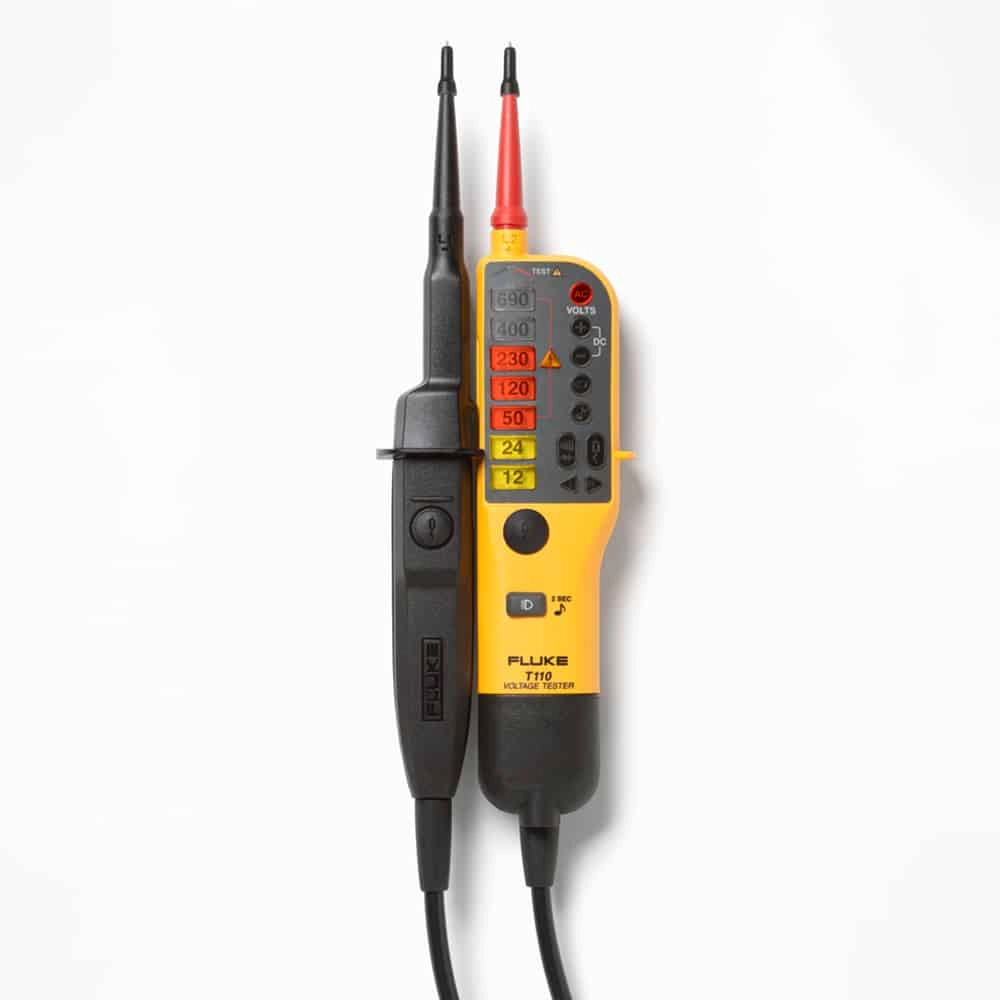

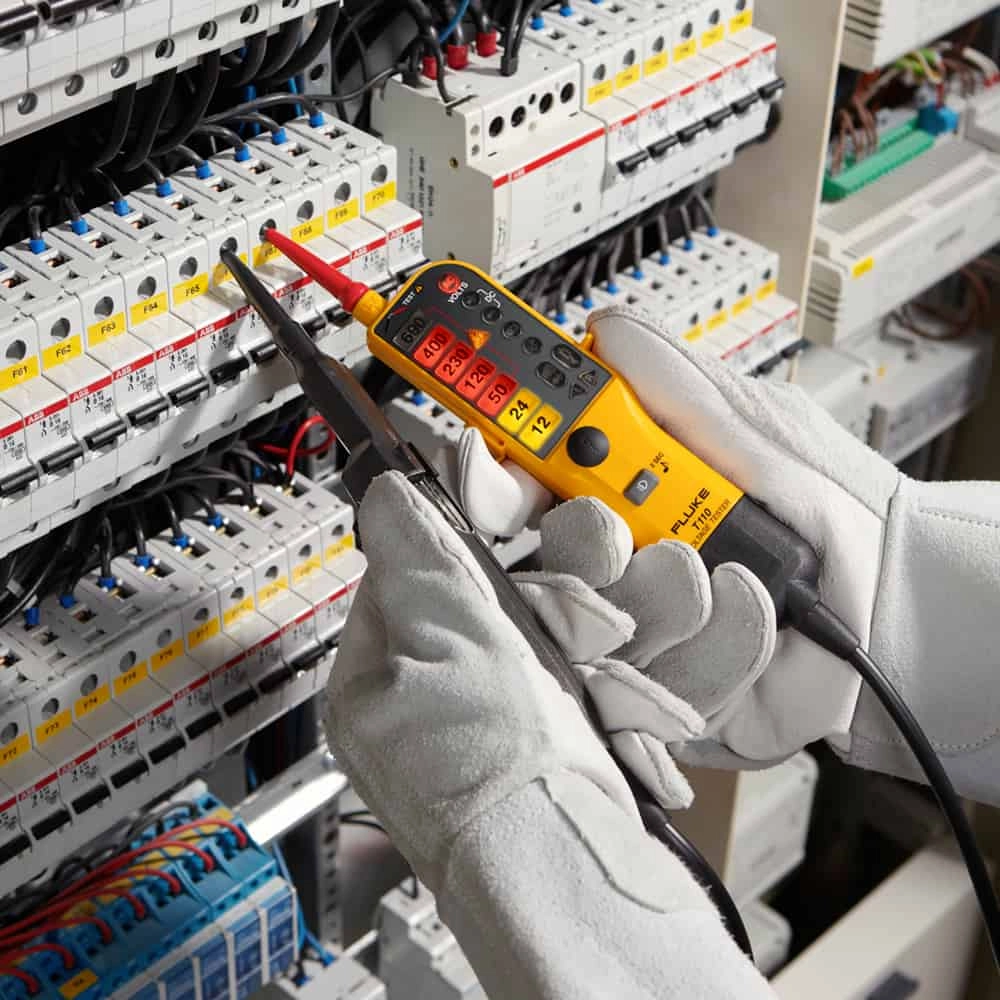

Fluke T110 Voltage and Continuity Tester, CAT IV 600V, 12 to 690V

Features

• CAT IV 600 V; Cat III 690 V safety rating Fluke’s family of Two-Pole Voltage testers comply with both regulation HSE GS 38 (tip caps) and IEC EN 61243-3: 2010.
• 4 ways to detect ac/dc voltage A clear; instantly visible LED indicator; a bright digital display of the measurement value; an audible continuity test; and vibration to give tactile feedback
• Audio on/off for testing in quiet areas.
• Low battery indicator
• Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability
• Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
• Backlit graduated scale and backlit indicators
• Phase rotation indicator for 3-phase systems
• Built in electric torch for use in dark areas

Technical Information

• Voltage12V - 690V
• Continuity0 - 400 k
• Frequency0 / 40 - 400 Hz
• Phase rotation100 V - 690 V
• Response Time (LED indicator)< 0.5 s
• Input impedance200 kΩ- Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V
• Input impedance7k - Current draw 30 mA @ 230 V
• IP ratingIP64
• Size26 cm x 7 cm x 3.8 cm

Items Included

• Voltage/Continuity Tester With LCD Switchable Load

Downloads

Datasheet
