Fluke SMFT1000/PRO Multifunction PV Tester and Analyzer Pro Kit
Model # SMFT1000/PROKey Features
?
Question about this product?
Features
- All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
- Perfect for PV professionals involved in installation, comissioning and maintenance services
- Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
- Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC

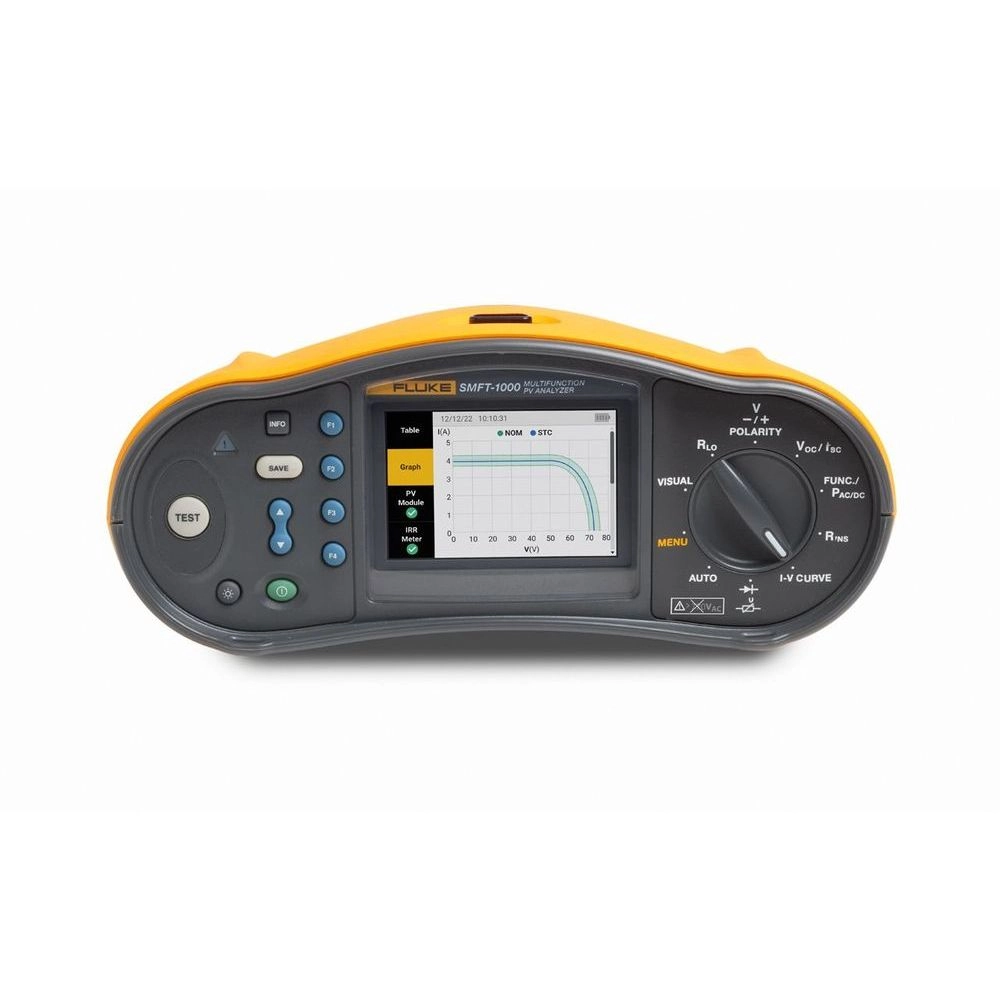

- On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
- Protective conductor resistance (RLO) measurement with a testing current ≥200 mA
- Polarity check with automatic display of the voltage polarity with acoustic/visual warning for wrong polarity
- Insulating resistance (RINS) measurement with a testing voltage of 50 V, 100 V, 250 V, 500 V and 1000 V
- Blocking diode measurement (VBD)
- Surge protection device testing with visual inspection
- AC/DC current and voltage measurement with 4 mm test sockets
Technical Information
- RLO Display Range0 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
- RLO Measuring Range0.2 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
- VOC Display Range0 - 99.9V / 100 - 1000V
- VOC Measuring Range5 - 99.9V / 100 - 1000V
- Polarity TestYes
- ISC Display Range0 - 20A
- ISC Measuring Range0.2 - 20A
- RINS Display Range0 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
- RINS Measuring Range0.2 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
- Battery6 AA IEC LR6
- SMFT-1000 weight1.4 kg

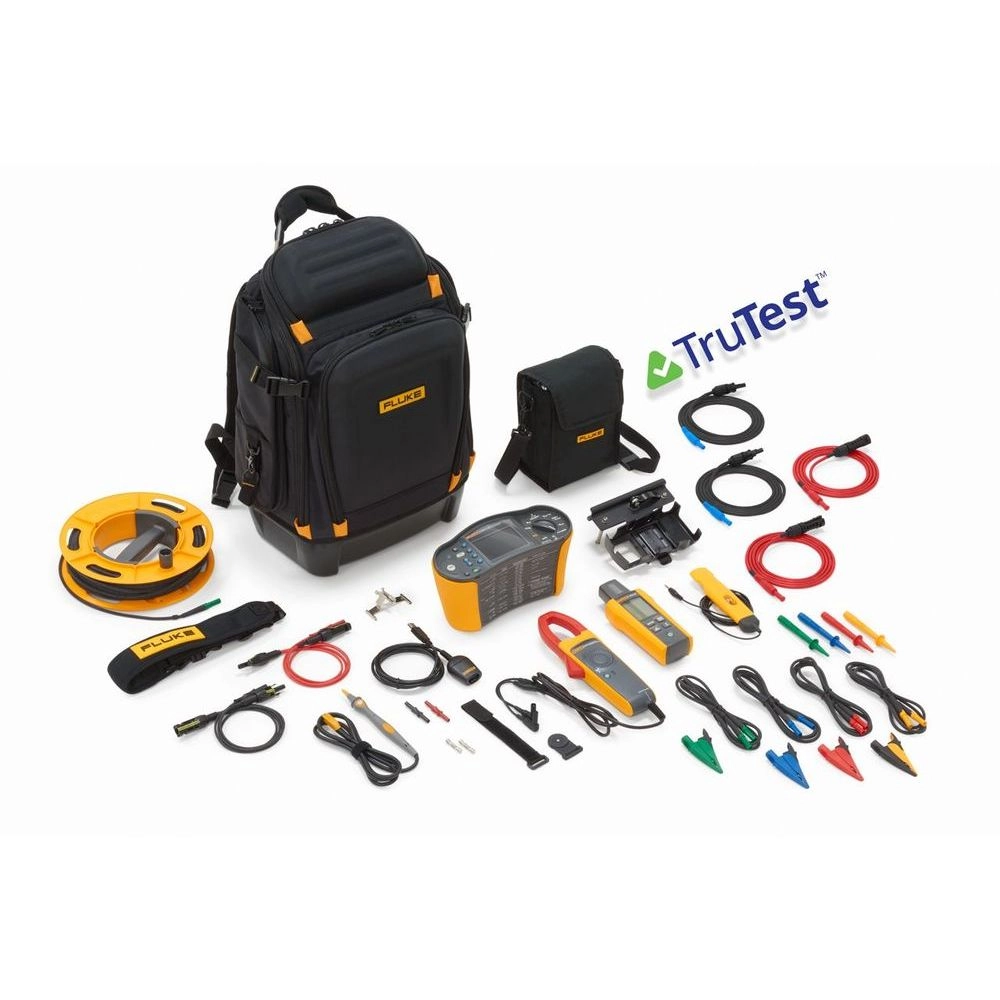

Items Included

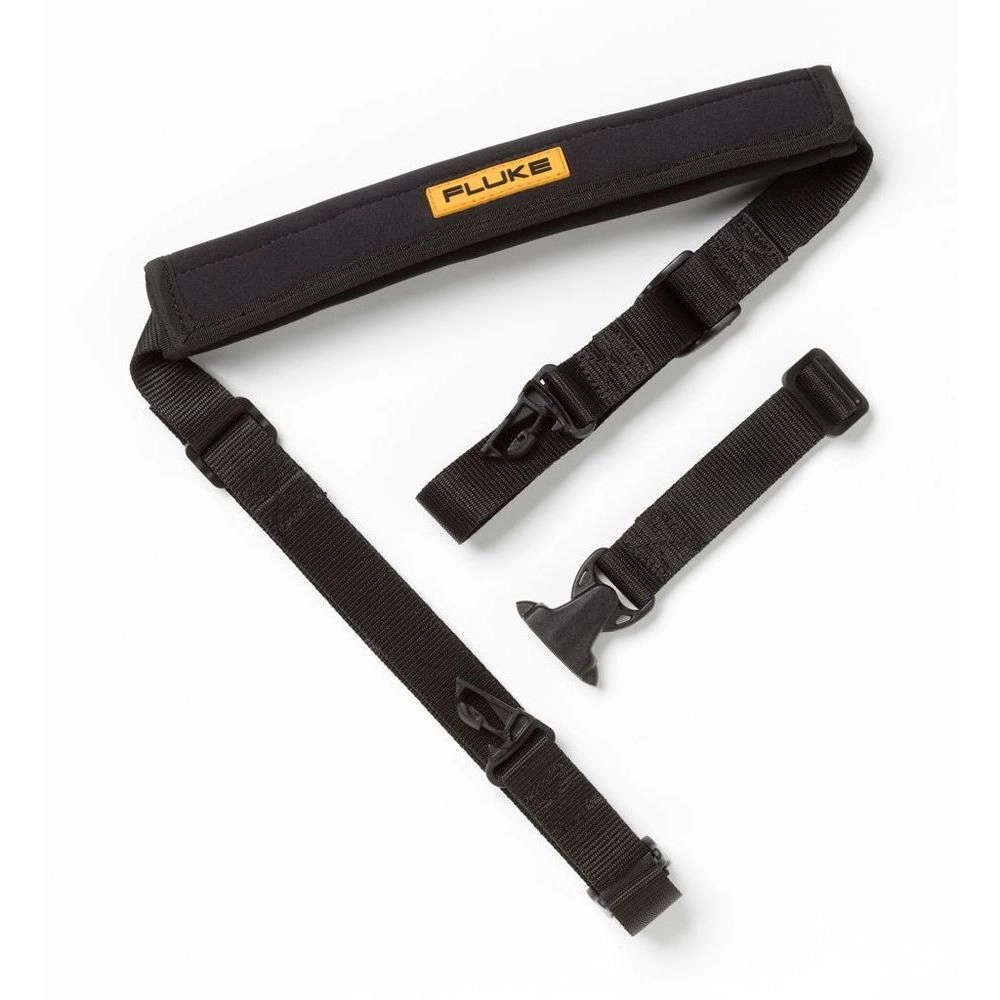

- 1x Multifunction PV Analyzer with Neck & Waist Carring Strap

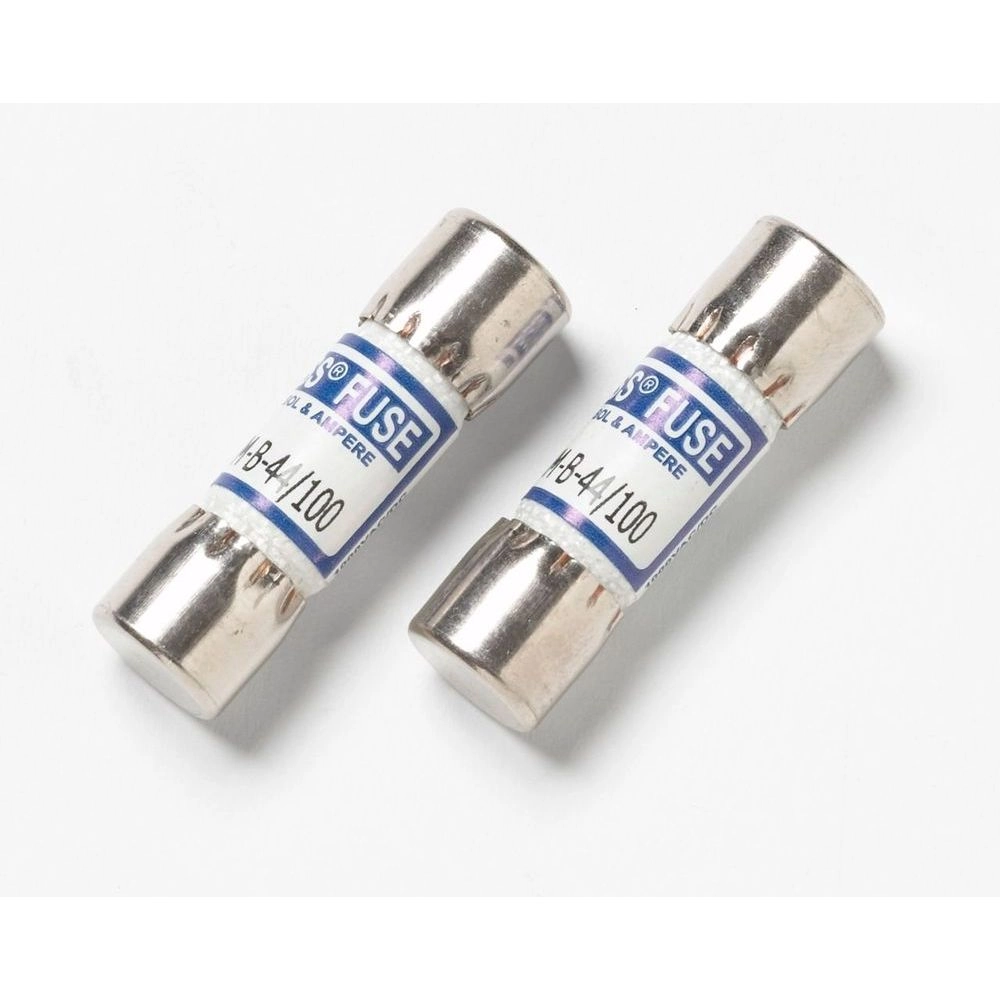

- 2x Extra Fuses
- 1x Zero Adapter

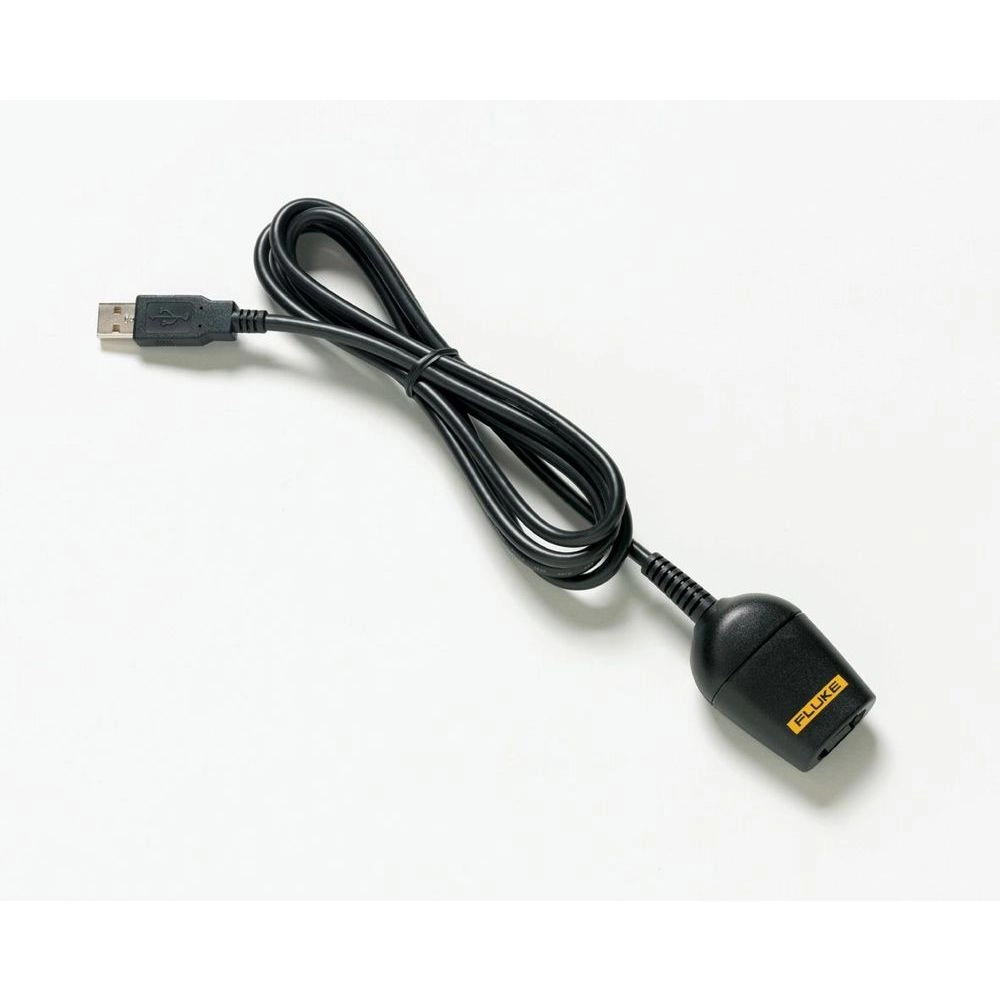

- 1x IRDA Optical USB Adapter

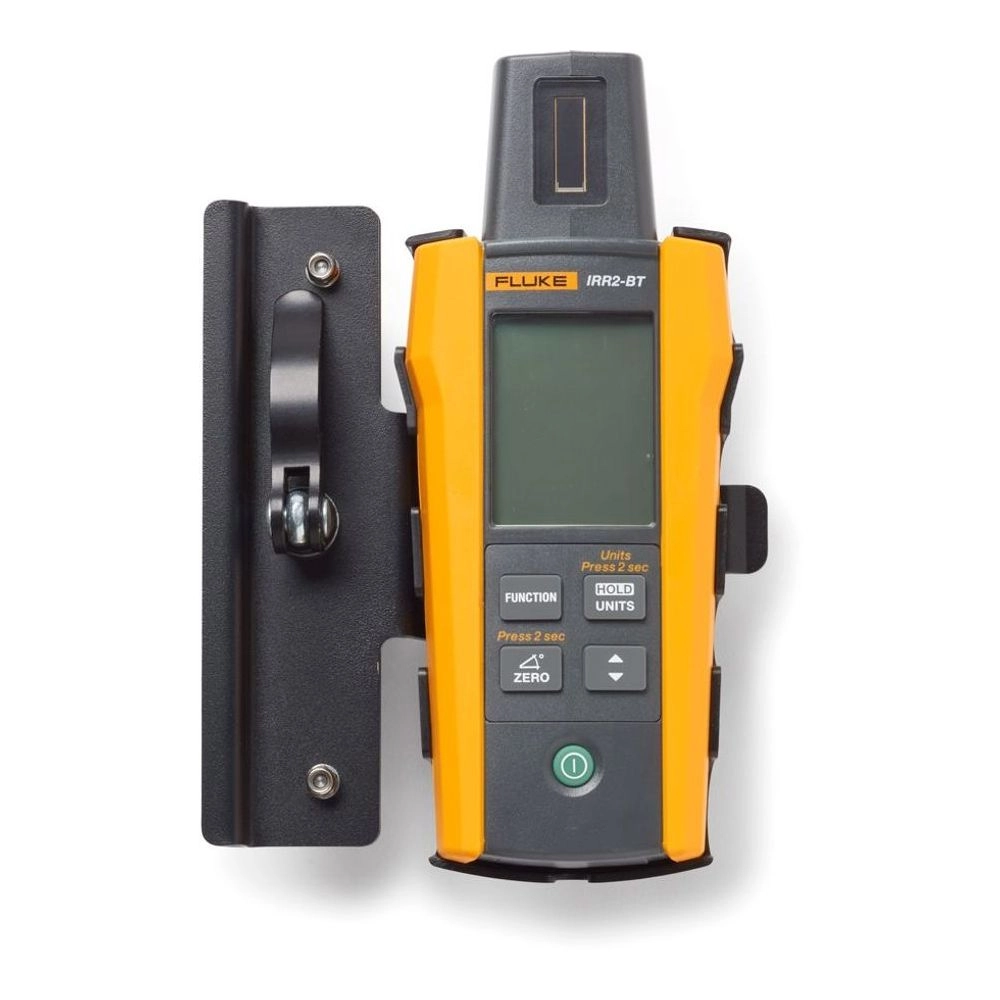

- 1x Irradiance Meter with Carrying Case (IRR-B2)
- 1x Mounting Bracket

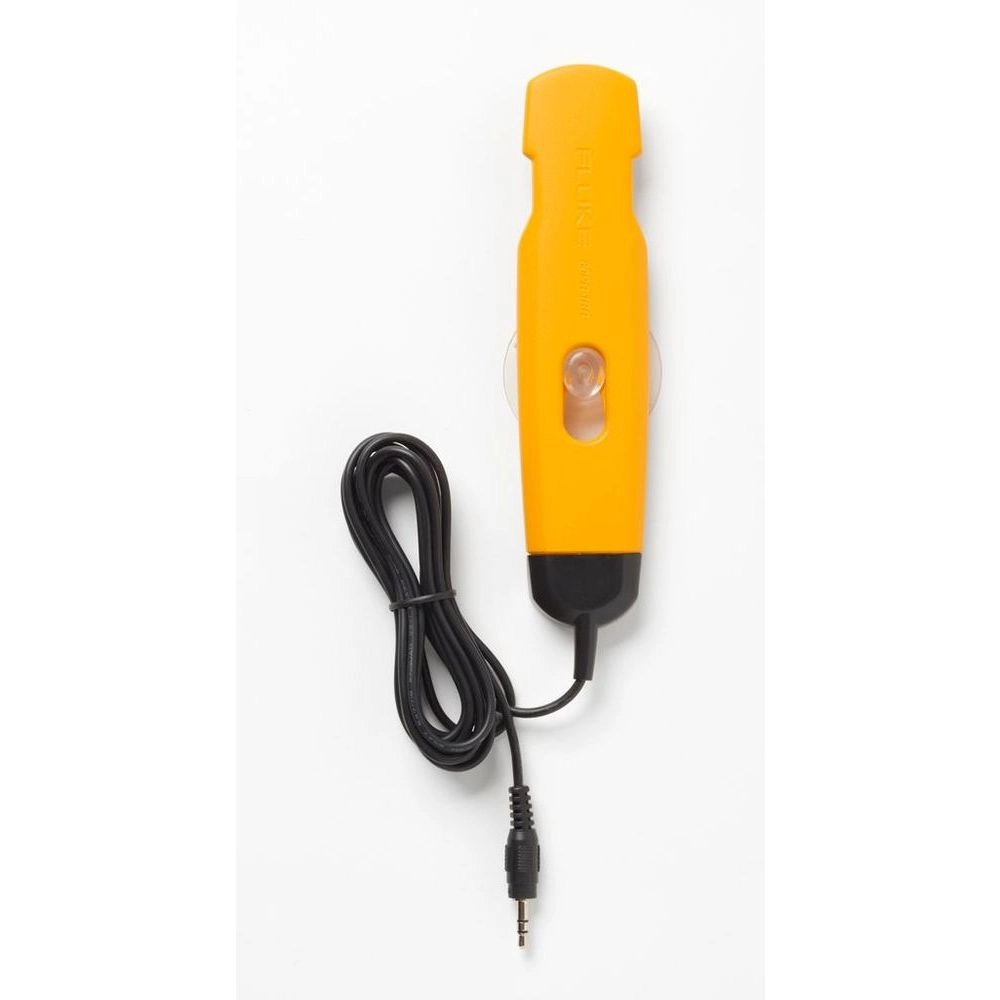

- 1x Temperature Probe with Suction Cup

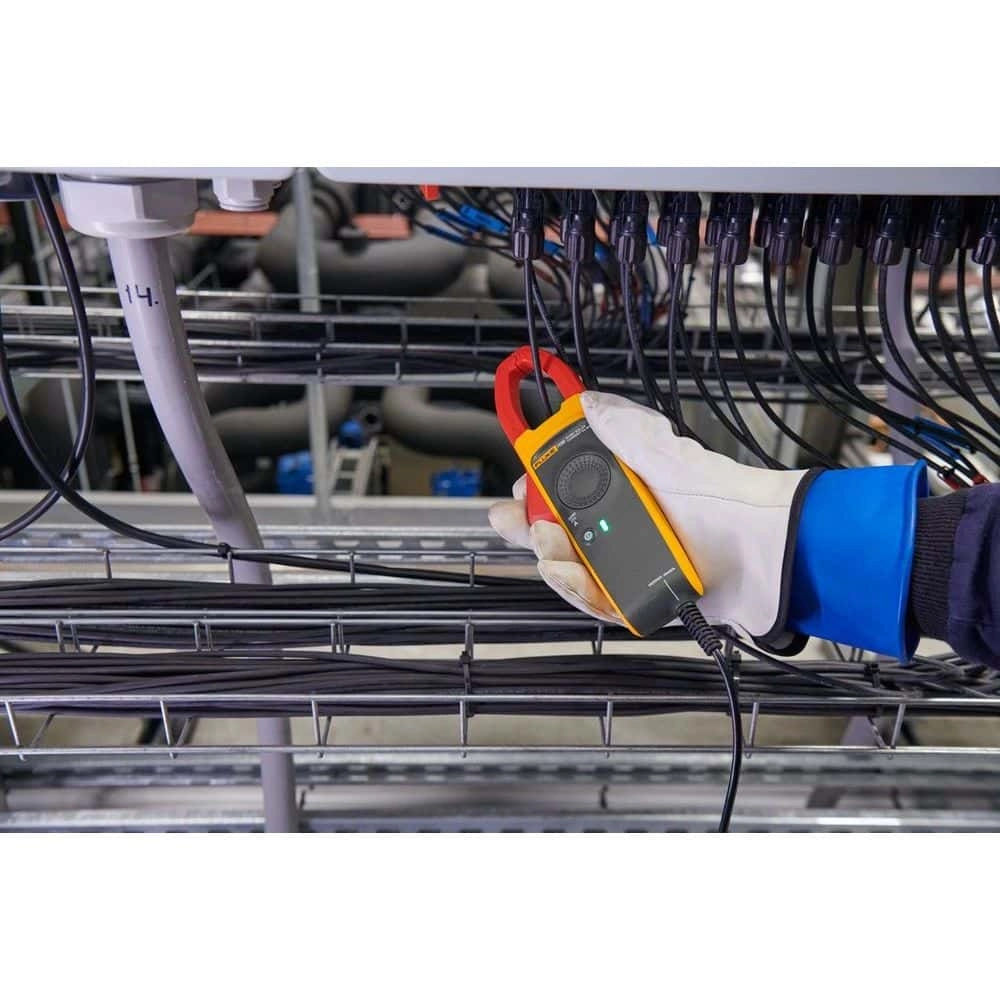

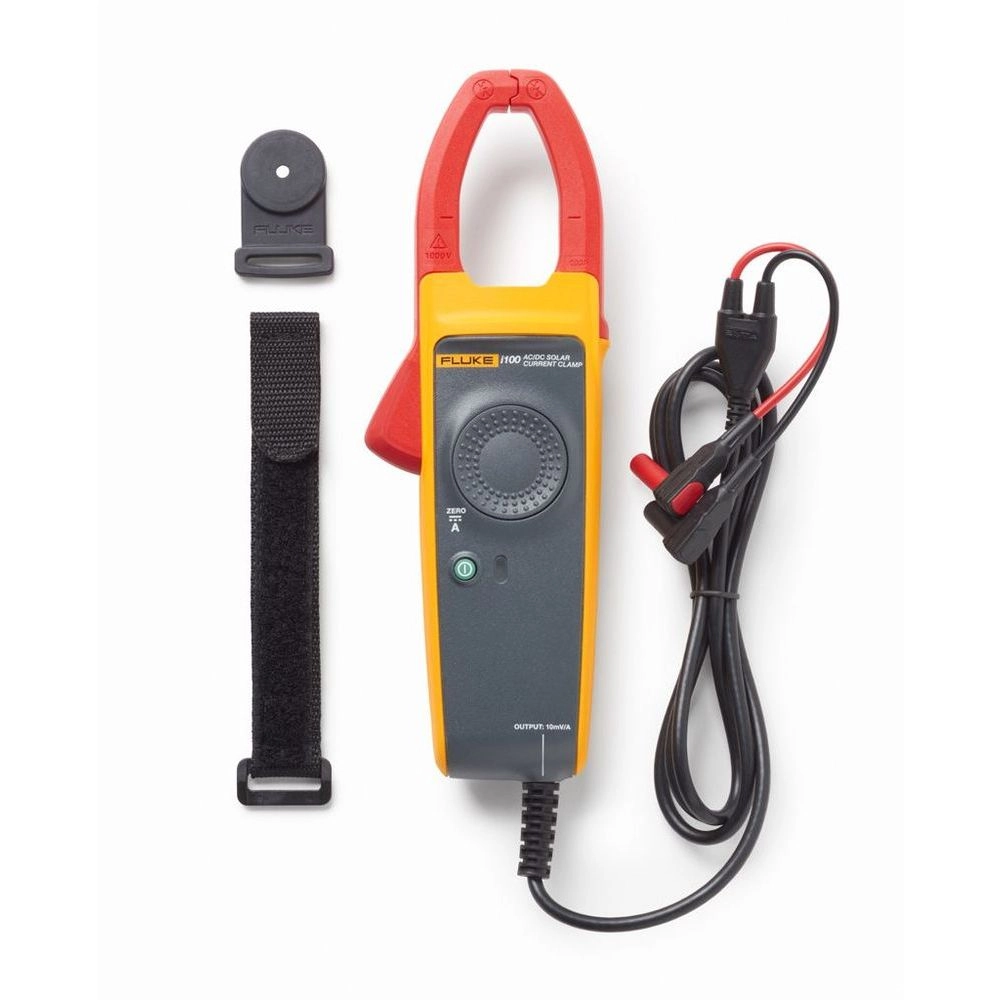

- 1x Clamp Meter (i100)
- 1x Magnet & Strap

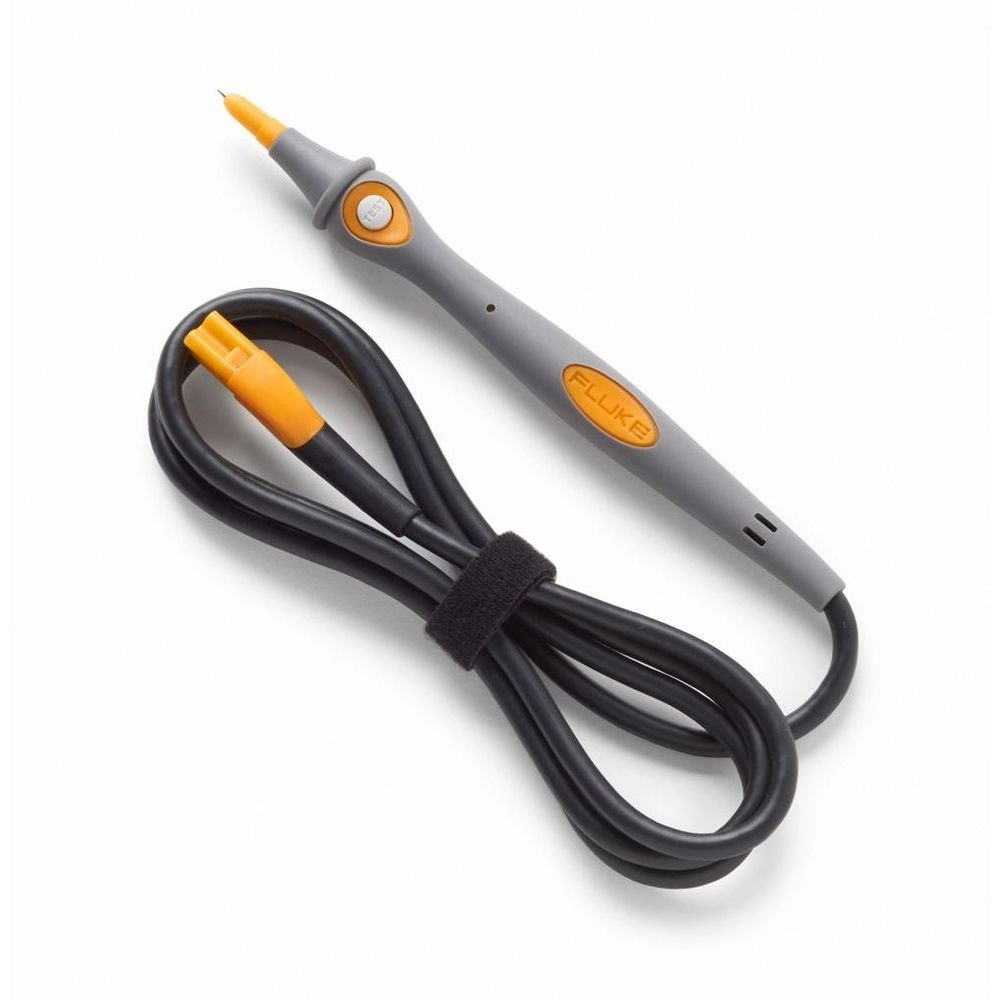

- 1x Remote Probe

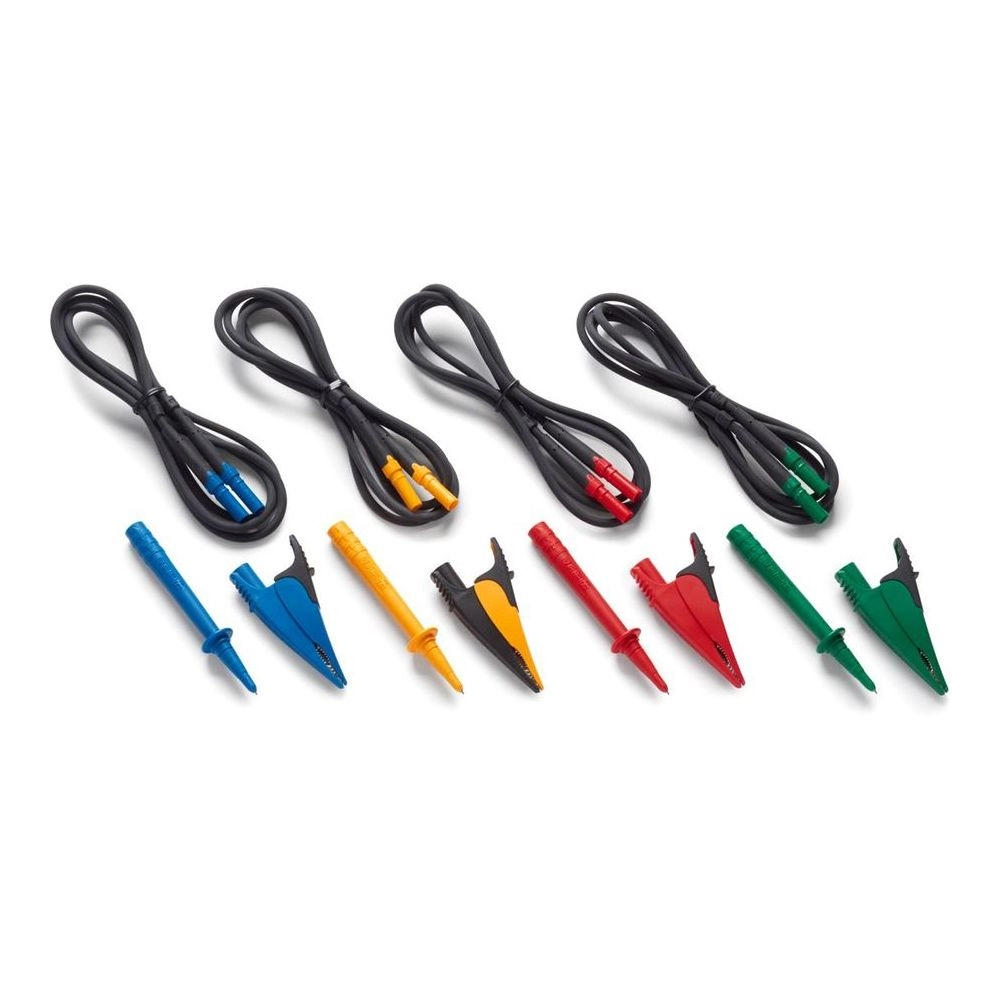

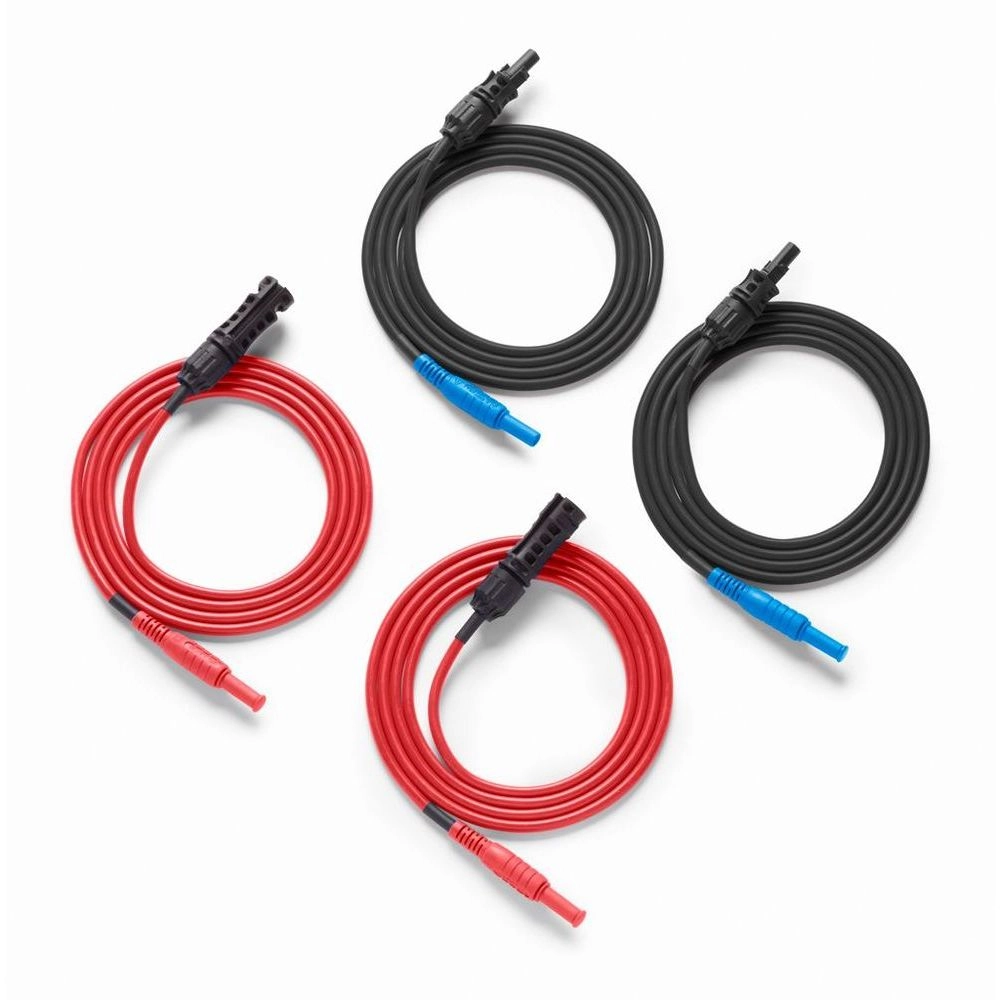

- 4x Test Leads, with Aligator Clips and Test Probes
- 2x Set MC4 Connectors
- 1x Cable Reel with 30m Test Lead
- 1x Couple Set
- 1x Softside Backpack with Foam Insert
- 1x Fluke Truetest Software, License Code

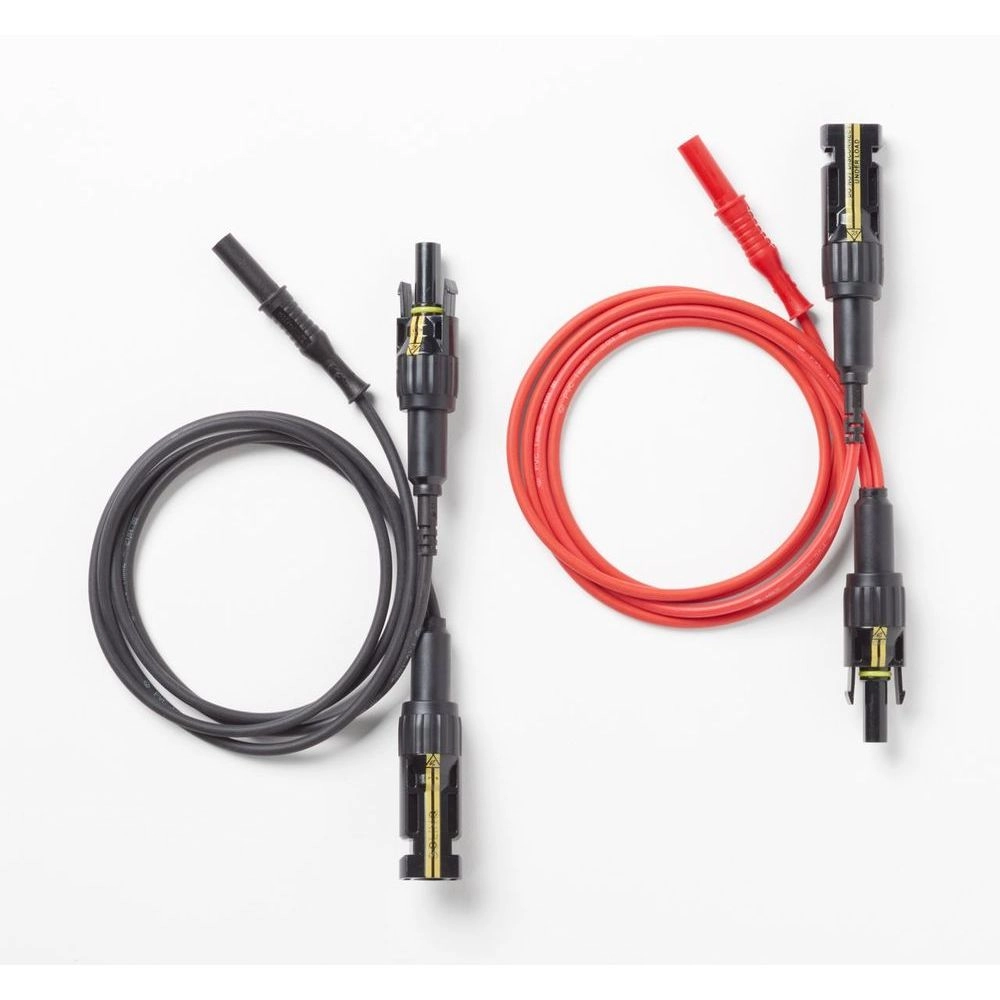

- 1x Solar Clamp Test Lead Set
- Various Printed Safety Guides & Instruction Sheets
