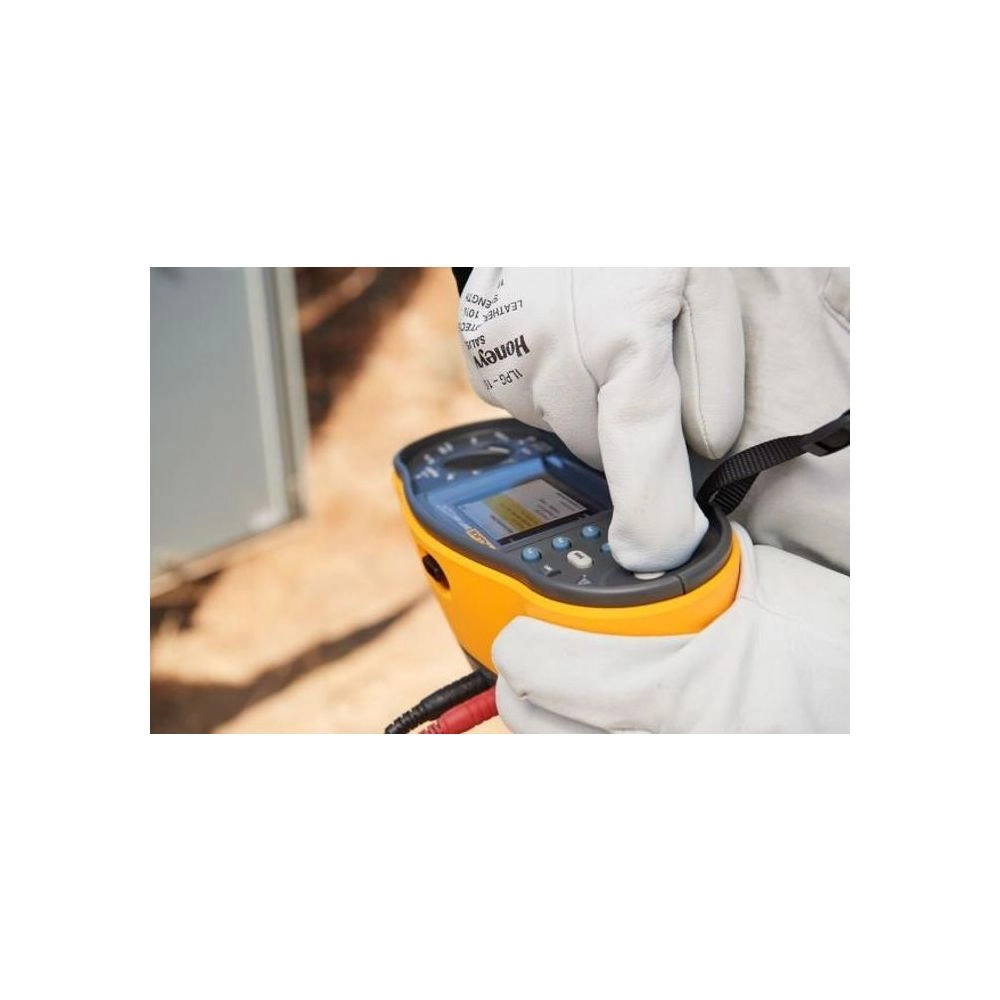

Fluke SMFT-1000/LITE Multifunction PV Tester and Analyzer Kit, Lite
Model # SMFT-1000/LITEKey Features
?
Question about this product?
Features
- Ensures compliance with IEC 62446-1 Category 1 standards
- Quick, automatic, and accurate safety checks during PV solar installations
- Measures solar panel output in <45 seconds
- User-friendly interface
- Streamlined reporting with TruTest™ Solar Data Management Software
Technical Information
- RLO Display Range0 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
- RLO Measuring Range0.2 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
- VOC Display Range0 - 99.9V / 100 - 1000V
- VOC Measuring Range5 - 99.9V / 100 - 1000V
- Polarity TestYes
- ISC Display Range0 - 20A
- ISC Measuring Range0.2 - 20A
- RINS Display Range0 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
- RINS Measuring Range0.2 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
- Battery6 AA IEC LR6
- SMFT-1000 weight1.4 kg

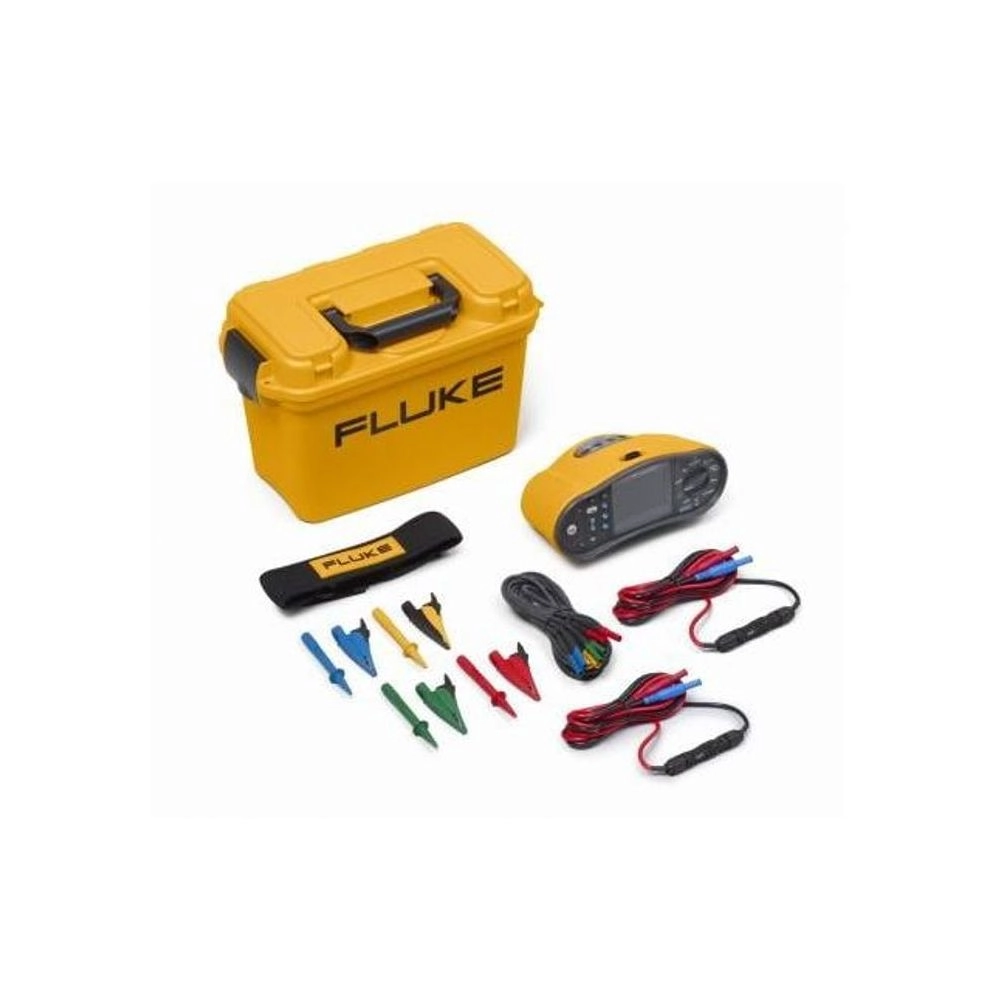

Items Included
- Hard Carrying Case
- SMFT-1000 Multifunction PV Analyzer
- Carry Strap
- TL1000 Test Lead Set
- TL1000-MC4 Test Lead Set
