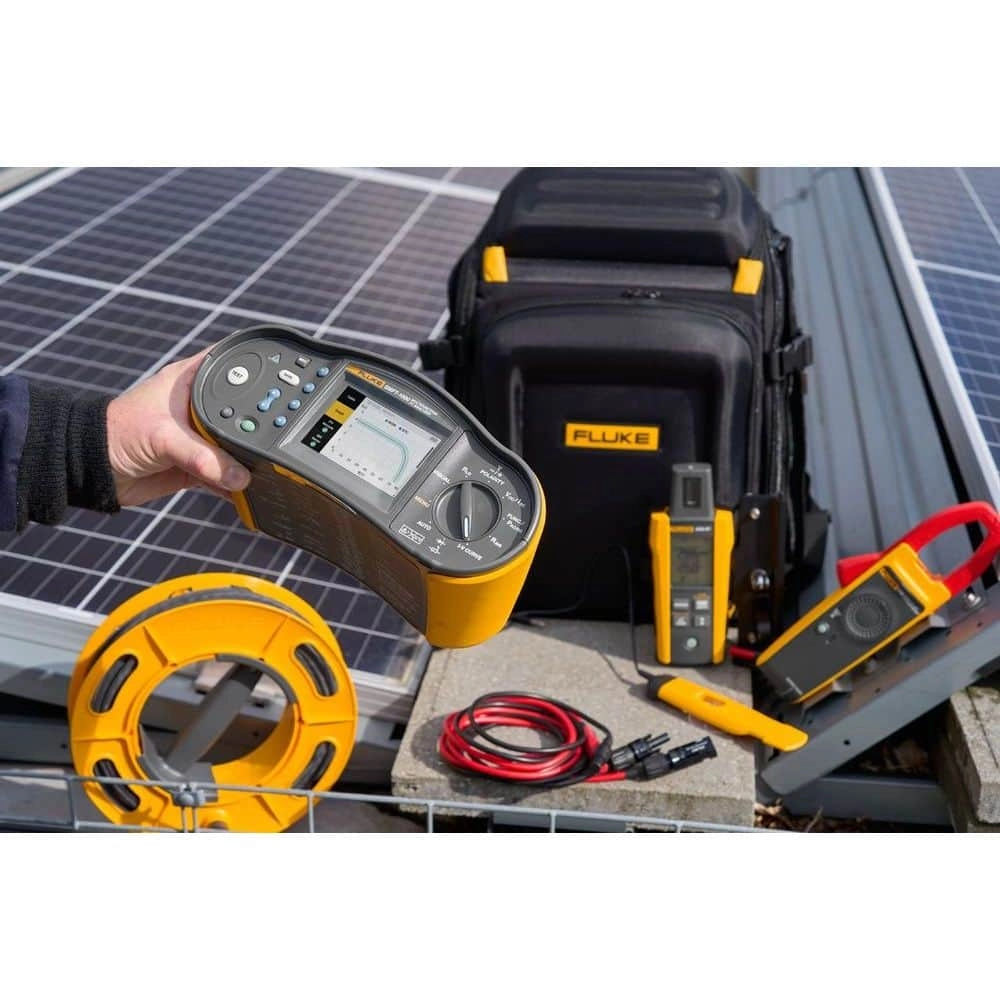

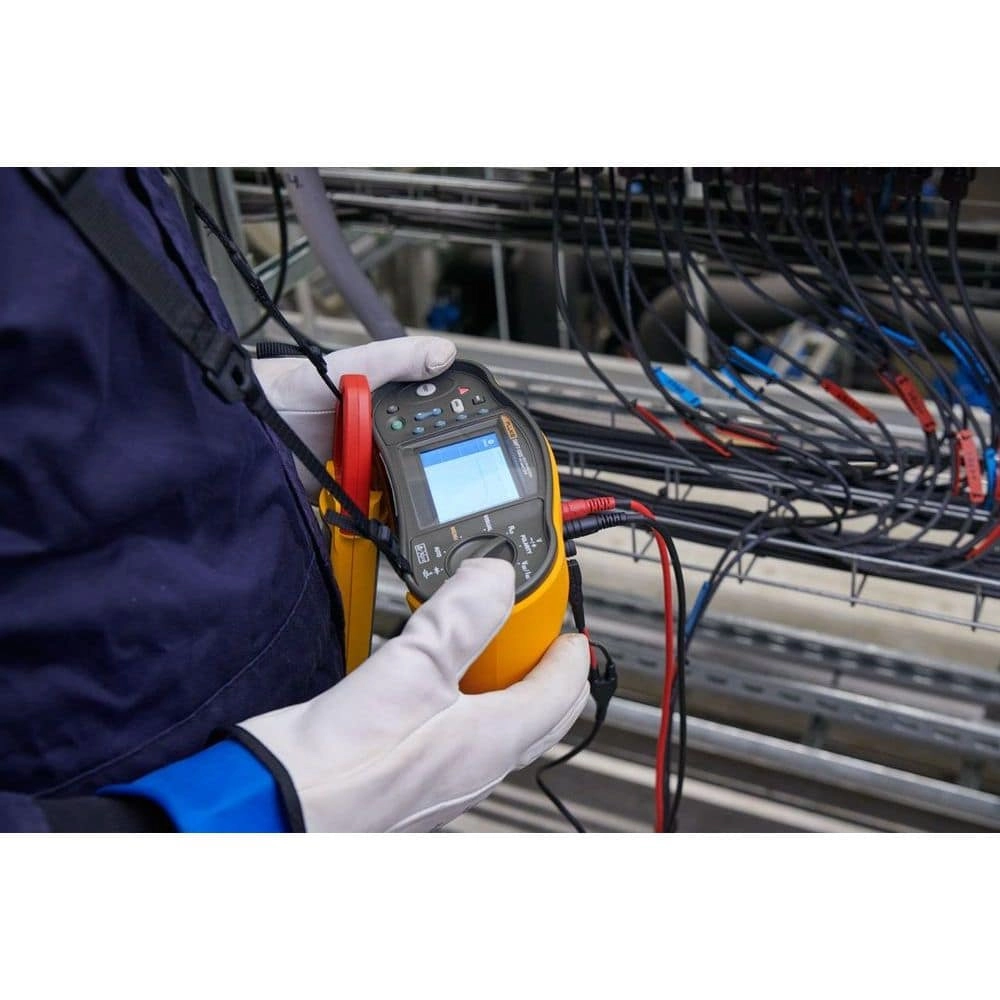

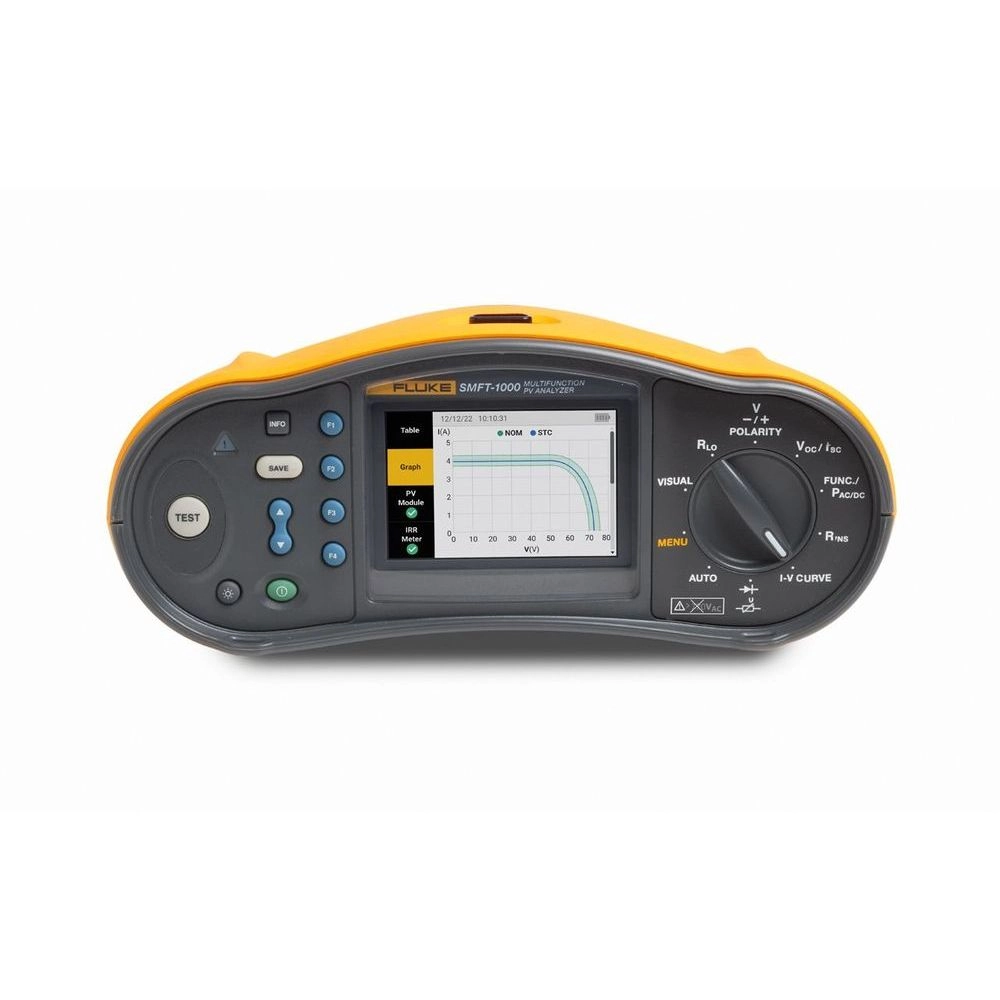

Fluke SMFT-1000/KIT Multifunction PV Tester and Analyzer Kit

Features

• All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
• Perfect for PV professionals involved in installation, comissioning and maintenance services
• Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
• Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
• On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
• Protective conductor resistance (RLO) measurement with a testing current ≥200 mA
• Polarity check with automatic display of the voltage polarity with acoustic/visual warning for wrong polarity
• Insulating resistance (RINS) measurement with a testing voltage of 50 V, 100 V, 250 V, 500 V and 1000 V
• Blocking diode measurement (VBD)
• Surge protection device testing with visual inspection
• AC/DC current and voltage measurement with 4 mm test sockets

Technical Information

• RLO Display Range0 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
• RLO Measuring Range0.2 - 19.99Ω / 20 - 199.9Ω / 200 - 2000Ω
• VOC Display Range0 - 99.9V / 100 - 1000V
• VOC Measuring Range5 - 99.9V / 100 - 1000V
• Polarity TestYes
• ISC Display Range0 - 20A
• ISC Measuring Range0.2 - 20A
• RINS Display Range0 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
• RINS Measuring Range0.2 - 99.99MΩ / 100 - 199.9MΩ / 200 - 999MΩ
• Battery6 AA IEC LR6
• SMFT-1000 weight1.4 kg

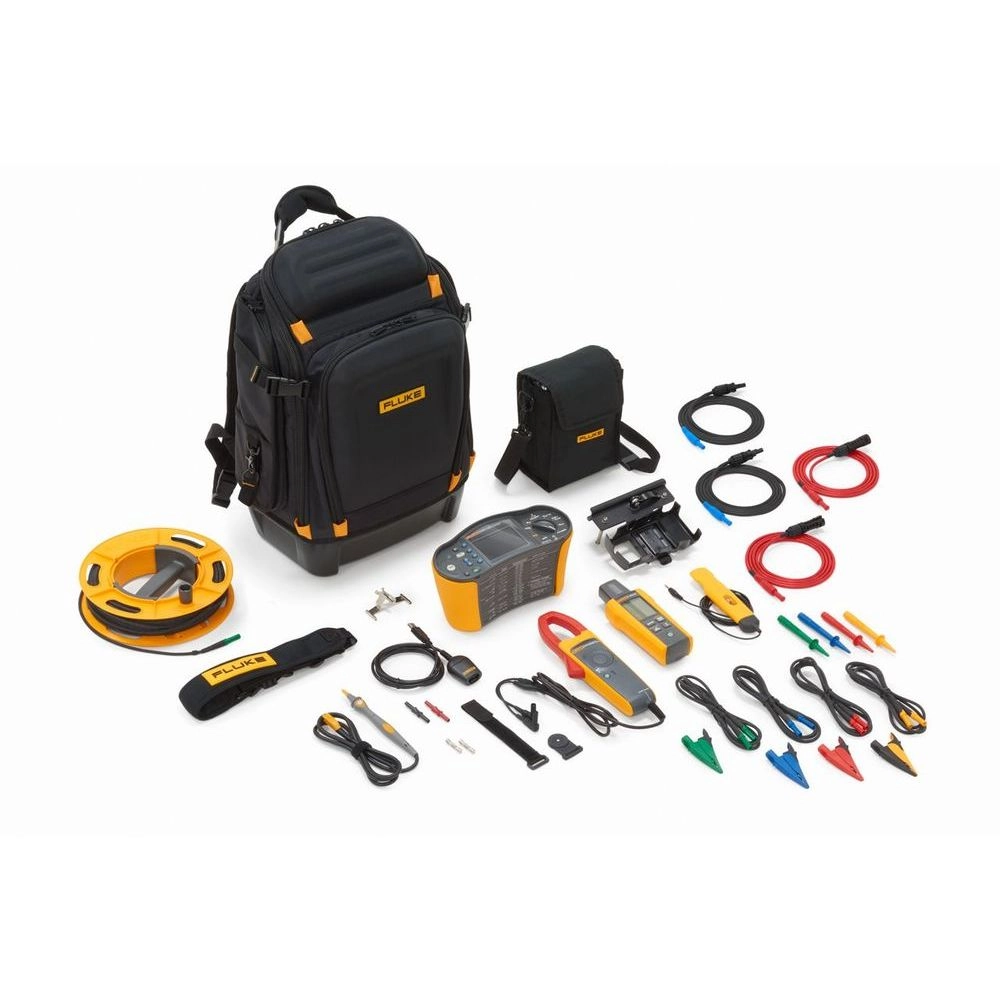

Items Included

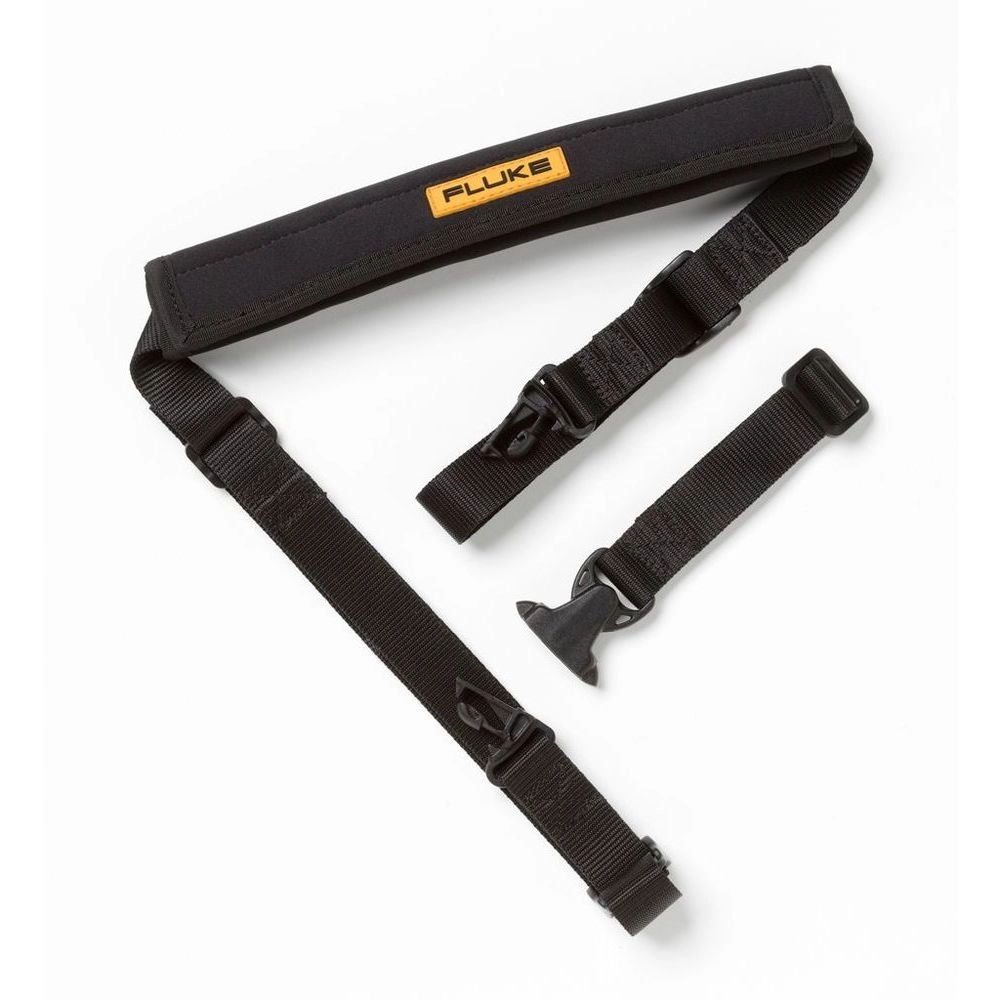

• 1x Multifunction PV Analyzer with Neck & Waist Carring Strap

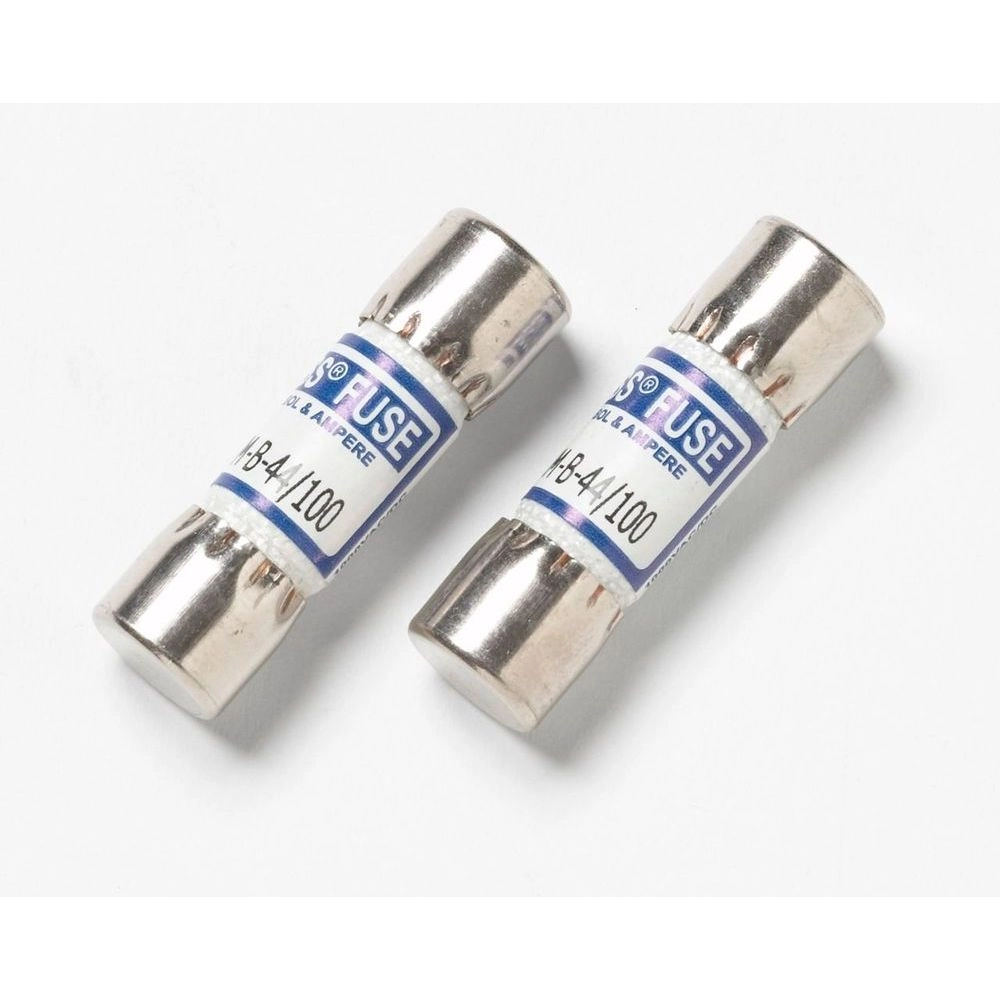

• 2x Extra Fuses
• 1x Zero Adapter

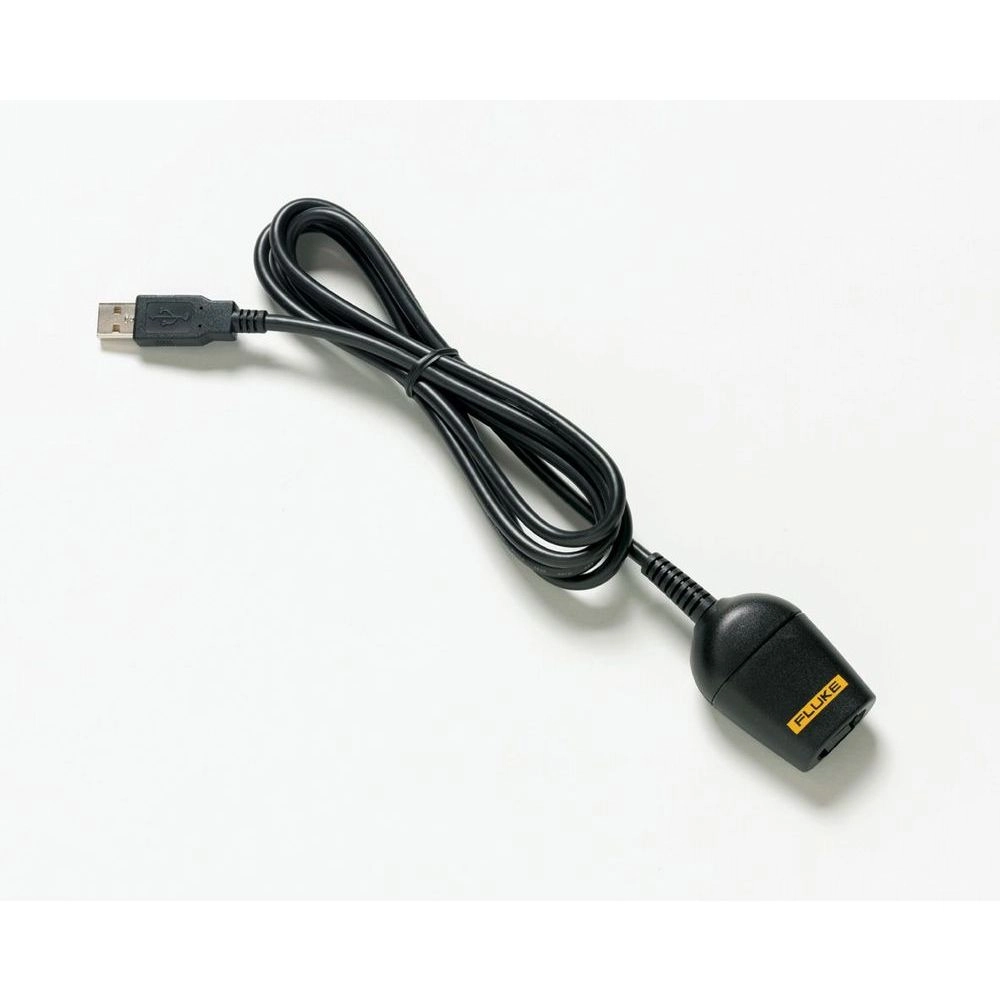

• 1x IRDA Optical USB Adapter

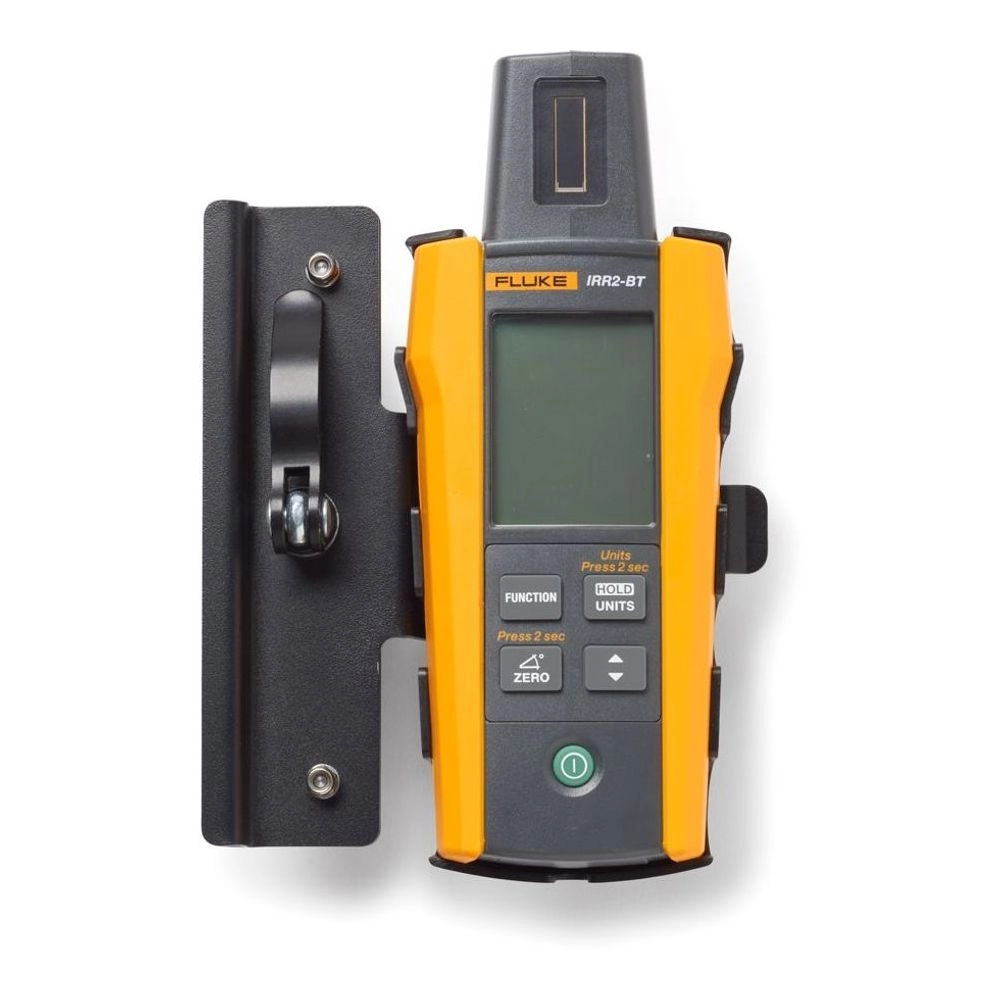

• 1x Irradiance Meter with Carrying Case (IRR-B2)
• 1x Mounting Bracket

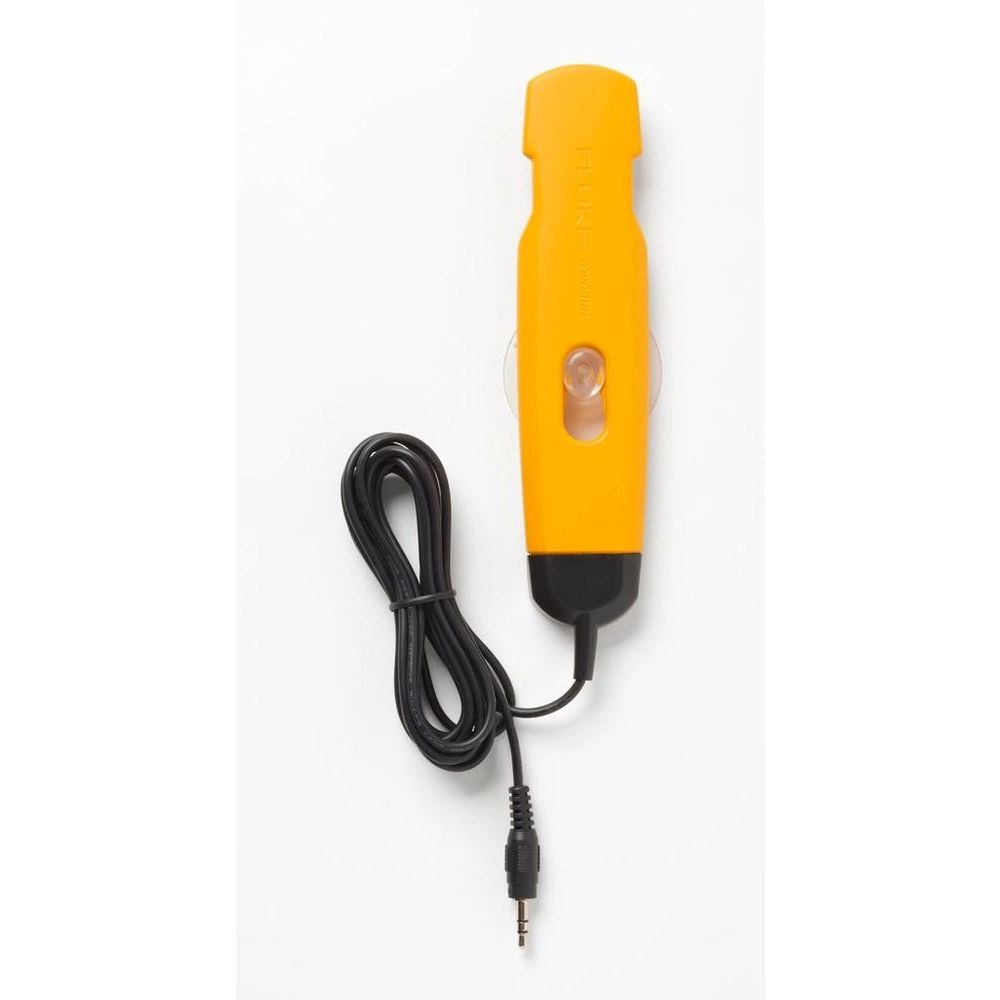

• 1x Temperature Probe with Suction Cup

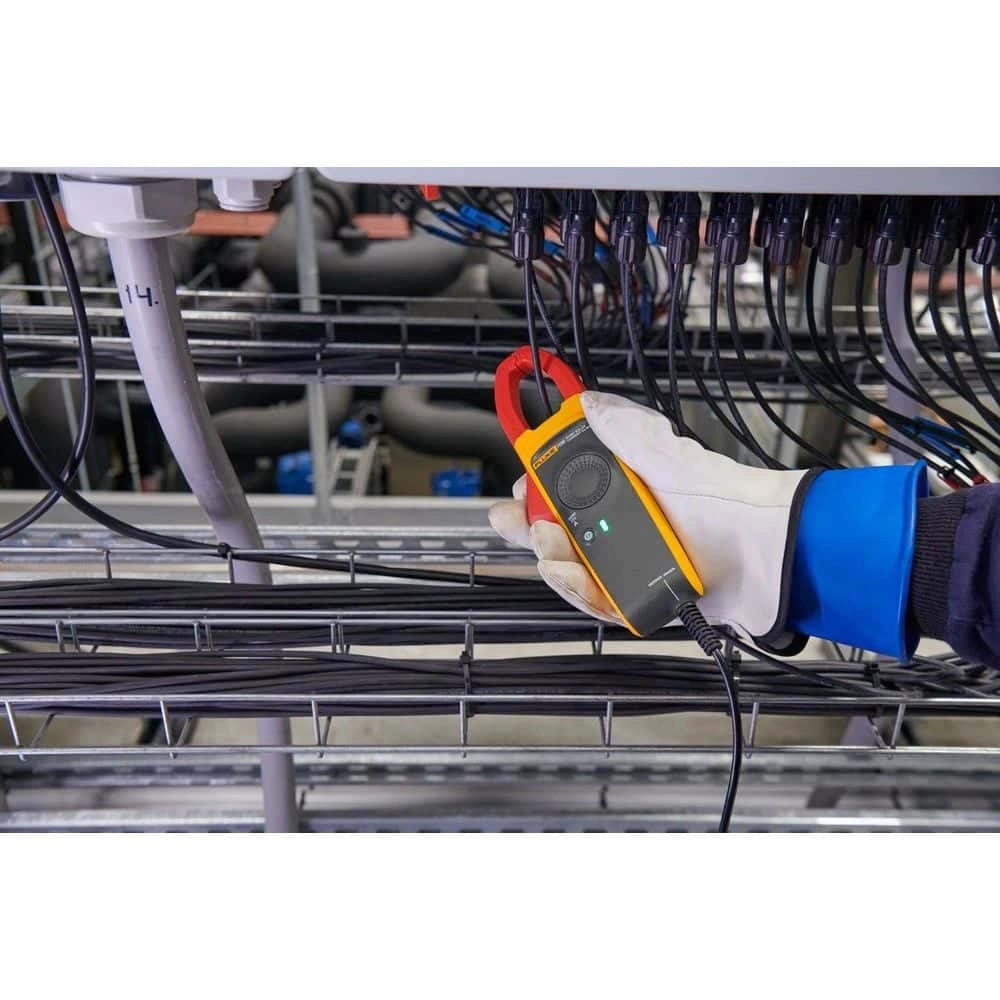

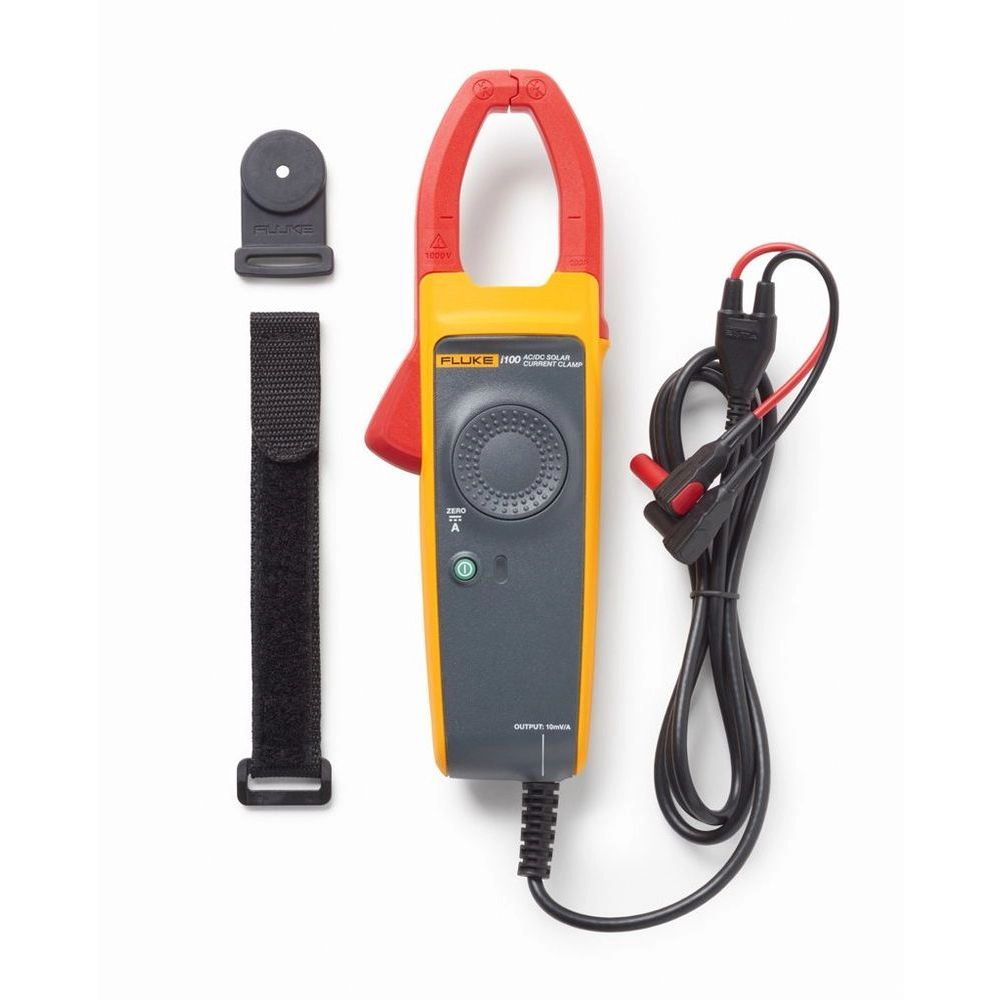

• 1x Clamp Meter (i100)
• 1x Magnet & Strap

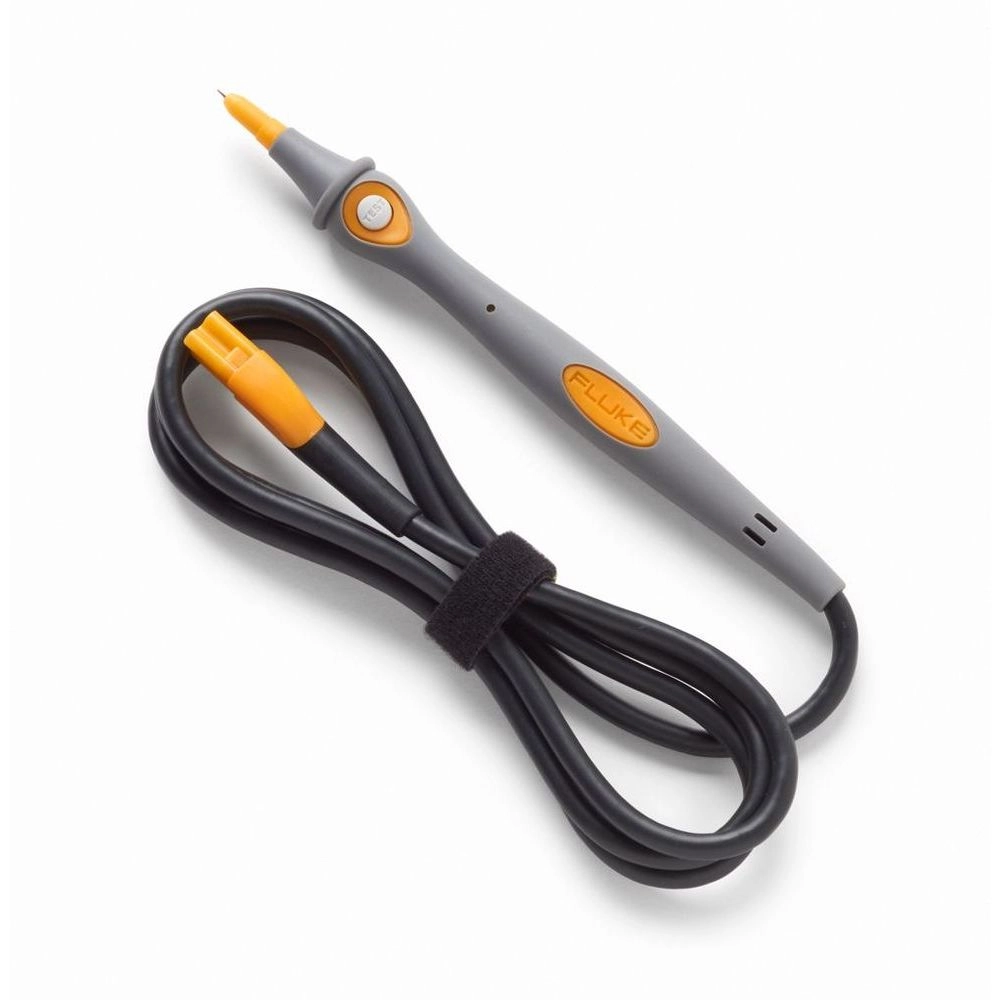

• 1x Remote Probe

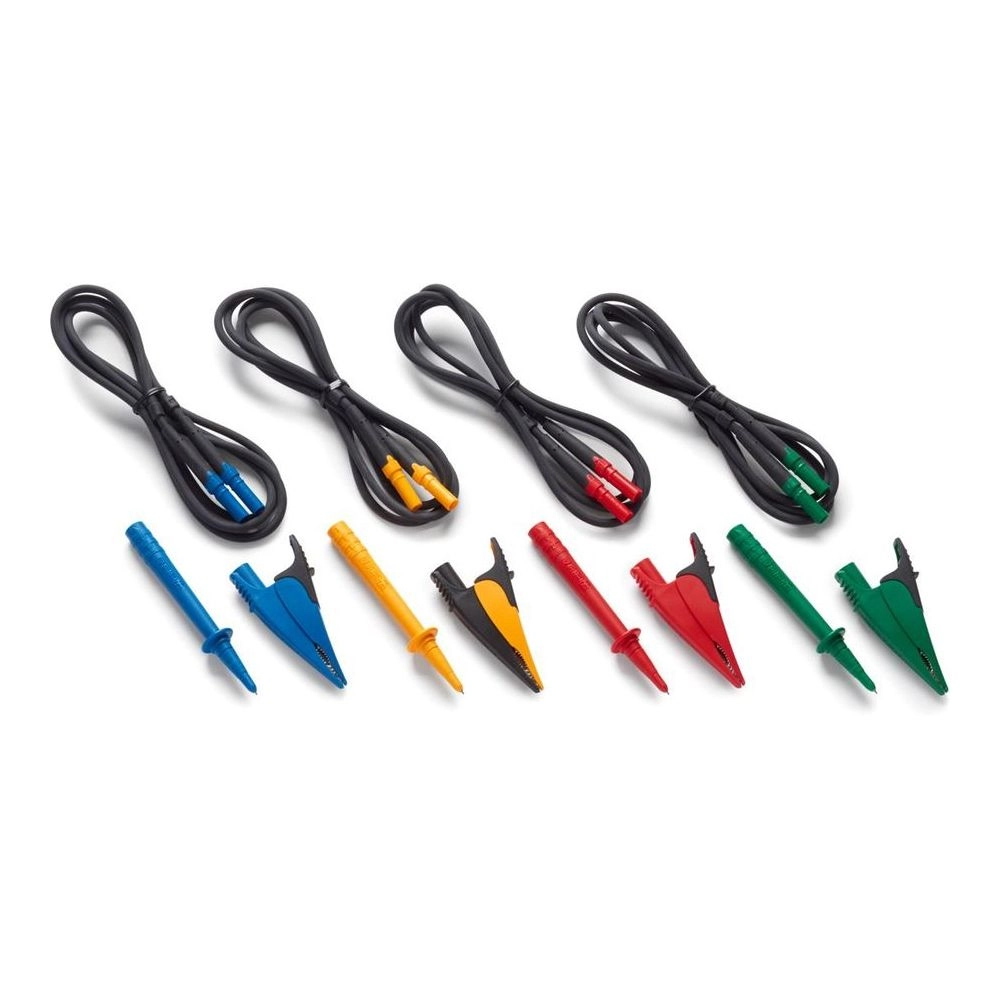

• 4x Test Leads, with Aligator Clips and Test Probes

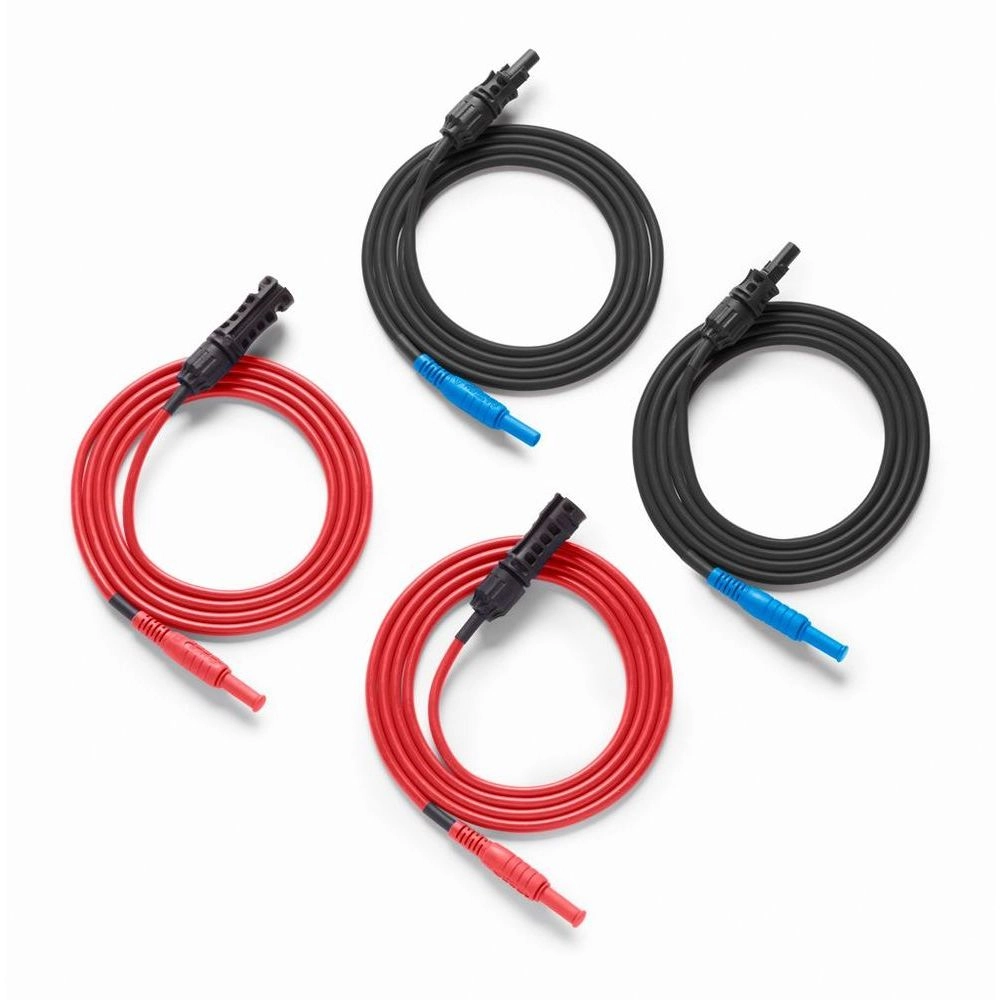

• 2x Set MC4 Connectors
• 1x Cable Reel with 30m Test Lead
• 1x Couple Set

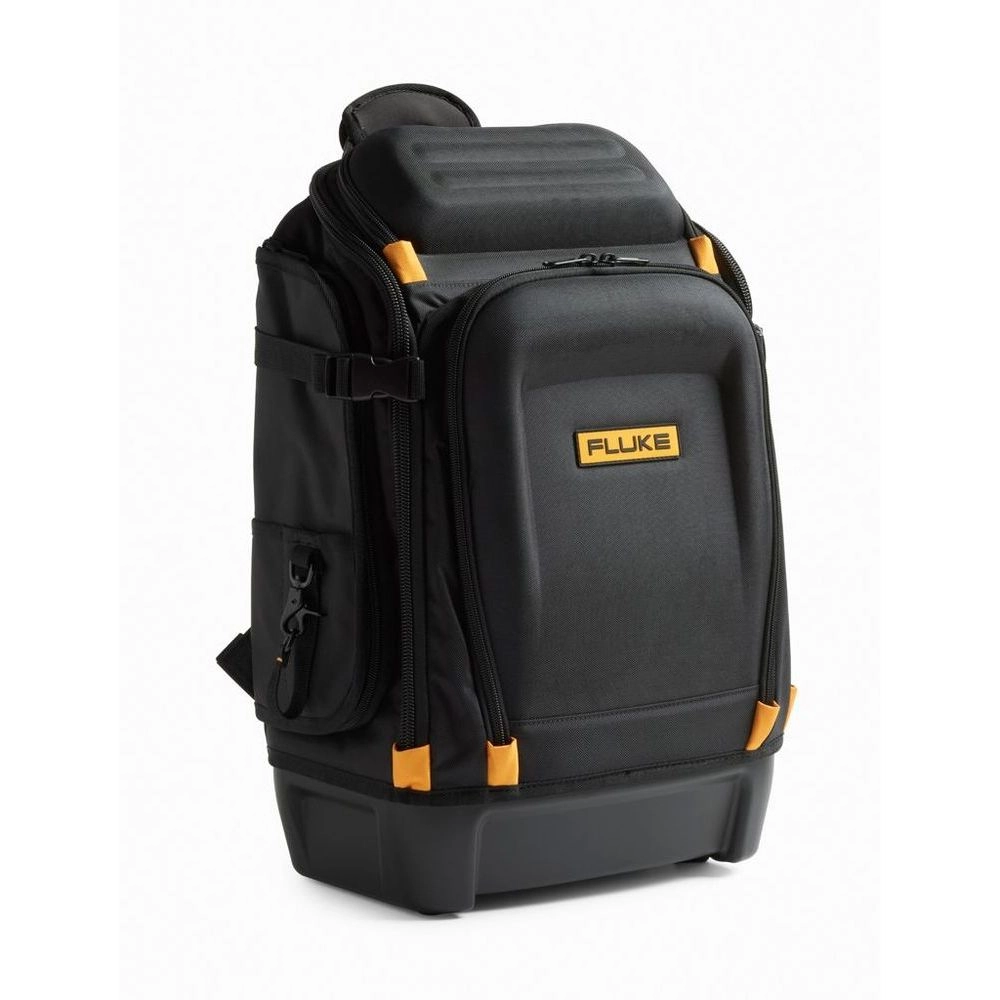

• 1x Softside Backpack with Foam Insert
• Various Printed Safety Guides & Instruction Sheets
