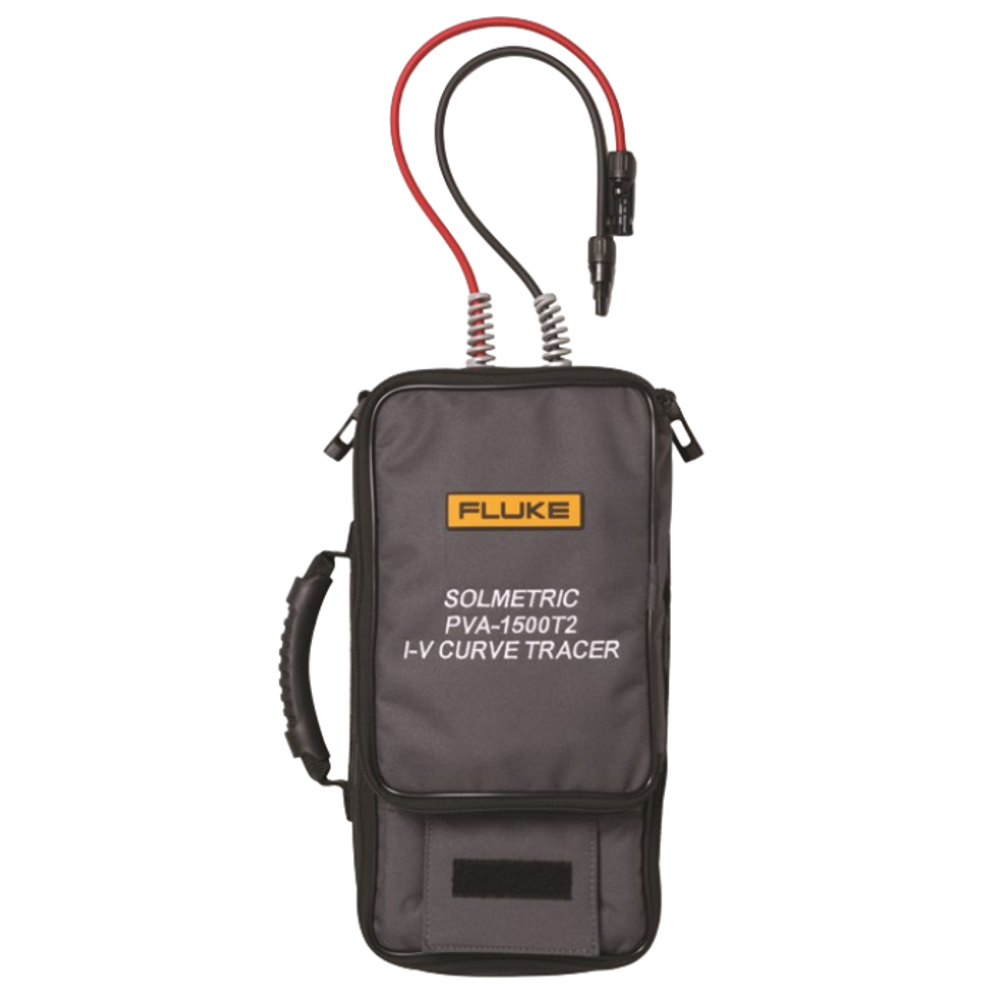

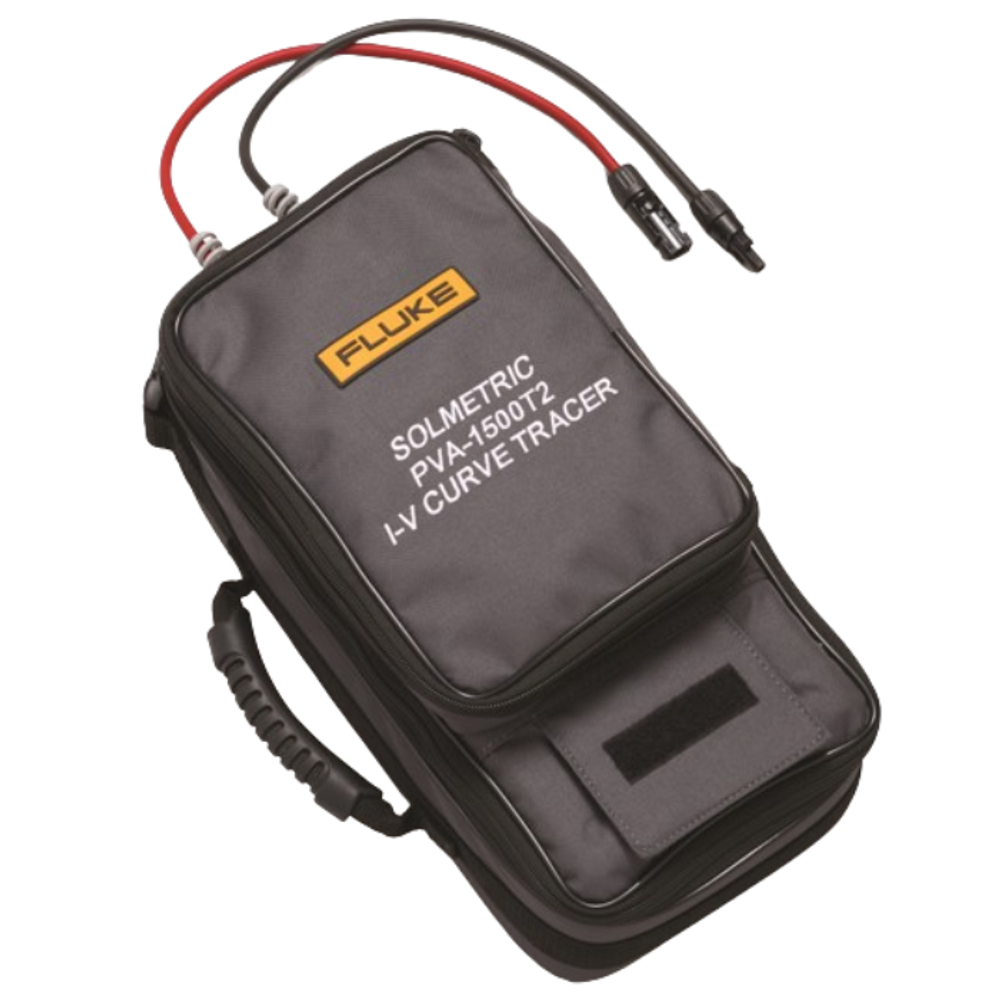

Fluke PVA-1500T2 Solmetric PVA-1500 Series PV Analyzer, I-V Curve Tracer

Features

• Measures and displays I-V curves up to 1500V and 30A
• Advanced built-in PV model provides immediate PV performance checking
• Sweep-to-sweep delay of 9 seconds to measure 3.5MW in <1hr
• Wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting
• Automates data management, analysis, and reporting

Technical Information

• Voltage Range (Voc)20 to 1500V DC
• Module Efficiency <19%0 to 30A DC
• Module Efficiency =19%0 to 30A DC
• Voltage Accuracy (0 °C to 45 °C)±(0.5% ±0.25V)
• Current Accuracy (0 °C to 45 °C)±(0.5% ±0.04A)
• Power Accuracy (0 °C to 45 °C)±(1.7 % + 1.0 W) (current =3 A, module efficiency <19 %)
• Voltage Resolution25 mV
• Current Resolution2 mA
• Altitude2000 m max
• Battery Charging Time6 hr
• Safety and RegulatoryCAT III 1500V
• Warning FeaturesOver-voltage, over-current, over-temperature, reverse polarity
• Weight7.3 kg, 16.09 lb
• Height53.3 cm, 1.74 ft
• Width21.6 cm, 8.50 in
• Depth15.2 cm, 5.98 in

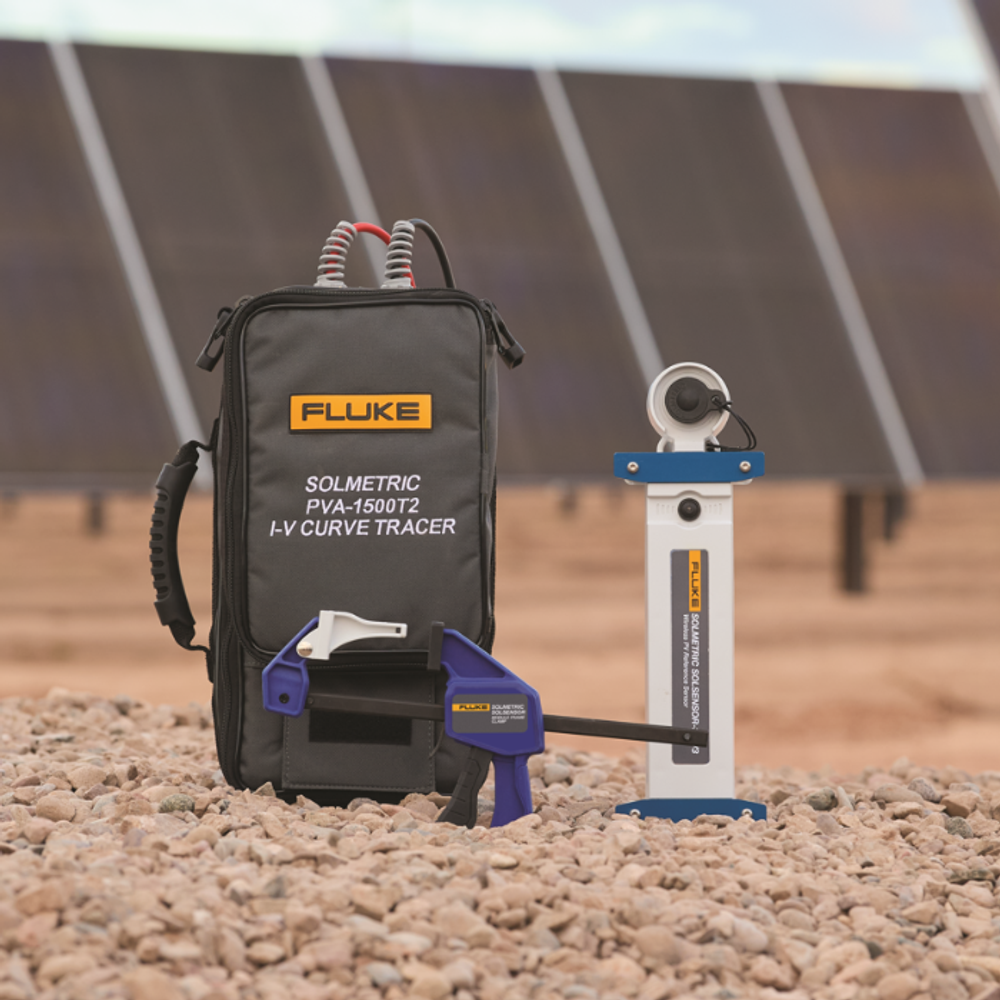

Items Included

• PVA-1500 V unit

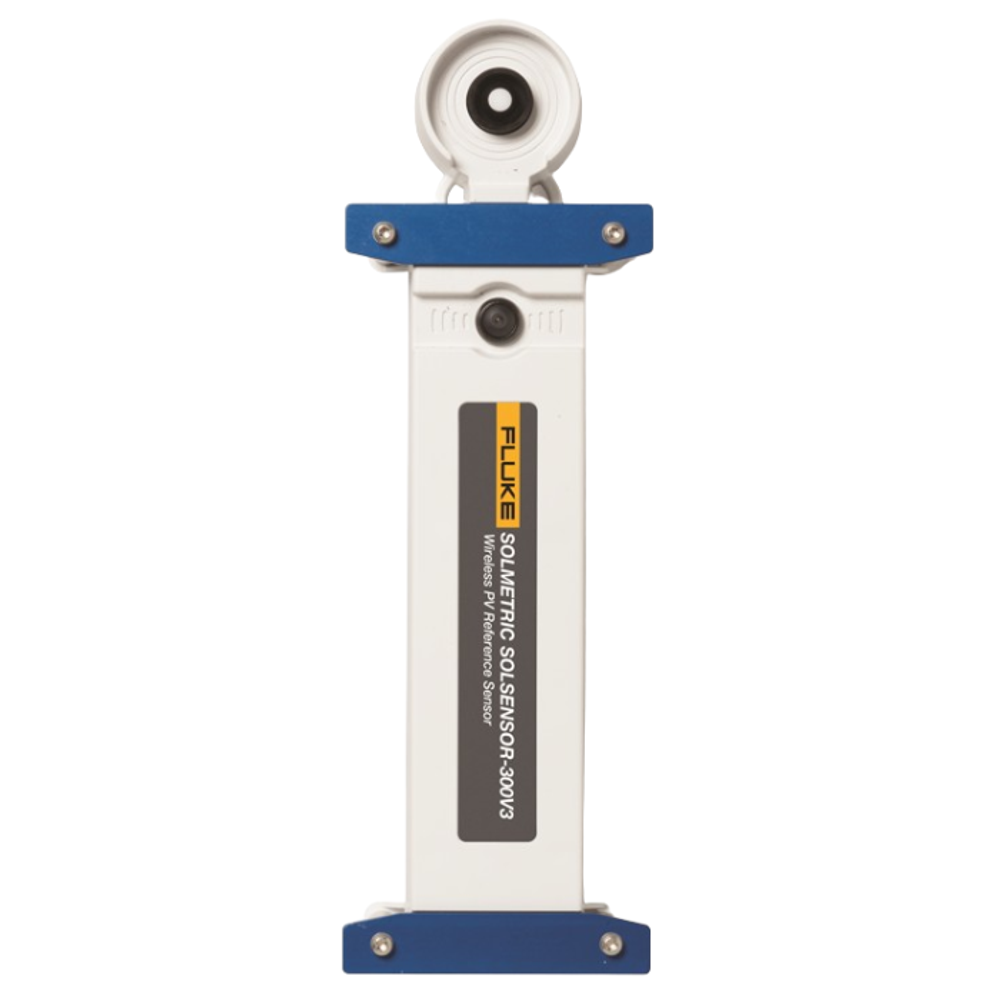

• SolSensor™ and clamp
• Alligator test leads
• MC4 disconnect tool
• Chargers
• 2x thermocouples and adhesive disks
• Sensor cleaning supplies

Downloads

DatasheetDatasheet
