Fluke Pti120 Pocket Thermal Imaging Camera, 120x90, 9Hz, -20 to 400°C

Features

• 3.5” LCD touchscreen display for easy troubleshooting
• -20 °C to +150 °C temperature measurement range
• Six color palettes
• Automatically organize and file thermal images with Fluke Connect Asset Tagging
• Can withstand drop up to 1 meter
• IP 54 enclosure rating
• Subject to Export Control
• Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)

Technical Information

• IFOV (spatial resolution)7.6 mRad
• Infrared resolution120 x 90 (10,800 pixels)
• Field of view50° H x 38° V
• Distance to spot130:1
• Temperature-20 °C to 400 °C
• Focus systemFixed focus, minimum focus distance 22.8 cm
• Thermal sensitivity (NETD)60 mK
• Frame rate9 Hz
• Infrared spectral band8 μm to 14 μm (long wave)
• Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
• Relative humidity95% non-condensing
• Size (H x W x L)8.9 cm x 12.7 cm x 2.5 cm (3.5 inches x 5.0 in x 1.0 inches)

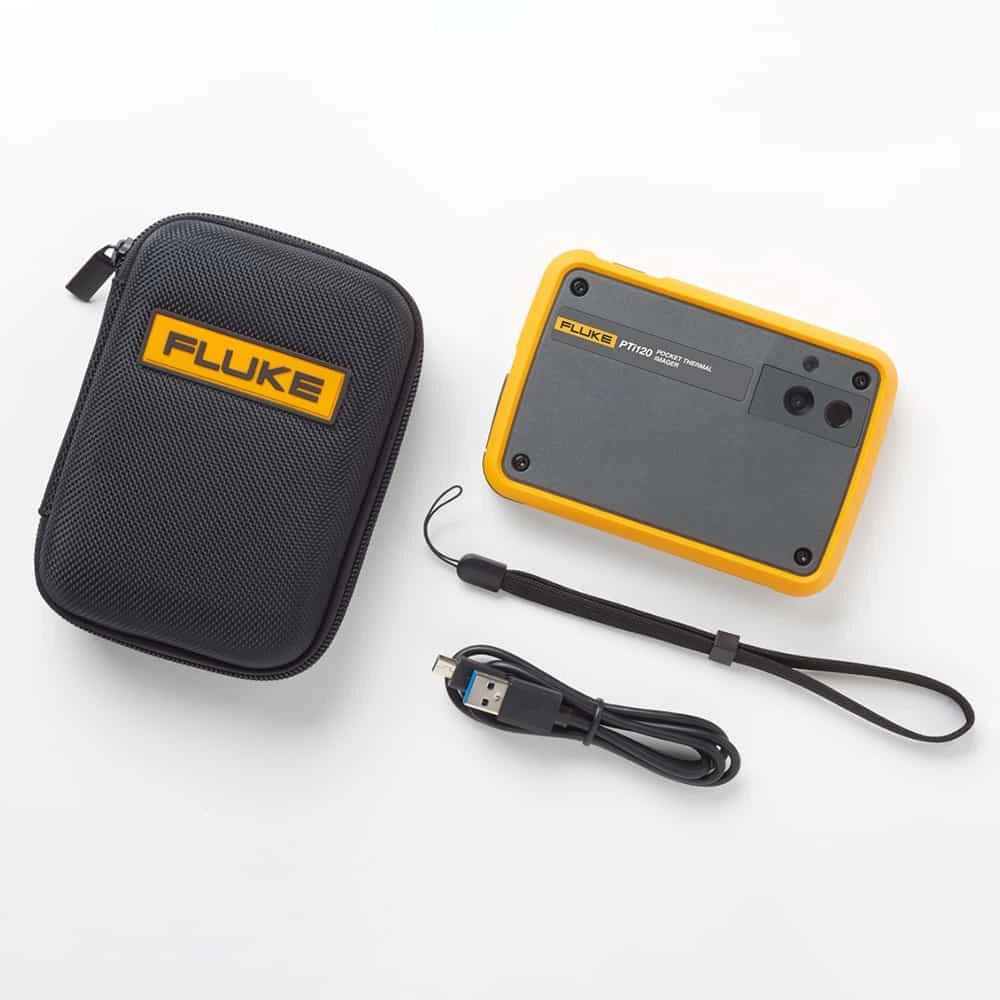

Items Included

• Thermal imager
• Soft case
• Lanyard
• USB cable

Downloads

CertificateCertificate
