Fluke PRV240 Proving Unit, 240V DC/AC

Features

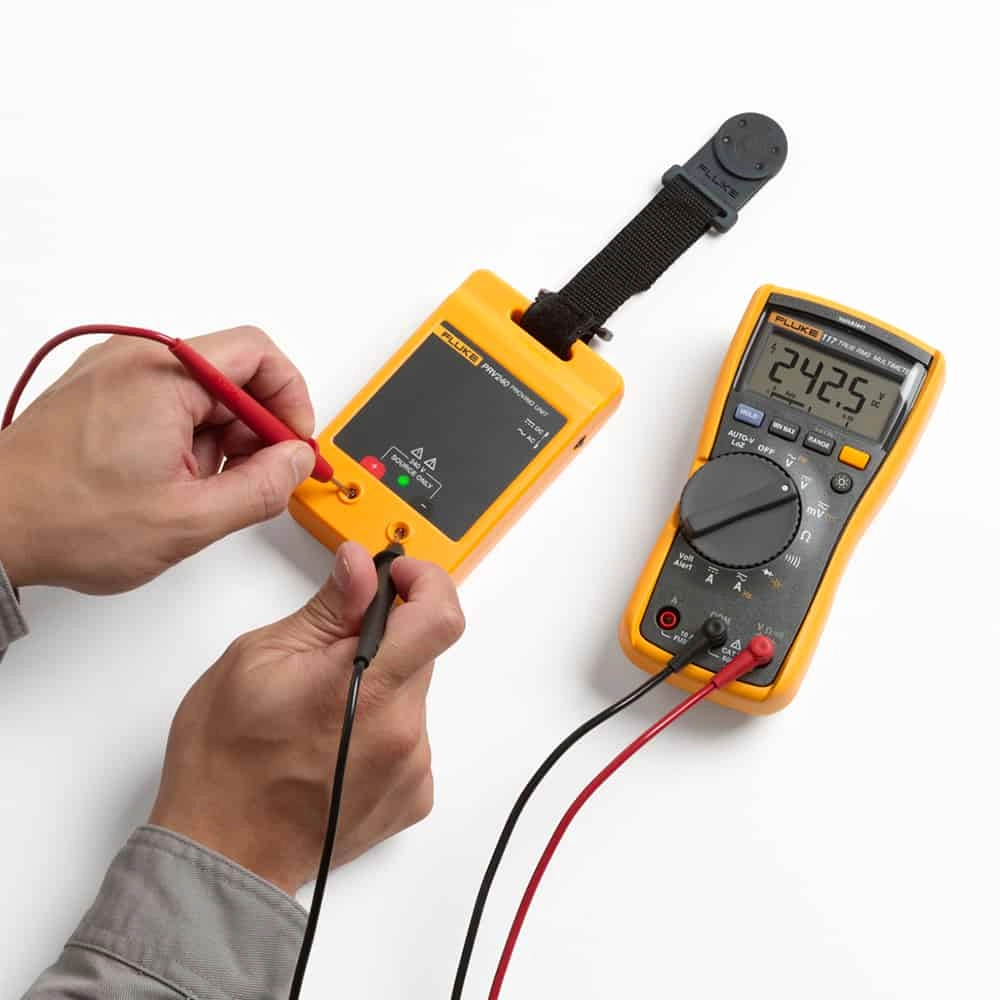

• Compatible with both high impedance or low impedance multimeters; clamp meters or two pole testers
• Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
• Includes Magnetic Hanging Strap
• Validate test tool functionality outside of hazardous zones
• Long battery life—5,000 tests per set of four AA batteries
• Designed for safety and compliance

Technical Information

• Voltage240 V AC RMS or DC: ±10 % ≥1 MΩ
• Output voltageLoZ >3 kΩ load: 60 V AC typical; 50 V AC RMS minimum
• LED power indicatorTurns on when output voltage is present
• Battery4 x AA Alkaline batteries NEDA (24 A IEC LR03)
• Battery life5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
• Operating temperature-10 to +50 °C
• Operating humidity0 % to 90 % (0 to 35 °C)
• Operating altitude2000 m
• Dimensions11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in)
• Weight0.23 kg (8 oz)

Items Included

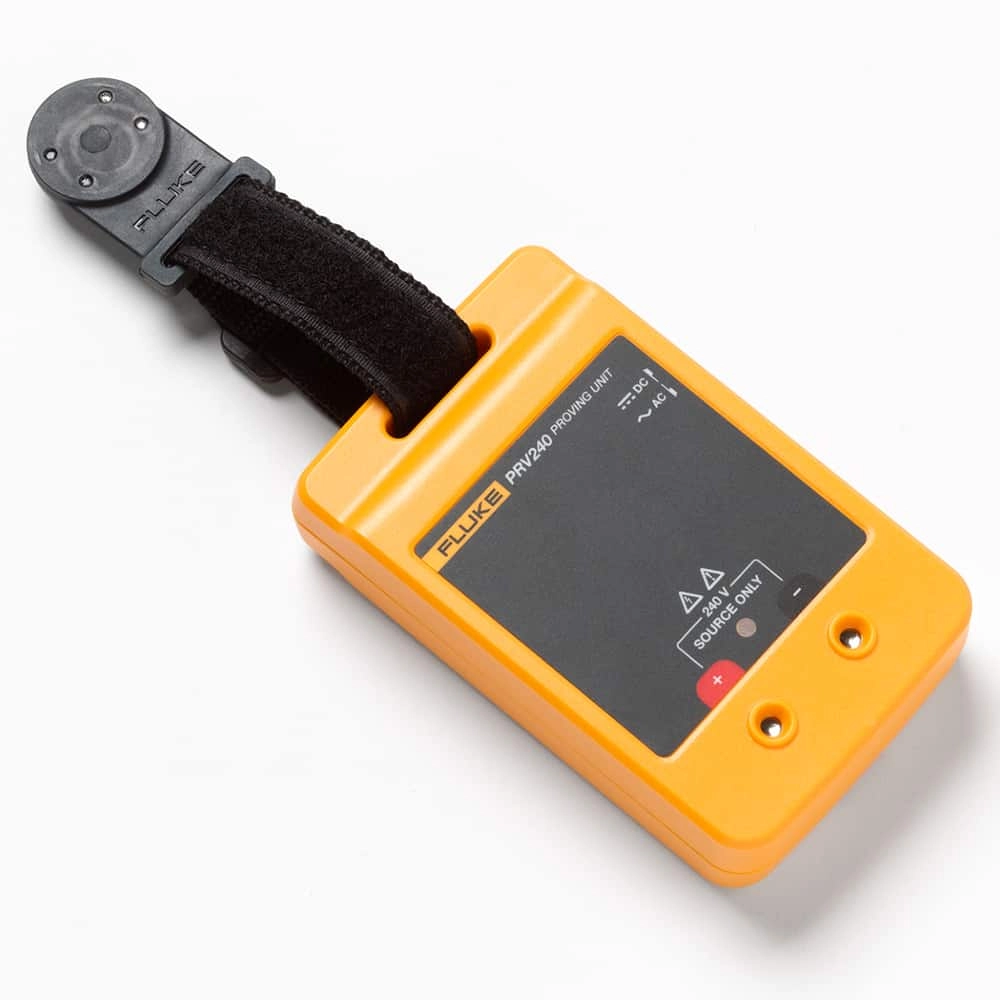

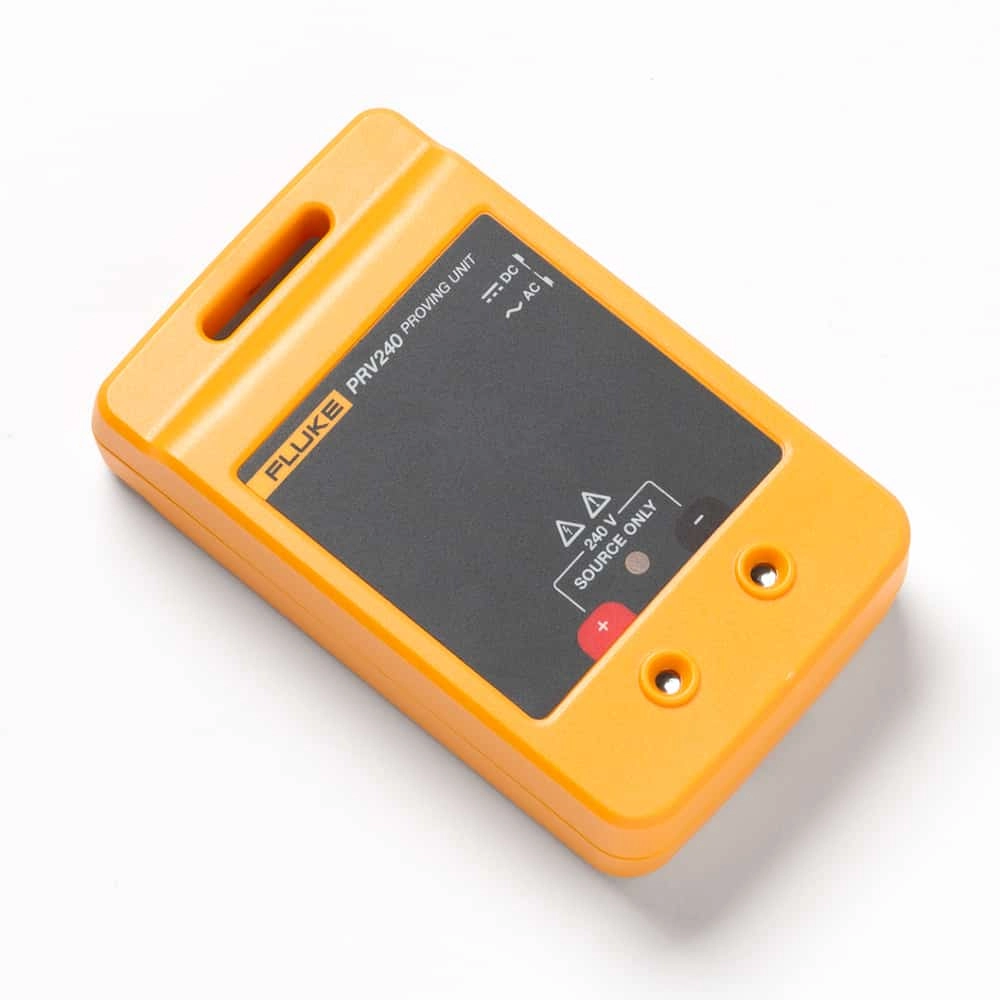

• Fluke PRV240 Proving Unit
• TPAK Magnetic hanging strap
• AA Batteries (x4)
• Instruction Sheet
