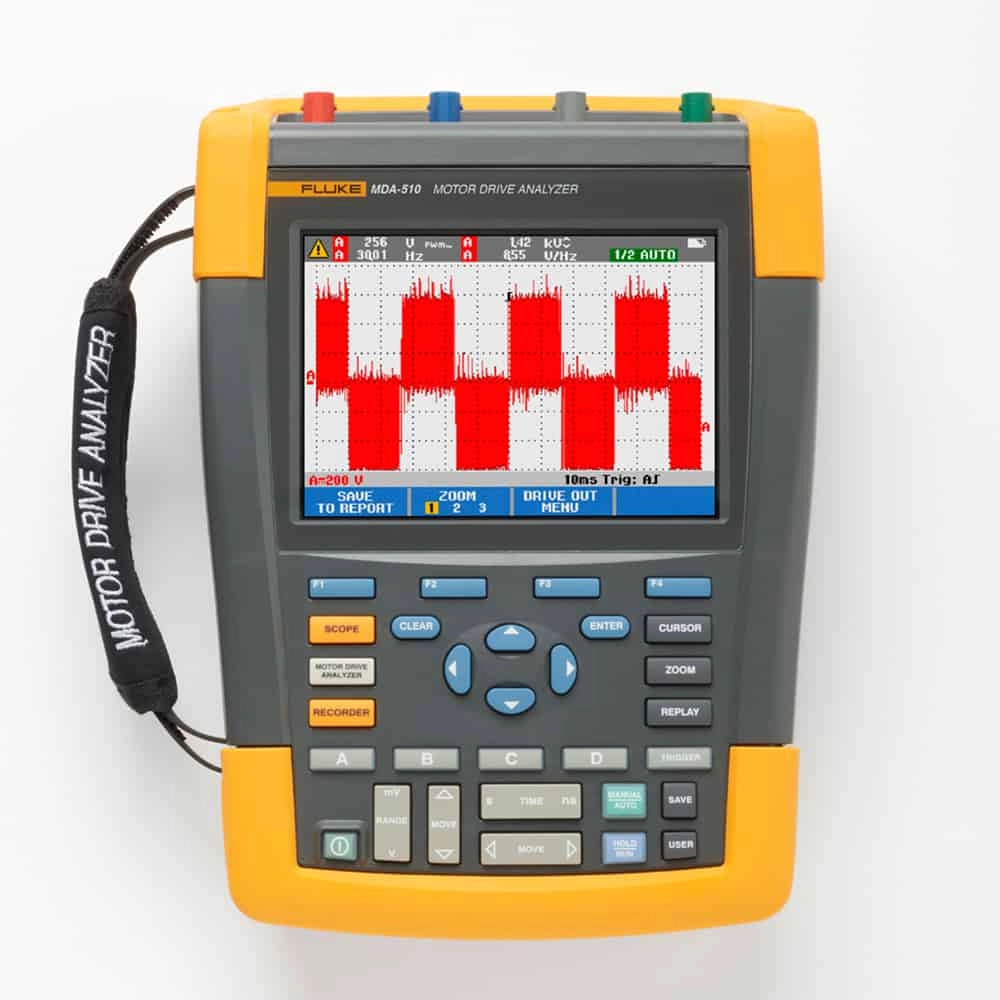

Fluke MDA-510 Motor Drive Analyzer, 4 Channel, 500 MHz
Model # MDA-510Discontinued
Key Features
?
Question about this product?
Features
- Measure key motor-drive parameters including voltage, current, DC Bus voltage level and AC ripple, voltage and current unbalance and harmonics (MDA-550), voltage modulation, and motor shaft voltage discharges (MDA-550).
- Perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.
- Conduct guided measurements for motor-drive input, DC bus, drive output, motor input and shaft measurements (MDA-550) with graphical step-by-step voltage and current connection diagrams.
- Use simplified measurement setup with preset measurement profiles to automatically trigger data collection based on the chosen test procedure.
- Create reports quickly and easily that are perfect for documenting troubleshooting and collaborative work with others.
- Measure additional electrical parameters with full 500 MHz oscilloscope, meter and recording capability for complete range of electrical and electronic measurement on industrial systems.
Technical Information
- Bandwidth500 MHz
- Number of Channels4 channels
- Maximum voltage with 101 or 100:1 probe: 1000 V
- Maximum resolution with 101 or 100:1 probe: 1 mV
- Full scale reading999 counts
- Accuracy at 4 s to 10 us/div±(3 % + 6 counts)
- RangesSame as V ac, Vac+dc or V peak
- Scale Factors0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50mV/A, 100 mV/A, 200 mV/A, 400 mV/A
Items Included
- Motor drive analyzer
- 4 channel
- 500 MHz 1x BP 291 li-ion battery pack 1x BC190 charger/power adapter 3x VPS 100:1 high voltage probes with alligator clips 1x VPS410-II-R 10:1 500MHz voltage probe 1x i400s ac current clamp 1x C1740 carrying case 1x 2 GB USB drive with manuals and FlukeView™ 2 software
