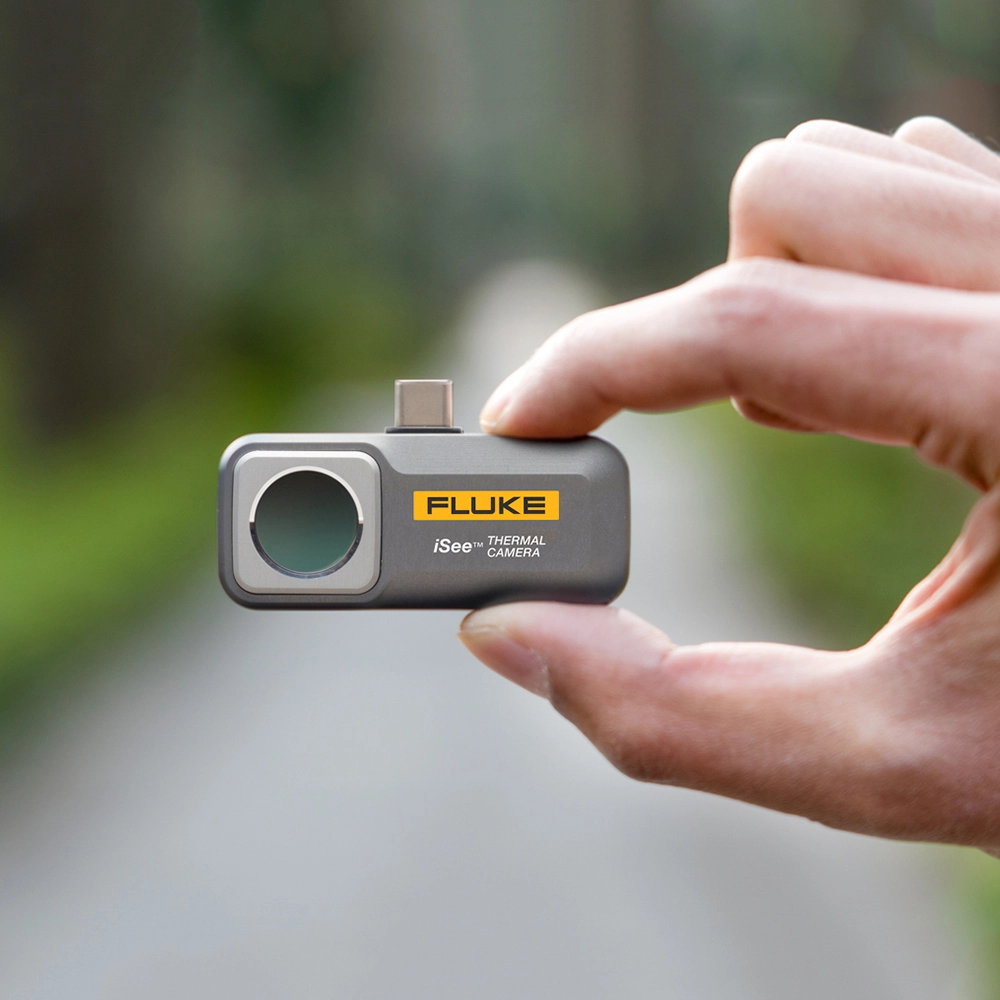

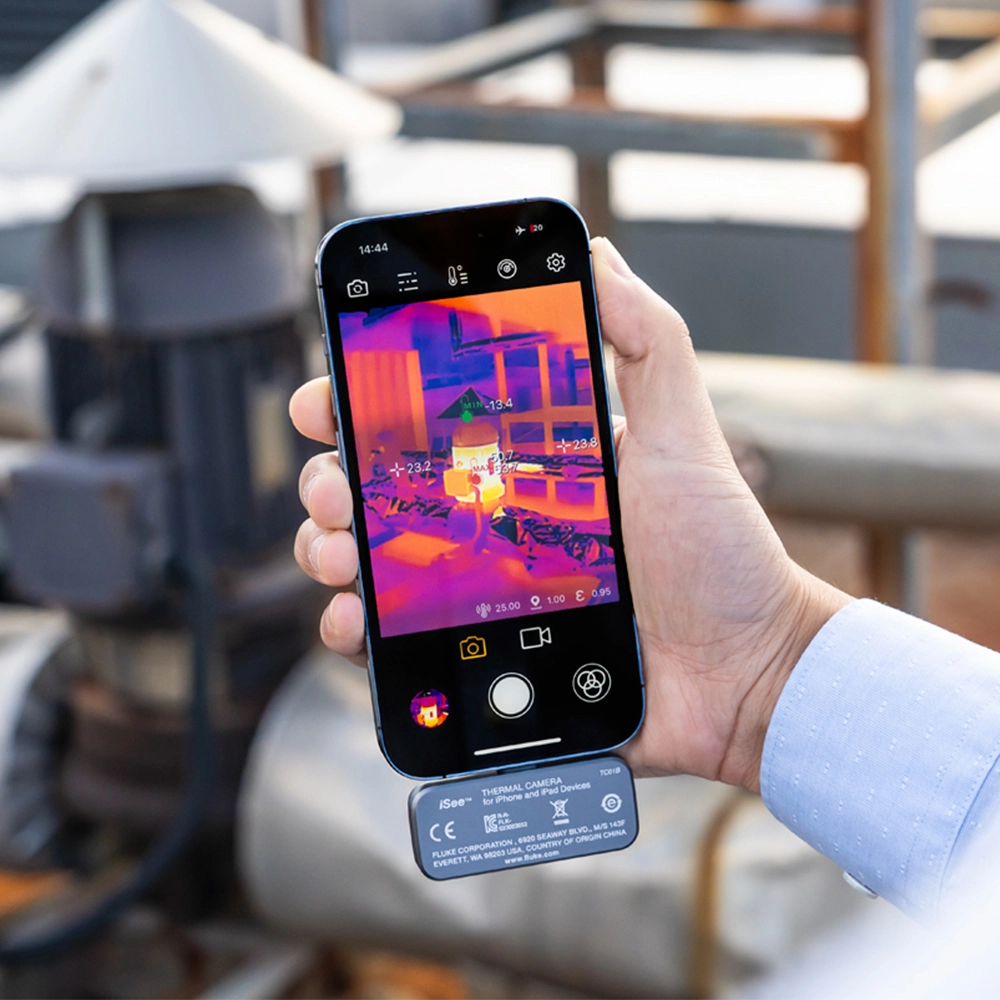

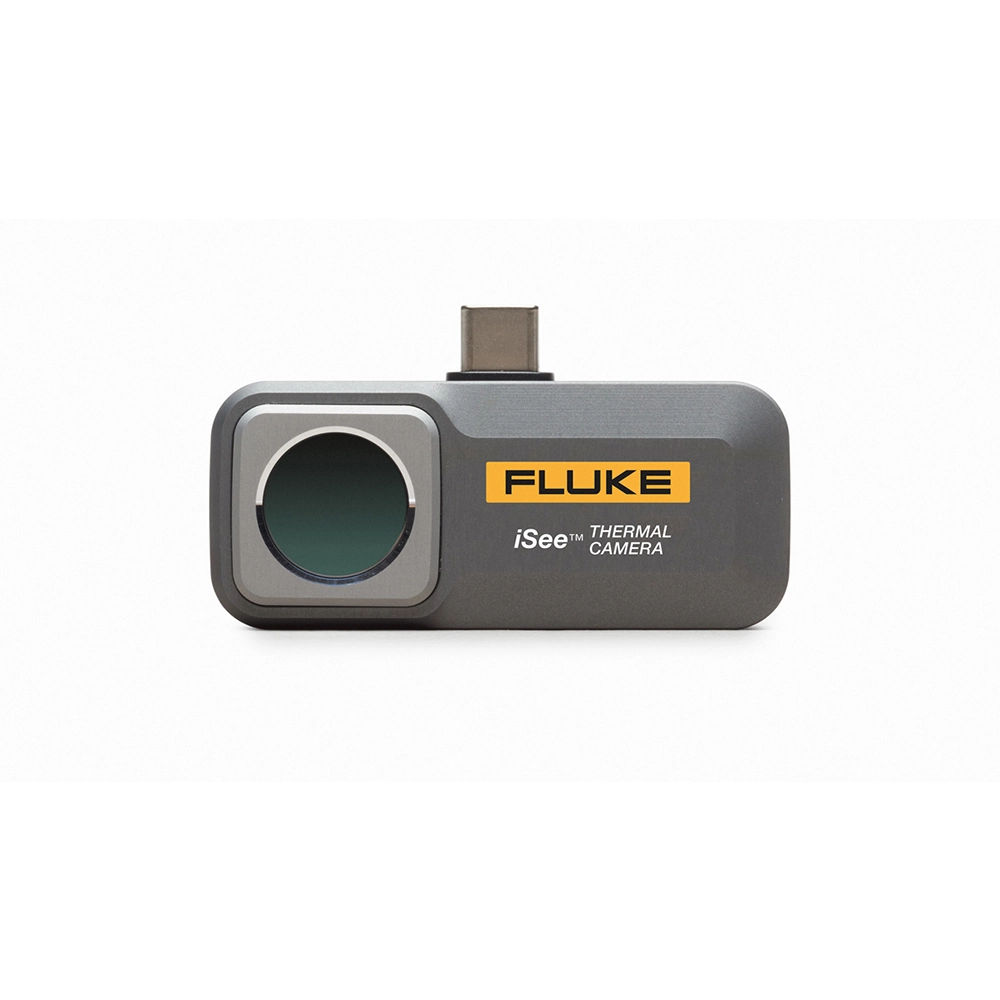

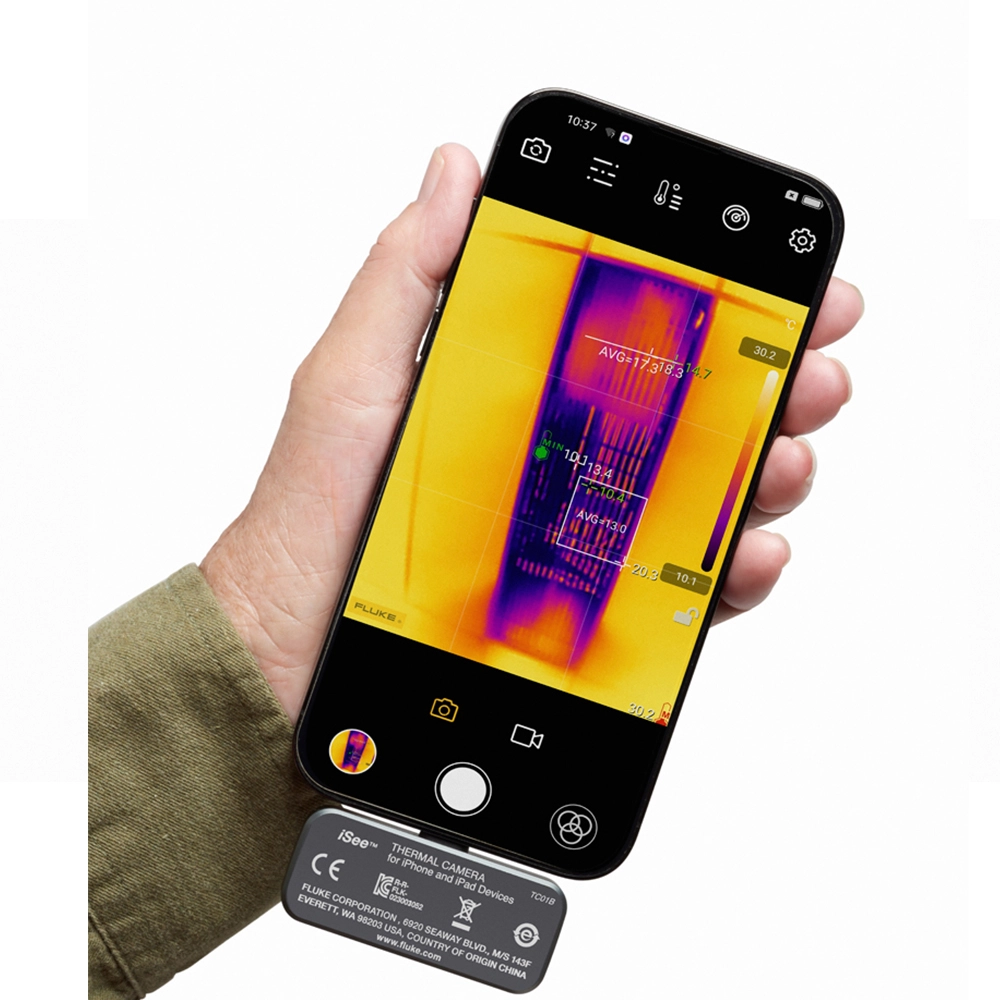

Fluke iSee TC01A Mobile Thermal Camera For Android Phone

Features

• 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
• Up to 550 °C (1022°F), suitable to use in many applications
• 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
• Customize image view with more than 10 standard or custom color palettes
• Compact design as light as 22 g

Technical Information

• IR resolution256 x 192
• Pixel size12 μm
• Temperature range-10 °C to 550 °C/14 °F to 1022 °F
• Temperature accuracy± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)
• Temperature measurement distance0.25 m to 5 m (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)
• Frame rate9 Hz or 25 Hz models
• Warm-up time1 minute
• Focal lengthFixed focal length
• Shutter modeInternal
• Thermal sensitivity (NETD)50 mK
• Spectral range8 to 14 μm
• Field of view (H x V)56° x 42°
• Spatial resolution3.81 mrad
• USB interfaceType-C
• Operating temperature0 ℃ to 40 ℃/32 °F to 104 °F
• Storage temperature-30 ℃ to 60 ℃/–22 °F to 140 °F
• Operating humidity10 % to 90 % RH, non-condensing
• Power consumption350 mW (Typical)
• Drop test1 m/3.3 ft
• Ingress protectionIEC 60529 - IP54 (with the protective cover for Type C)
• Operating altitude2 000 m/6 562 ft
• Storage altitude12 000 m/39 370 ft
• Dimensions (L x W x H)60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in

Items Included

• Fluke TC01A Mobile Thermal Camera
• Packaging Box
• User's Manual
