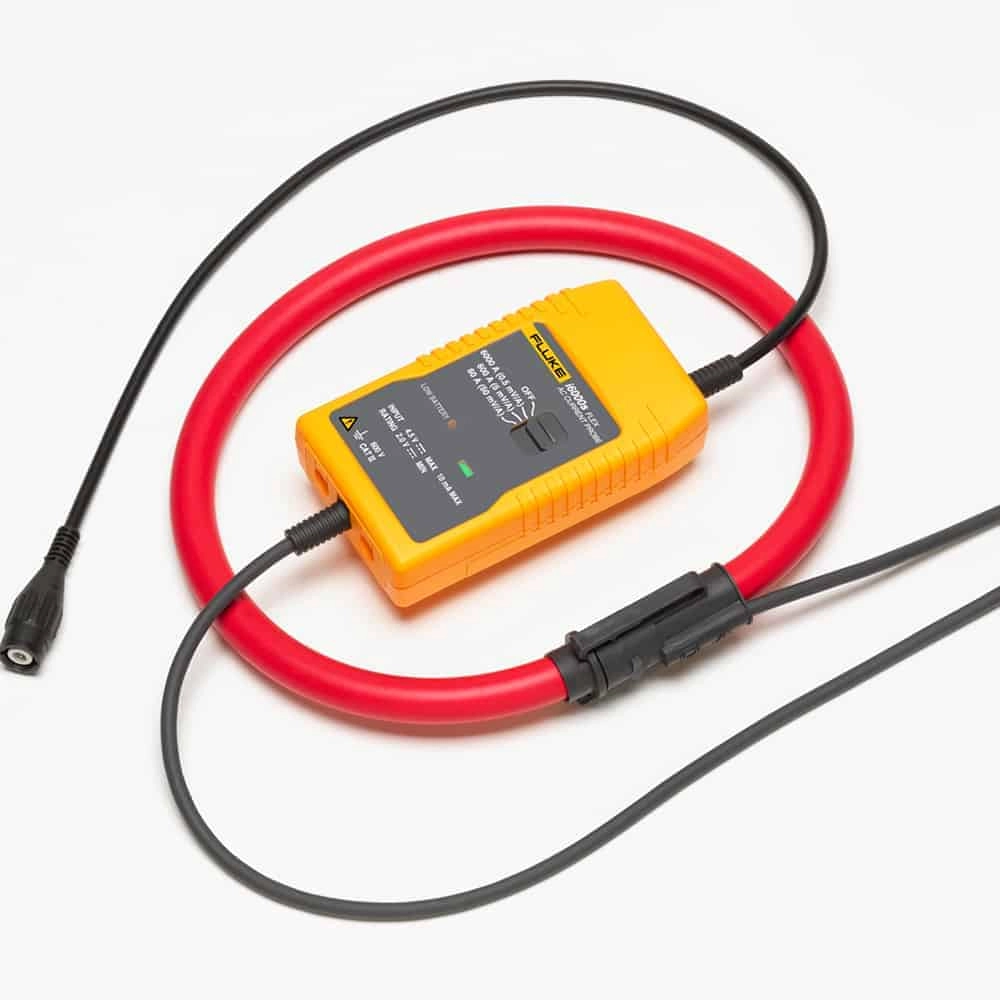

Fluke i6000s flex-24 Flex-24 AC Current Probe (6000 A)

Model #   i6000s flex-24

?

Question about this product?

Speak to an expert

Features

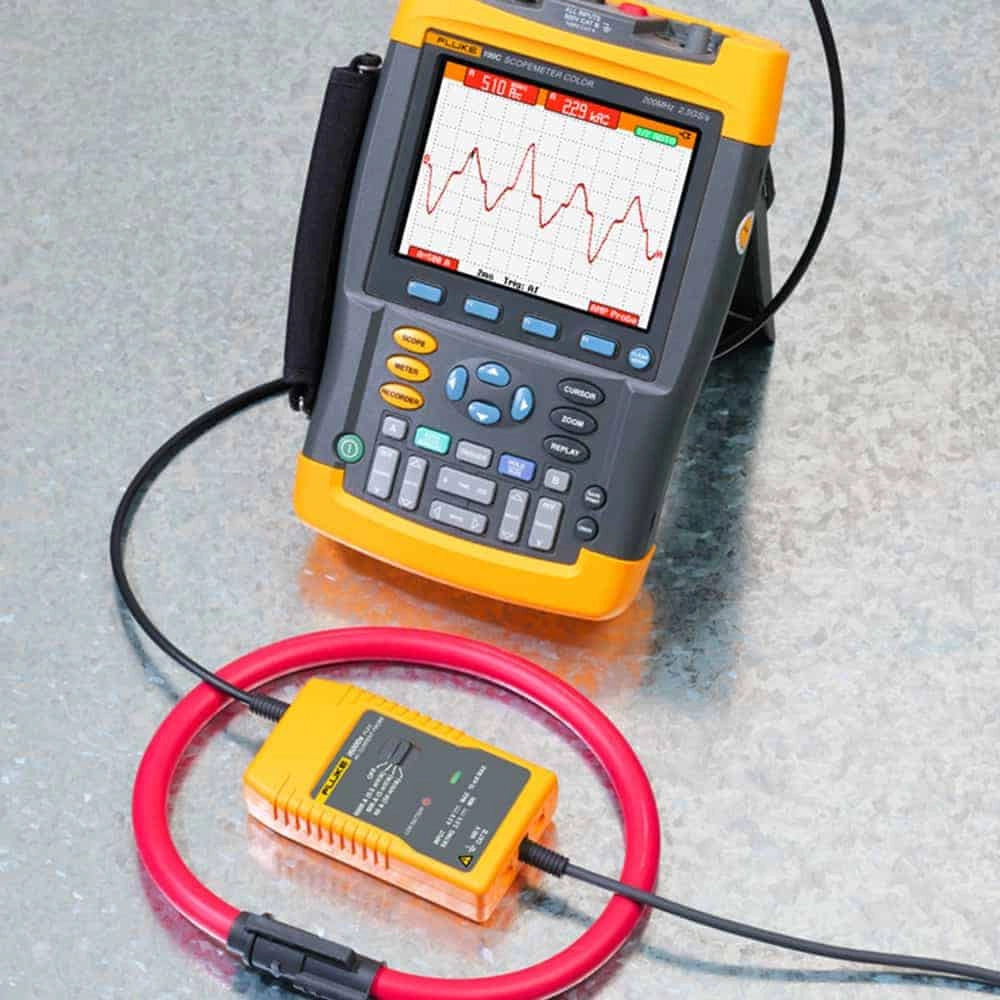

  • The i6000sflex is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 6000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Technical Information

  • Current Ranges 60 A / 600 A / 6000 A AC rms
  • Output Sensitivity (AC coupled) 50 mV /5 mV / 0.5 mV per A
  • Load Impedance 100 kOhm minimum
  • Accuracy (at +25°C) ±1% of range (45 - 65 Hz)
  • Linearity (10% to 100% of range) ±0.2% of reading
  • Noise 8mV ACRMS (60 A) 2 mV ACRMS (600/6000A)
  • Frequency Range 10 Hz to 50 kHz (- 3 dB)
  • Phase Error < ±1° (45 - 65Hz), ±10° (at 20 kHz)
  • Temperature Coefficient ±0.08% of reading per °C
  • Head Cable Diameter 14.3 mm
  • Head Bend Radius 38.1 mm

Items Included

  • Fluke i6000s Flex-24 AC Current Probe
