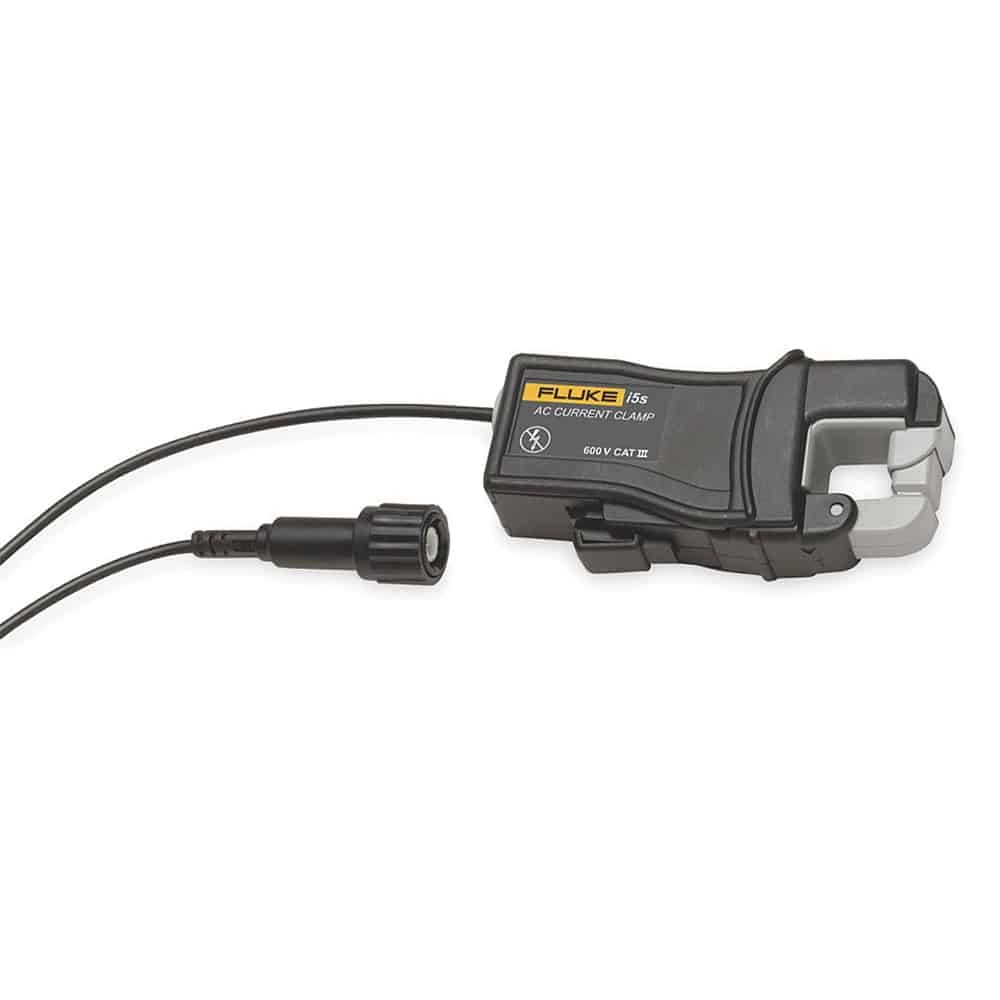

Fluke i5s Current Clamp, 5A AC

Features

• Low level current clamp measures up to 5 A ac
• Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
• Take accurate readings without breaking the circuit
• CAT III 600 V (For insulated conductors only)

Technical Information

• Nominal current range5 A
• Continuous current range10 mA to 6 A
• Maximum Non-Destructive Current70 A
• Lowest measurable current10 mA
• Basic Accuracy48 Hz to 65 Hz
• Useable frequency40 Hz to 5 kHz
• Output level(s)400 mV/A
• Input Load Impedance> 1 MΩ in parallel with up to 47 pF
• Crest Factor3, add 0.7% to accuracy
• SafetyCAT III 600 V per IEC/EN61010-1, Pollution Degree 2

Items Included

• Fluke i5S AC Current Clamp 5A

Downloads

Datasheet
