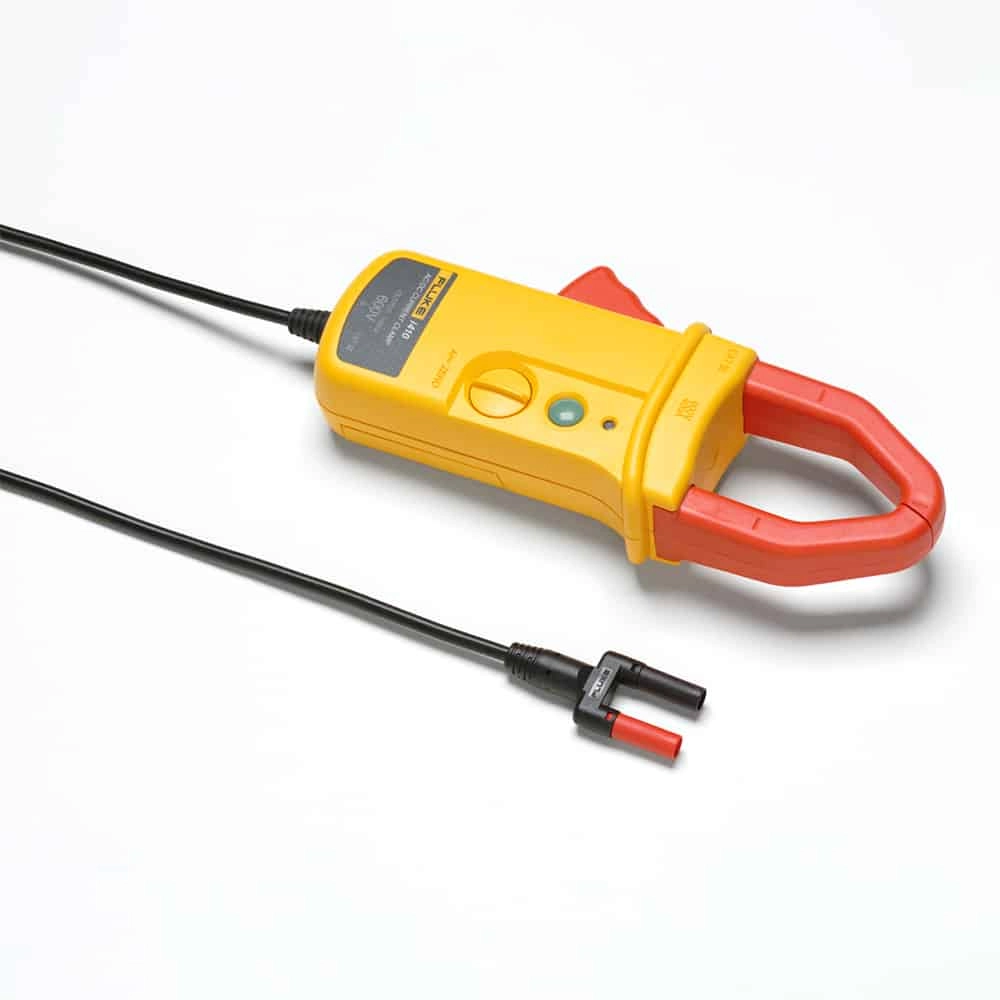

Fluke i410 AC/DC Current Clamp And Carry Case Kit (400 A)

Features

• Battery-powered Hall-effect probe measures 1A to 400 A

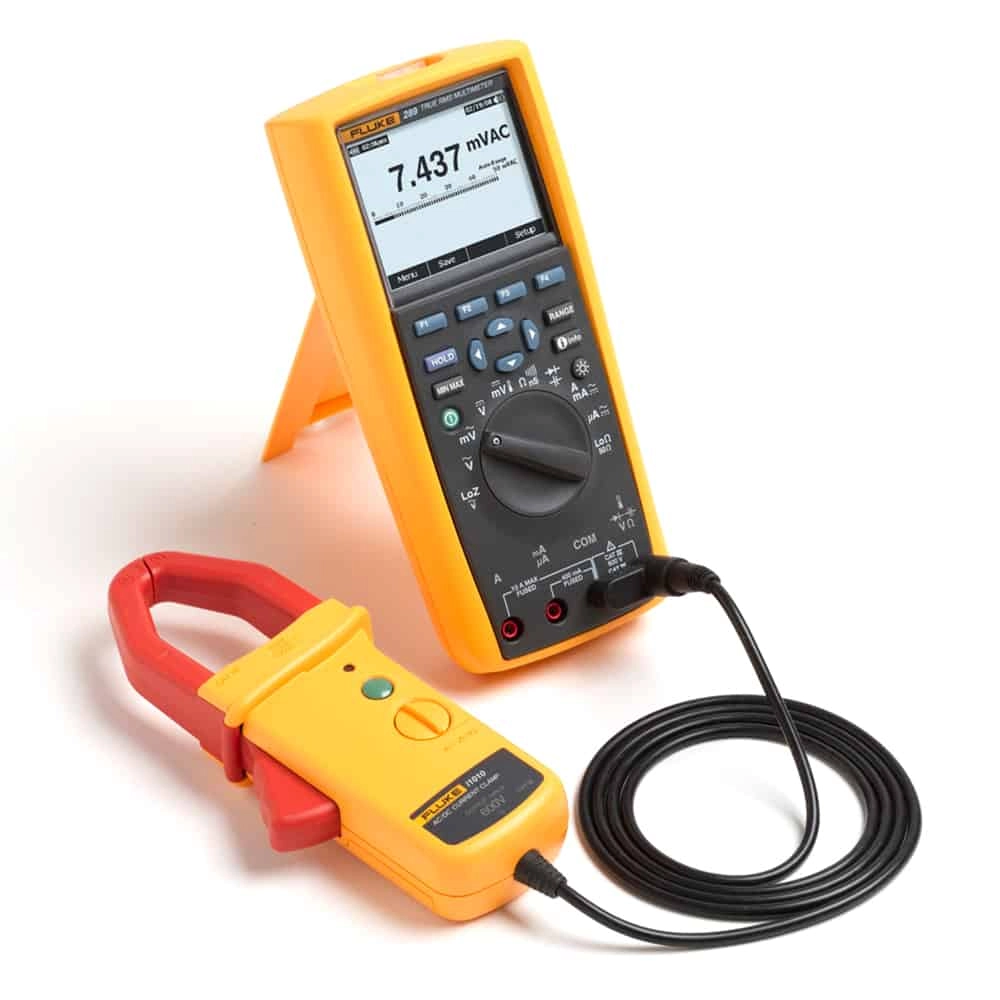

• 1mV/Amp output guarantees easy reading on your meter
• Take accurate current readings without breaking the circuit
• Maximum conductor Ø 32 mm
• CAT III 600 V safety rating

Technical Information

• Measurement Type Hall sensor
• Nominal Current Range 400 A, AC/DC
• Continuous Current Range 1 to 400 A AC/DC
• Maximum Non-Destructive Current 400 A
• Lowest Measurable Current 0.5 A
• Basic Accuracy 3.5% + 0.5 A (% reading + floor spec)
• Useable Frequency DC - 3 kHz
• Output Level(s) 1 mV/A
• Maximum Voltage 600 V
• Maximum Conductor Diameter 1.2" (30 mm) 0.08 x 0.98" (2 x 25 mm)
• Output Cable Length 5.25' (1.6 m)

Items Included

• Fluke i410 AC/DC Current Clamp

Downloads

Datasheet
