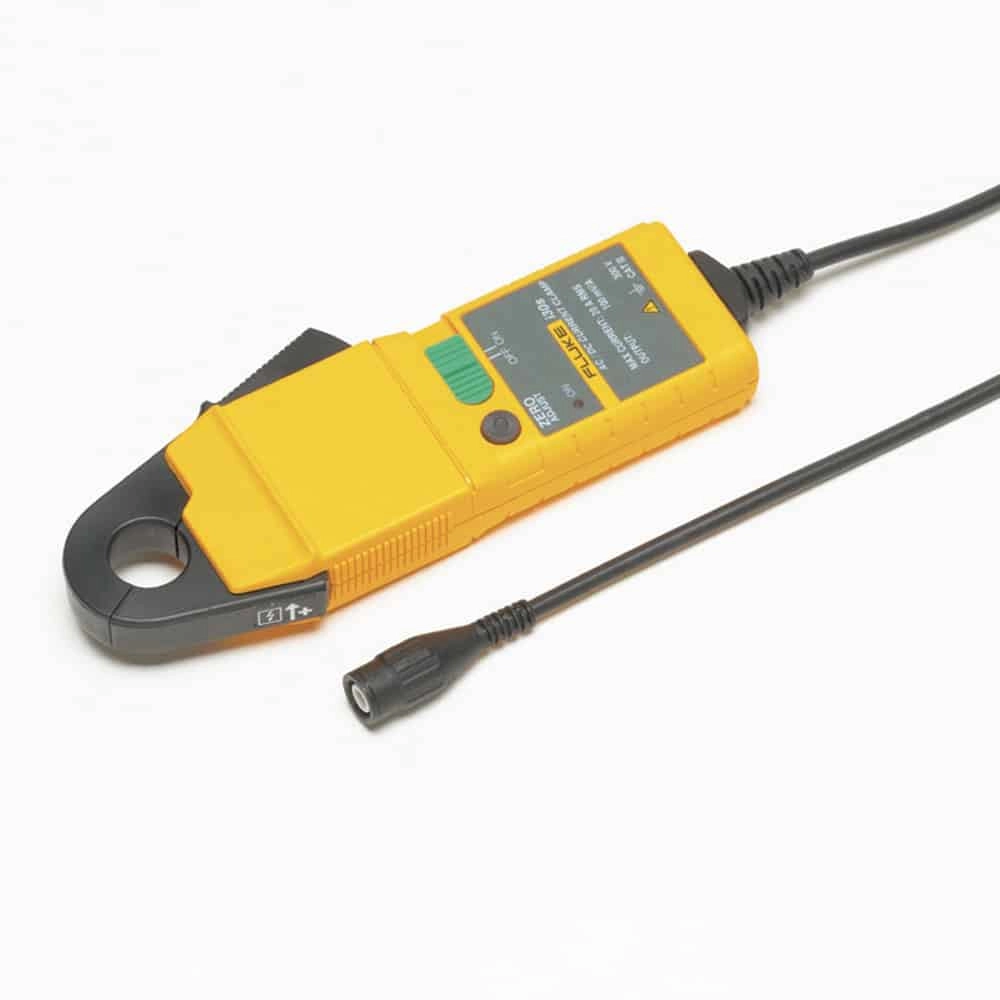

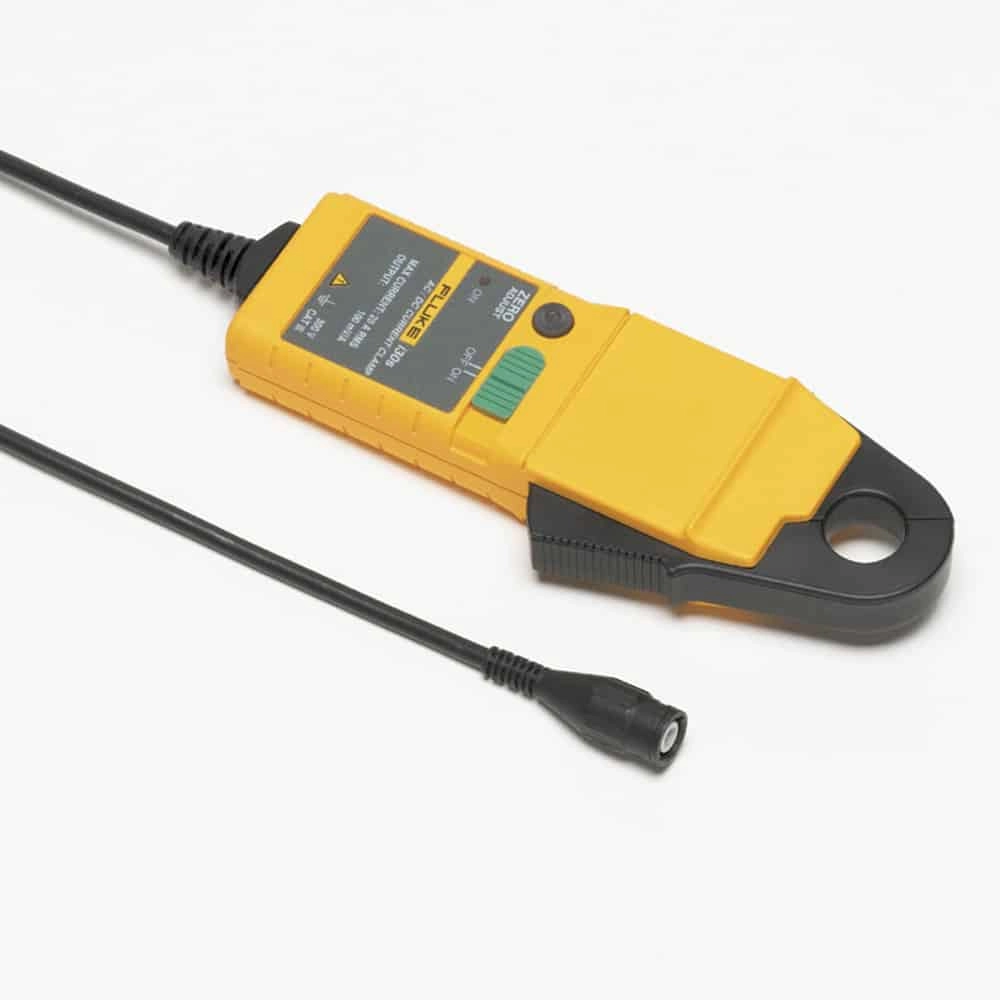

Fluke i30s Current Clamp AC/DC (30A)

Features

• The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
• The current clamp may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
• Current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
• Frequency range: DC to 100 kHz (-0.5 dB)
• CAT III 300 V safety rating

Technical Information

• Specified current range 30 mA to 30 A DC, 30 mA to 20 A AC rms
• Usable current range 5 mA to 30 A DC, 30 mA to 20 A AC rms
• Crest factor 1.4 in
• Output sensitivity 100 mV/A
• Accuracy (at +25°C) ±1% of reading ±2 mA
• Resolution ±1 mA
• Load impedance > 100 kΩ
• Conductor position sensitivity ±1% relative to center reading
• Frequency range DC to 100 kHz (-0.5 dB)
• Operating temperature range 0°C to +50°C
• Storage temperature range (with battery removed) -20°C to +85°C
• Operating humidity 15% to 85% (non-condensing)
