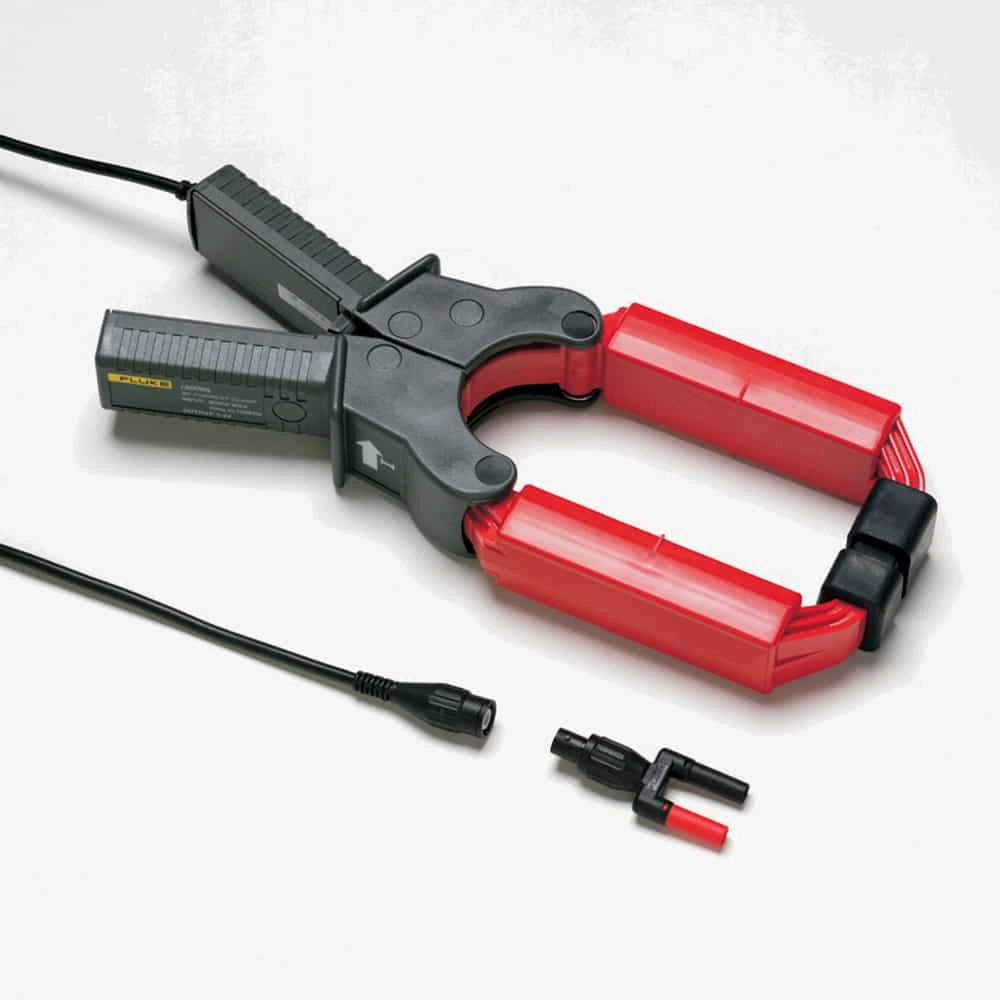

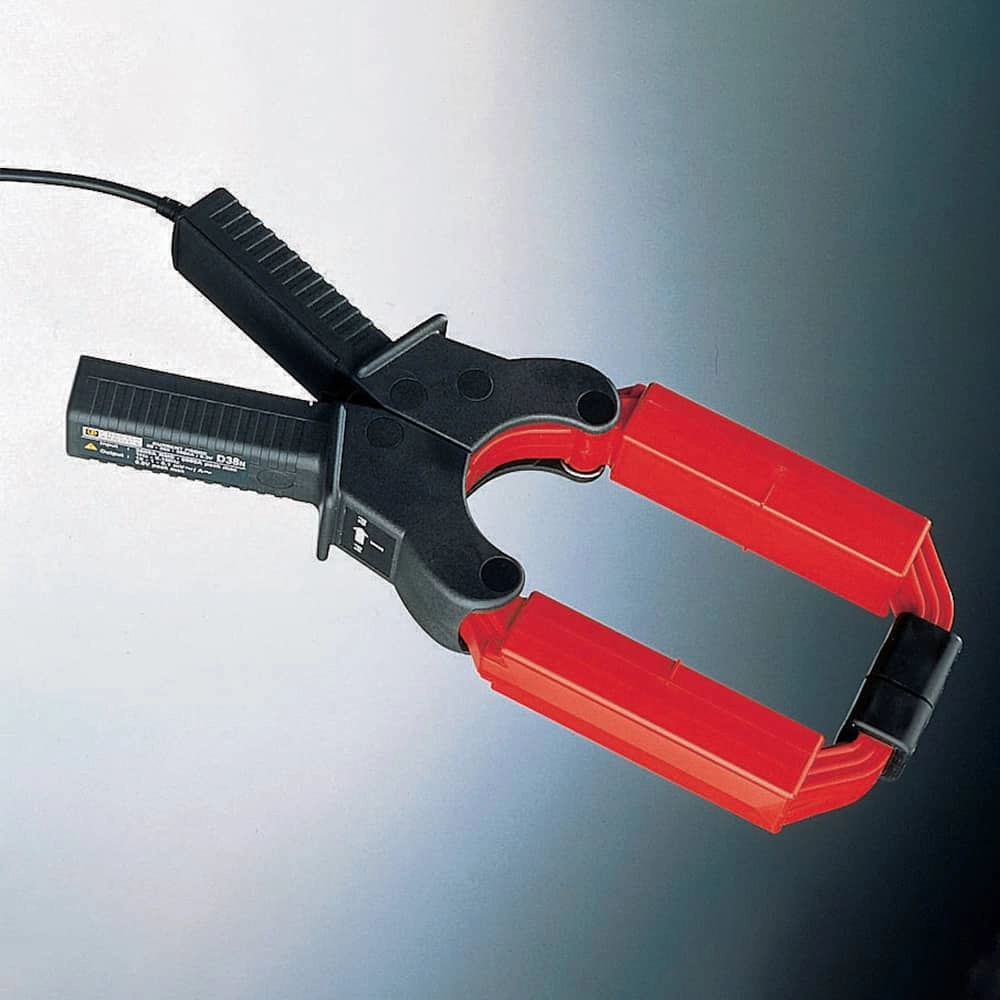

Fluke i3000s Ac Current Clamp, 610 mm (24 In.) (3000 A)
Model # i3000sKey Features
?
Question about this product?
Features
- Three ranges: 30 A, 300 A & 3000 A, 1, 10 or 100 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm (7 in.)
- CAT III 600 V safety rating
Technical Information
- Nominal current range 30 A 300 A 3000 A
- Continuous current range 1 A - 30 A 1 A - 300 A 1 A - 3000 A
- Maximum Non-Destructive Current 4000 A
- Lowest measurable current 1 A
- Basic accuracy 2% + 2 A (48-65 Hz) (% reading + floorspec)
- Useable frequency 10 Hz - 100 kHz
- Output level(s) 10 mv/A 1 mv/A 0.1 mv/A
