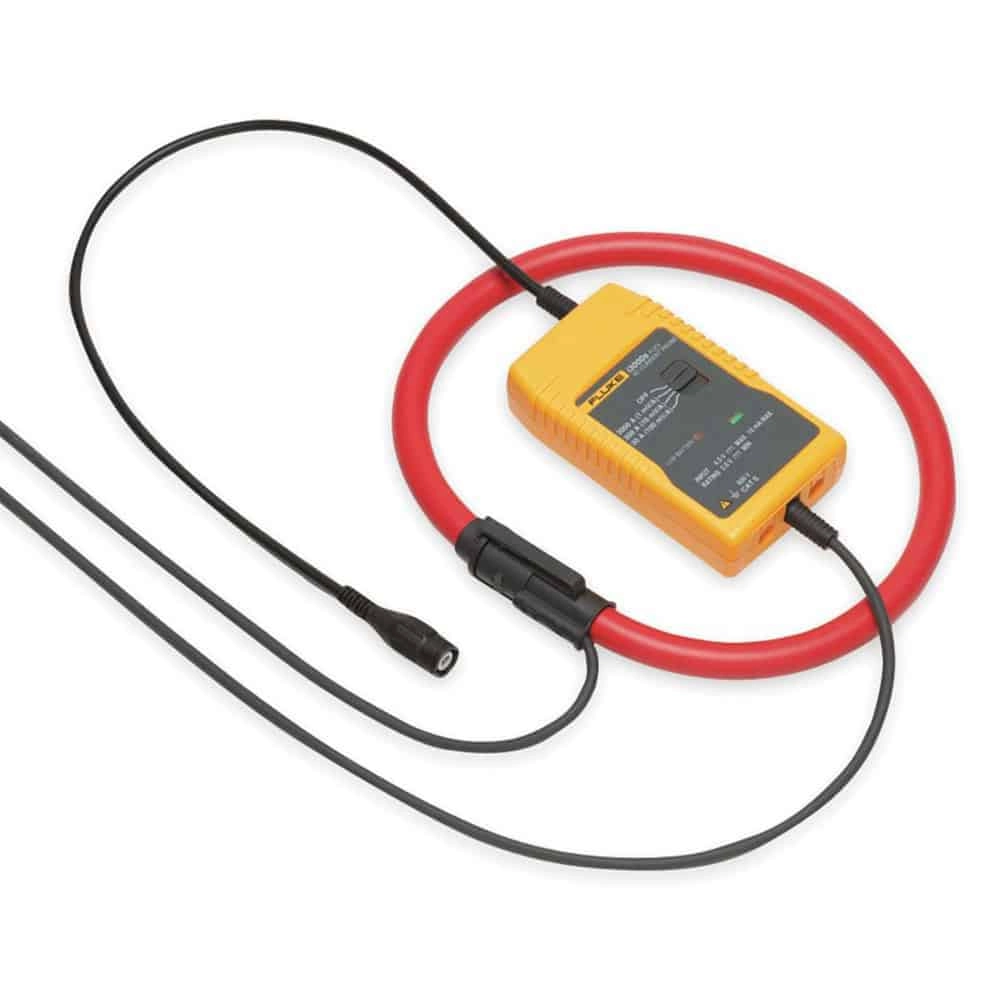

Fluke i3000s flex-36 Ac Current Clamp, 36 Inch Length, (3000 A); 915 mm

Features

• Three ranges 30 A 300 A 3000 A, 1, 10 or 100 mV/A output
• Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
• Maximum conductor diameter 178 mm (7 in.)
• CAT III 600 V safety rating

Technical Information

• Current ranges 30 A
• Output sensitivity (AC-coupled) 1 mV per A
• Load impedance 100 kΩ minimum
• Accuracy at +25 °C ± 1 % of range (45 Hz to 65 Hz)
• Linearity 10 % to 100 % of range ± 0.2 % of reading
• Noise 8 mV ac rms (30 A)
• Frequency range 10 Hz to 50 kHz (-3 dB)
• Head cable diameter 14.3 mm (0.56 in)
• Head bend radius 38.1 mm (1.5 in)
• Cable length (head to electronics) 2 m (6.56 ft)

Items Included

• Fluke i3000s Flex-36 AC Current Clamp
• 36 inch length
