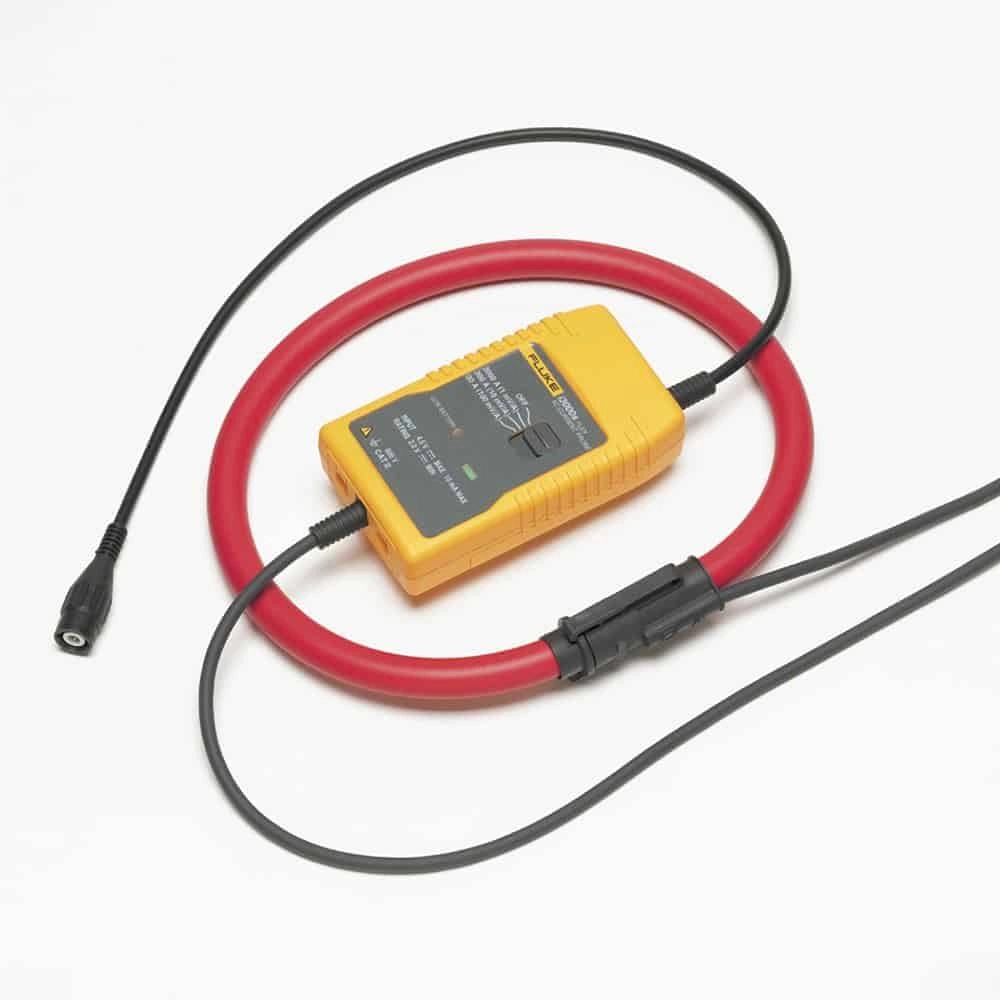

Fluke i3000s flex-24 Ac Flexible Current Clamp (3000 A), 610 mm

Model #   i3000s flex-24

?

Question about this product?

Speak to an expert

Features

  • Three ranges: 30 A, 300 A & 3000 A, 1, 10 or 100 mV/A output
  • Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
  • Maximum conductor diameter 178 mm
  • CAT III 600V safety rating

Technical Information

  • Current ranges 30 A 300 A 300 A AC rms
  • Output sensitivity (AC-coupled) 1 mV per A 100 mV 10 mV 1 mV per A
  • Load impedance 100 kΩ minimum
  • Accuracy at +25 °C ± 1 % of range (45 Hz to 65 Hz)
  • Linearity 10 % to 100 % of range ± 0.2 % of reading
  • Noise 8 mV ac rms (30 A) 2 mV ac rms (300 A, 3000 A)
  • Frequency range 10 Hz to 50 kHz (-3 dB)
  • Phase error < ± 1 ° (45 Hz to 65 Hz) ± 10 ° (at 20 kHz)
  • Head cable diameter 14.3 mm (0.56 in)
  • Head bend radius 38.1 mm (1.5 in)

Items Included

  • Fluke i3000s Flex-24 Flexible AC Current Probe 24 inch length
