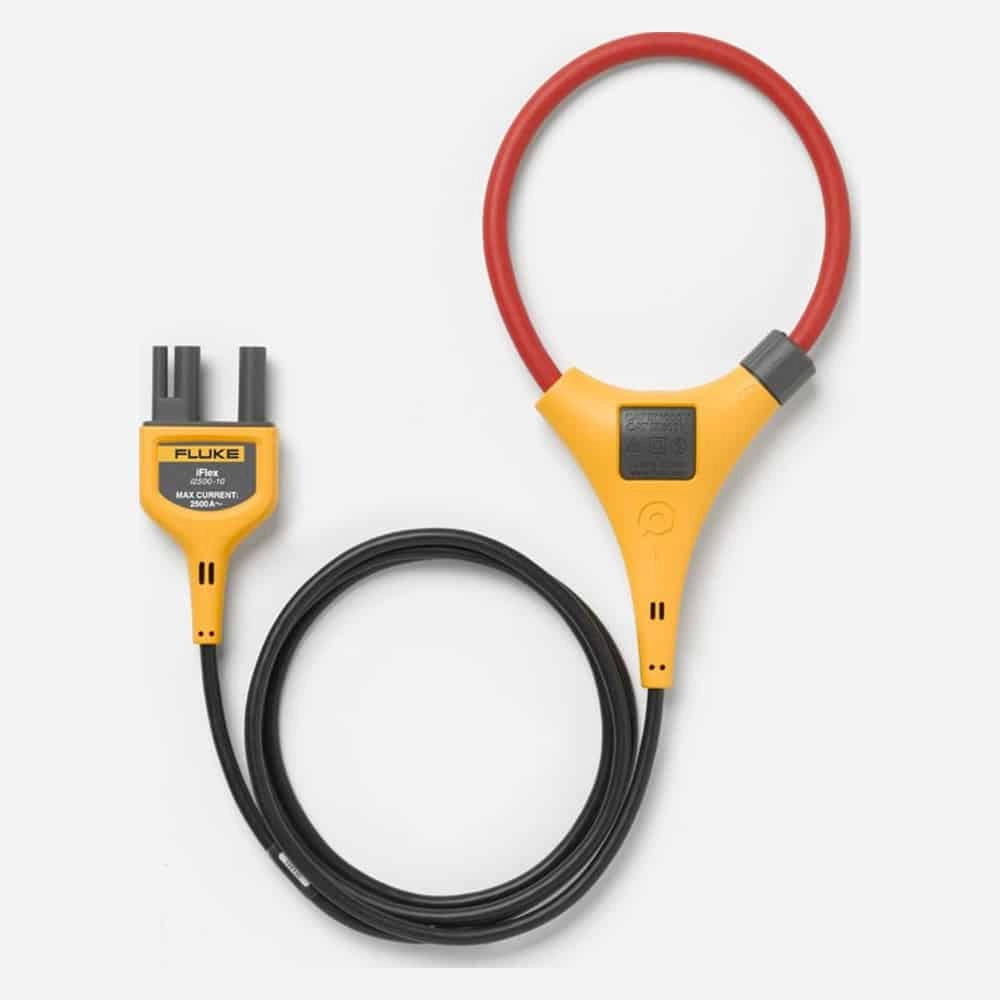

Fluke i2500-10 iFlex Flexible 10 Inches Current Probe

Features

• Expands the measurement range to 2500 A ac while providing increased display flexibility; ability to measure awkward sized conductors and improved wire access
• CAT IV 600 V; CAT III 1000 V
• 7.5 mm coil diameter allows measurement in tight spaces
• Ergonomic design allows easy operation with one hand
• 1.8 m (6 ft) cable

Technical Information

• AC Current Range 2500 A
• Resolution 0.1 A
• Accuracy 3% ± 5 digits
• Frequency Range 500 Hz
• External magnetic field rejection (with cable >10 cm from the coupling) 40 dB
• Safety rating CAT III 1000 V, CAT IV 600 V

Items Included

• Fluke i2500-10 iFlex Flexible 10" Current Probe

Downloads

Datasheet
