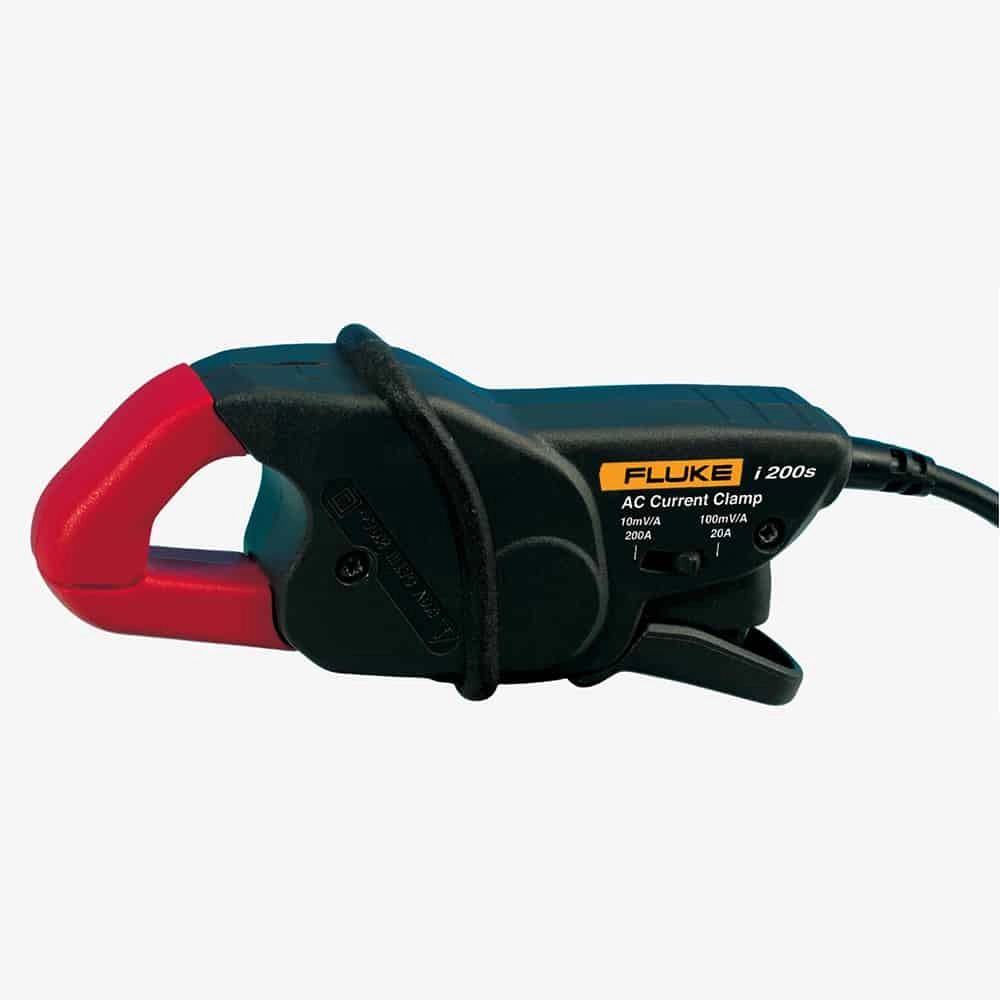

Fluke i200s Ac Current Clamp (200 A) Max. Conductor Ø 0.8 Inches (20 mm)

Features

• Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
• Included adapter for DMM's
• Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
• Take accurate current readings without breaking the circuit
• CAT III 600V safety rating

Technical Information

• Nominal Current Range 20 A 200 A
• Continuous Current Range 0.1 to 24 A
• Maximum Non-Destructive 240 A
• Lowest Measurable Current 0.1 A
• Basic Accuracy 1.5% + 0.5 A (48 to 65 Hz) (% reading + floor spec)
• Useable Frequency 40 Hz to 10 kHz
• Output Level(s) 100 mV/A
• Maximum Voltage 600 V AC
• Maximum Conductor Diameter 0.8" (20 mm)
• Maximum Conductor Size (busbar) 0.8 x 0.2" (20 x 5 mm)
• Output Cable Length 6.56' (2 m)

Items Included

• Fluke i200s AC Current Clamp

Downloads

Datasheet
