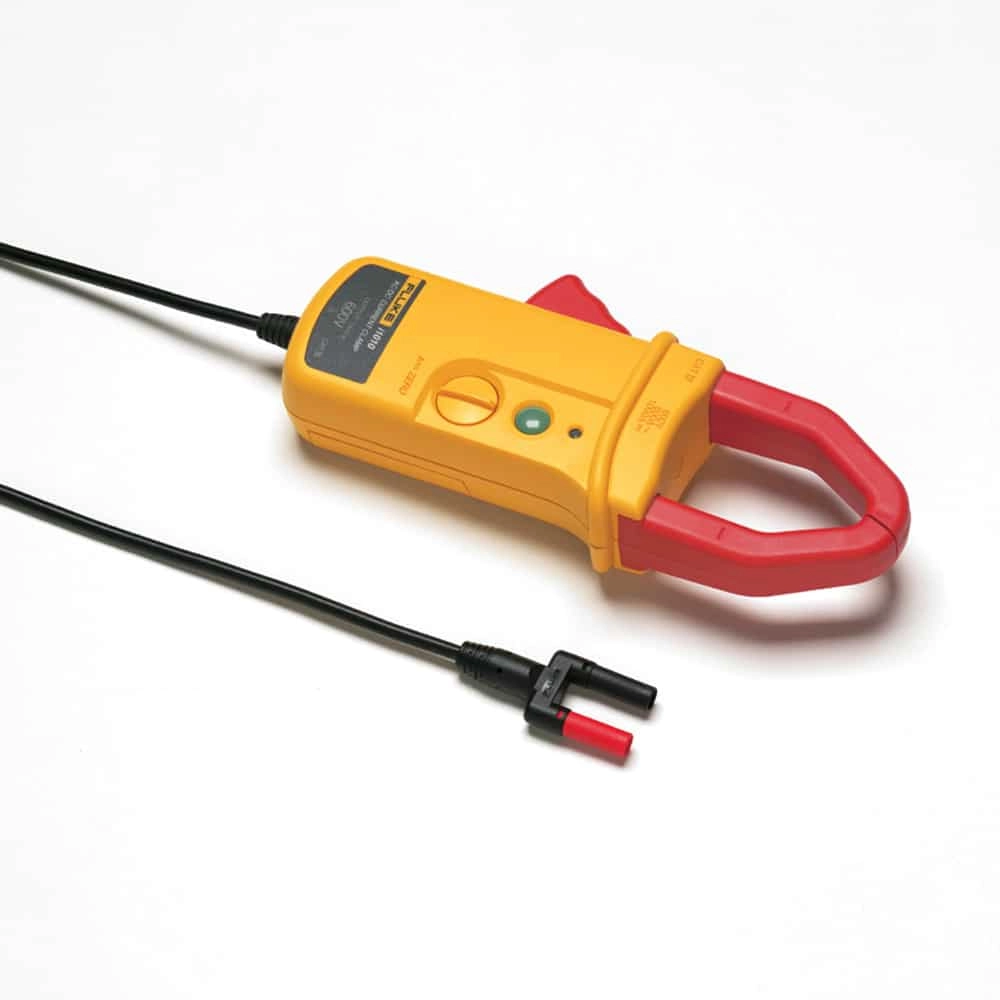

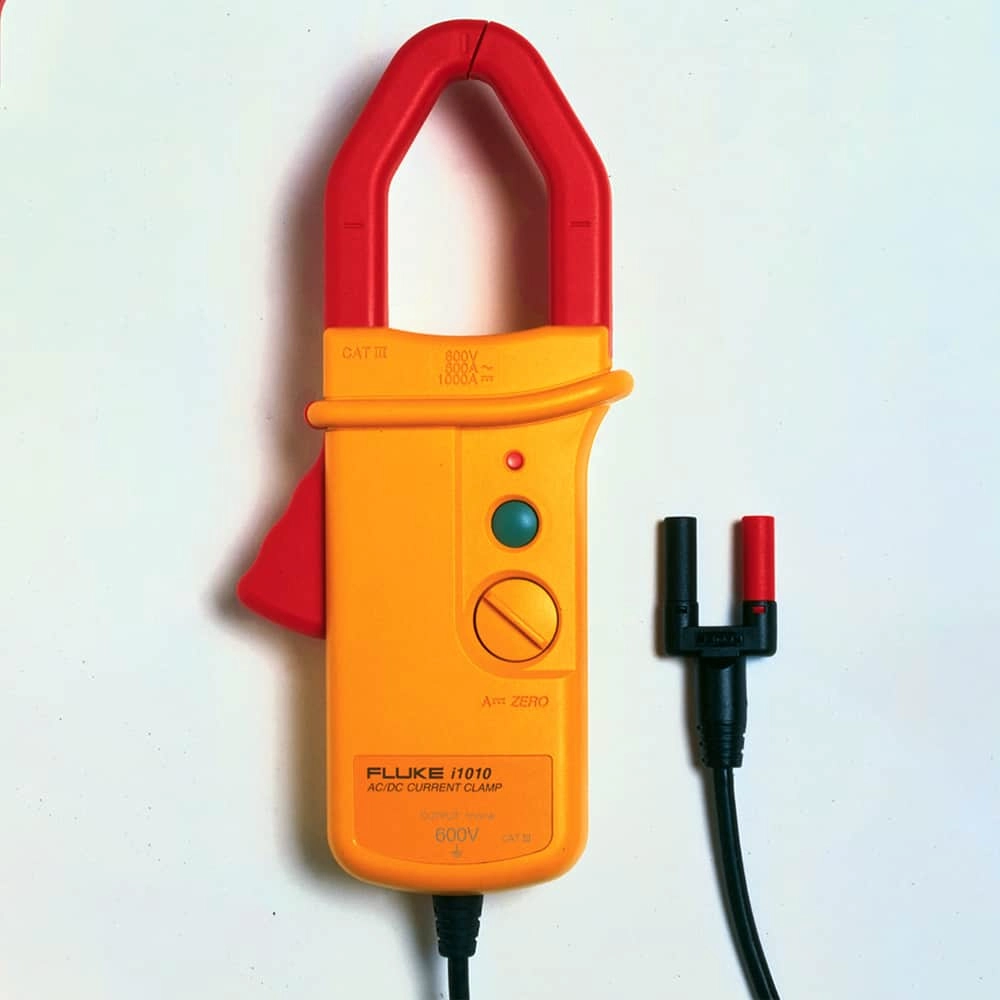

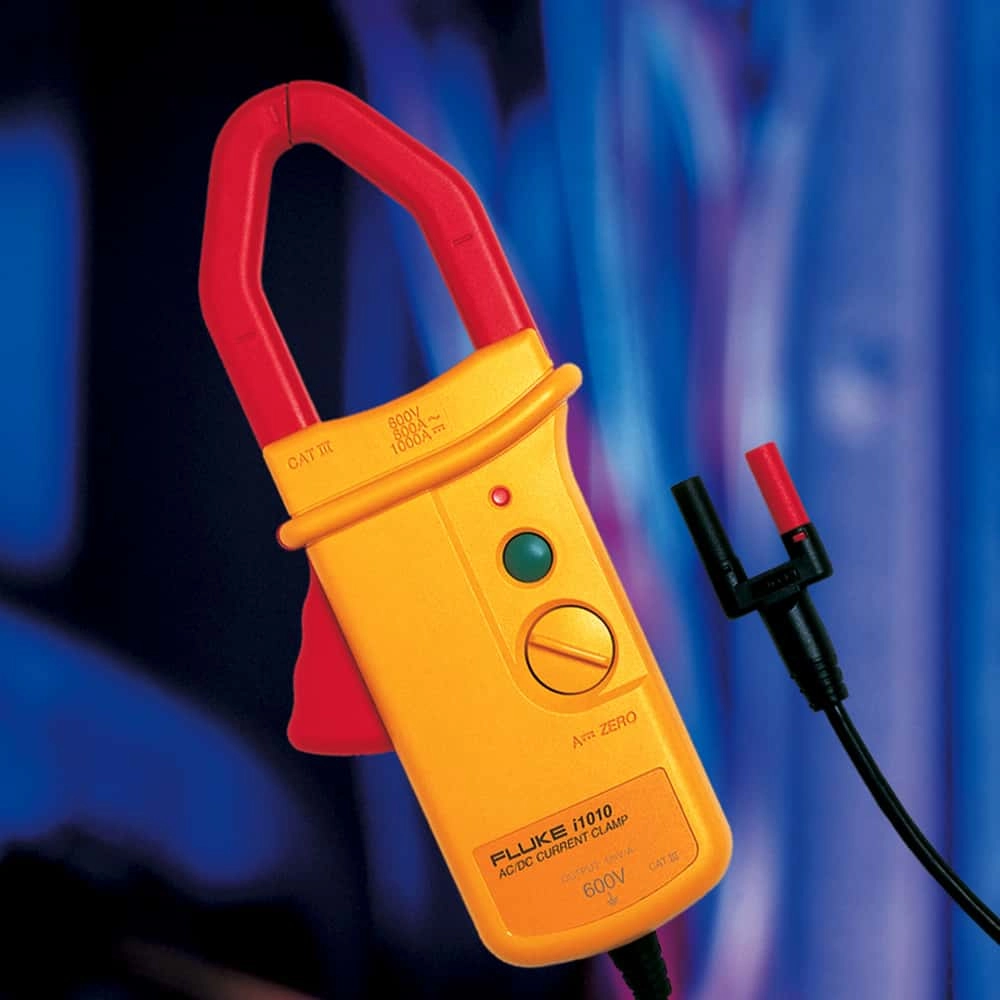

Fluke i1010 AC/DC Current Clamp (1000 A) Cat III 600 V Safety Rating

Features

• The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
• Provides accurate current reading without breaking the circuit.
• Compatible with most Fluke multimeters.
• CAT III 600 V safety rating

Technical Information

• Measurement Type Hall sensor
• Nominal Current Range 600 A, AC, 1000 A, DC
• Continuous Current Range 1 to 600 A, AC, 1 to 1000 A, DC
• Maximum Non-Destructive Current 1000 A
• Lowest Measurable Current 0.5 A
• Basic Accuracy 2% + 0.5 A (% reading + floor spec)
• Useable Frequency DC - 10 kHz
• Output Level(s) 1 mV/A
• Maximum Voltage 600 V
• Battery Life 9 V, 60 h
• Output Cable Length 5.25' (1.6 m)

Items Included

• Fluke i1010 AC/DC Current Clamp

Downloads

Datasheet
