Fluke FEV300/TY1 & TY2 Charging Station Test Adapter Kit, Type 1 & 2 Connectors

Features

• Designed to test function and safety of charging stations mode 3 for AC charging

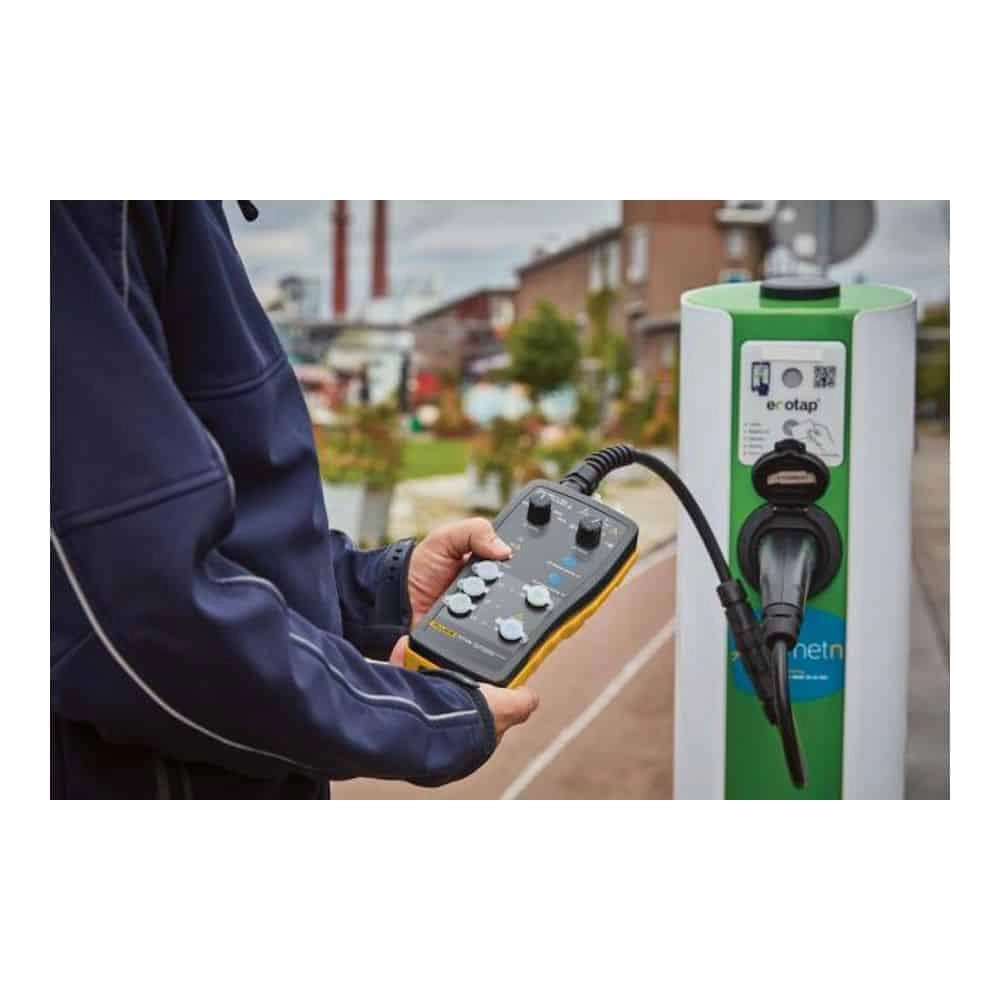

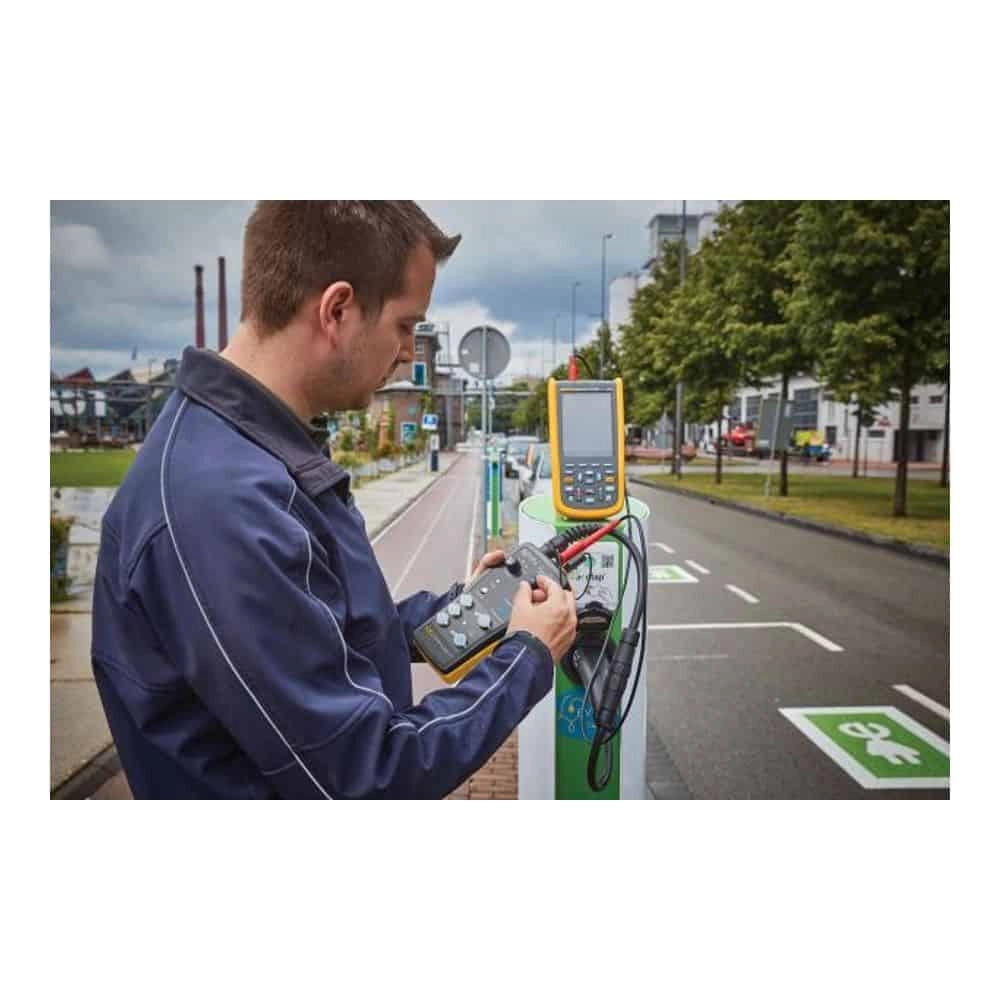

• Adapter imitates an electric vehicle and opens up a charging cycle, for conducting tests
• With PP State rotary switch the adapter can simulate various current capabilities of charging cables
• With CP State rotary switch selector various charging states can be simulated
• Simulation of CP error “E”, simulation of PE error (Earth fault)
• Simulate current capabilities of charging cables
• Simulate various vehicle charging states
• Simulate earth fault

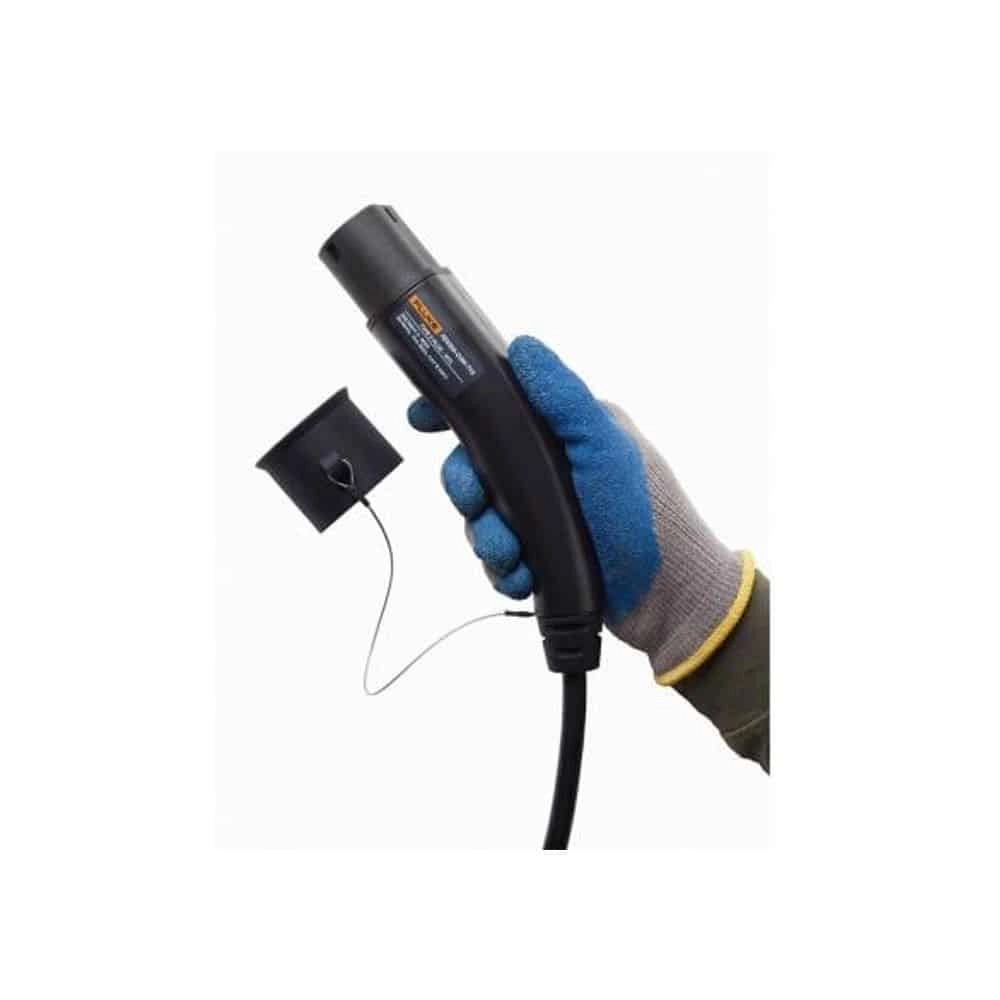

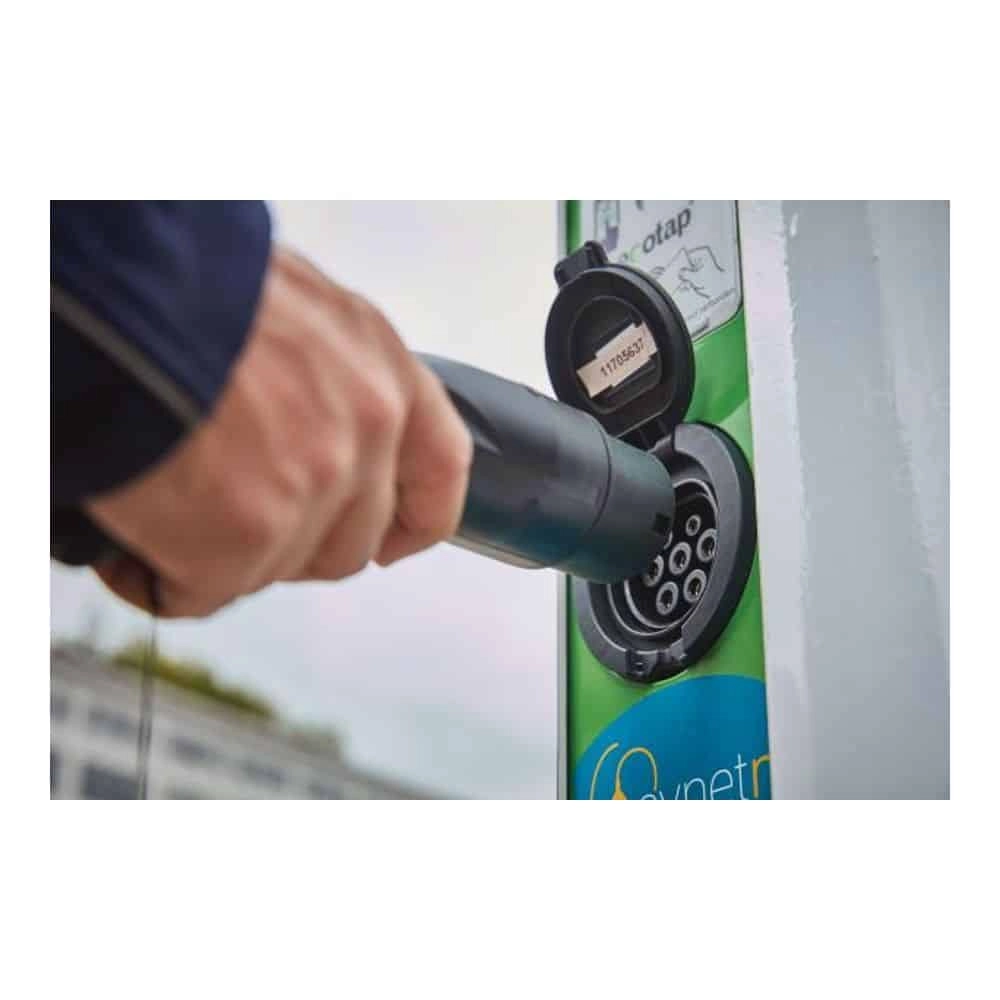

• Includes Type 1 and Type 2 plug vehicle connectors
• Test in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722

Technical Information

• Input voltage250 V (single phase), 480 V (three phase), 10A Max
• Protection RatingIP54
• PE Pre-TestVisible indication >50 V AC/DC between PE conductor and touch sensor
• PP SimulationOpen, 13 A, 20 A, 32 A, 63 A
• CP StatesState A, B, C, D
• CP Error state “E”On/off (CP signal short-circuited to PE)
• PE Error state "F" (Earth fault)On/off (interruption of PE conductor)
• CP signal output terminalsApprox. +/-12 V

Items Included

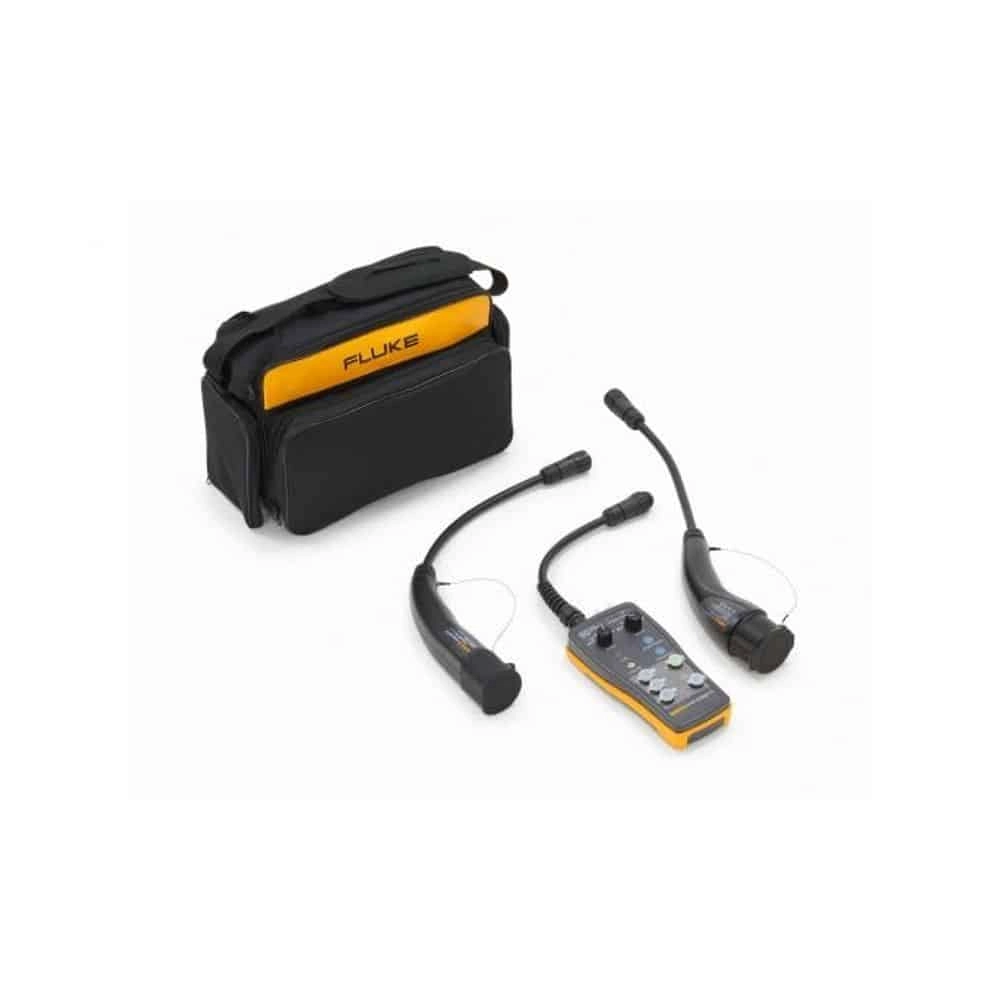

• 1x FEV300/BASIC Test Adapter
• 1x FEV300-CON-TY1 Type 1 Plug
• 1x FEV300-CON-TY2 Type 2 Plug
• 1x Carrying case

Downloads

CertificateCertificate
