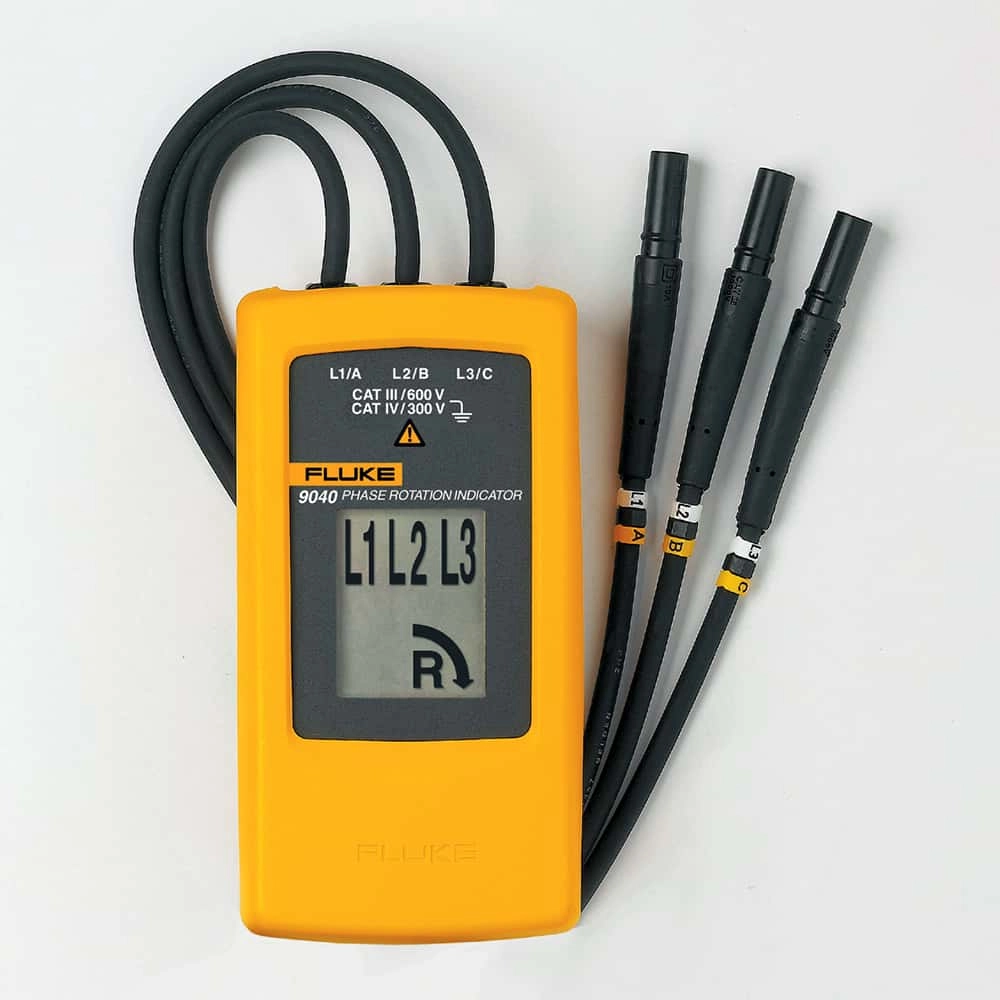

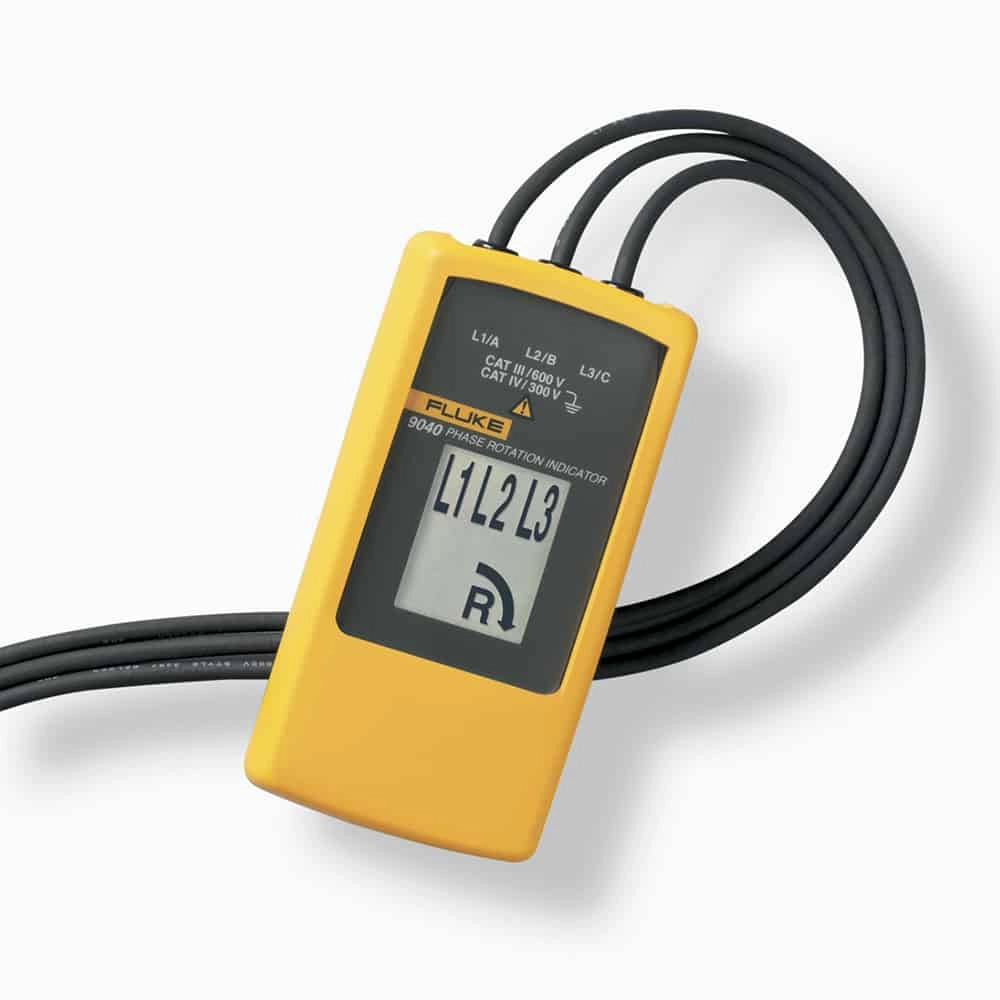

Fluke 9040EUR Phase Rotation Indicator, 40-700V, 15-400Hz

Features

• Phase Rotation Indicator for industrial applications.
• Is a portable handheld instrument designed to detect the rotary field of three-phase systems.
• With three test leads; this rugged tester easily determines a clockwise or counterclockwise direction.
• Clear LCD display
• No battery required

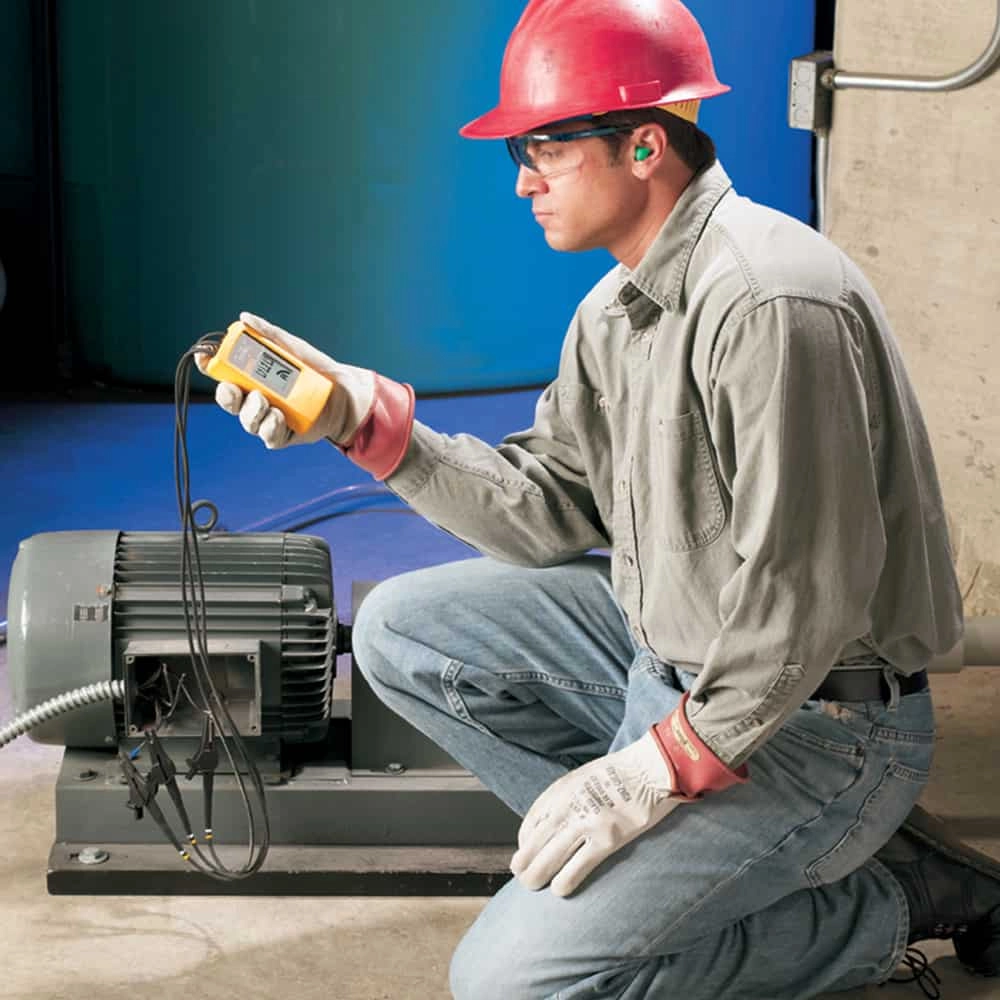

• The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems.

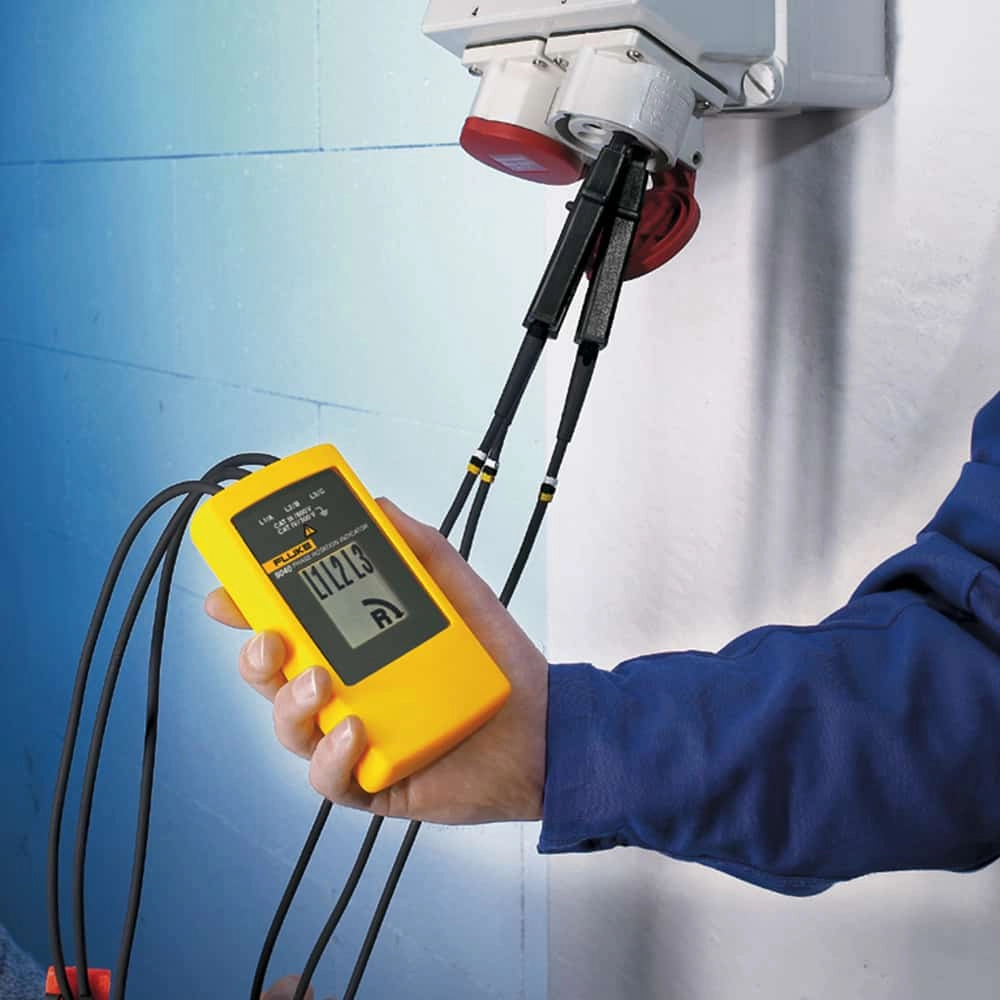

• The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Technical Information

• Voltage Range40-700 V
• Frequency Range15-400 Hz
• Operating TimerContinuous
• Operating Temperature0°C to 40°C
• Dust/Water ResistanceIP 40
• Electrical SafetyEN 61010, EN 61557-7
• Safety RatingCAT III, 600 V/CAT IV, 300V
• Size124 x 61 x 27 mm
• Weight200 g

Items Included

• 3 self-retaining test probes (black) alligator clip user manual

Downloads

Datasheet
