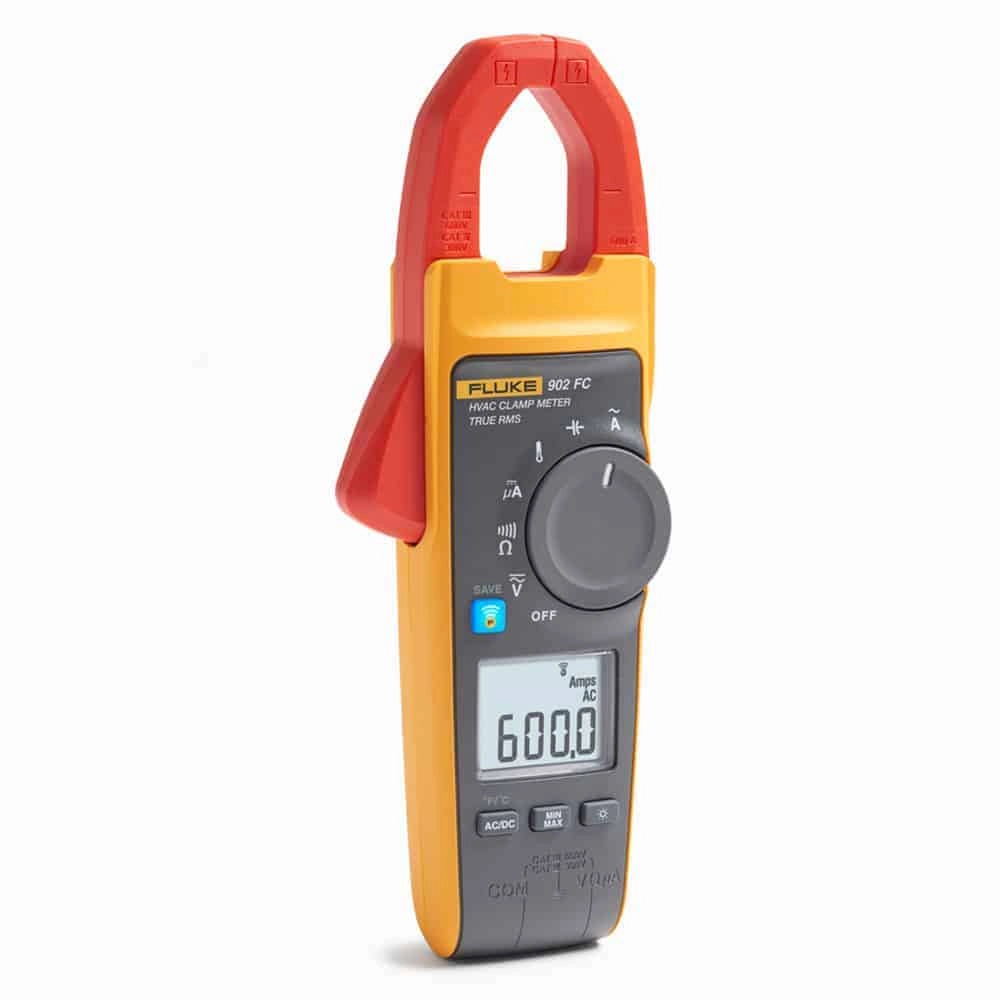

Fluke 902 FC True RMS HVAC Clamp Meter, 600A, CAT IV 600V

Features

• Applications for HVAC
• 200 µA DC current measurements to measure flame rod
• Extended resistance range to measure thermistors up to 60k
• Capture flue gas temperature
• Measures start and run motor capacitors
• Measures variable frequency drive performance

Technical Information

• AC Current600 A
• AC Voltage600V
• Safety RatingCAT III 1000V, CAT IV 600V
• Crest Factor (50Hz or 60Hz)2.5 MIN@220 A
• DC Voltage600V
• Resistance60kΩ
• Capacitance1000 µF
• Temperature-40 to 400 °C
• Battery type2 AA alkaline batteries, NEDA 15A, IEC LR6
• Operating-10°C to +50°C
• Storage-40 °C to +60 °C (-40 °F to +140 °F)

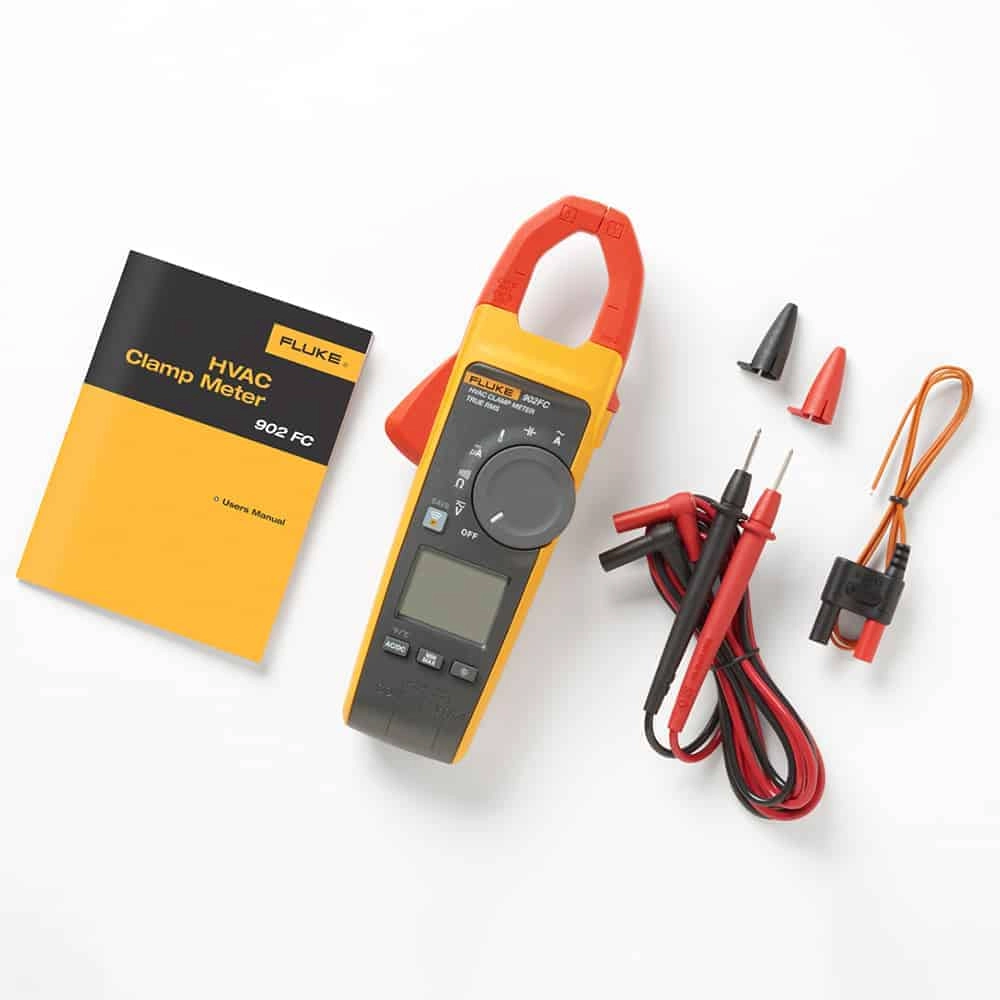

Items Included

• TL75 test leads (1 pair)
• 80BK integrated DMM temperature probe (1)
• AA alkaline batteries (2)
• Soft carrying case User’s manual Statement of calibration

Downloads

Datasheet
