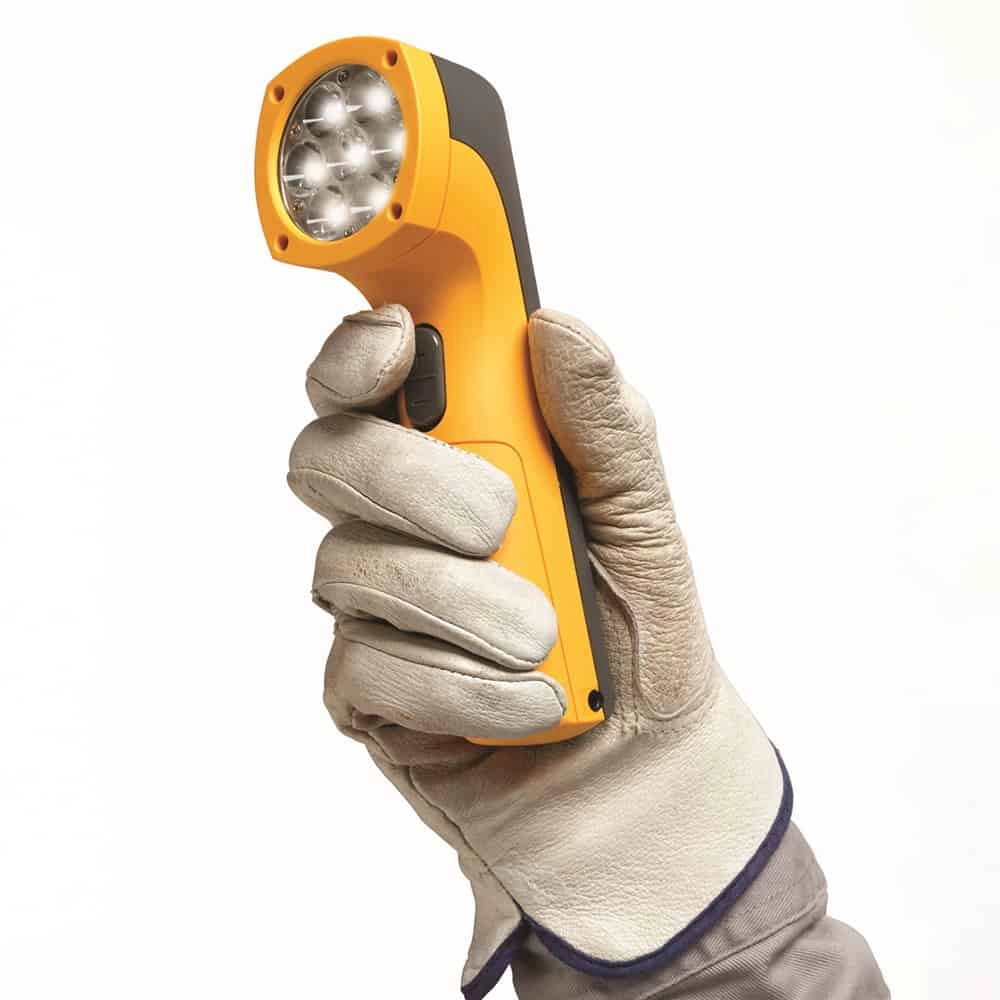

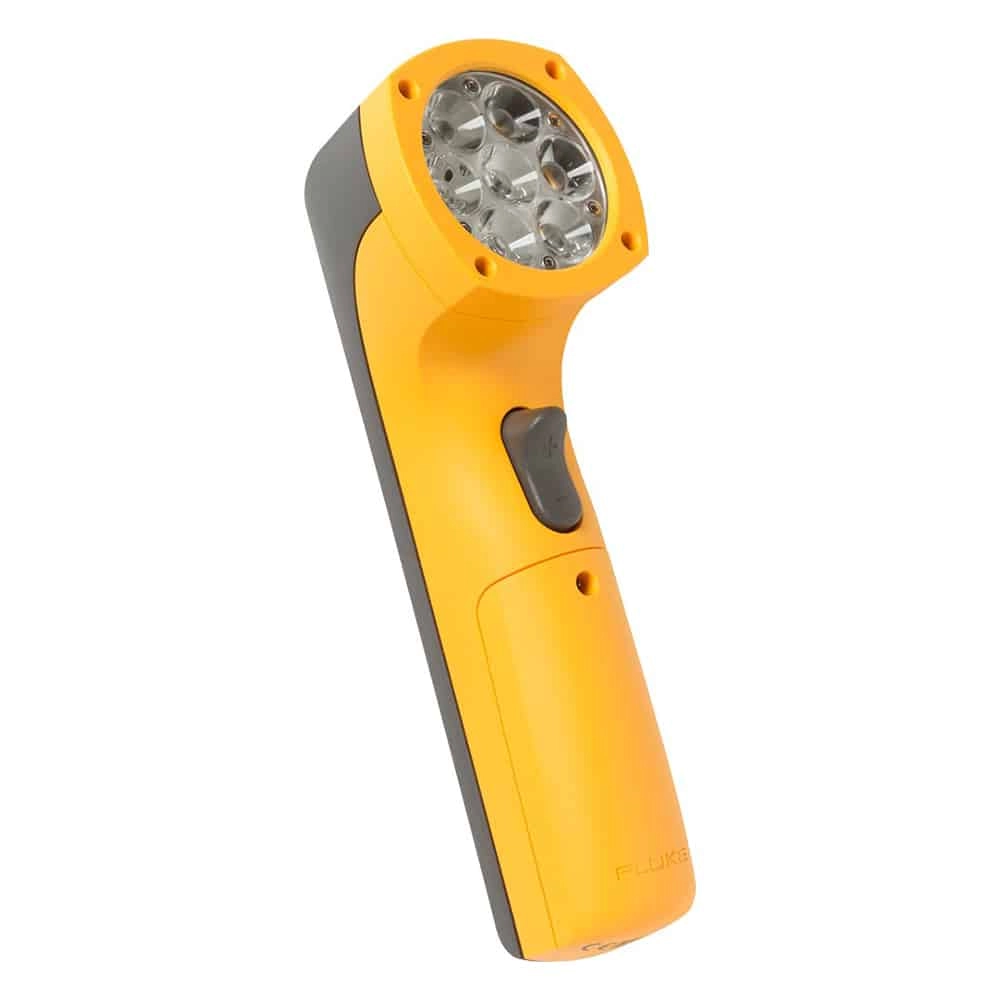

Fluke 820-2 Stroboscope, 7 Led Array, 30 to 300,000 FPM

Features

• High-intensity 7-LED array – 4;800 Lux @ 6;000 FPM/30cm
• High efficiency LED solid-state light source with uniform flash characteristics allows for higher flash rates – 30-300;000 FPM (flashes per minute)
• Digital pulse width modulation for exceptionally sharp images at high speeds
• Rugged; durable design utilizes solid-state LEDs with no filaments; gases; hollow cavities; or glass – (1 meter drop)
• Includes digital pulse width modulation for exceptionally sharp images at high speeds
• Provides rugged, durable design that uses solid-state LEDs with no filaments, gases, hollow cavities, or glass; (1 meter drop tested)
• Features quartz-accuracy control system for high accuracy–0.02% (+/- 1 digit)

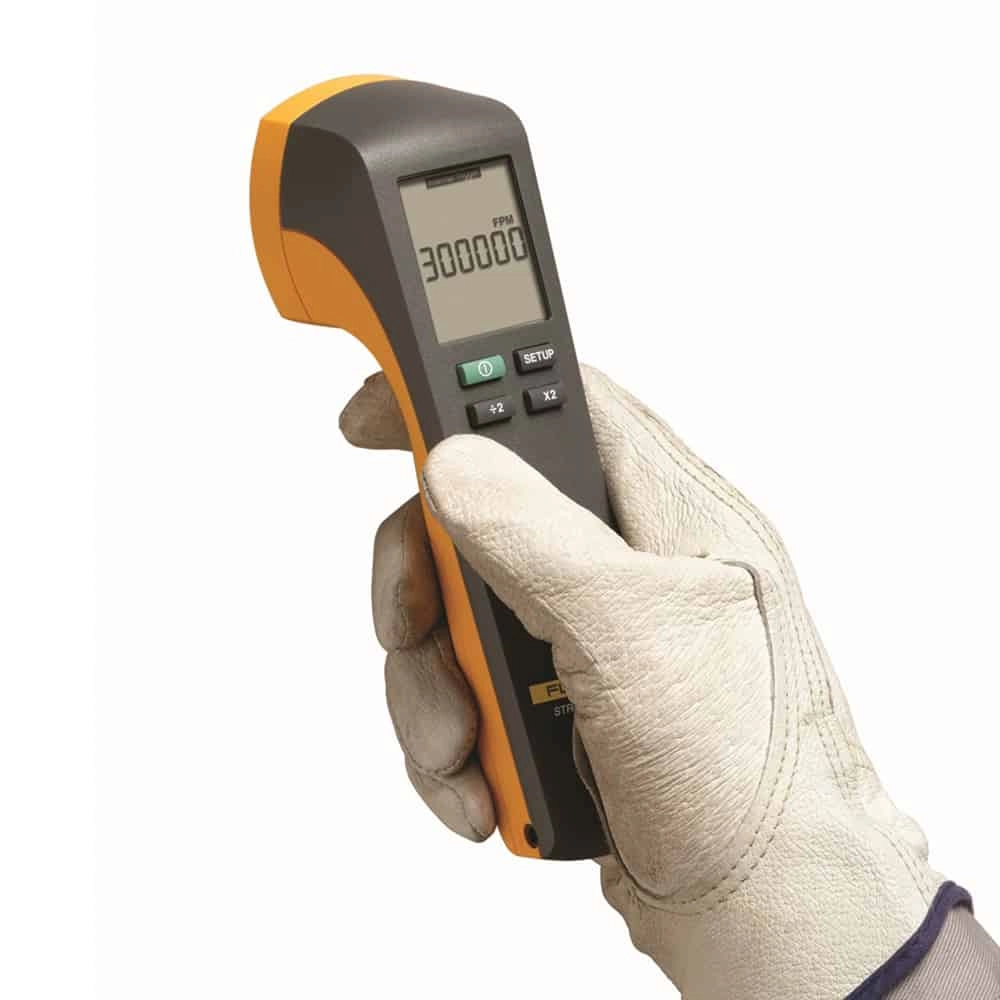

• Provides a multi-line LCD display
• Includes advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats, or drifting equipment

Technical Information

• Size (HxWxL)5.71 cm x 6.09 cm x 19.05 cm (2.25 x 2.4 x 7.5 Inches)
• Weight0.24 kg
• Operating temperature0 °C to +45 °C
• Range30 to 300,000 FPM, 0.5 to 5000 Hz
• Accuracy0.02%
• Emission output4,800 lux @ 6000 FPM at 30 cm

Items Included

• Protective case
• External trigger connector

Downloads

Datasheet
