Fluke 810 Manual Vibration Tester, 0 to 80g Peak, 2 to 20,000Hz

Name: Manual Vibration Tester, 0 to 80g Peak, 2 to 20,000Hz
Rating: 4.5 (18 reviews)

Model # 810

Key Features

Qty:

Question about this product?

On-board identification and location of the most common mechanical faults (bearings; misalignment; unbalance; looseness) focus maintenance efforts on root cause; reducing unplanned downtime

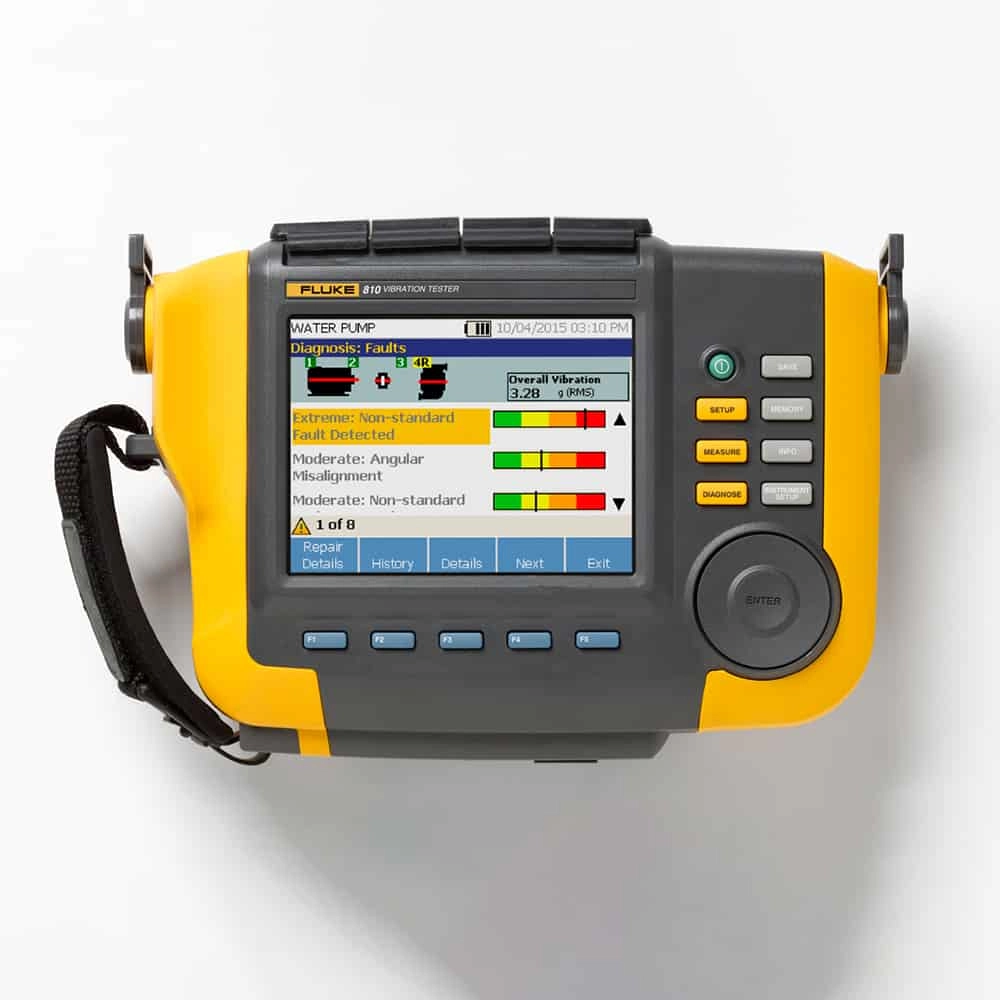

Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
Fault severity scale with four severity levels helps you prioritize maintenance work
Repair recommendations advise technicians on corrective action
Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
On-board context sensitive help provides real-time tips and guidance to new users
Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears
2 GB expandable on-board memory provides enough space for your machinery’s data
Self-test function ensures optimal performance and more time on the job

Standard FaultsUnbalance, looseness, misalignment and bearing failures
Analysis ForMotors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Motor Rotational Speed Range200 rpm to 12000 rpm
A/D Converter4 channel, 24 bit
Usable Bandwidth2 Hz to 20 kHz
Sampling51.2 Hz
Sampling Rate2.5 kHz to 50 kHz
Dynamic Range128 dB
Signal To Noise Ratio100 dB
FFT Resolution800 lines
Dimensions (H x D x W)18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 inches)
Display¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight

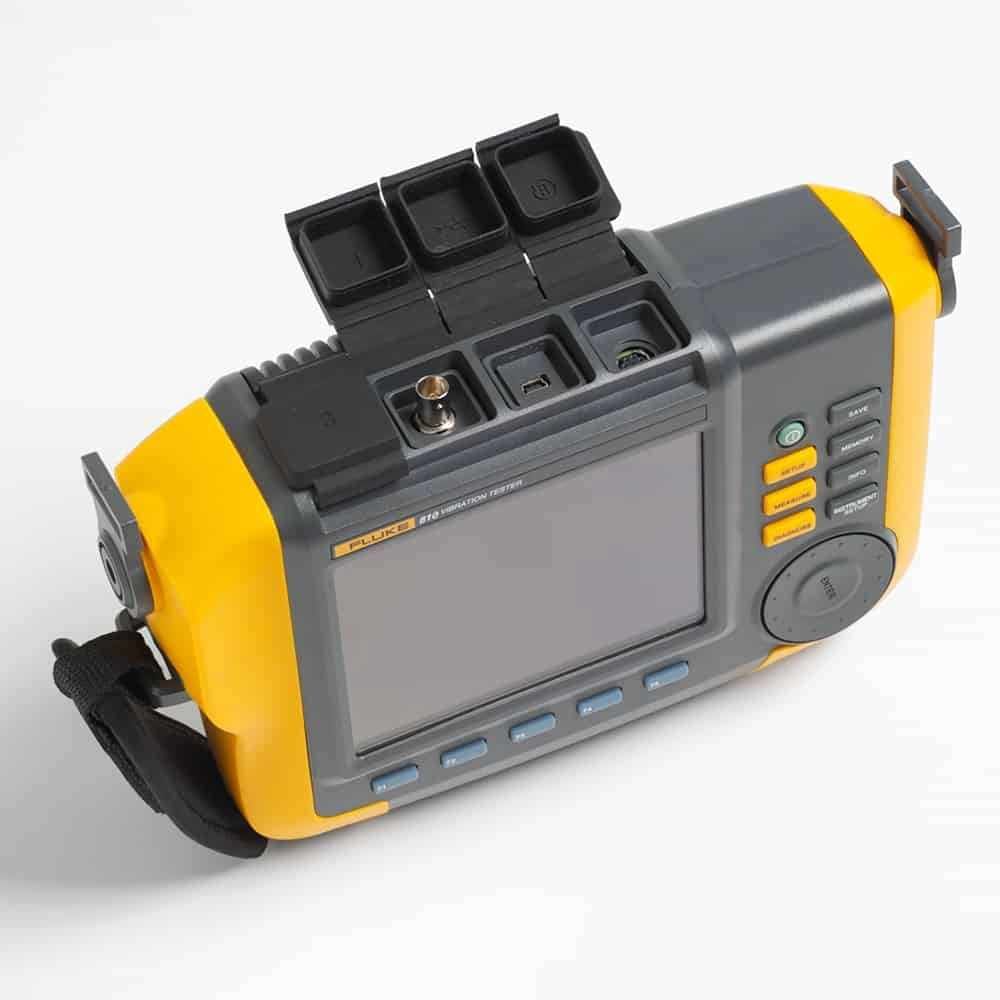

Input ConnectionsTriaxial sensor connection: 4 pin M12 connector
AC AdapterInput voltage: 100 VAC to 240 VAC Input frequency: 50/60 Hz
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Operating Humidity10% to 95% RH (non-condensing)
