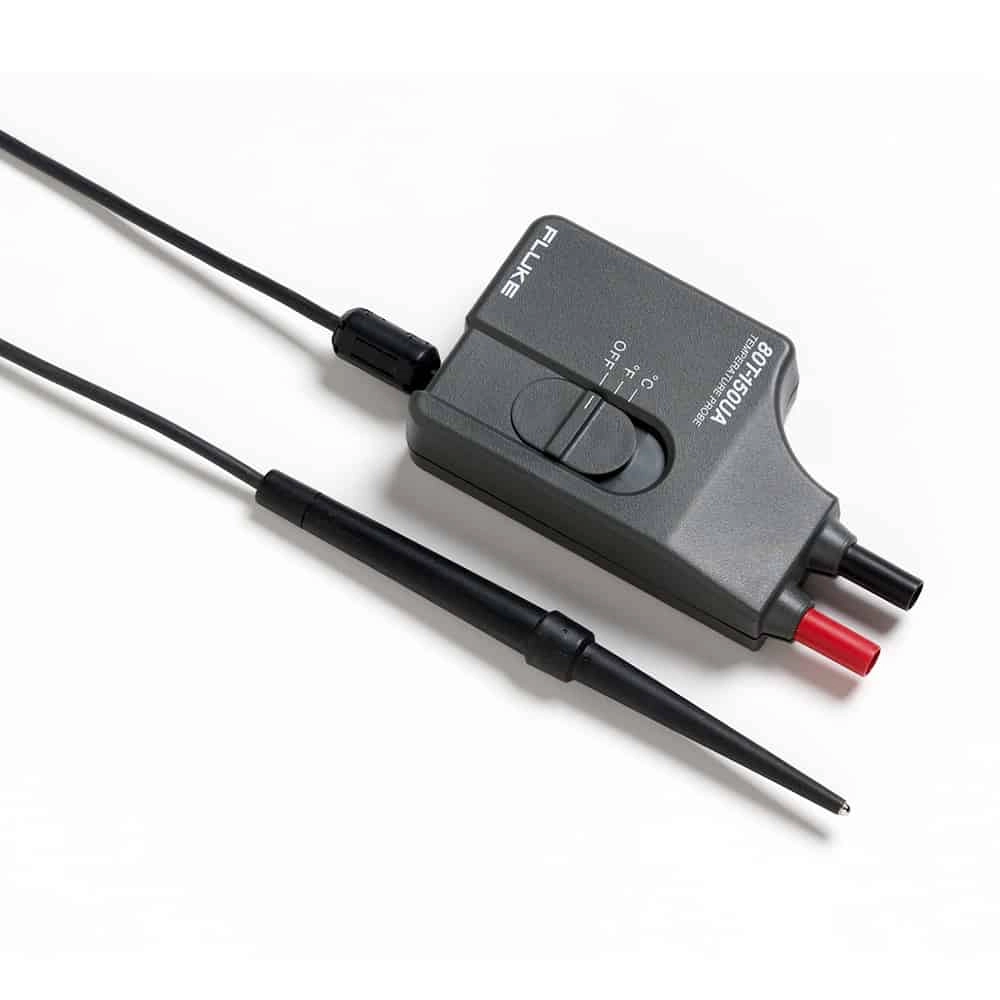

Fluke 80T-150UA Universal Temperature Probe (For DMMS)

Features

• Compatible with Fluke DMMs
• High accuracy and fast reading for low voltage (below 24 V AC; 60 V DC) applications
• Measurement range: -50 to 150¡C
• Output: 1 mV/¡C or 1 mV/¡F (switchable)

Technical Information

• Measurement Range -58 to 302°F (-50 to 150°C)
• Accuracy 59 to 95°F: ±1.8°F from 32 to 212°F, decreasing linearly to ±5.4°F at -58 and 302°F
• Sensitivity 1 mV dc/°C or °F
• Voltage Standoff 60 V dc or 30 V ac rms (42.4 V peak)
• Settling Time 9.5 seconds to settle within 2° for a 50° change
• Ambient Operating Range for Temperature Module 32 to 122°F (0 to 50°C)
• Maximum Temperature Probe Body and Cable 160°F (70°C)
• Storage Temperature for Unit -40 to 160°F (-40 to 70°C)
• Humidity 0 to 90% (32 to 95°F [0 to 35°C])
• Overall Length 53.8" (1.36 m)

Items Included

• Fluke 80T-150U Universal Temperature Probe
