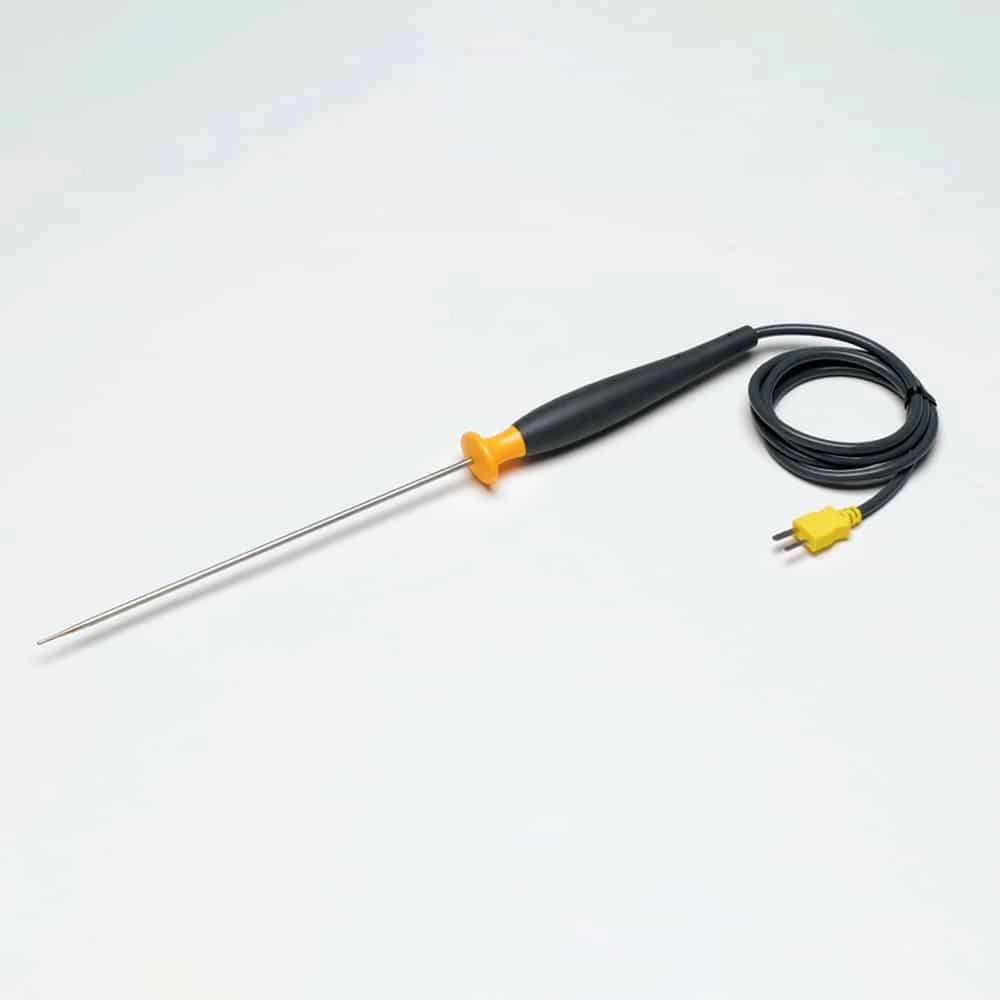

Fluke 80PK-26 Suregrip Tapered Temperature Probe
Model # 80PK-26Key Features
?
Question about this product?
Features
- Measurement range: -40 to 816ºC
Technical Information
- Type K Standard Grade Ni-Cr vs Ni-Al (Chromel vs Alumel)
- Measurement Range -40 to 1500°F (-40 to 816°C)
- Accuracy -40 to 559.4°F (-40 to 293°C): ±2.2°C
- Output 77°F (25°C) = 1.00 mV (reference junction at 0°C)
- Seebeck Coefficient 77°F (25°C) = 40.50 µV /°C
- Measurement Time 3.0 seconds for air moving at 3.33 meters / second (10.9 feet / second) at sea level pressure (5 time constants = 1 complete step change, i.e., 15 seconds)
- Maximum Voltage 24 V AC rms or 60 V DC
- Maximum Temperature of Tip 1500°F (816°C)
- Cable Length 40" (1 m)
- Maximum Temperature 220°F (105°C)
Items Included
- Fluke 80PK-26 SureGrip Tapered Temperature Probe
