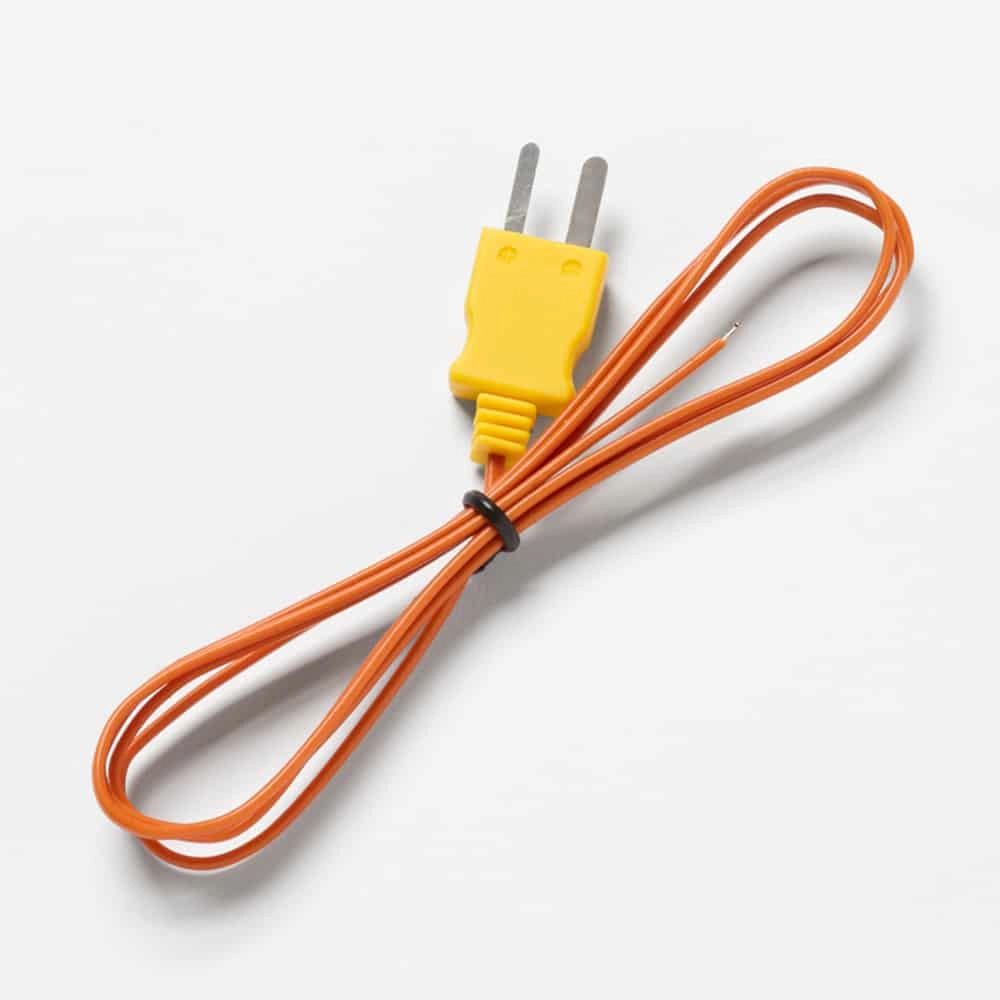

Fluke 80PK-1 Bead Probe (Type K)

Model #   80PK-1

?

Question about this product?

Speak to an expert

Features

  • Measurement range: -40 to 260 °C

Technical Information

  • Type K special grade
  • Measurement Range -40 to 500°F (-40 to 260°C) continuous
  • Accuracy (with Respect to NBS Tables for Special Grade) ±2.0°F (1.1°C) over the range of 32 to 500°F (0 to 260°C)
  • Output 77°F (25°C) = 1.00 mV (reference junction at 0°C)
  • Seebeck Coefficient 77°F (25°C) = 40.50 µV /°C
  • Measurement Time 2 seconds (for air at room temperature and one atmosphere of pressure moving with a velocity of 65'/sec)
  • Maximum Voltage 24 V AC rms or 60 V DC maximum for proper safe operation
  • Maximum Temperature of Bead 500°F (260°C)
  • Cable Length 40" (1 m)
  • Material Teflon
  • Maximum Temperature 500°F (260°C)

Items Included

  • Fluke 80PK-1 Bead Probe
