Fluke 80K-6 High Voltage Probe Cat I 6000 V
Model # 80K-6Key Features
?
Question about this product?
Features
- Designed to extend the voltage measuring capability of an AC/DC voltmeter to 6000 V peak AC or DC Overvoltage Category I. The probe provides high accuracy when used with a voltmeter having 10 MΩ input impedance. Intended for low energy applications.
Technical Information
- Voltage Range 0 to 6 kV, DC or peak AC
- Input Impedance 75 MΩ nominal
- Division Ratio 1000:1
- Accuracy DC to 500 Hz: ±1%
- Storage -4 to 140°F (-20 to 60°C)
- Operating 32 to 122°F (0 to 50°C)
- Relative Humidity 20 to 80%
- Altitude 6561.68' (2000 m)
- Vibration 5 to 55 Hz swept sine 3 g maximum
- Shock 3.28' (1 m) drop
- Dimensions 9.8" (24.89 cm) (probe body), 2.0" (5.10 cm) max. width
Items Included

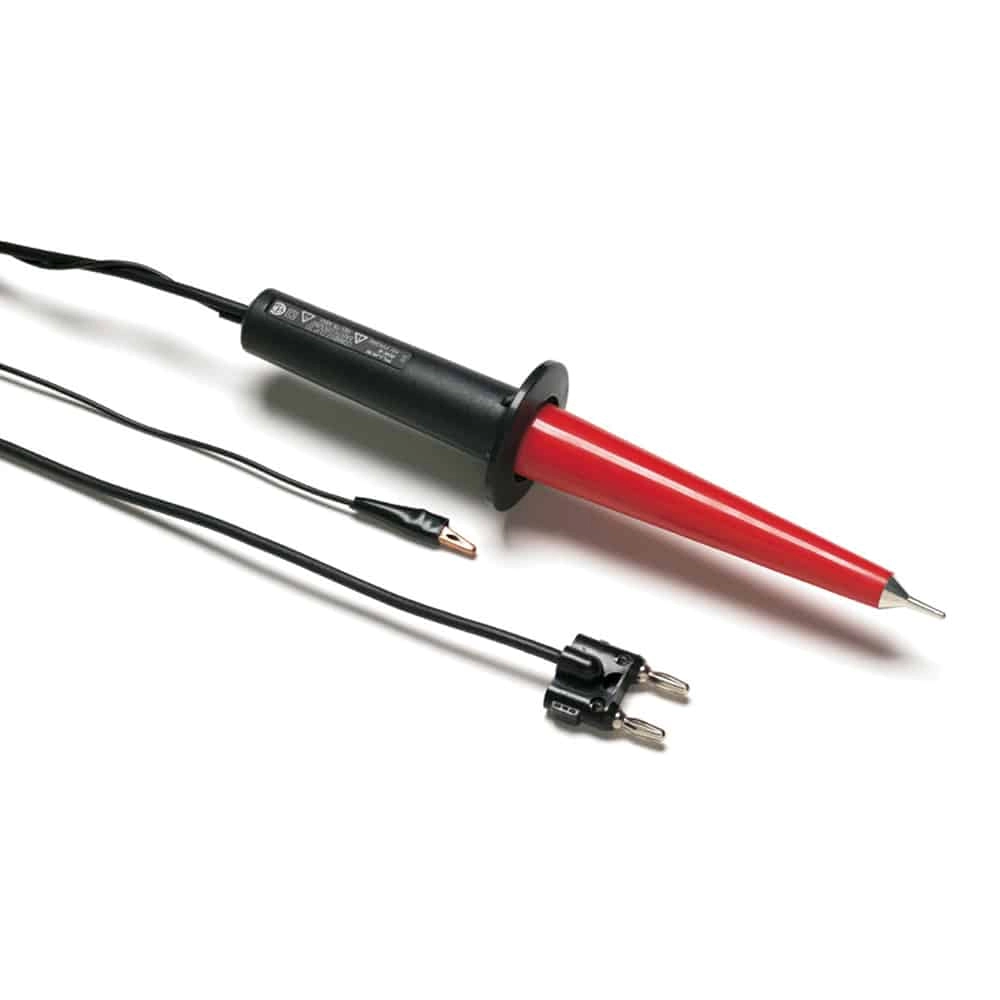

- Fluke 80K-6 KV High Voltage Probe
