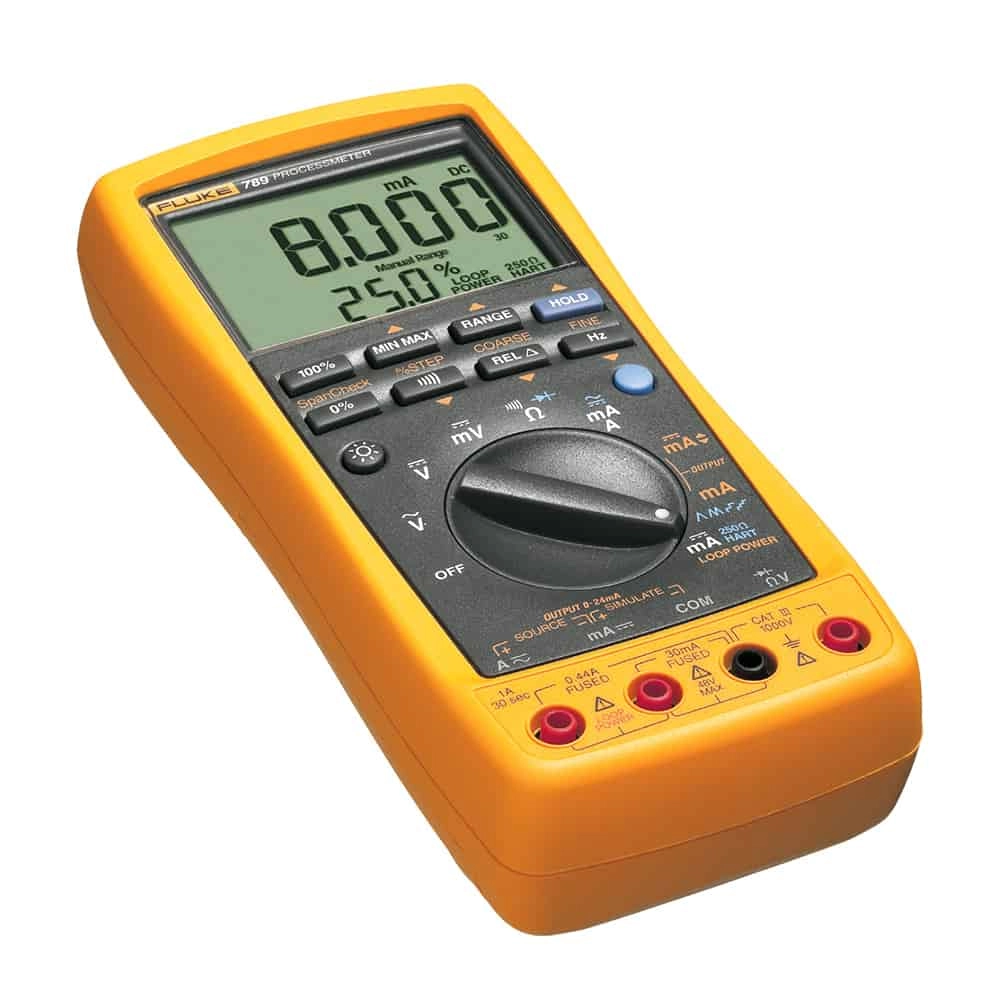

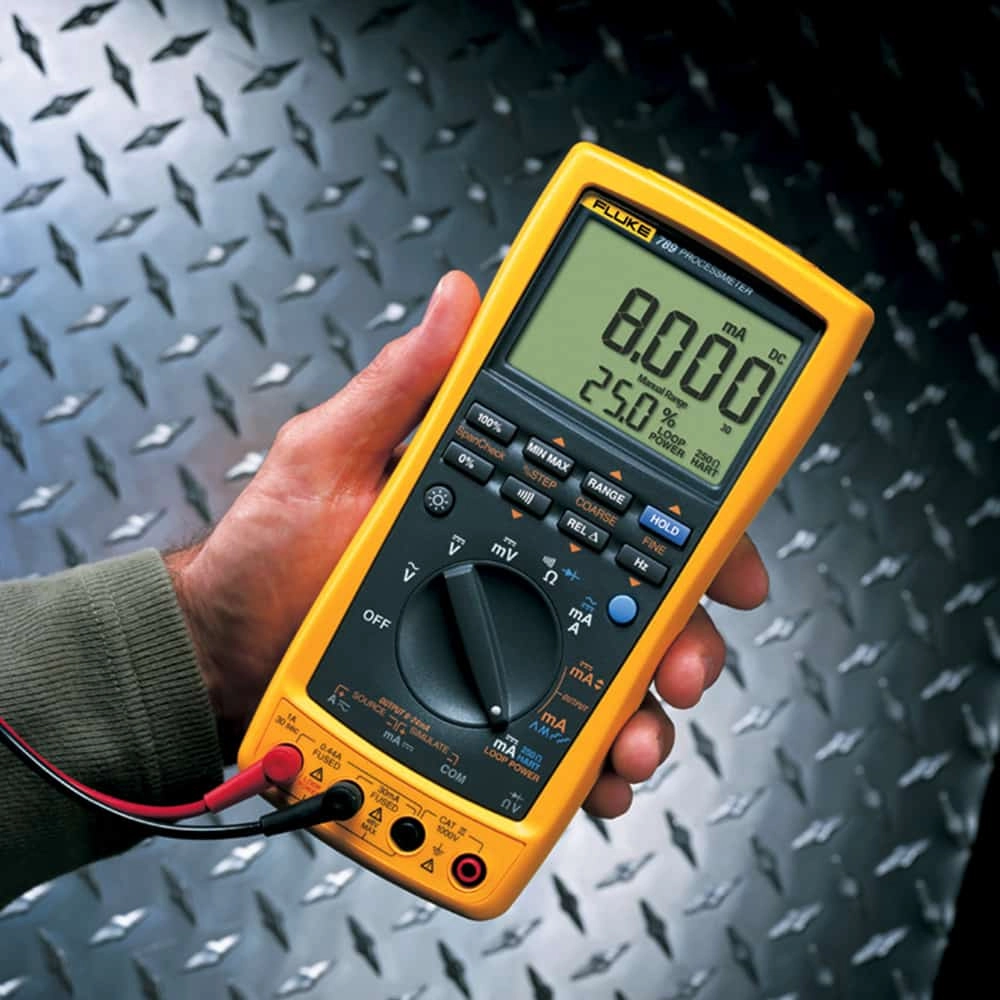

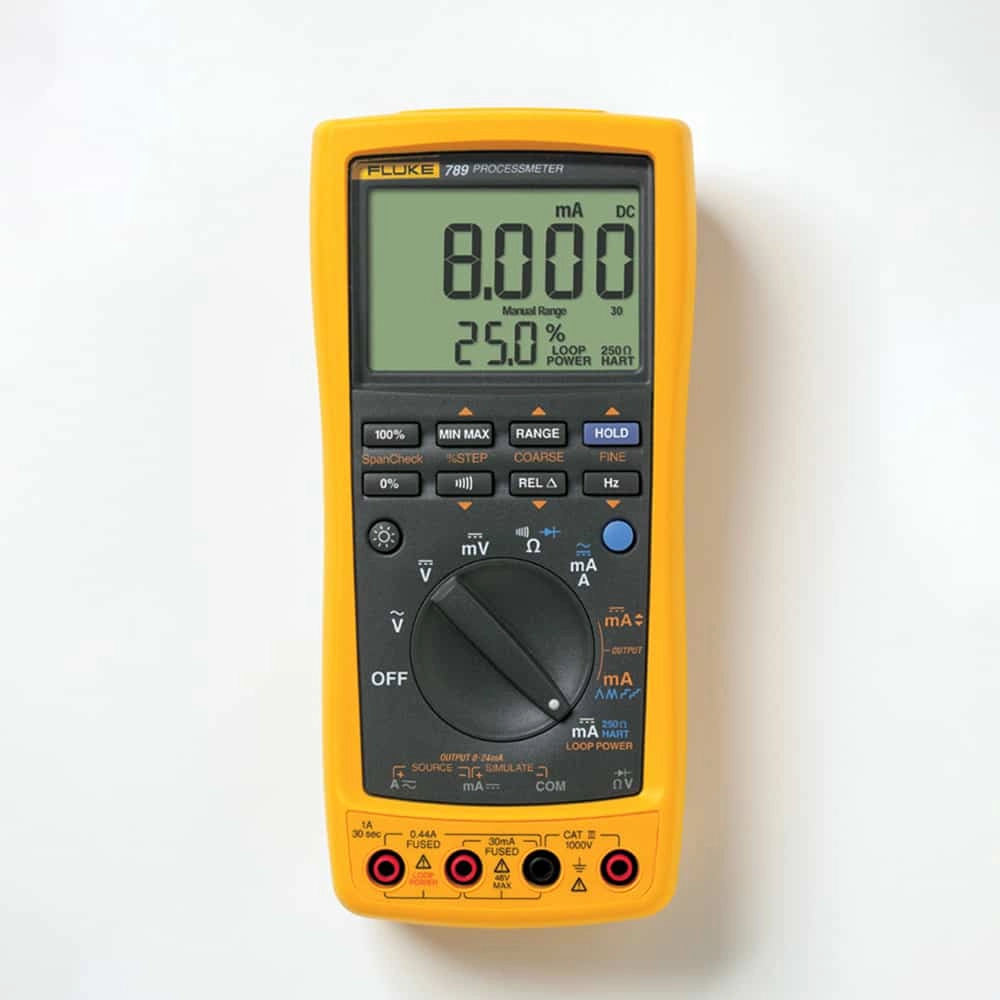

Fluke 789/E Process Meter, 0 to 30mA

Features

• 24 V Loop power supply
• Double-sized; dual display
• Enhanced backlight with 2 brightness settings
• 20mA drive into 1200 ohms
• Compact digital multimeter and mA loop calibrator solution
• Full-featured mA loop calibrator with built-in 24v Loop Power
• Quickly and easily troubleshoot every part of a control loop
• Large, bright dual-measurement display

Technical Information

• Current Measurement0-1 A AC or DC / 0 to 30 mA
• Resolution1 mA / 0.001 mA
• Accuracy0.2% + 2 LSD (DC) / 0.05% + 2 lSD
• Voltage Measurement0 to 1000V
• Resolution0.1 mV to 1.0 V
• Accuracy0.1% Rdg + 1 LSD (VDC)
• Frequencyto 19.999 kHz, 0.005% + 1 LSD
• Resistance40 MΩ, 0.2% + 1 LSD
• Operating temperature-20°C to 55°C
• Storage temperature-40°C to 60°C
• Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)

Items Included

• AC175 Alligator Clips
• Four AA 1.5 V alkaline battery (installed)
• TL71 Safety-Designed Test lead Set

Downloads

CertificateCertificate
