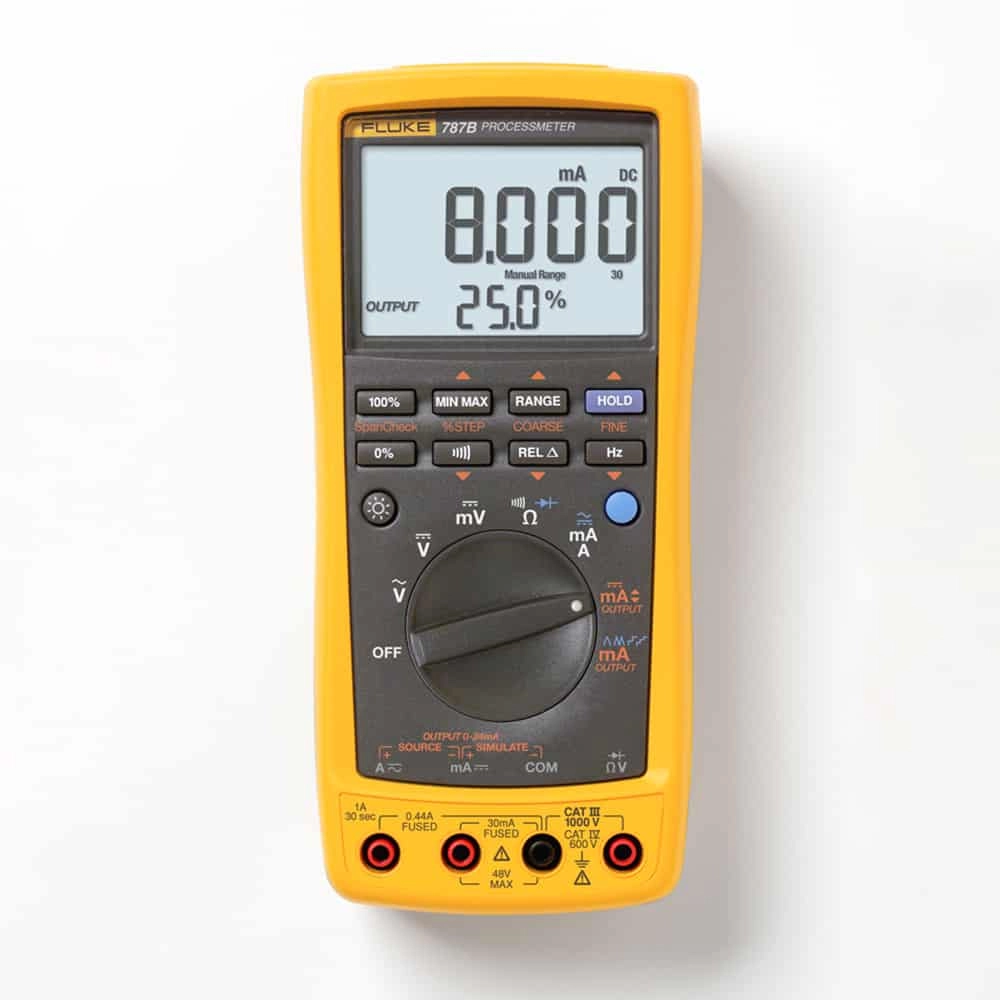

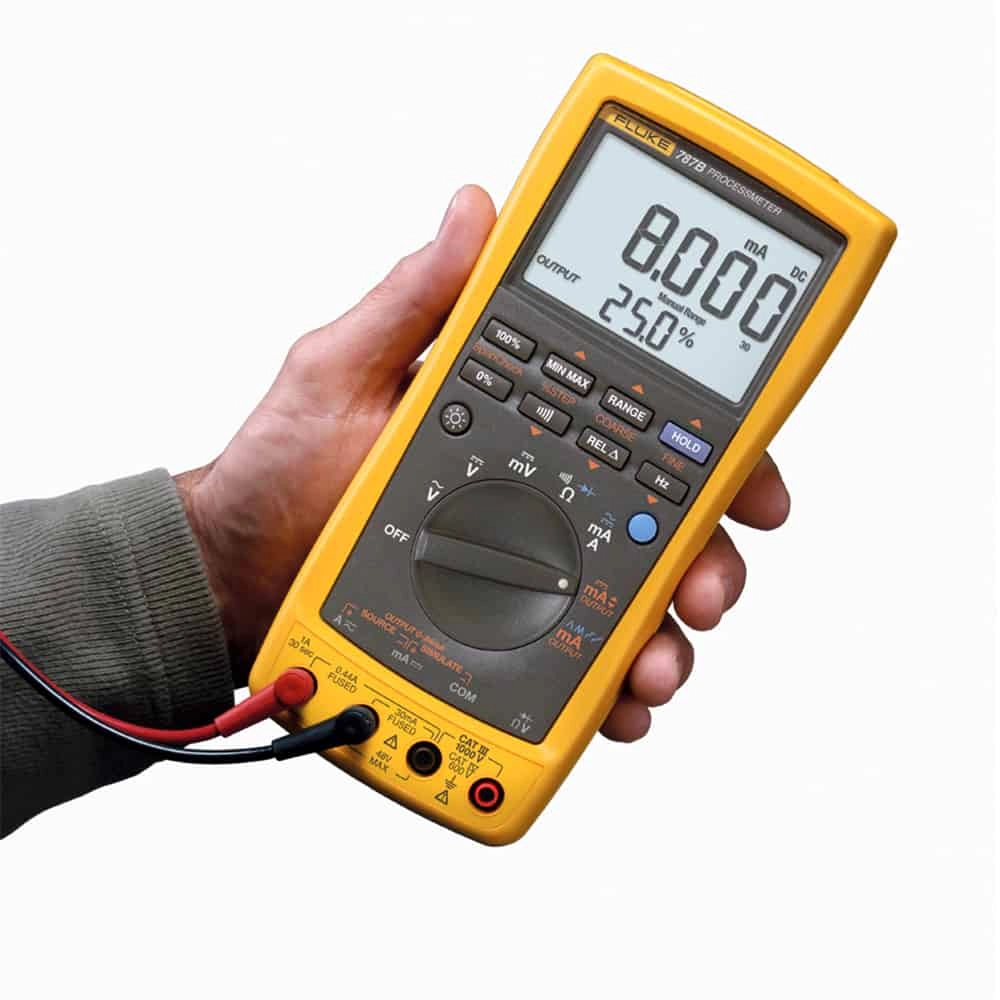

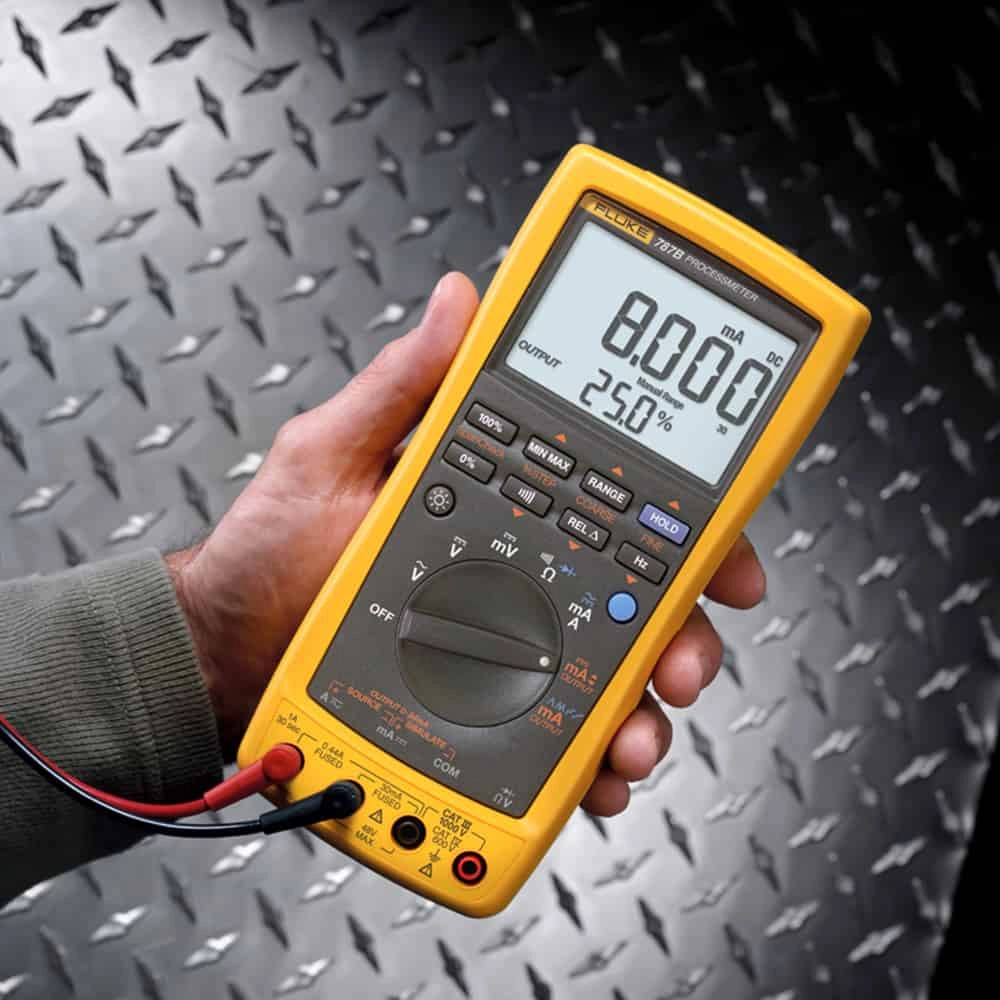

Fluke 787B Process Meter, 20mA DC, 1000V DC

Features

• 20 mA dc current source/measure/simulate
• Simultaneous mA and % of scale readout
• DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
• Fluke Connect® compatibility for wireless data logging (with IR3000FC module*)
• Easy-to-read backlit display
• Manual and automatic ramp up - ramp down functions

Technical Information

• Current Measurement30mA DC, 1.000 A (0.440 A continuous)
• Voltage Measurement400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V DC
• Resistance400.0Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.0MΩ, 40MΩ
• Frequency (0.5 Hz to 20 kHz)199.99 Hz, 1999.9 Hz, 19.999 kHz
• Maximum voltage applied between any jack and earth ground1000 V RMS
• Storage temperature-40 °C to 60 °C
• Operating temperature-20 °C to 55 °C
• Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
• Relative humidity95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
• VibrationRandom, 2 g, 5-500 Hz
• Shock1 meter drop test
• Size50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)

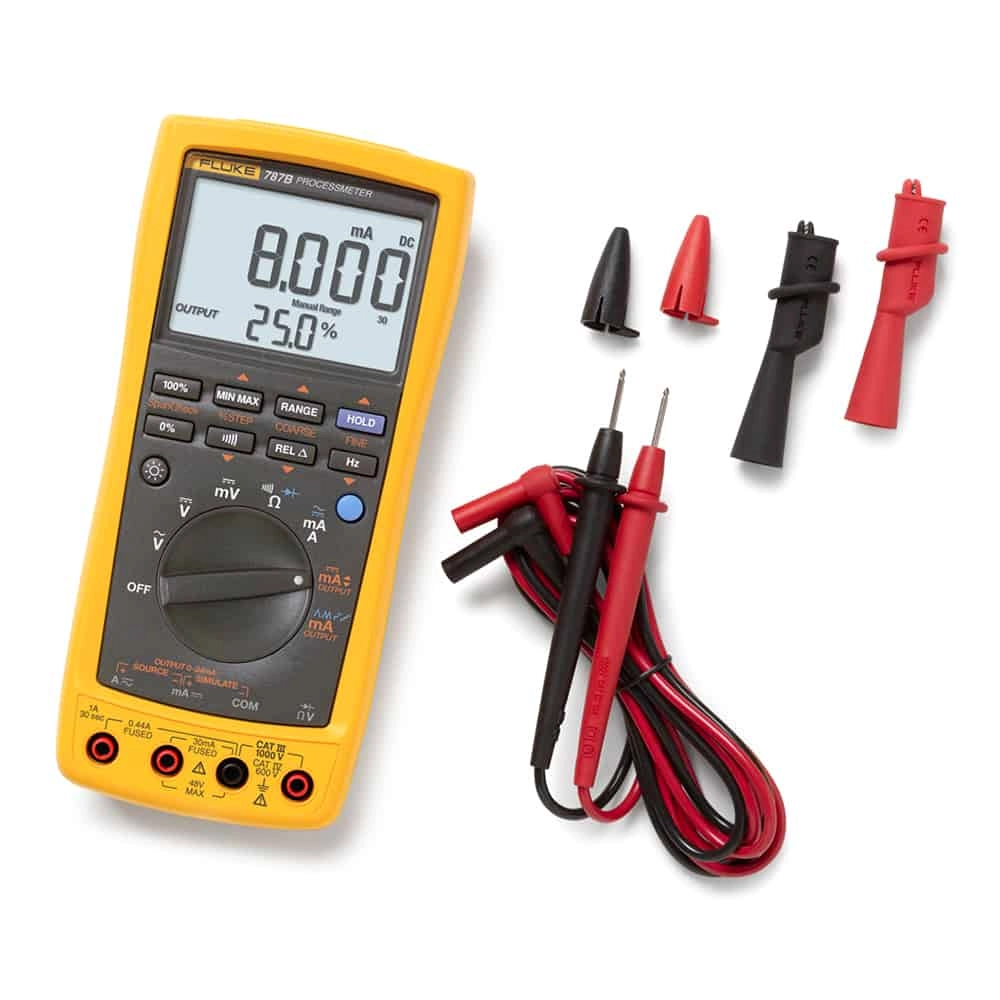

Items Included

• TL71 Premium test lead set
• AC72 Alligator clips
• Four AA alkaline batteries (installed)
• Quick reference guide
