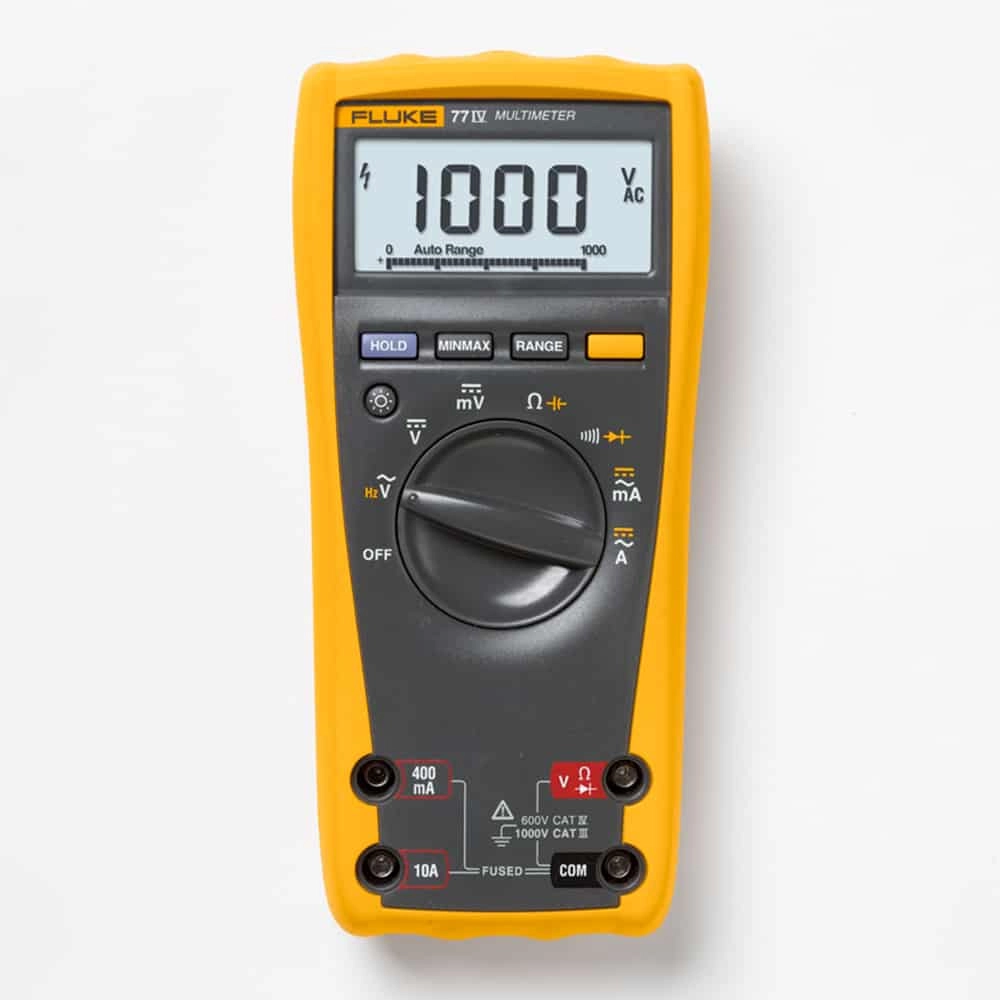

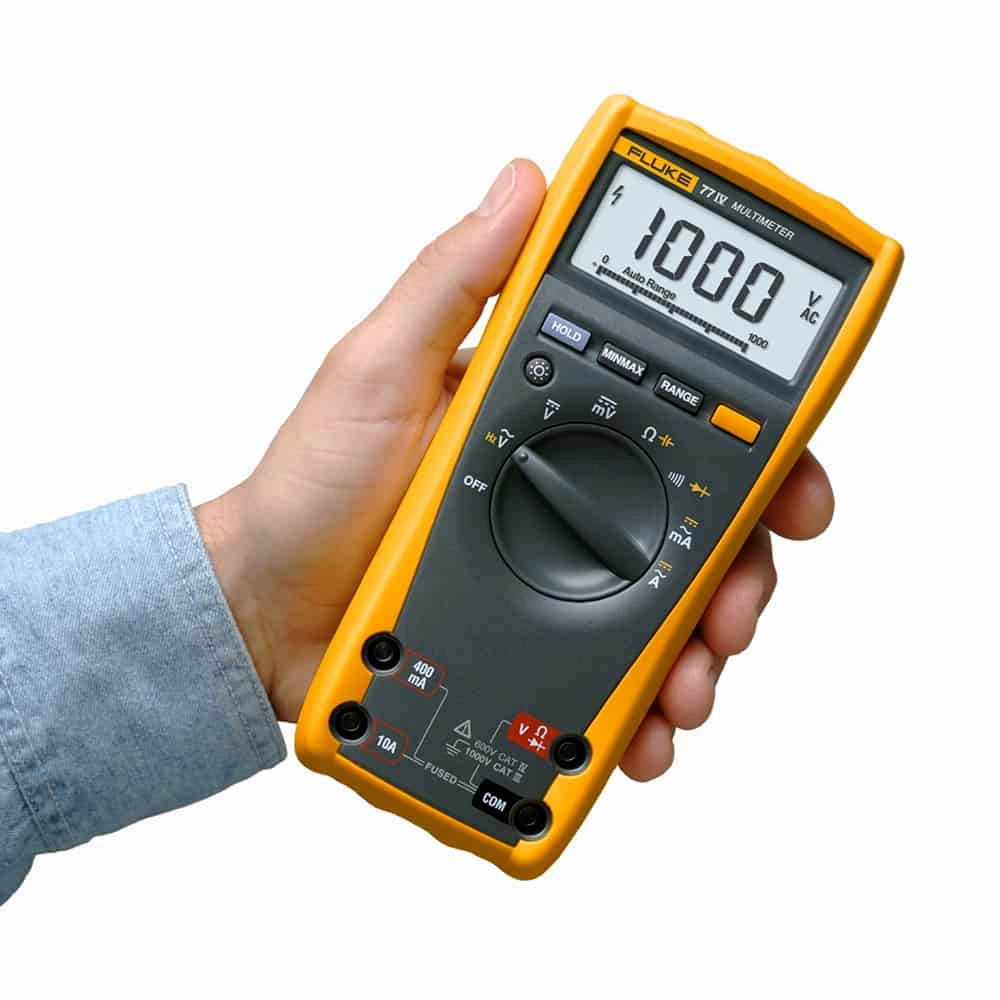

Fluke 77-4/EUR Digital Multimeter, CAT IV 600V, 10A

Features

• Large display
• Backlight for work in dim areas
• Min / Max to record signal fluctuations
• Ergonomic overmolded housing with integrated probe holders

Technical Information

• DC Voltage1000V
• Voltage AC1000V
• DC Current10A
• AC Current10A
• Resistance600.0 Ω to 50 MΩ
• Capacitance1nF – 9,999 μF
• Frequency99.99Hz to 99.99kH
• Digital6000 counts, updates 4/sec
• Safety RatingCAT IV 600V, CAT III 1000V
• Fuse for mA inputs440 mA, 1000 V FAST Fuse
• Fuse for A inputs11 A, 1000 V FAST Fuse
• Temperature Operating-10°C to + 50°C
• Storage-40°C to + 60°C
• Temperature coefficient0.1 x (specified accuracy / °C (< 18°C or > 28°C)
• Size (H x W x L)4.3 x 9 x 18.5 cm

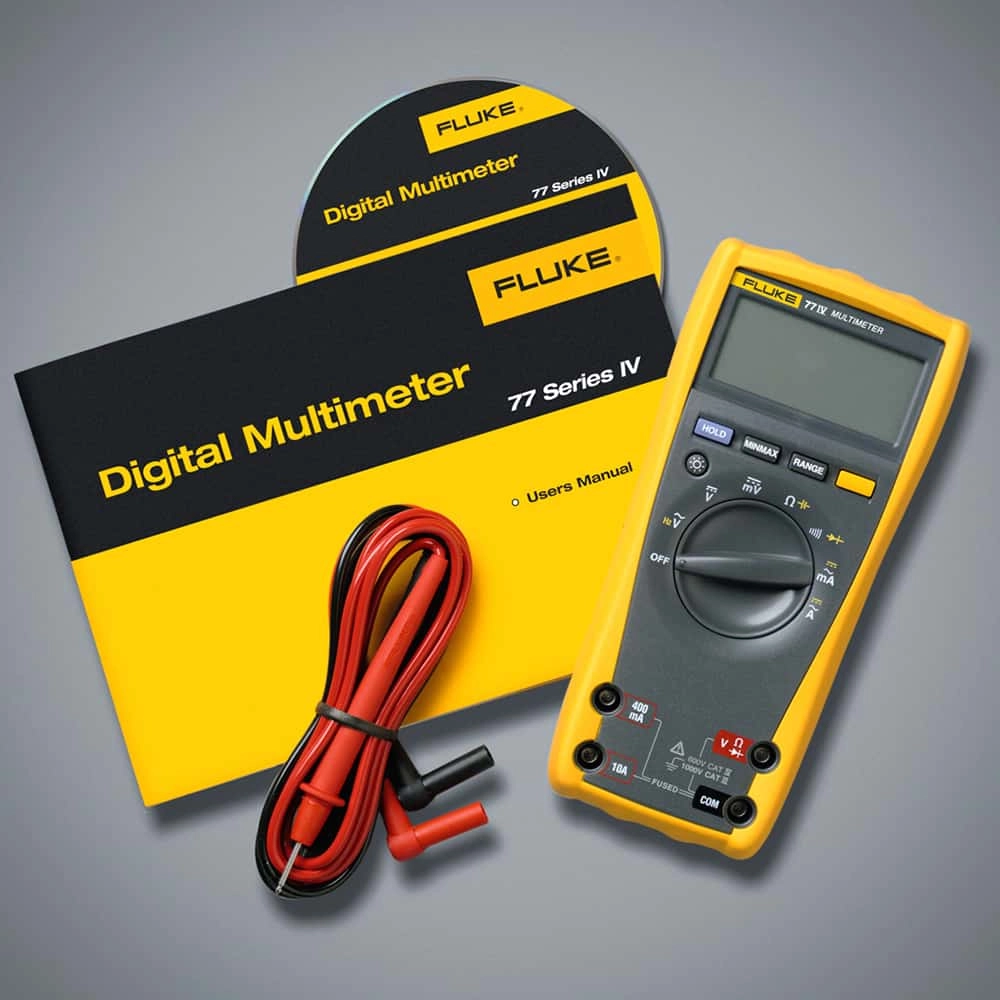

Items Included

• Installed 9V battery Test leads Users manual

Downloads

Datasheet
