Fluke 754 Documenting Process Calibrator With HART Communications, 100mV to 300V DC, 30 to 110mA
Model # 754Key Features
?
Question about this product?
Features

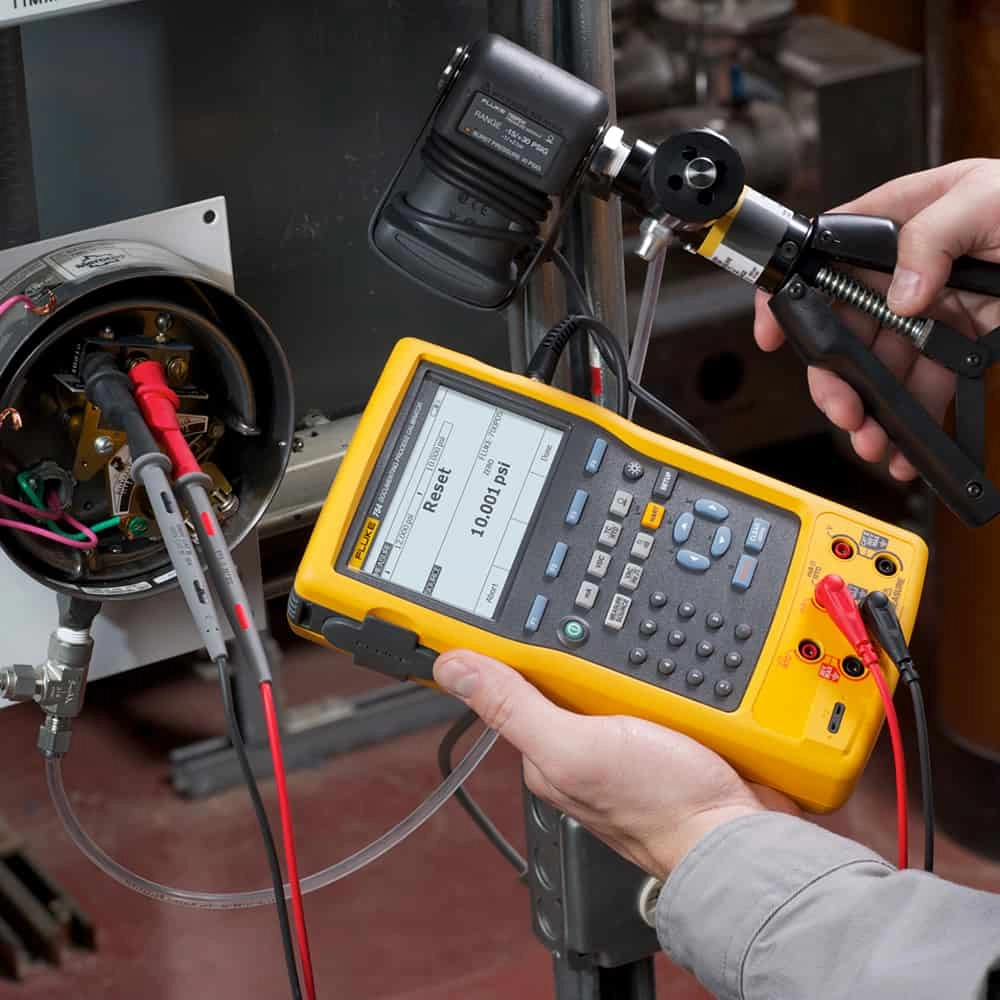

- Source/simulate volts; mA; thermocouples; RTDs; frequency; ohms; and pressure to calibrate transmitters Power transmitters during test using loop supply with simultaneous mA measurement Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
- Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
- Holds up to a full week of downloaded procedures and calibration results.
- Use many features like autostep; custom units; user entered values during test; one-point and two-point switch testing; square root DP flow testing; programmable measurement delay etc.
- Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms
- Measures/sources pressure using any of 29 Fluke 700Pxx Pressure Modules
- Provides easy-to-use multi-lingual interface

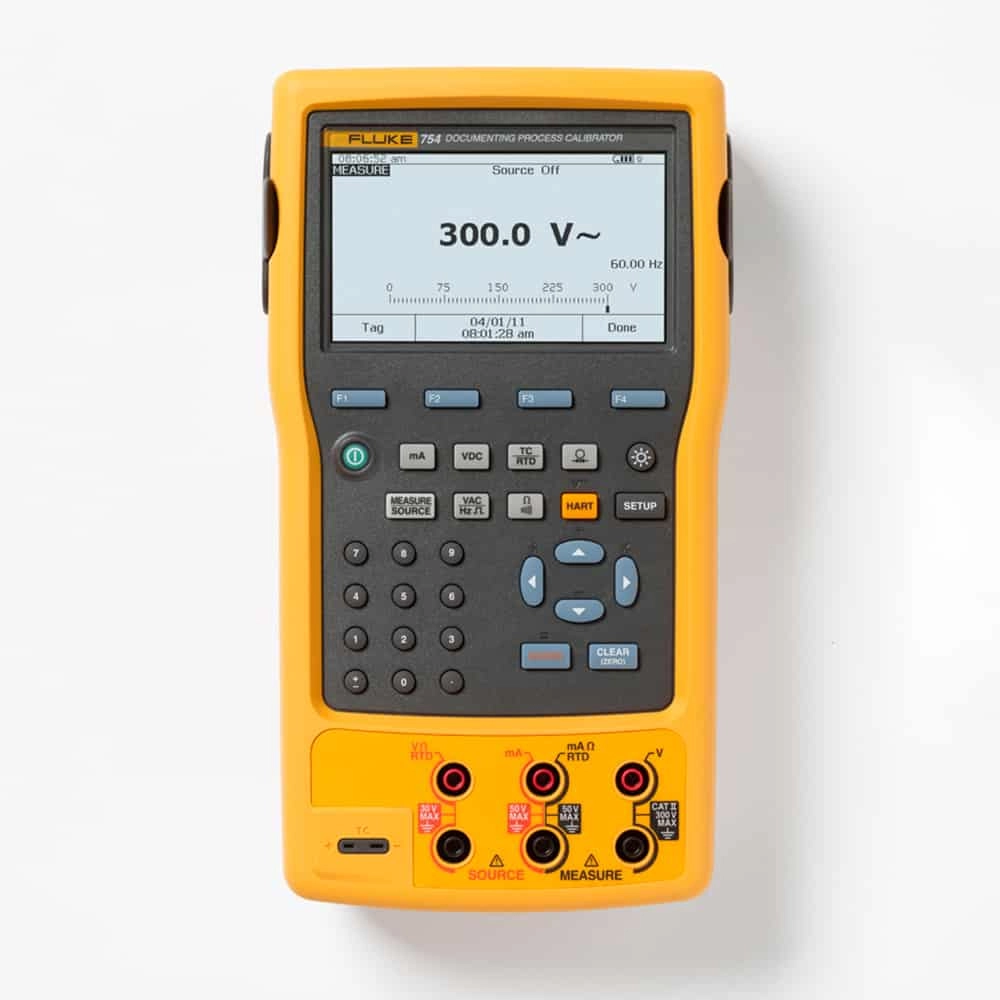

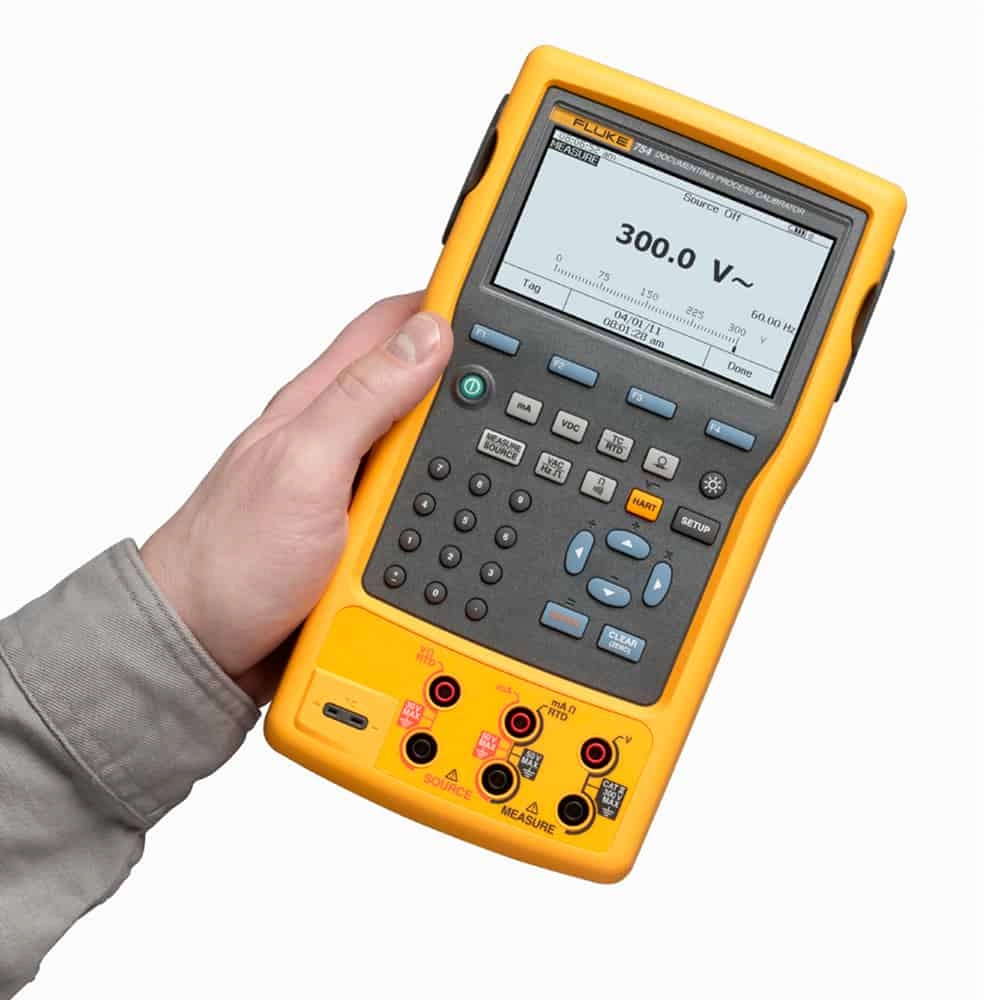

- Features a bright white dual display for reading both sourced and measured parameters simultaneously
- Includes rechargeable Li-Ion battery for 10 hour uninterrupted use
Technical Information
- Voltage Measurement100 mV, 3 V, 30 V, 300 V DC
- Voltage Measurement3(40 to 500 Hz)/0.001 V, 30 (40 to 500 Hz)/0.01 V, 300 (40 to 500 Hz)/0.1 V AC
- Current Measurement30 mA, 110 mA DC
- Resistance10Ω, 100Ω, 1 kΩ, 10 kΩ
- Frequency1.00 to 110.00 Hz/0.01 Hz,
- Ramp Rate4 steps/second
- Data Logging1, 2, 5, 10, 20, 30, or 60 readings/minute
- Loop Power VoltageSelectable, 26 V
- Operating Temperature14 to 122°F (-10 to 50°C)
- Storage Temperature-4 to 140°F (-20 to 60°C)
- Dust/Water ResistanceMeets IP52, IEC 529
- Dimensions5.4 x 9.6 x 2.5" (136 x 245 x 63 mm)
Items Included
- BC7240 battery charger
- Li-on BP7240 battery pack
- DPCTrack 2
- Sample Software
- Instruction manual
- NIST-traceable calibration report and data
- Three sets of TP220 test probes with three sets of Ã’extended tooth” alligator clips
- Two sets AC280 hook clips

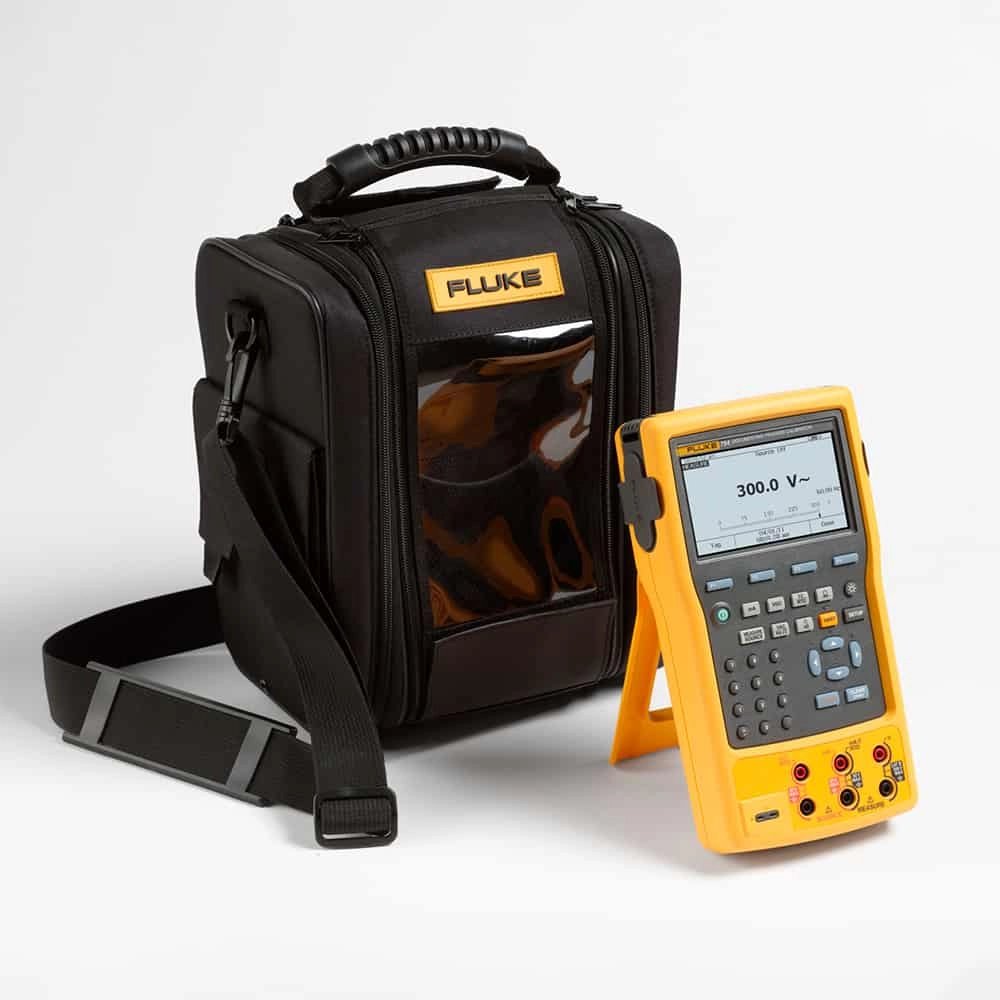

- C799 Soft Field Case
- USB communication cable
- Fluke 754HHC HART communications cable
