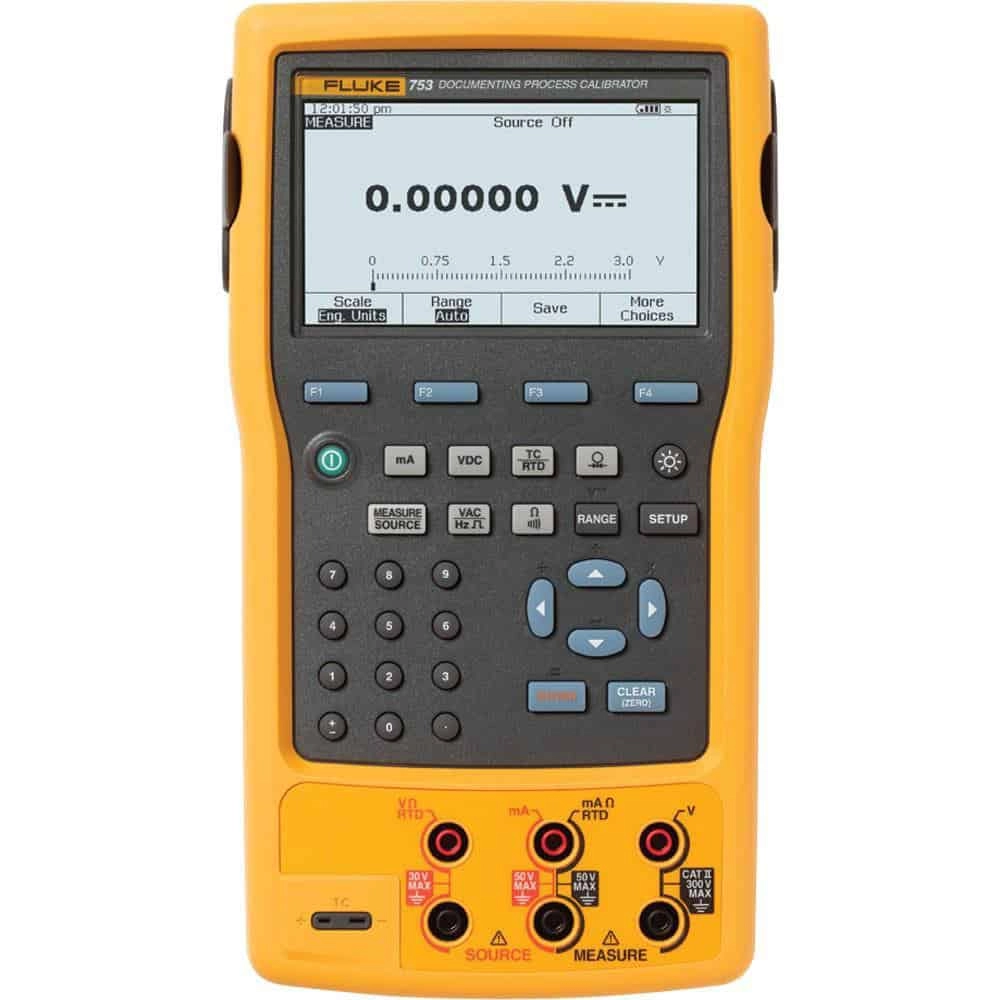

Fluke 753 Documenting Process Calibrator With Increased Accuracy, 100mV to 300V DC, 30 to 110mA

Features

• Source/simulate volts; mA; thermocouples; RTDs; frequency; ohms; and pressure to calibrate transmitters
• Power transmitters during test using loop supply with simultaneous mA measurement
• Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
• Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
• Holds up to a full week of downloaded procedures and calibration results
• Offers many flexible features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more.
• Offers compatibility with DPCTrack2 and many other asset management software packages
• Bright white dual display for reading both sourced and measured parameters simultaneously
• Easy-to-use multi-lingual interface

Technical Information

• Voltage Measurement100 mV, 3 V, 30 V, 300 V DC
• Voltage Measurement3(40 to 500 Hz)/0.001 V, 30 (40 to 500 Hz)/0.01 V, 300 (40 to 500 Hz)/0.1 V AC
• Current Measurement30 mA, 110 mA DC
• Resistance10Ω, 100Ω, 1 kΩ, 10 kΩ
• Frequency1.00 to 110.00 Hz/0.01 Hz,
• Ramp Rate4 steps/second
• Data Logging1, 2, 5, 10, 20, 30, or 60 readings/minute
• Loop Power VoltageSelectable, 26 V
• Operating Temperature14 to 122°F (-10 to 50°C)
• Storage Temperature-4 to 140°F (-20 to 60°C)
• Dust/Water ResistanceMeets IP52, IEC 529
• Dimensions5.4 x 9.6 x 2.5" (136 x 245 x 63 mm)

Items Included

• BC7240 battery charger
• Li-on BP7240 battery pack
• DPCTrack 2
• Sample Software Instruction manual
• NIST-traceable calibration report and data
• Three sets of TP220 test probes with three sets of Ã’extended tooth” alligator clips
• Two sets AC280 hook clips
• C799 Soft Field Case
• USB communication cable

Downloads

DatasheetDatasheet
