Fluke 750RD5 Pressure Module, -15 to 30 PSI, -1 to 2 Bar

Features

• Gage pressure modules have one pressure fitting and measure the pressure with respect to atmospheric pressure.
• The 750P Series pressure modules are highly accurate with specifications that apply form 0¡C to 50¡C; a feature that sets them apart form other pressure calibrators.
• Each module has its own microprocessor; allowing it to run the measurement circuitry and to communicate digitally with a calibrator.
• The 750P Series Pressure Modules are the ideal pressure modules to enable gage; differential and absolute pressure measurement with Fluke 750 and 740 series DPCs and 725; 726 MPCs to measure pressure.
• Quick and easy measurements
• Rugged construction
• Convenient setup
• Sensor protection in isolated modules

Technical Information

• Range-15 to 30 psi (-1 to 2 bar)
• Burst Rating4X

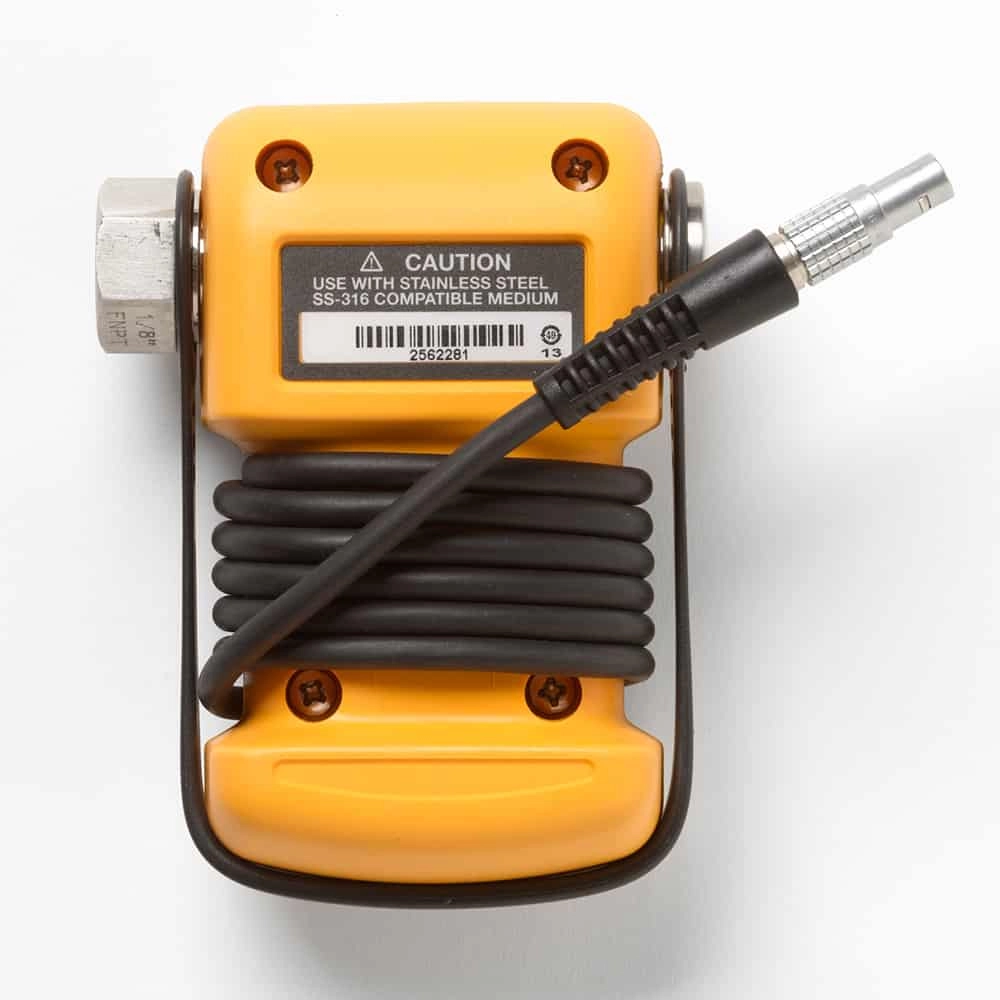

• Hi Side Media316 SS
• Lo Side MediaN/A
• Reference Uncertainty±0.01% of FS
• Total Uncertainty 1-year (15-35°C)± 0.02% of FS
• Total Uncertainty 1-year± 0.04% of FS
• Total Uncertainty 6-month (15-35°C)± 0.015% of FS
• Total Uncertainty 6-month± 0.035% of FS

Items Included

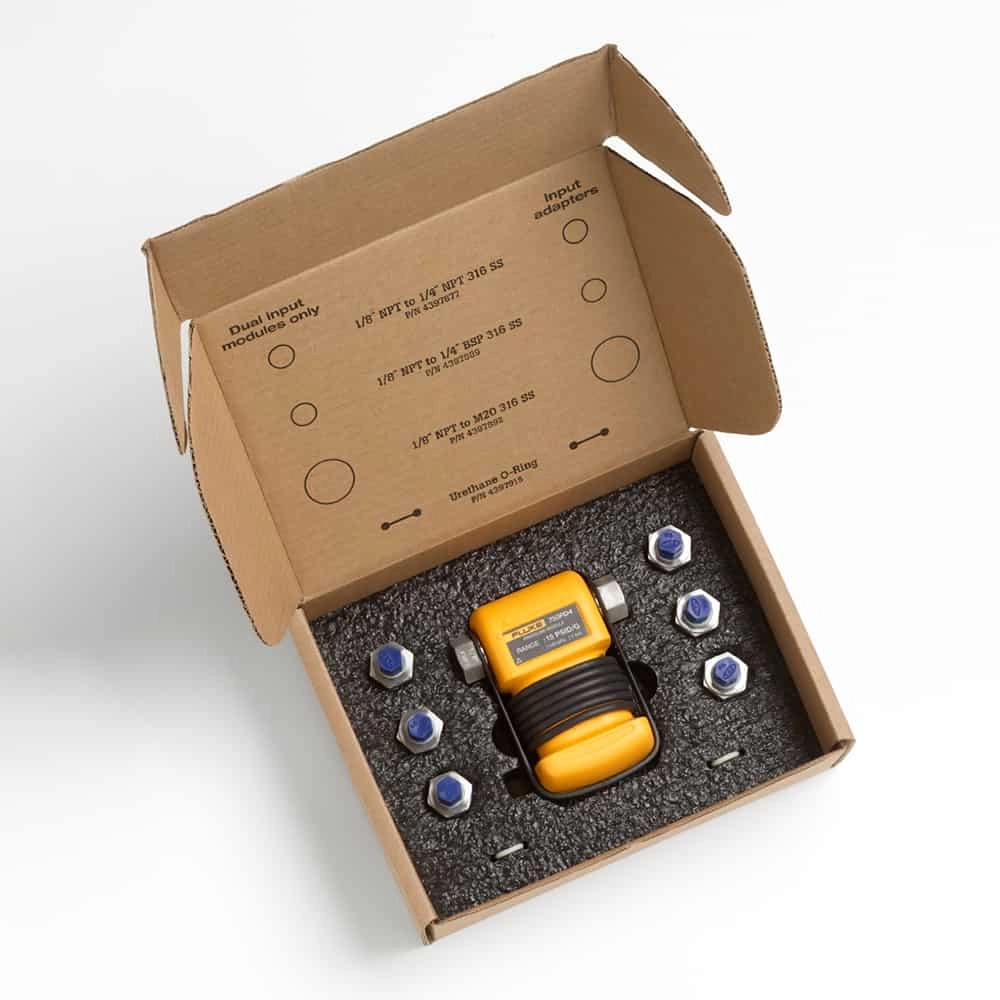

• Fluke 750RD5 Pressure Module

Downloads

Datasheet
