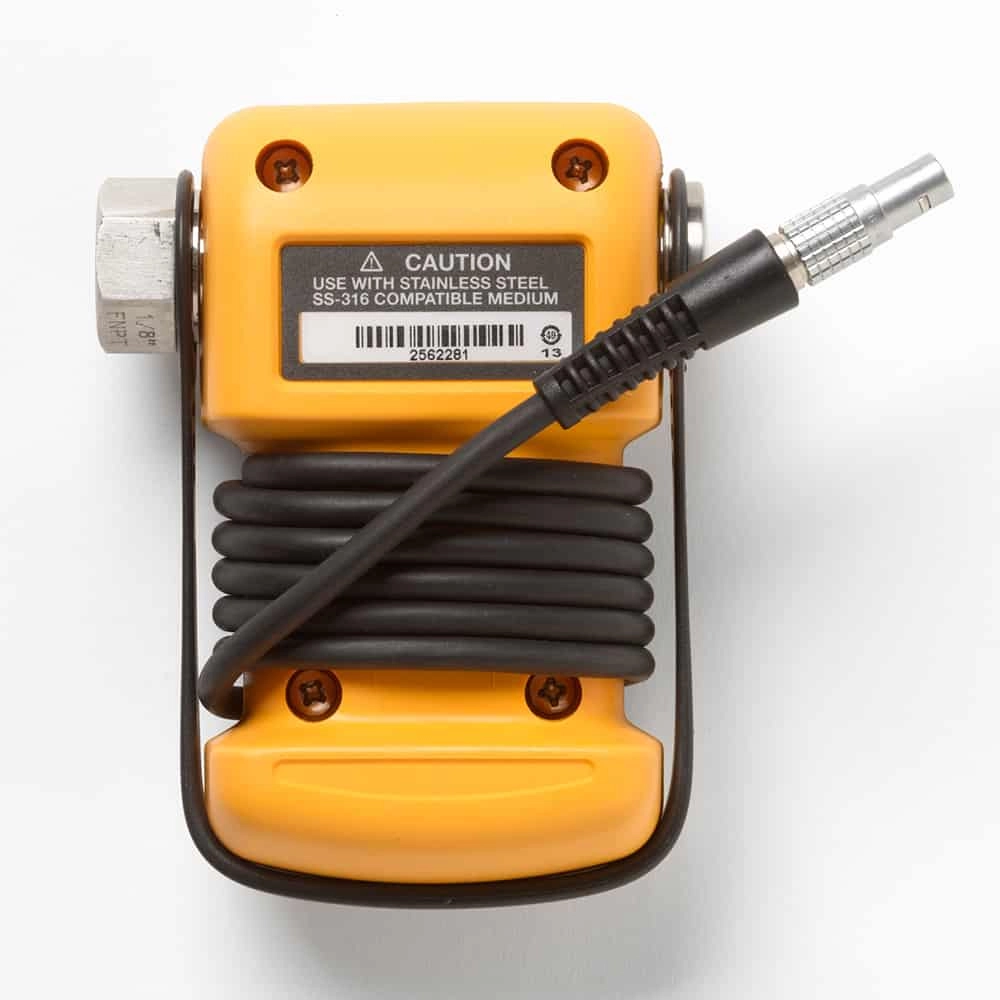

Fluke 750P22 Pressure Module, 0 to 1 PSI, 0 to 70 mBar

Features

• Gage pressure modules have one pressure fitting and measure the pressure with respect to atmospheric pressure.
• The 750P Series pressure modules are highly accurate with specifications that apply form 0¡C to 50¡C; a feature that sets them apart form other pressure calibrators.
• Each module has its own microprocessor; allowing it to run the measurement circuitry and to communicate digitally with a calibrator.
• The 750P Series Pressure Modules are the ideal pressure modules to enable gage; differential and absolute pressure measurement with Fluke 750 and 740 series DPCs and 725; 726 MPCs to measure pressure.
• Reduce errors by digitally sending measurements to calibrators
• Precision measurements with reference uncertainties up to 0.01%
• Covers workloads from 1 inH20 to 10,000 psi (2.5 mBar to 690 bar)

Technical Information

• Range0 to 1 psi (0 to 70 mBar)
• Burst Rating3x
• Hi Side Media316 SS
• Lo Side MediaDry Air
• Reference Uncertainty± 0.050%
• Total Uncertainty 1-year (15-35°C)± 0.1%
• Total Uncertainty 1-year± 0.15%
• Total Uncertainty 6-month (15-35°C)± 0.075%
• Total Uncertainty 6-month± 0.125%

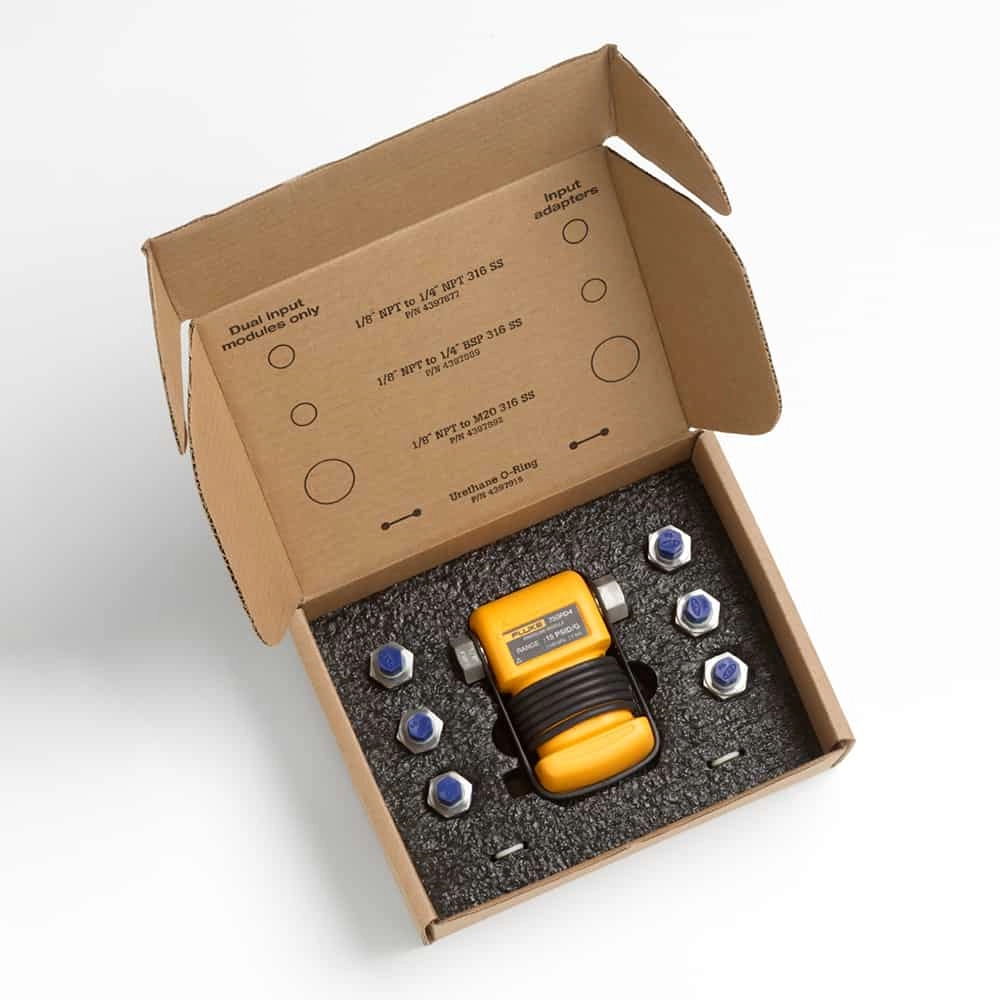

Items Included

• Fluke 750P01 Differential Pressure Module
• Adapters
• Manual
• Traceable Calibration Certificate

Downloads

Datasheet
