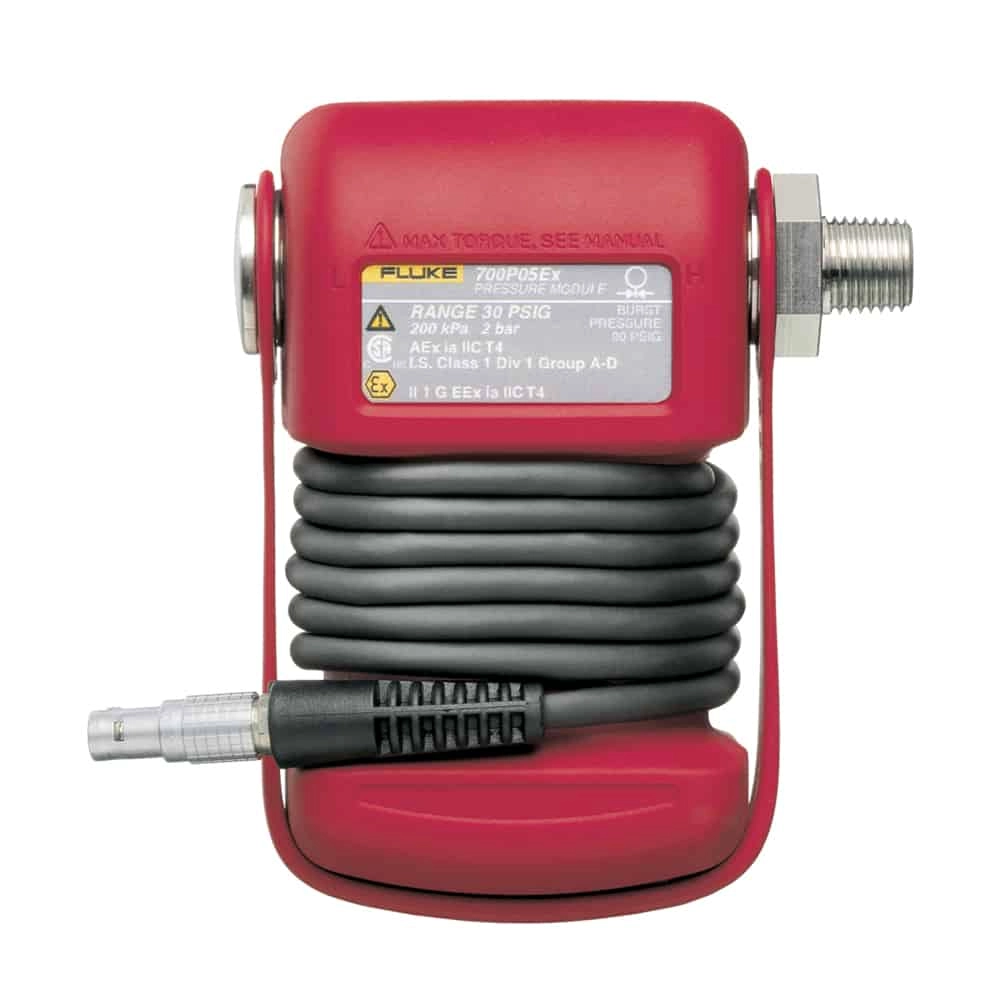

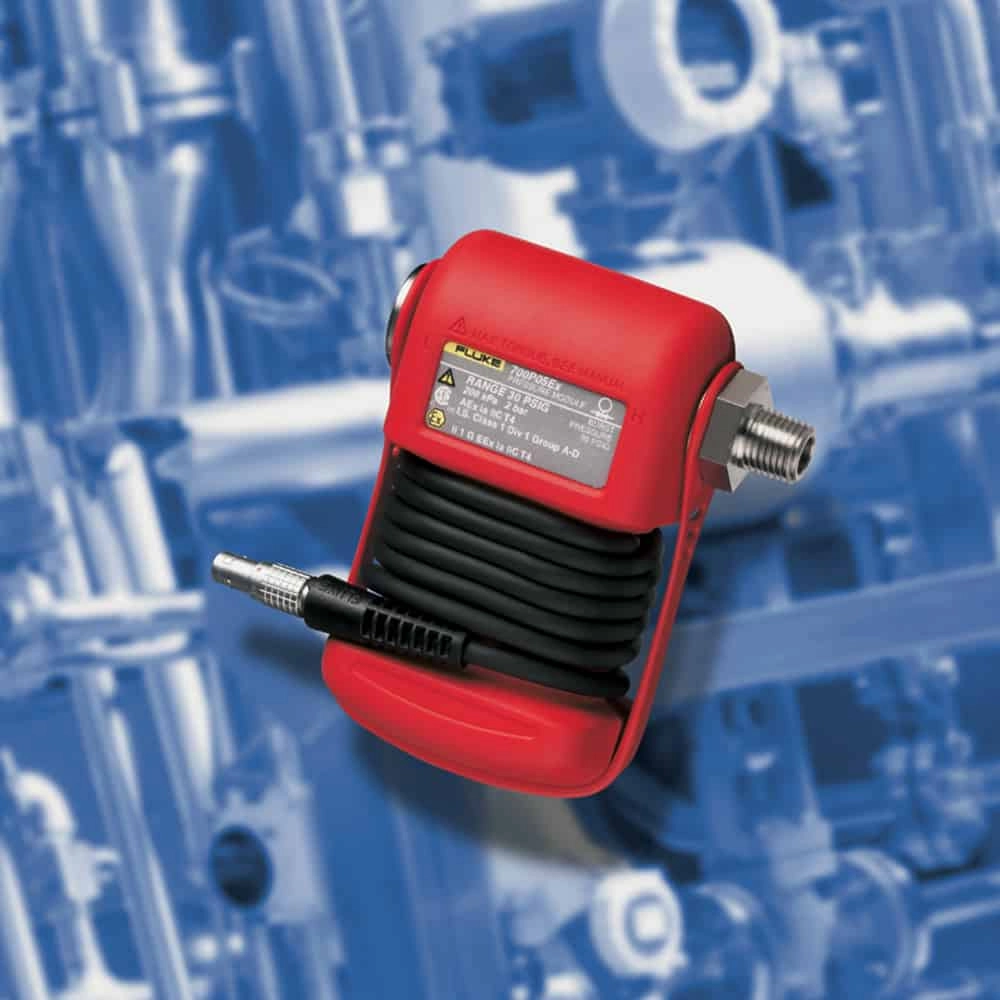

Fluke 750P06Ex Ex Pressure Module, Pressure Range 0 To 100 PSI, (0 - 7 Bar)

Features

• Digital communication eliminates errors due to poor connections and electrical interference
• The modules are inherently temperature compensated from 0 to 50¡C (32 to 122¡F)
• The modules are fully interchangeable because all measurements are completed in the pressure module itself and then communicated to the calibrator in digitized form
• Modules are calibrated independently of the calibrator, and can be used with any 718Ex or 725Ex calibrator
• Each module has its own serial number to maintain independent traceability
• Rugged construction, urethane over molding protects against shock if dropped and seals against dirt, dust, and moisture ingress
• Pressure connections are ⅛" NPT female, easily converted using adapter set

Technical Information

• Range0 to 100 PSI
• Accuracy±0.045%
• Product Dimensions4 x 4.5 x 2" (101 x 114 x 50mm)
• Weight2 lbs

Items Included

• Pressure Module Traceable Calibration Certificate Adapters Manual
