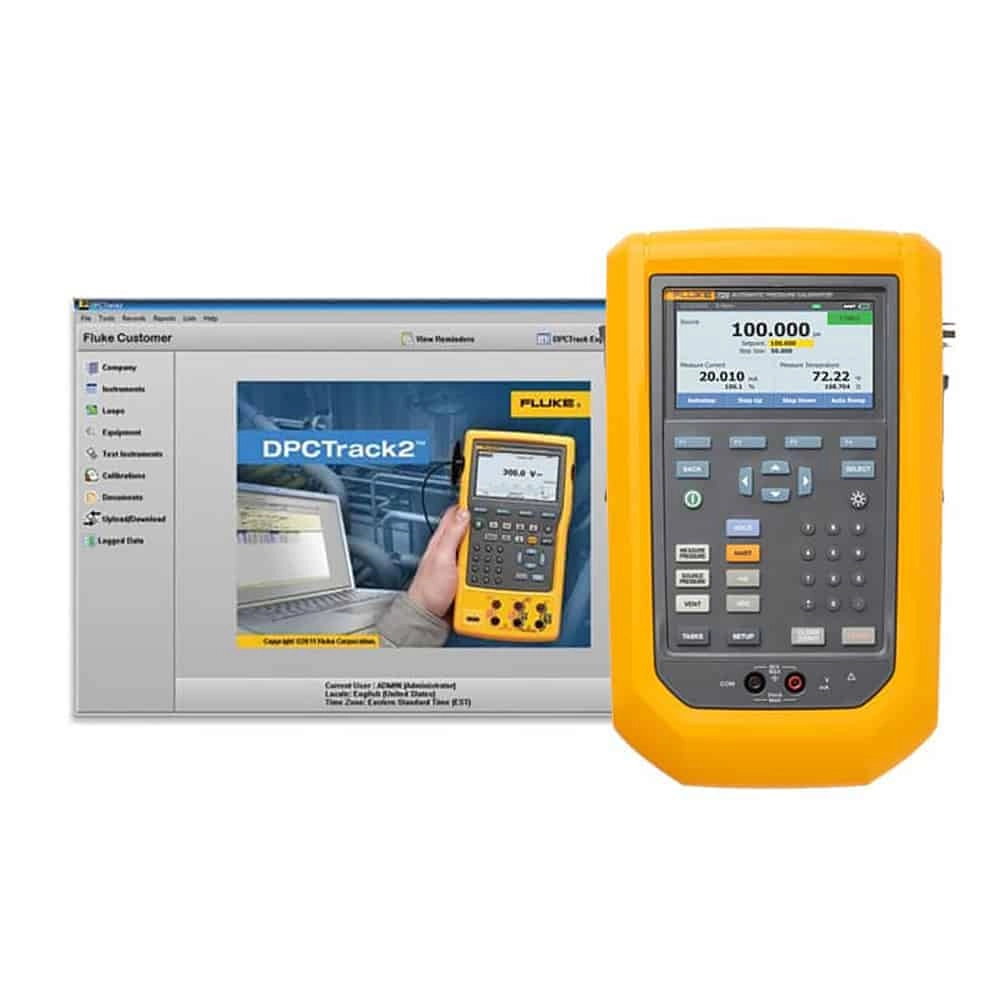

Fluke 729/750SW BU Automatic Pressure Calibrator And DPC/Track 2 Software Bundle

Features

• Automatic pressure generation and regulation to 300 psi
• Easily document the process using onboard test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 to 20 mA signals
• Build instrumentation maintenance routes and load to Fluke 729 Automatic Pressure Calibrators

Technical Information

• 1-year Specification 0.02 % of full scale
• Control Specification 0.005 % full scale minimum
• Temperature Compensation 15°C to 35°C (59°F to 95°F) to rated accuracy
• Ranges 0 mA to 24 mA / 0 V dc to 30 V dc
• Resolution 1 µA / 1 mV
• Accuracy 0.01 % ±2 LSD all ranges (at 23°C ±5°C)
• Loop Compliance Voltage 24 V dc @ 20 mA

Items Included

• Fluke 729 Pressure Calibrator DPCTrack2 Software Test Leads Hook Clips Alligator Clips Test Probes Magnetic Hanger Kit Carrying Strap Adapter Quick Start Guide Traceable Certificate of Calibration Safety Sheet Power Supply Hose kit with fittings Rechargeable Battery (installed) Soft Case

Downloads

DatasheetDatasheet
