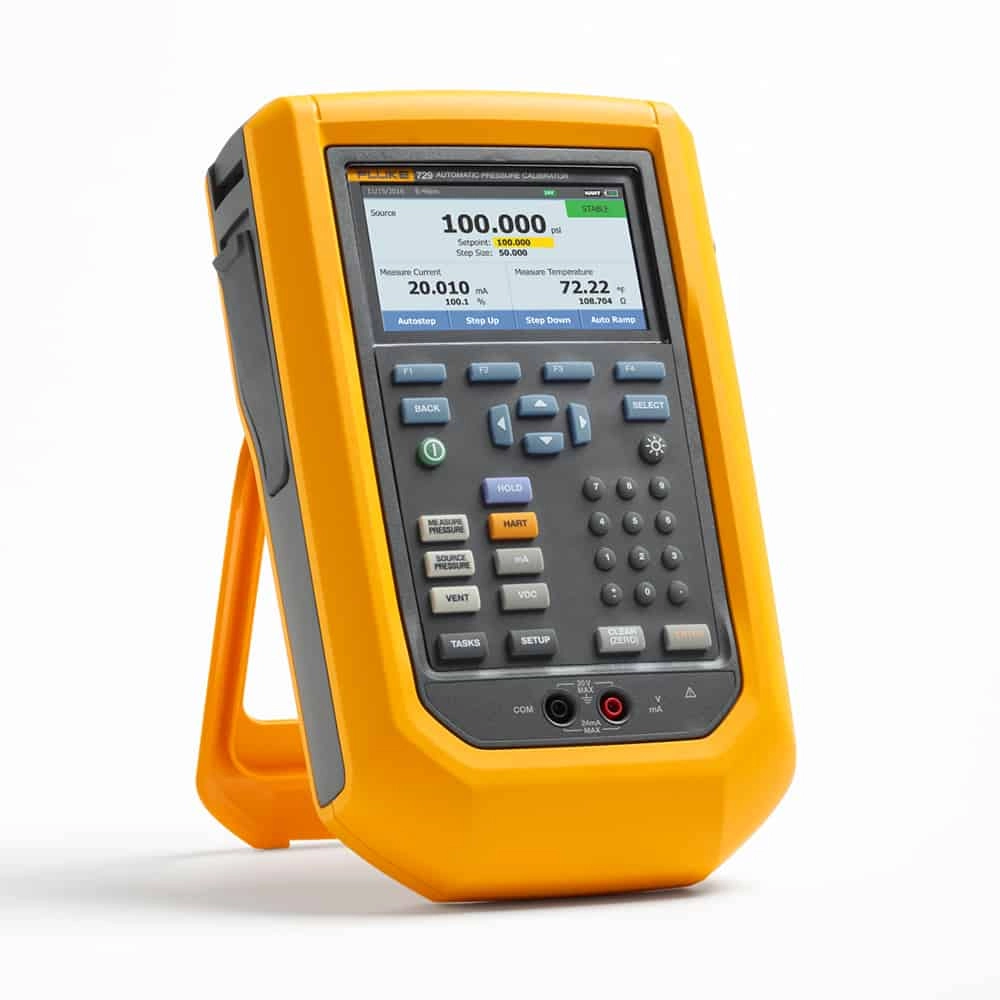

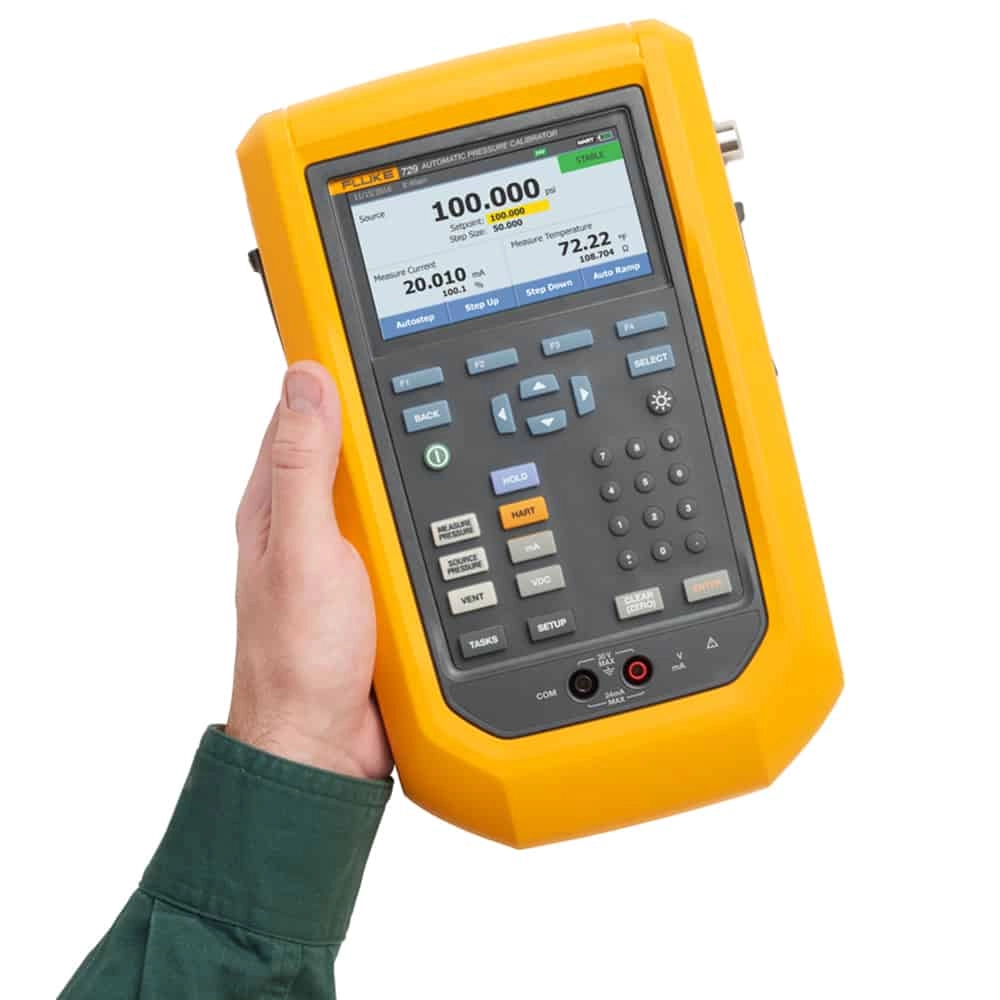

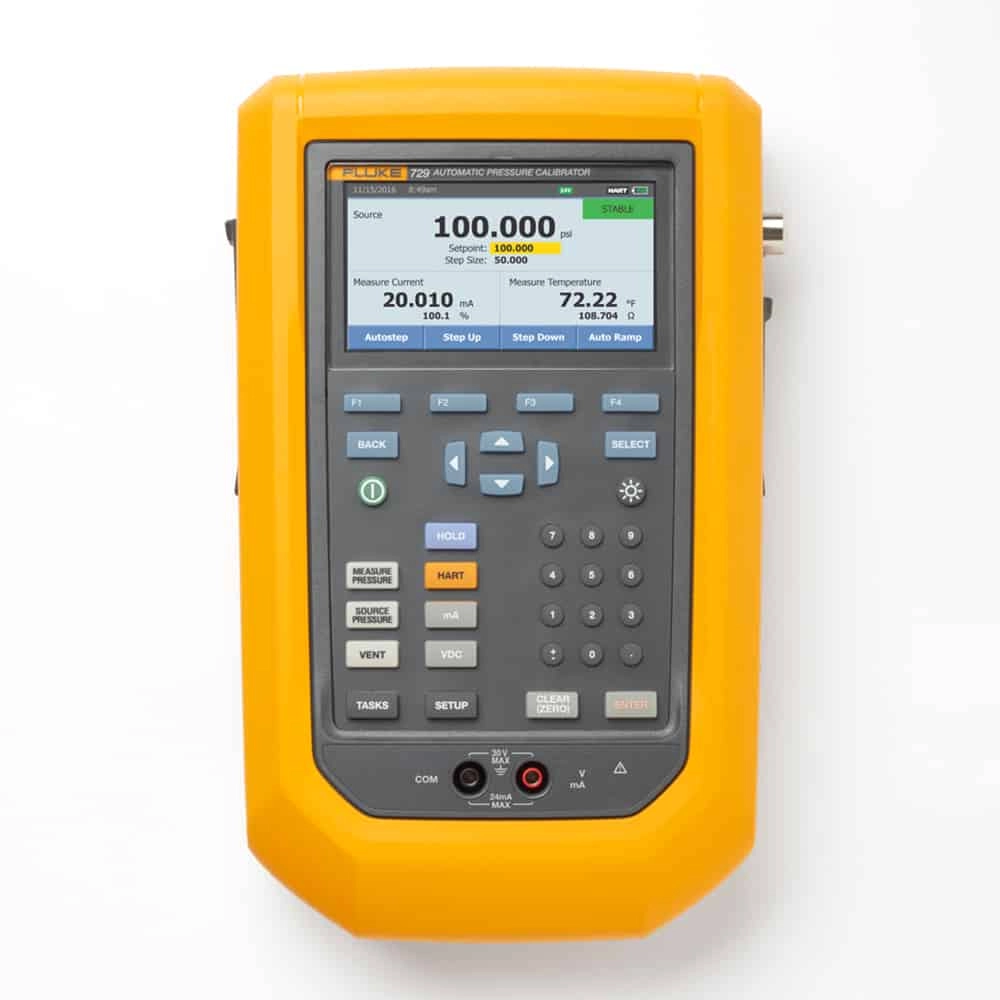

Fluke 729 150G FC Pressure Calibrator, 150 PSI, 10 Bar With Fluke Connect

Features

• Automatic pressure generation and regulation to 300 psi
• Easily document the process using onboard test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 to 20 mA signals
• Troubleshoot and calibrate HART smart transmitters

Technical Information

• PSI range, resolution-12.000 to 150.000 psi
• Bar range, resolution-0.8273 to 10.3421 bar
• kPa range, resolution-82.73 to 1034.21 kPa
• Current Measurement0 to 24mA
• Voltage Measurement0 to 30V
• Accuracy0.01% ±2 LSD all ranges (at 23 °C ±5 °C)
• Loop compliance voltage24 V dc @ 20 mA
• Temperature measurement only/100 Ω Pt(385) RTD-50 °C to 150 °C (-58 °F to 302 °F)
• Drive capability1200 Ω without HART resistor, 950 Ω with internal HART resistor
• Size (HxWxL)7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)

Items Included

• Calibrator with Wireless Communication
• Soft Case
• Stackable Test Leads
• AC280 Hook Clips
• Alligator Clips
• Test Probes
• Magnetic Hanger Kit
• Carrying Strap
• Wireless Adapter
• Quick Start Guide
• Safety Sheet
• Power Supply
• Rechargeable Battery (installed)
• Hose Kit with PUsh Fit Adapters
• Hanging Clip
• USB Cable
• 1/8 in FNPT to 1/4 in FNPT Adapter
• 1/8 in FNPT to F-M20 Adapter
• 1/8 in FNPT to 1/4 in FBSP Adapter
• PTFE Tape2x
• Sintered Filters
• Water Trap Drain
• Valve Tuning Hoses

Downloads

DatasheetDatasheet
