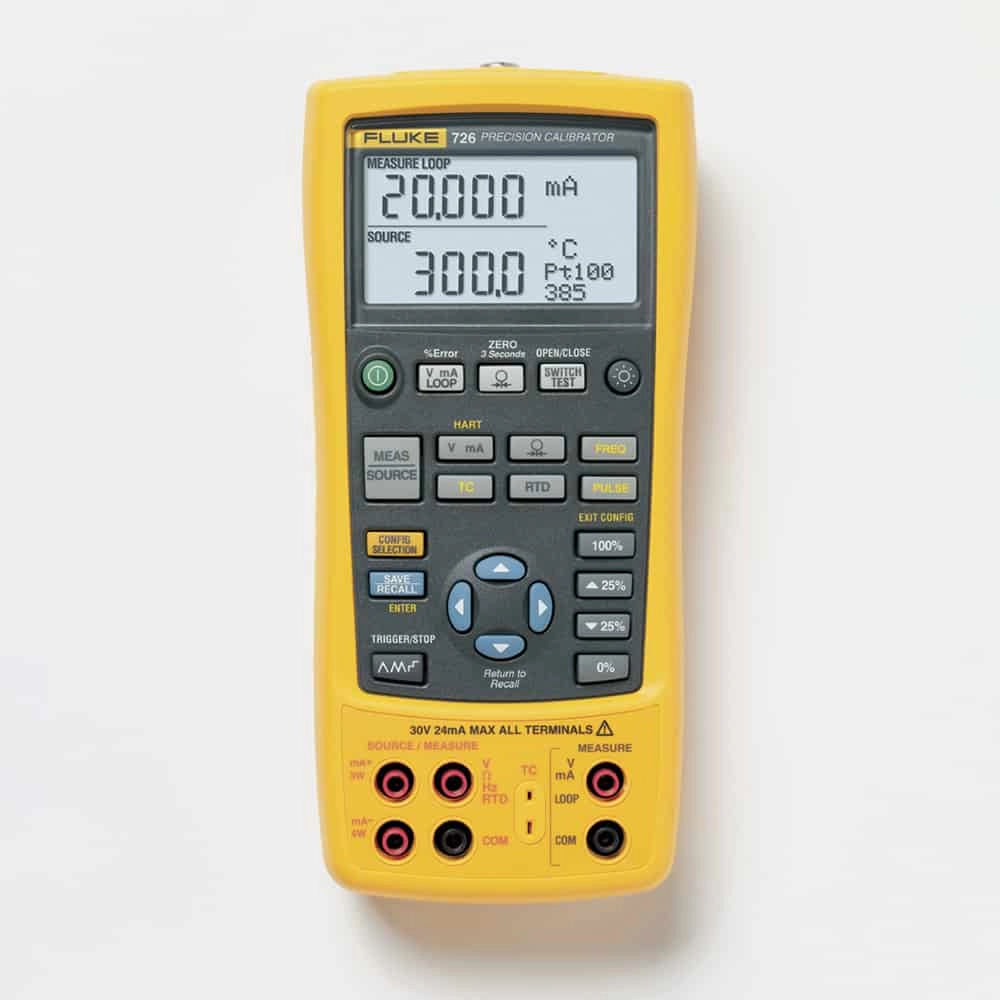

Fluke 726 Precision Multifunction Process Calibrator (APAC & EMEA), -10mV to 30V, 24mA

Features

• More precise measurement and calibration source performance; accuracies of 0.01%.
• Two separate channels; measure; source and view process signals simultaneously
• Measure volts; mA; RTDs; thermocouples; frequency; and resistance to test sensors and transmitters
• Source/simulate volts; mA; thermocouples; RTDs; frequency; and pressure to calibrate transmitters
• Capture the set, reset, and deadband of a pressure switch with the integrated switch test
• Calculate the transmitter error % to interpret calibration results without the use of a calculator
• Perform fast linearity tests with the auto-step and auto-ramp features
• Power a transmitter during test using 24 V loop supply and simultaneous mA measurement

Technical Information

• Voltage Measurement-10mV to 30V
• Current Measurement24mA
• Resistance0 to 4000Ω
• Frequency1 to 15kHz
• RampsSlow ramp, Fast ramp, 25% step-ramp
• Loop Power Voltage24V
• Loop Power Current22mA
• Steps25% of range, 100% of range
• Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)

Items Included

• One set of AC72 alligator clips
• One set of stackable test leads
• One set of TL75 testleads
• User manuals
• NIST- traceable calibration report and data
