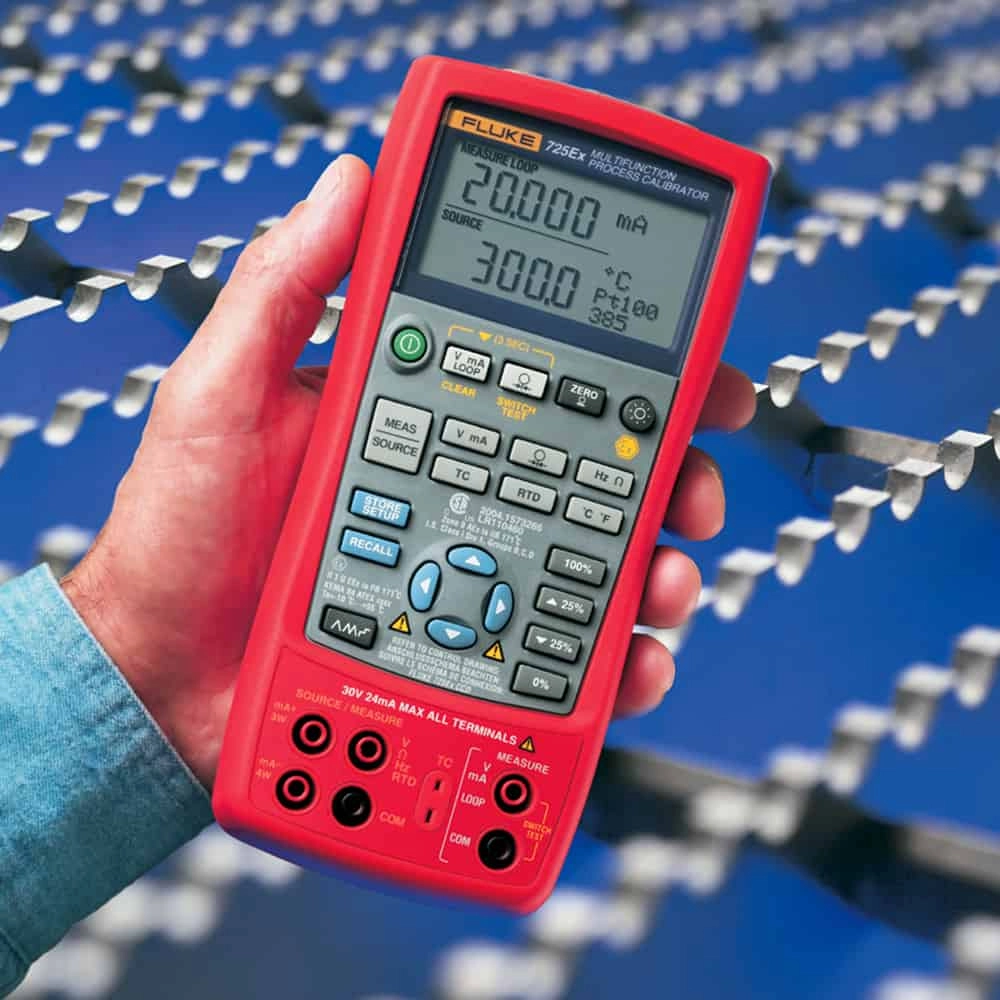

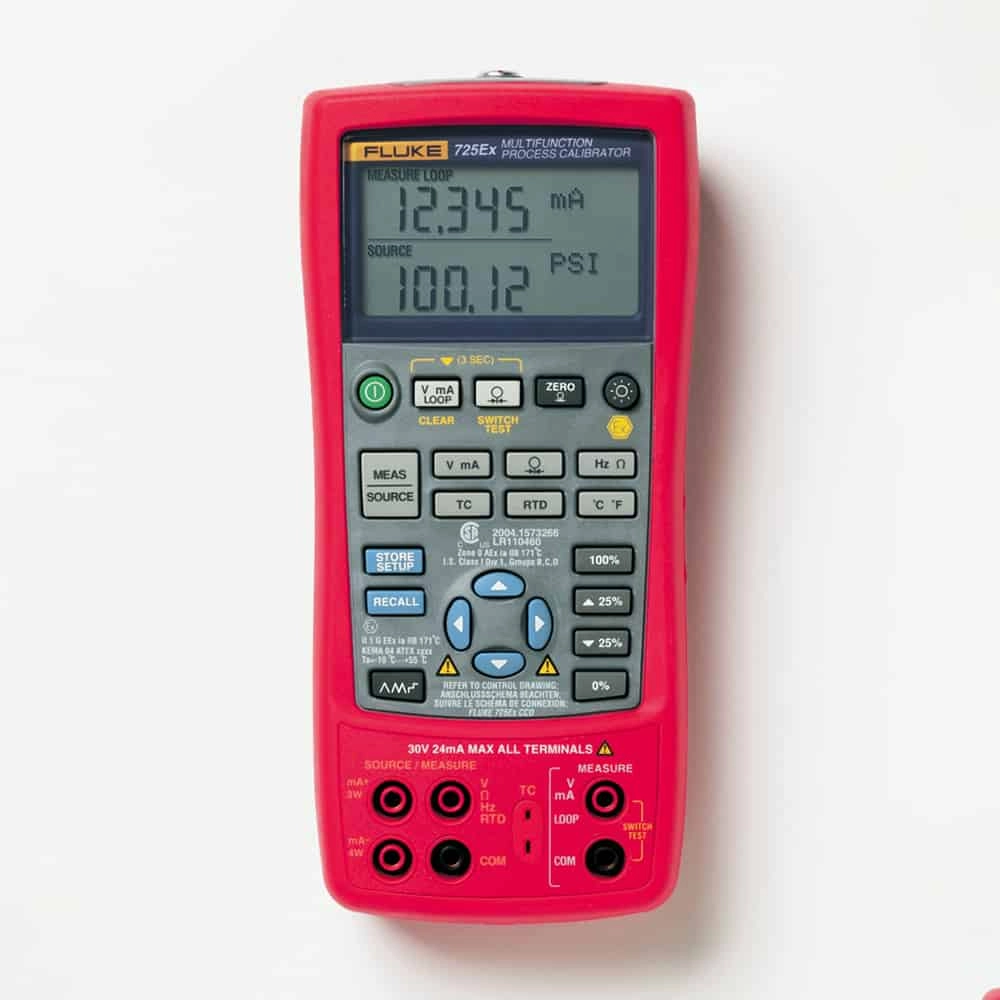

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator, 30V, 24mA

Features

• ATEX II 1 G Ex ia IIB 171°C KEMA 04ATEX 1303X
• I.S. Class I; Division 1 Groups B-D; 171°C compliance
• Measure Volts DC; mA; RTDs; thermocouples; frequency and ohms
• Source or simulate Volts dc; mA; RTDs; thermocouples; frequency and ohms
• Pressure switch test function to capture set, reset, and deadband values
• Small, streamlined shape, and rugged, reliable design that stands up to field use
• Simple, push-button user interface for easy operation

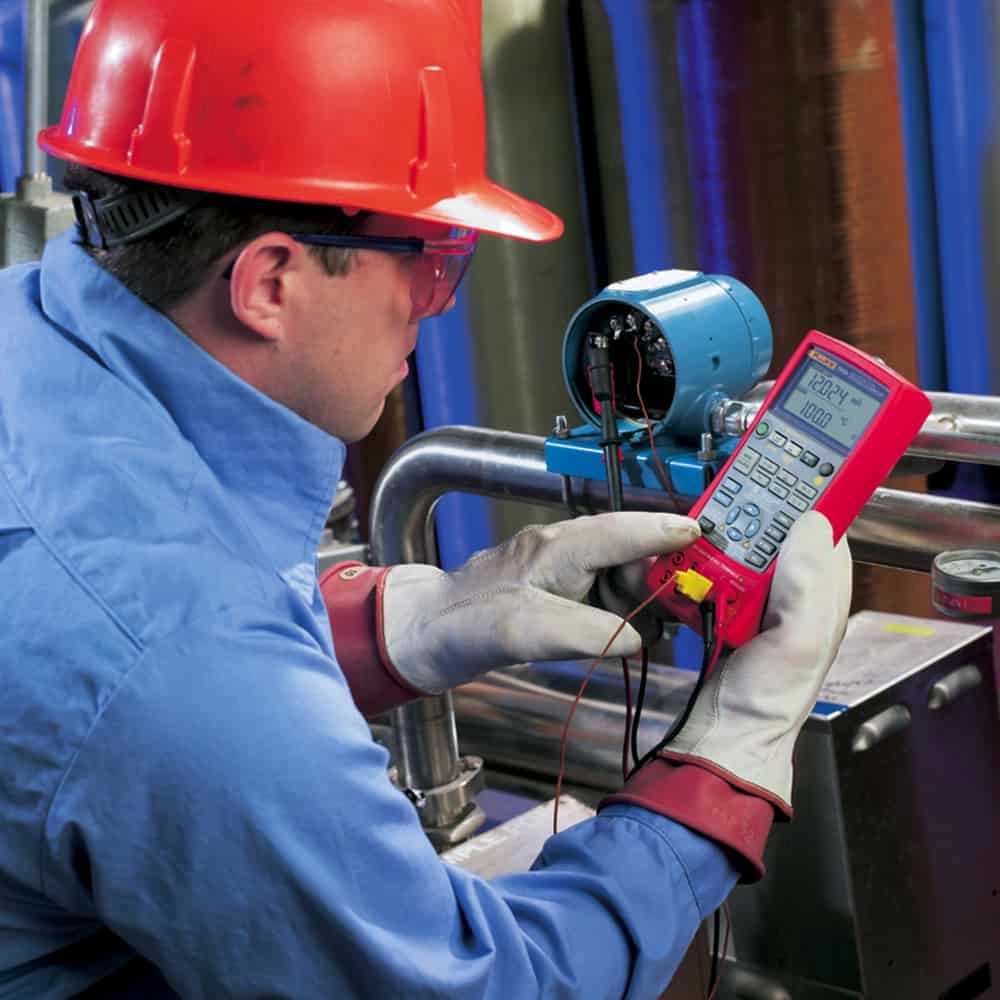

• Provides two-channel simultaneous source and measure capability to calibrate transmitters
• Powers transmitters during test using loop supply

Technical Information

• Voltage Measurement-10mV to 30V
• Current Measurement24mA
• Resistance0 to 3200Ω
• Frequency1 to 10kHz
• RampsSlow ramp, Fast ramp, 25% step-ramp
• Loop Power Voltage12V
• Loop Power Current22mA
• Steps25% of range, 100% of range
• Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)

Items Included

• 1 – Test Lead Set (TL75)
• 1 – Test Clip Set (AC72)
• 2 – Stackable Test Leads
• 1 – Protective Red Holster
• 1 – 725Ex CCD Control Drawing
• 1 – 5/64 in. Short Arm Hex Key
• 4 – AA Batteries
• 1 – Statement of Quality Assurance Practices
• 1 – User Manual
