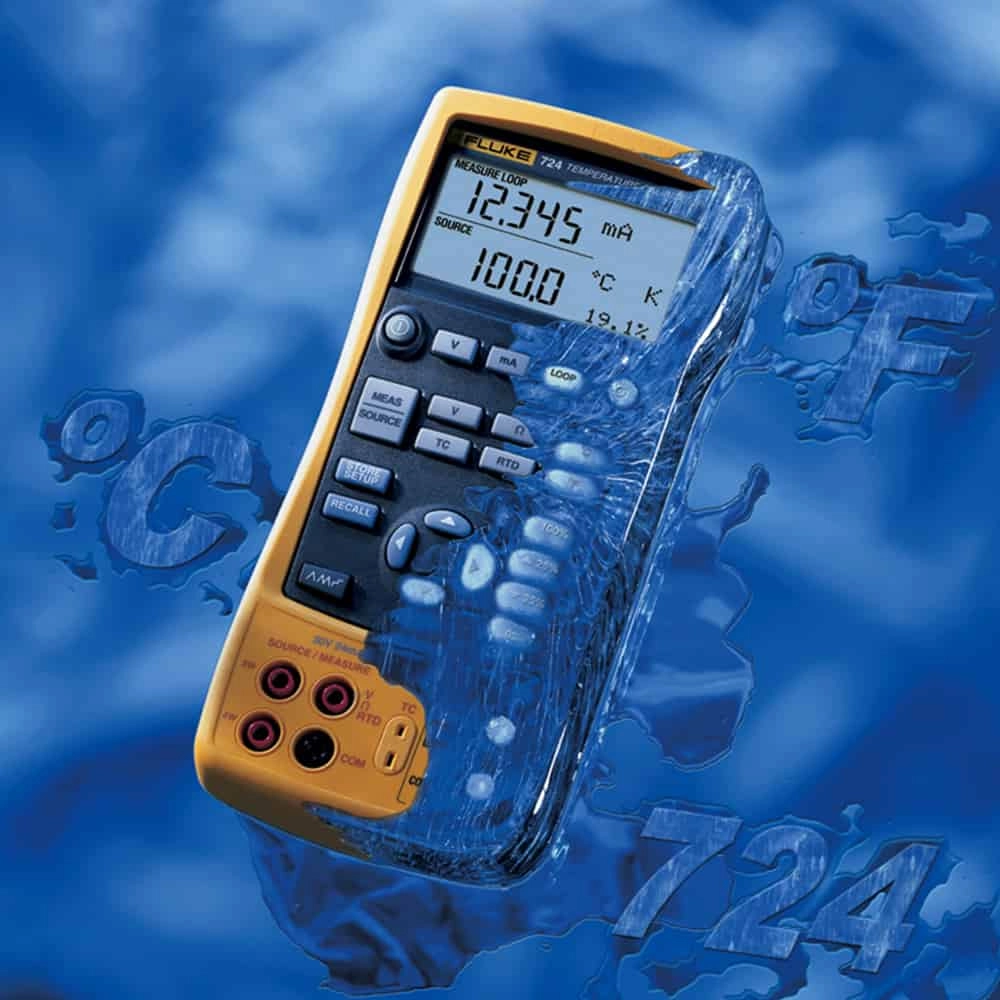

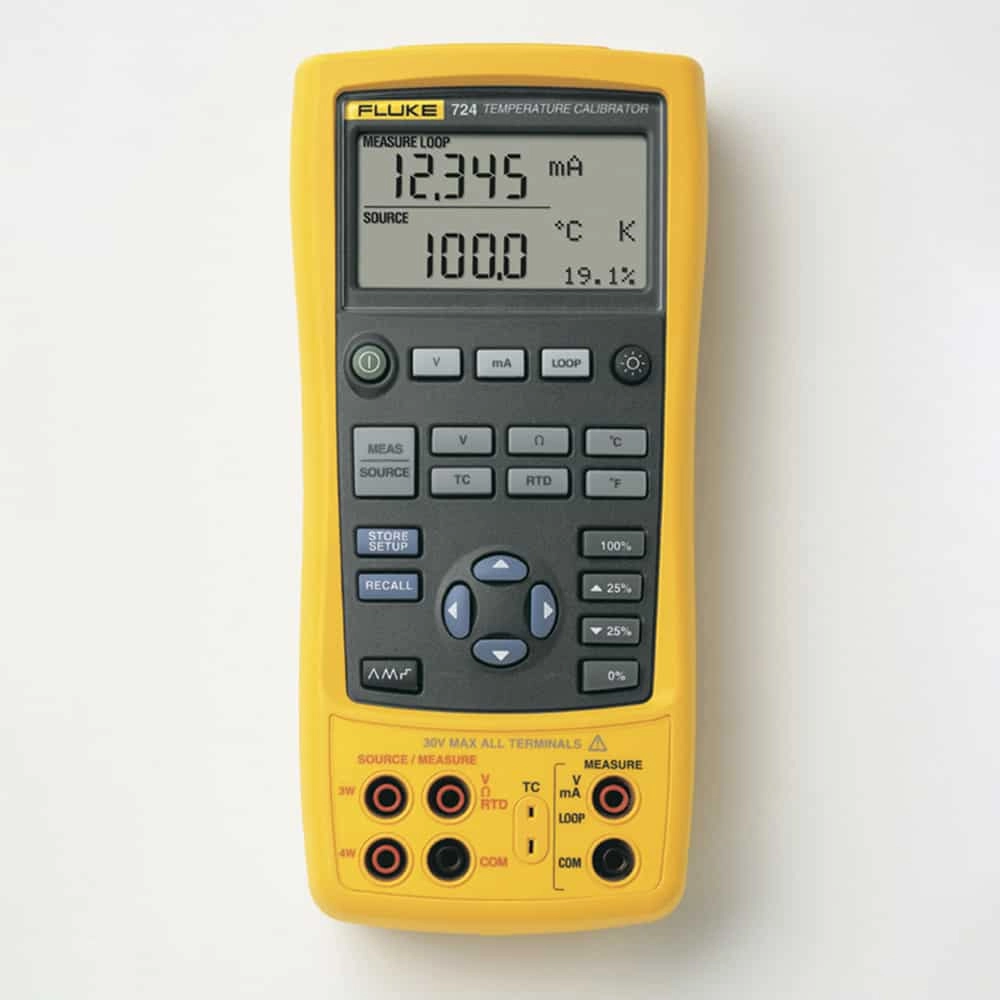

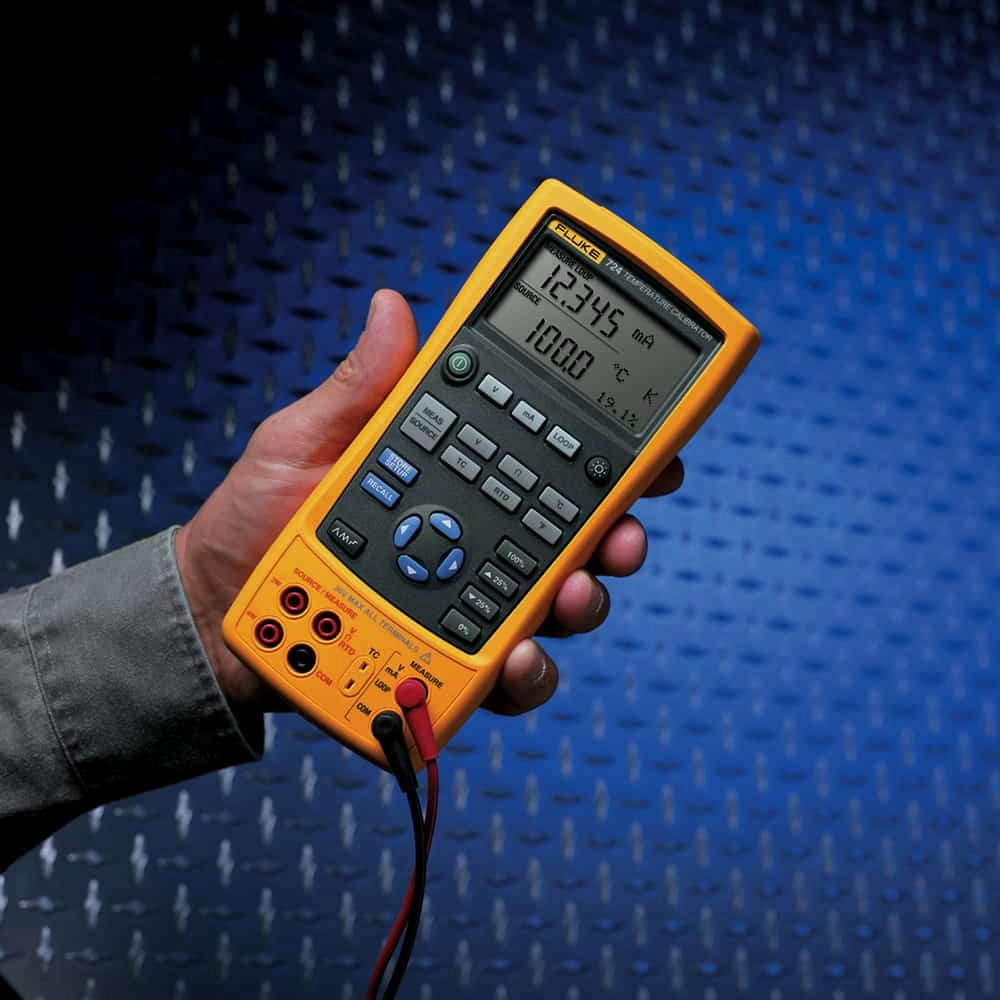

Fluke 724 Temperature Calibrator, 10 Thermocouple and 7 RTD Types

Features

• A split-screen display. The upper display allows you to measure volts; current. The lower display allows you to measure and source volts; resistance temperature detectors; thermocouples; and ohms. Backlight lets you work in poor light
• A thermocouple (TC) input/output terminal and internal isothermal block with automatic reference-junction temperature compensation.
• Store frequently-used 8 test setups for later use.
• Manual stepping and execute remote tests with auto step and auto ramp

Technical Information

• Voltage Measurement30.000 V DC
• Current Measurement24.000 mA DC
• Resistance0.0 to 400.0 Ω
• AccuracyNI-120
• Ramp functionsSource functions
• RampsSlow ramp, Fast ramp, 25% step-ramp
• Loop Power Voltage24V
• Loop Power Current22mA
• Operating temperature-10°C to 55°C
• Storage temperature-20°C to 71°C
• Humidity (without condensation)90%
• Size96 x 200 x 47 mm

Items Included

• AC70A Test Clips
• One pair of stackable test leads
• TL75 Test Leads
• CE and CSA Markings
• Printed User Manual
• Users manuals on CD-ROM
• NIST- traceable calibration report and data

Downloads

DatasheetUser Manual
