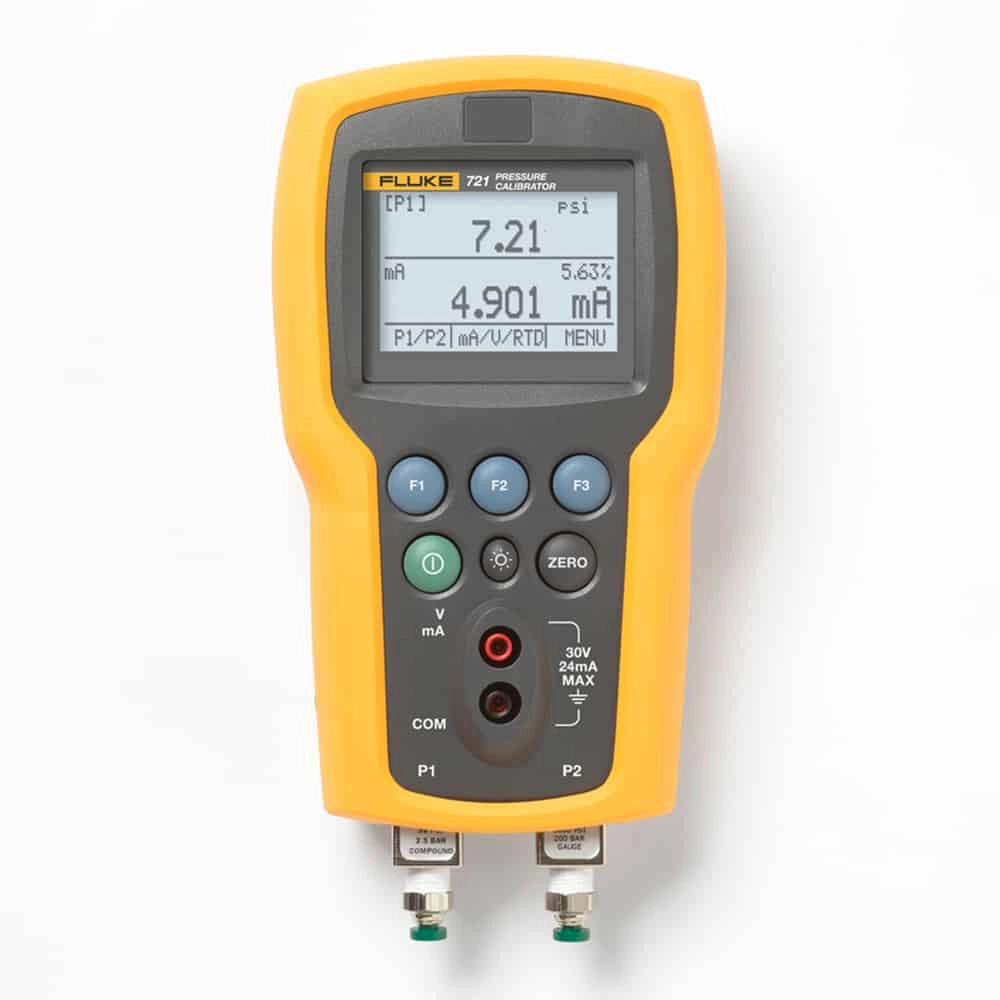

Fluke 721-3650 Dual Sensor Pressure Calibrator, -14 to 36 PSI (Low), 0 to 5000 PSI (High)

Features

• Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 16 psi (low) 5;000 psi (high).
• Dual isolated pressure sensors
• Ideal for gas flow calibration (custody transfer) applications
• Two isolated; stainless steel; pressure sensors with 0.025 % accuracy
• Measures up to 30 V DC, checks 24 V loop power supplies
• Extends pressure measurement range with connection to external 750P
• Provides a large backlit graphic display that can show up to three inputs simultaneously
• Stores five instrument setups for recall

Technical Information

• Resolution0.001 PSI (Low), 0.01 PSI (High)
• Accuracy0.025% of full scale
• Instrument setup recallLast used on power-up
• Operating temperature-10°C to +50°C
• Storage temperature (without batteries)-20°C to +60°C
• Altitude2,000 m
• Ingress protectionIP-40
• Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)

Items Included

• Range: -14 to 36 PSI (Low), 0 to 5000 PSI (High)

Downloads

DatasheetDatasheet
