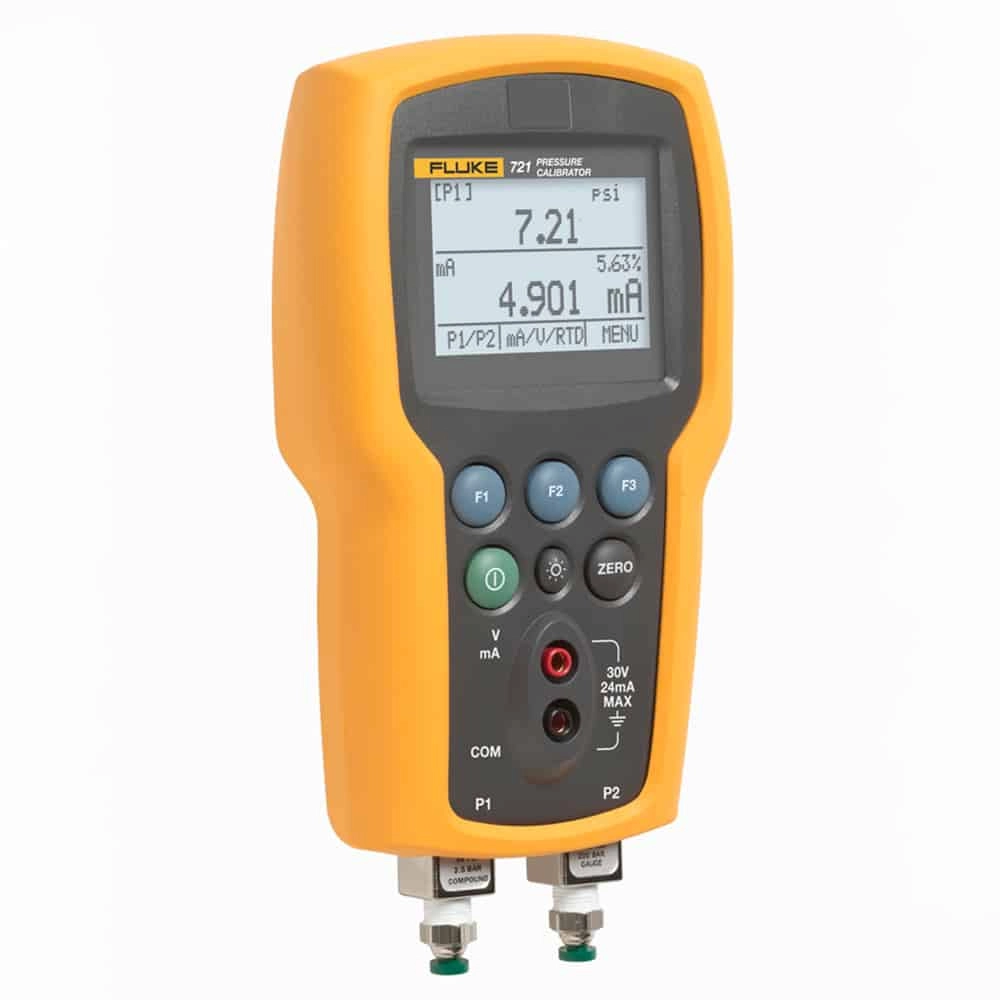

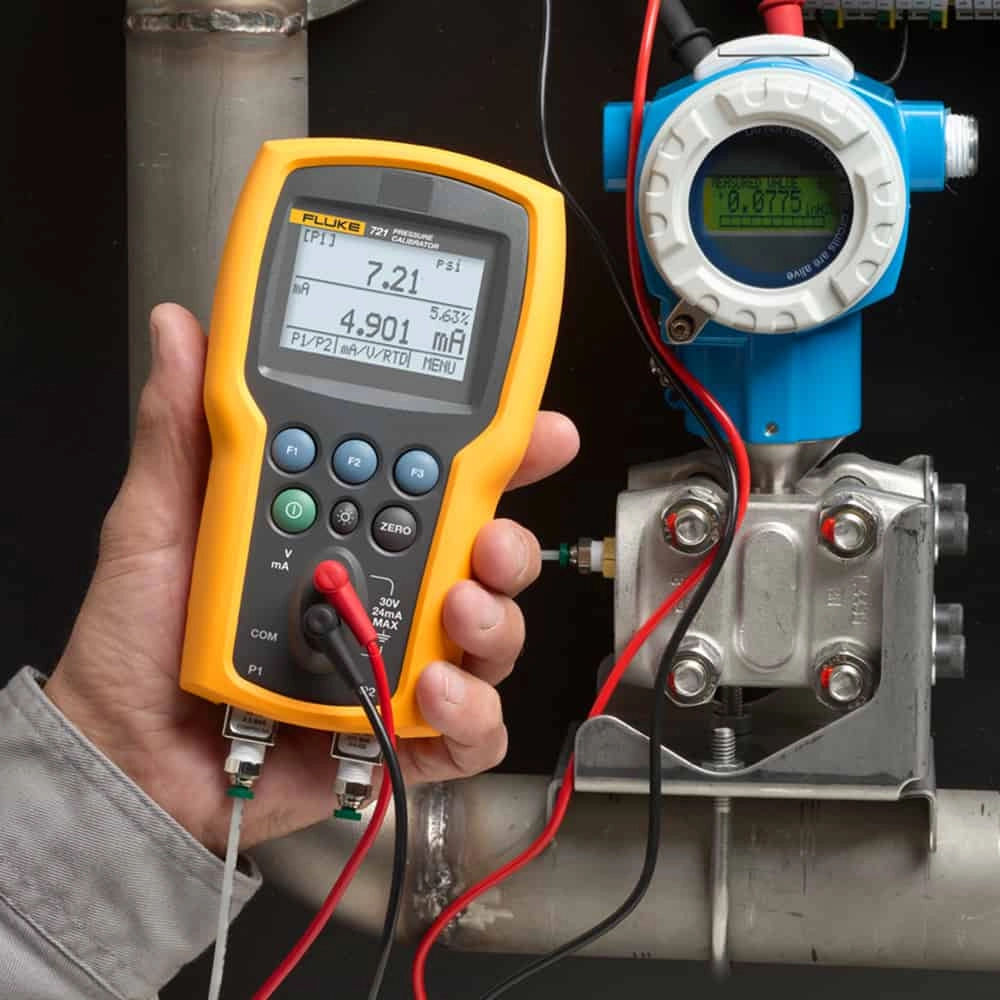

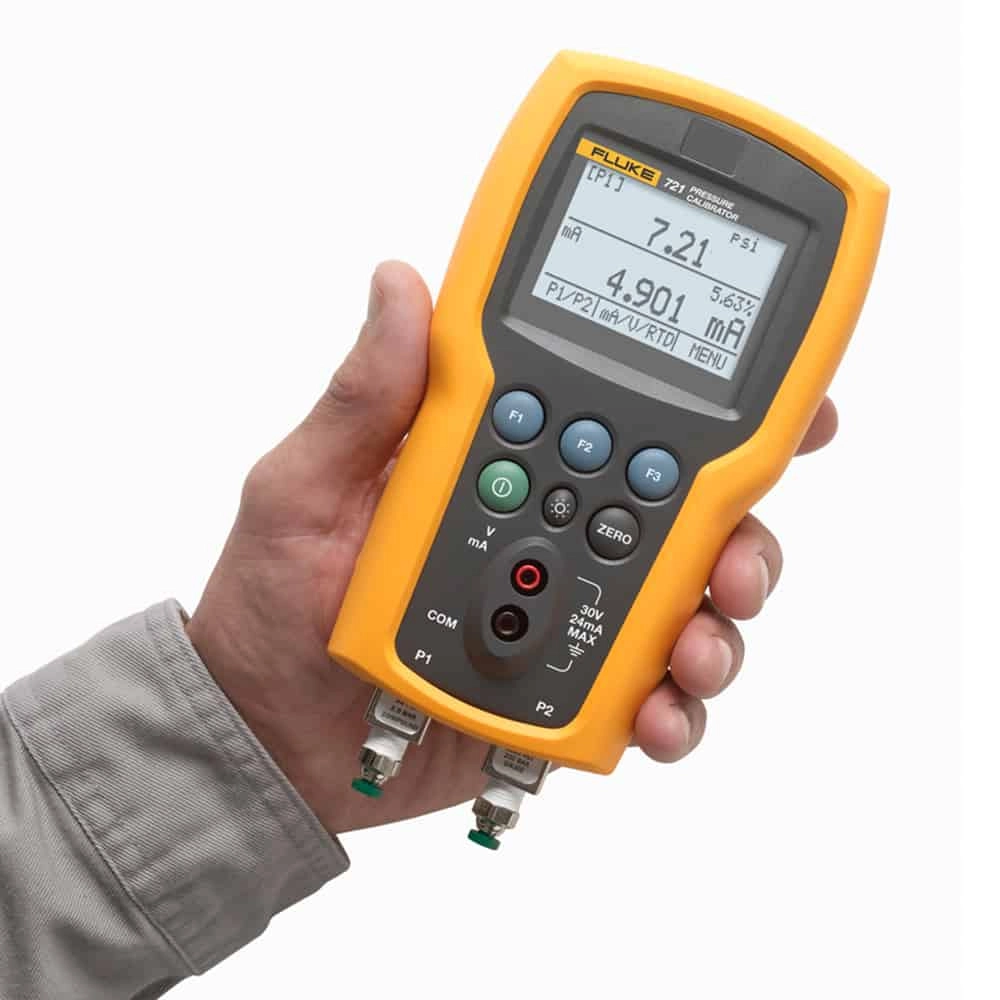

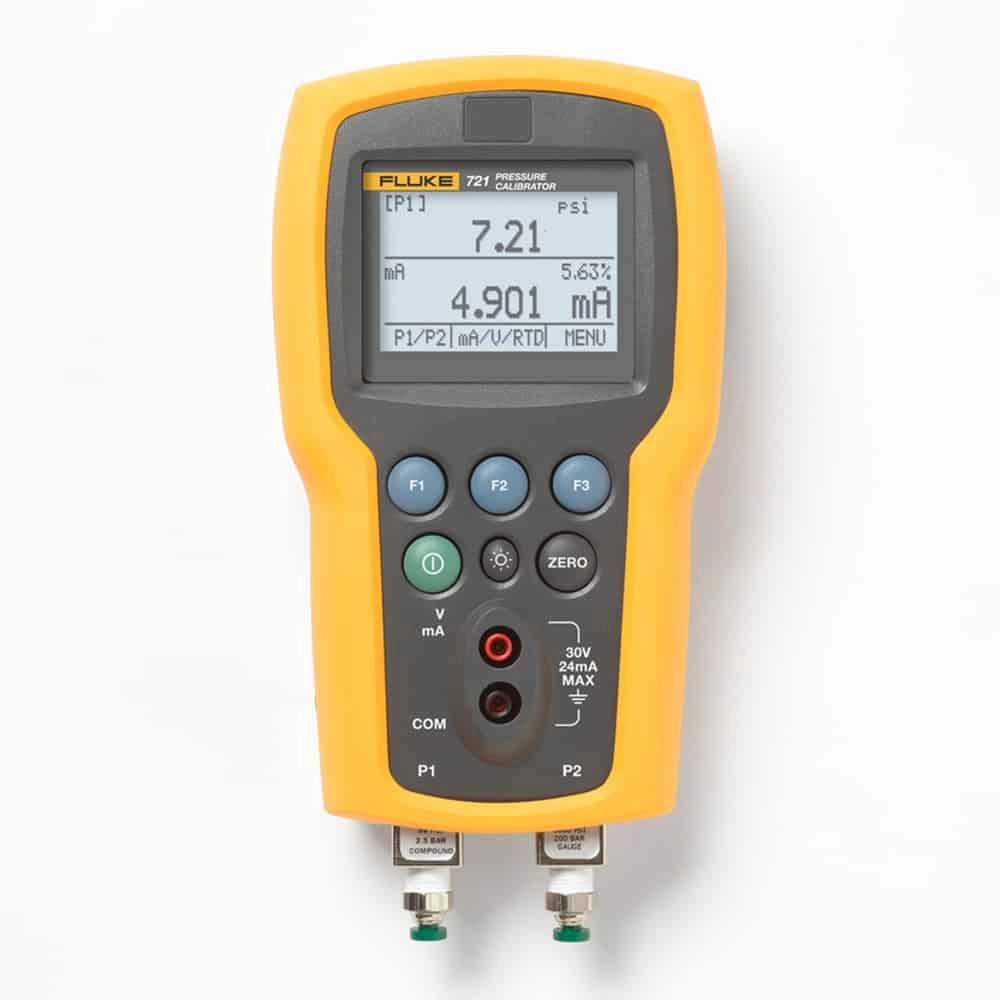

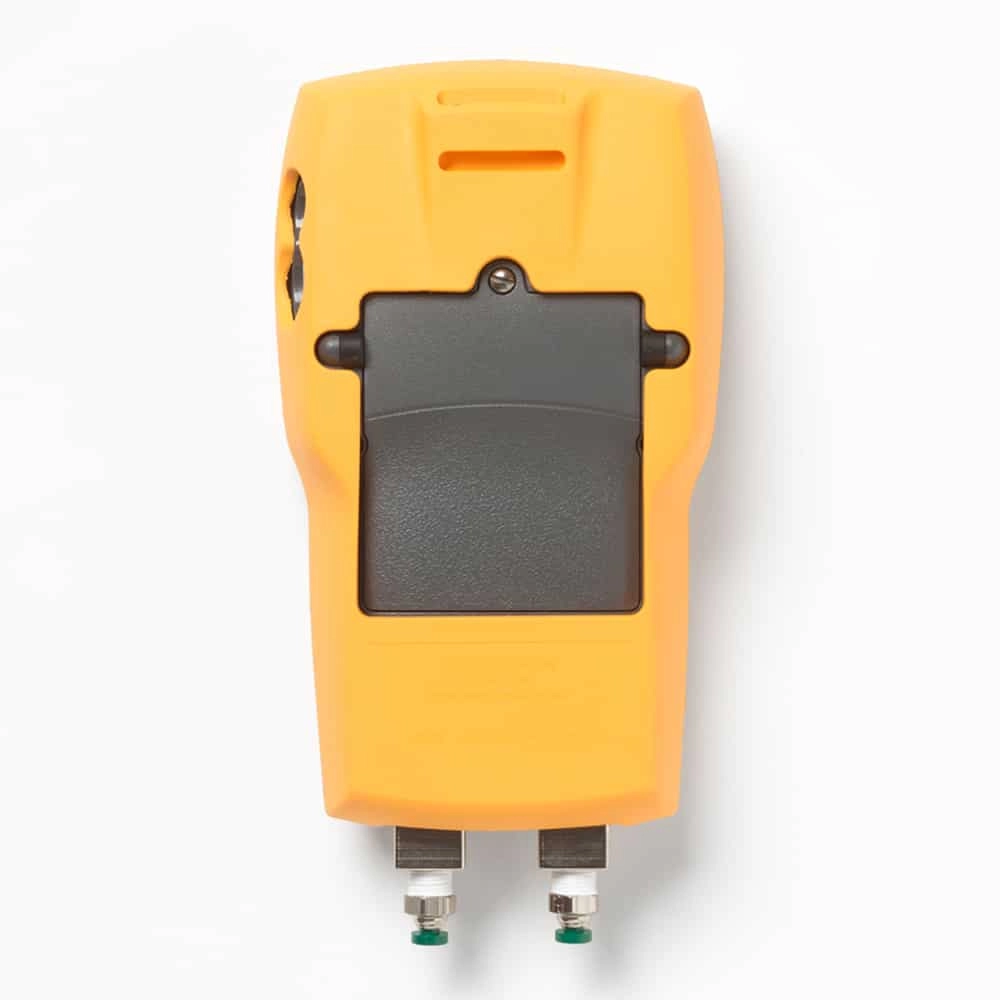

Fluke 721-1630 Dual Sensor Pressure Calibrator, 16/36 PSIG Low Pressure Sensor

Features

• Dual Sensor Pressure Calibrator; 16 PSIG; 3000 PSIG
• Ideal for gas flow calibration (custody transfer) applications
• Two isolated; stainless steel; pressure sensors with 0.025 % accuracy
• Pt100 RTD input for temperature measurement; (probe optional)
• Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
• External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
• Temperature-compensation ensures accuracy in field applications
• Measure 4-20 mA signals
• Internal 24 V Loop Power Supply can power a transmitter under test

Technical Information

• Low Pressure Sensor-14 psi to +16 psi, -0.97 bar to 1.1 bar
• High pressure sensor0 psi to +3000 psi, 0.00 bar to 200 bar
• Current0 to 24 mA
• Voltage0 to 30 VDC
• Temperature measure-40 °C to 150 °C, (-40 °F to 302 °F) (RTD/Ohms)
• Instrument setup recallLast used on power-up
• Operating temperature-10°C to +50°C
• Storage temperature (without batteries)-20°C to +60°C
• Altitude2,000 m
• Ingress protectionIP-40
• Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)

Items Included

• Dual Sensor Pressure Calibrator
• 16 PSIG
• 3000 PSIG Gentle carrying case Four (4) AA batteries Manual Trackable calibration certificates Cable testing

Downloads

DatasheetDatasheet
