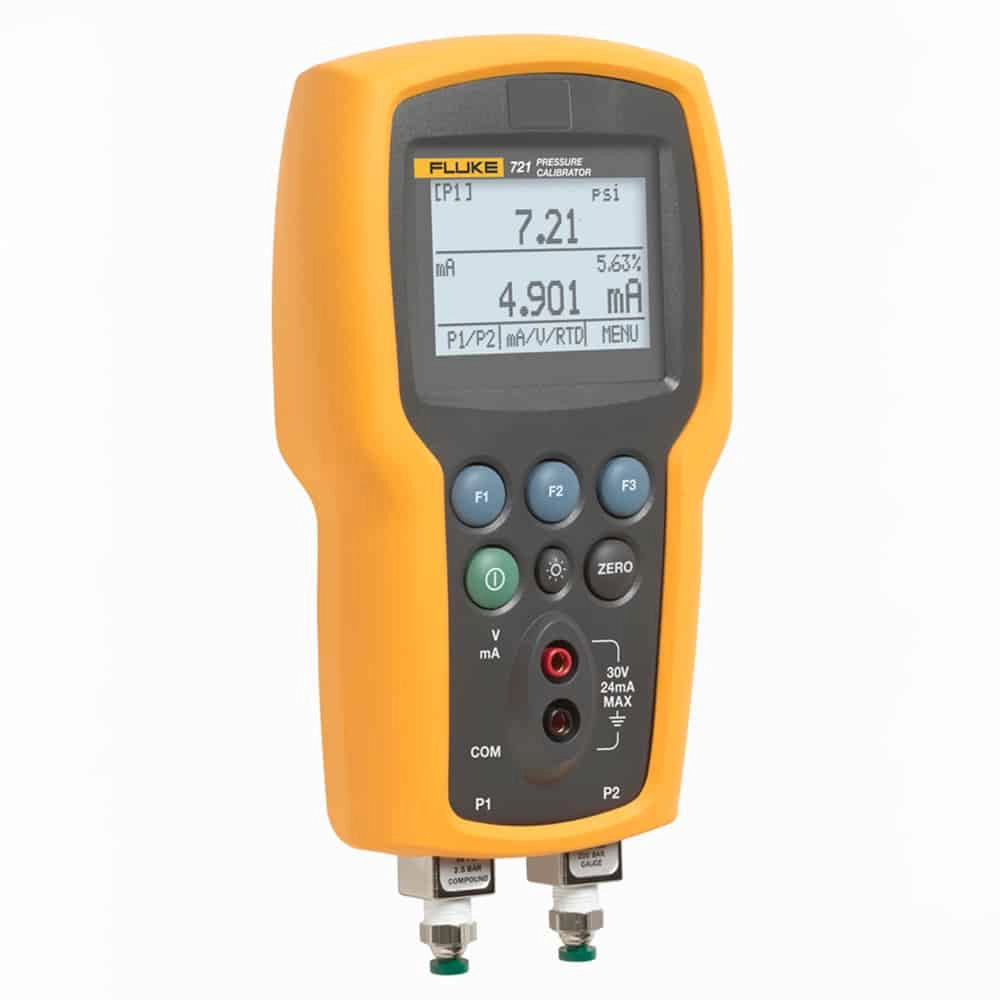

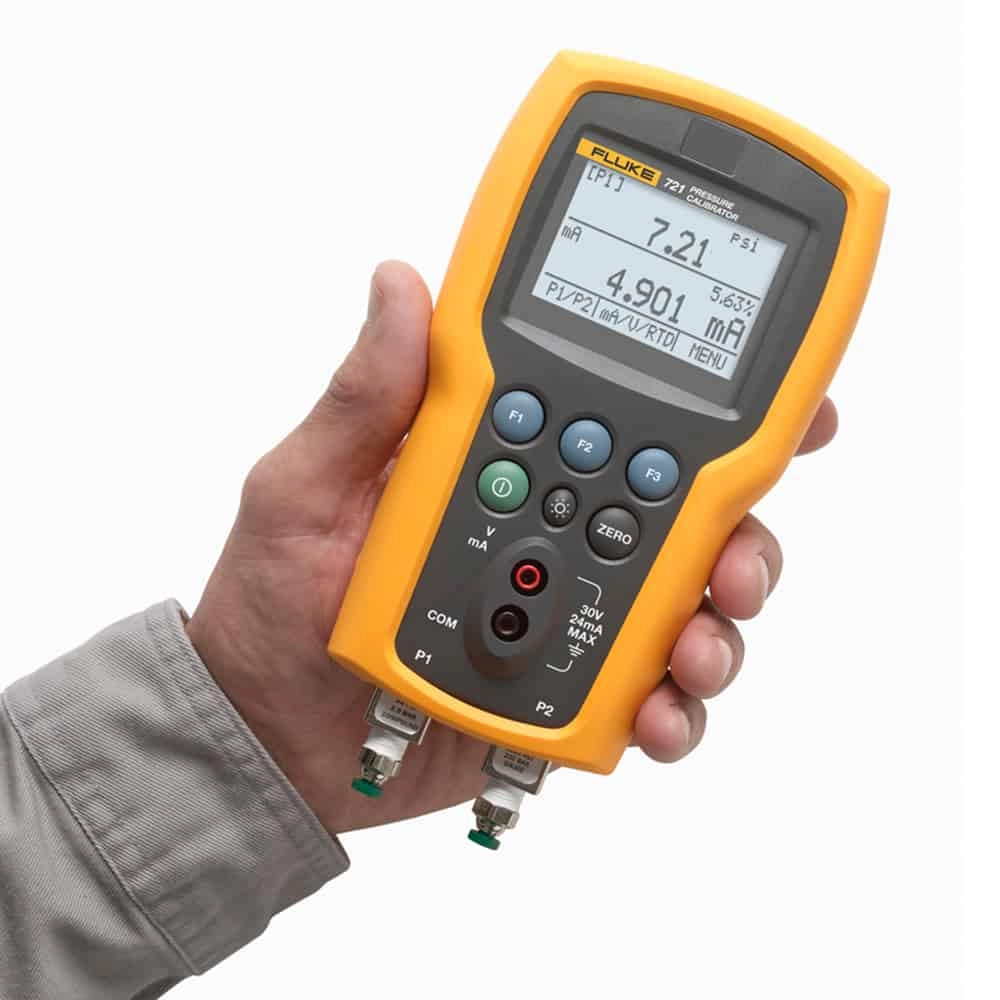

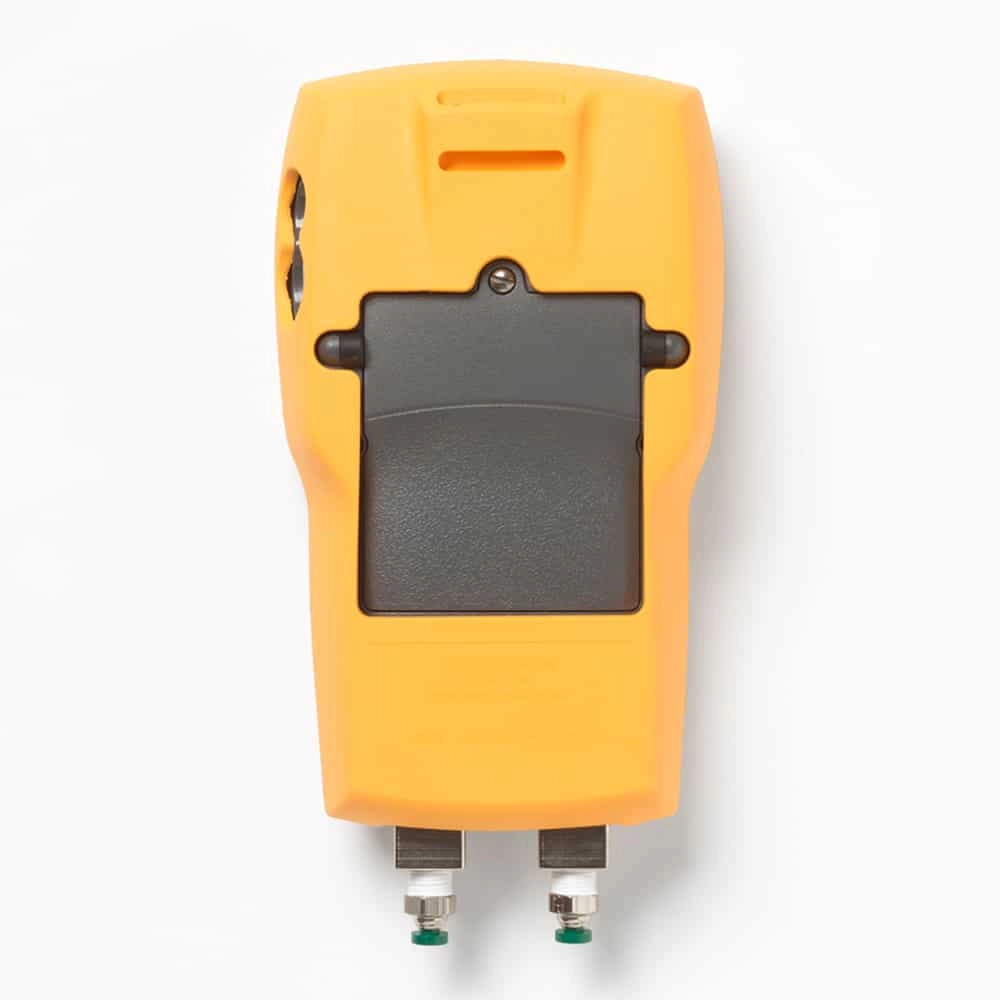

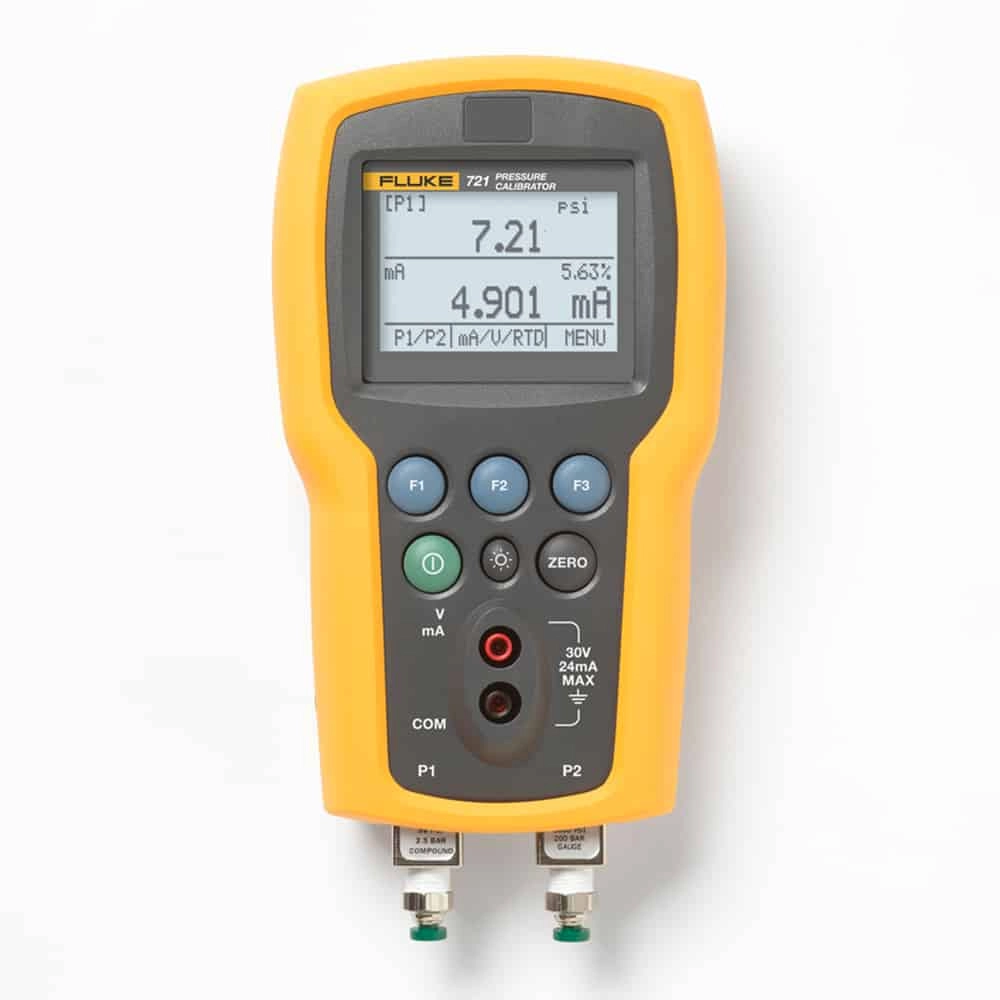

Fluke 721-1603 Dual Sensor Pressure Calibrator, -14 to 16 PSI (Low), -12 to 300 PSI (High)

Features

• Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 16 psi (low) 300 psi (high).
• Dual isolated pressure sensors
• Dual Sensor Pressure Calibrator; 16 PSIG; 300 PSIG

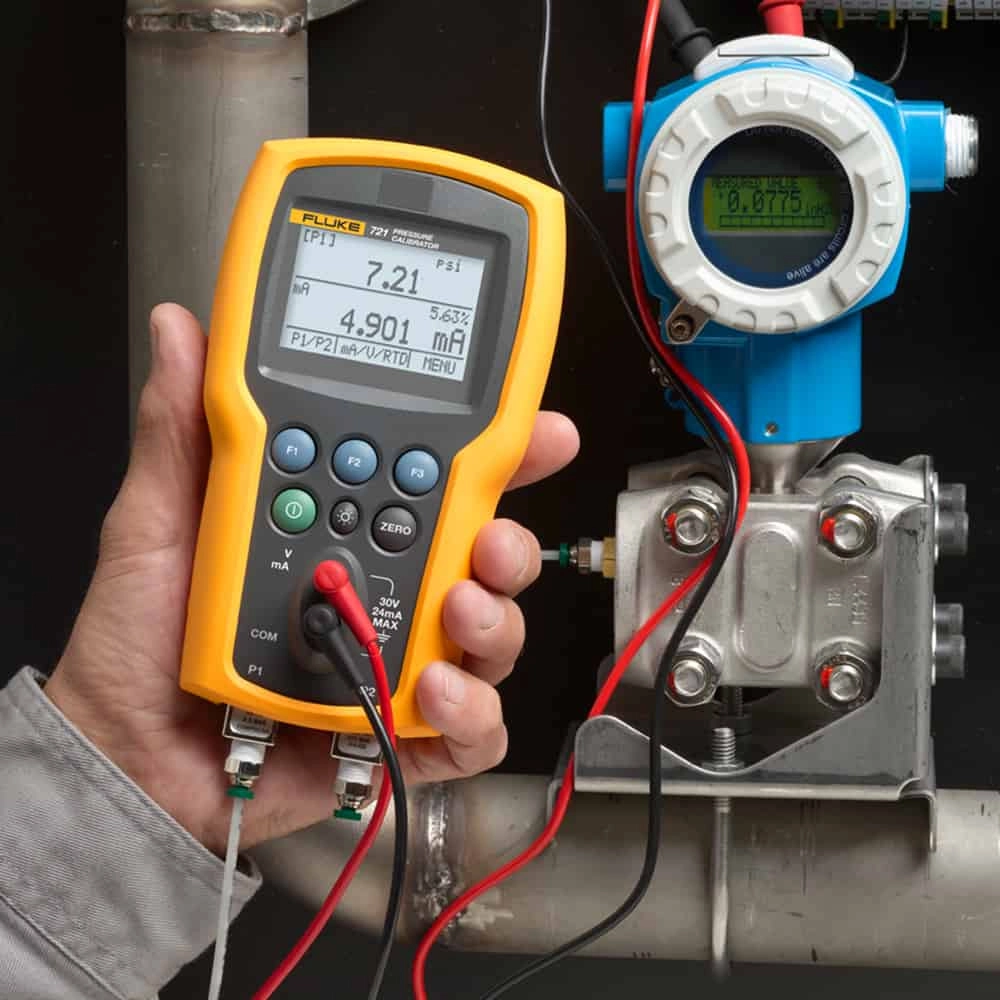

• Ideal for gas flow calibration (custody transfer) applications
• Measures up to 30 V DC, checks 24 V loop power supplies
• Extends pressure measurement range with connection to external 750P
• Provides a large backlit graphic display that can show up to three inputs simultaneously
• Stores five instrument setups for recall

Technical Information

• Resolution0.001 PSI (Low), 0.01 PSI (High)
• Accuracy0.025% of full scale
• Instrument setup recallLast used on power-up
• EnvironmentalOperating temperature -10°C to +50°C Storage temperature (without batteries) -20°C to +60°C
• Altitude2,000 m
• Ingress protectionIP-40
• Power requirements6.0 V DC
• Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)

Items Included

• Range: -14 to 16 PSI (Low), -12 to 300 PSI (High)

Downloads

DatasheetDatasheet
